ELT 18V38RDF (1696112-00) - Snapper 38"/96cm Lawn Tractor, Rear-Discharge, 18hp Seat Deck & Fuel Tank Parts Diagram

38"/96cm Lawn Tractor, Rear-Discharge, 18hp

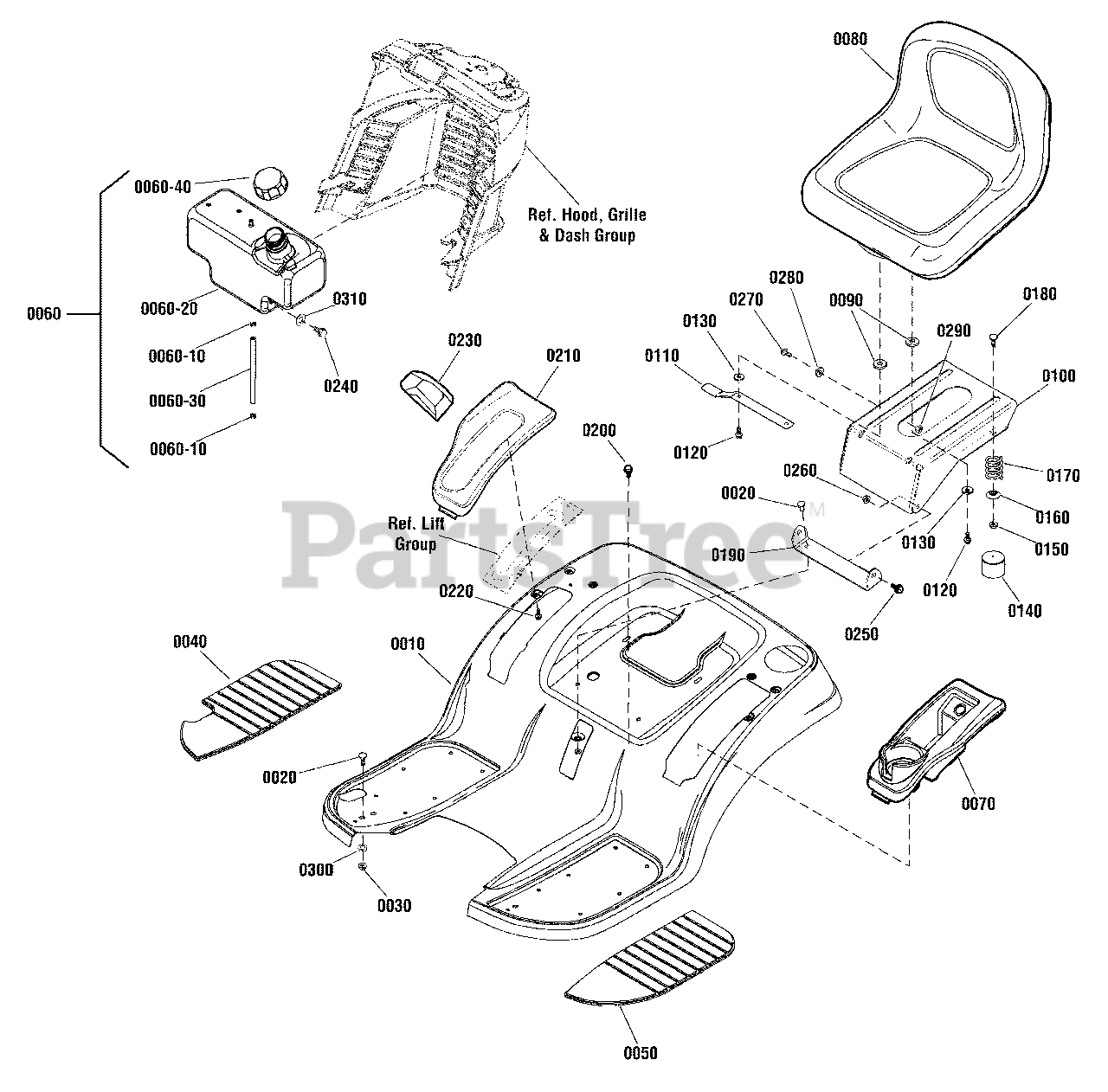

Seat Deck & Fuel Tank Parts Diagram

  • Title

0010

Snapper 885687D

DECK, Seat
(Superseded to 885687DYP)

$305.99

$

Usually ships in 2-12 days

0

0020

Snapper 1931333

BOLT, Carriage, 5/16-18 x 3/4 G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0030

Snapper 1931277

NUT, Hex Flange Whiz Lock Small, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0040

Snapper 1728007

PAD, Footrest, R.H.
(Superseded to 1728007SM)

$20.99

$

In Stock, only 1 left!

0

0050

Snapper 1728006

PAD, Footrest, L.H.
(Superseded to 1728006SM)

$21.99

$

In Stock, only 1 left!

0

0060

Snapper 885548

FUEL TANK ASSEMBLY
(Superseded to 885548YP)

Note: (Includes Ref. Nos. 0060-10, 0060-20, 0060-30 & 0060-40)

$239.99

$

Usually ships in 2-12 days

0

0060-10

Snapper 721403

CLAMP, Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

0060-20

-----

TANK, Fuel

Note: (Not a serviceable part, order Ref. 0060)

$

$

Not available

0060-30

Snapper 7200118

HOSE, Fuel
(Superseded to 7200118YP)

$8.99

$

Usually ships in 2-12 days

0

0060-40

Snapper 727333

CAP, Gas
(Superseded to 092317MA)

$10.99

$

In Stock, Qty 6

0

0070

Snapper 1739535

POD, L.H.
(Superseded to 1739535YP)

$32.99

$

Usually ships in 2-12 days

0

0080

Snapper 1730158

SEAT, Lo Back
(Superseded to 1730158SM)

$347.99

$

Usually ships in 2-12 days

0

0090

Snapper 1731300

SPACER, 5/16 ID x 1-1/4 OD x 5/16
(Superseded to 1731300SM)

$5.49

$

Usually ships in 2-12 days

0

0100

Snapper 1727265A

SUPPORT, Seat
(Superseded to 1727265SM)

$102.99

$

Usually ships in 2-12 days

0

0110

Snapper 1727268A

LATCH, Seat
(Superseded to 1727268SM)

$8.99

$

Usually ships in 2-12 days

0

0120

Snapper 1960667

CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 1
(Superseded to 1960667SM)

$4.99

$

Usually ships in 2-12 days

0

0130

Snapper 1919381

WASHER, 5/16
(Superseded to 1919381SM)

$4.49

$

Usually ships in 2-12 days

0

0140

Snapper 1704724

COVER, Spring
(Superseded to 1704724SM)

$7.99

$

In Stock, only 2 left!

0

0150

Snapper 1960686

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0160

Snapper 1709256

WASHER, Spring
(Superseded to 1709256SM)

$5.99

$

In Stock, only 2 left!

0

0170

Snapper 1704728

SPRING, Compression
(Superseded to 1704728SM)

$9.99

$

In Stock, only 2 left!

0

0180

Snapper 1960282

BOLT, Carriage, 5/16-18 x 3/4 G5
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

0190

Snapper 885538A

PIVOT, Seat
(Superseded to 885538AYP)

$17.99

$

Usually ships in 2-12 days

0

0200

Snapper 1930601

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

0210

Snapper 1739537

POD, R.H.
(Superseded to 1739537YP)

$31.99

$

Usually ships in 2-12 days

0

0220

Snapper 1960536

SCREW, Hex Washer Head, Plastite, 1/4 x 1/2
(Superseded to 1960536SM)

$4.99

$

Usually ships in 2-12 days

0

0230

Snapper 1722302

GRIP
(Superseded to 1722302SM)

$8.49

$

In Stock, Qty 10

0

0240

Snapper 1921958

CAPSCREW, Hex Head, 1/4-20 x 1/2, G5
(Superseded to 1921958SM)

$3.99

$

Usually ships in 2-12 days

0

0250

Snapper 1729576

BOLT, Shoulder, 5/16-18
(Superseded to 703851)

$5.49

$

In Stock, only 1 left!

0

0260

Snapper 1960686

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0270

Snapper 1923114

CAPSCREW, Hex Head, 1/2-13 x 1, G5
(Superseded to 1923114SM)

$3.99

$

In Stock, only 2 left!

0

0280

Snapper 1960170

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

0290

Snapper 5025038

NUT, Hex, 1/2-13
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

0300

Snapper 885382

WASHER, Rubber
(Superseded to 885382YP)

$3.99

$

Usually ships in 2-12 days

0

0310

Snapper 1960353

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, Qty 7

0
