ELT 18V38RDF (1696112-00) - Snapper 38"/96cm Lawn Tractor, Rear-Discharge, 18hp Lift Group Parts Diagram

38"/96cm Lawn Tractor, Rear-Discharge, 18hp

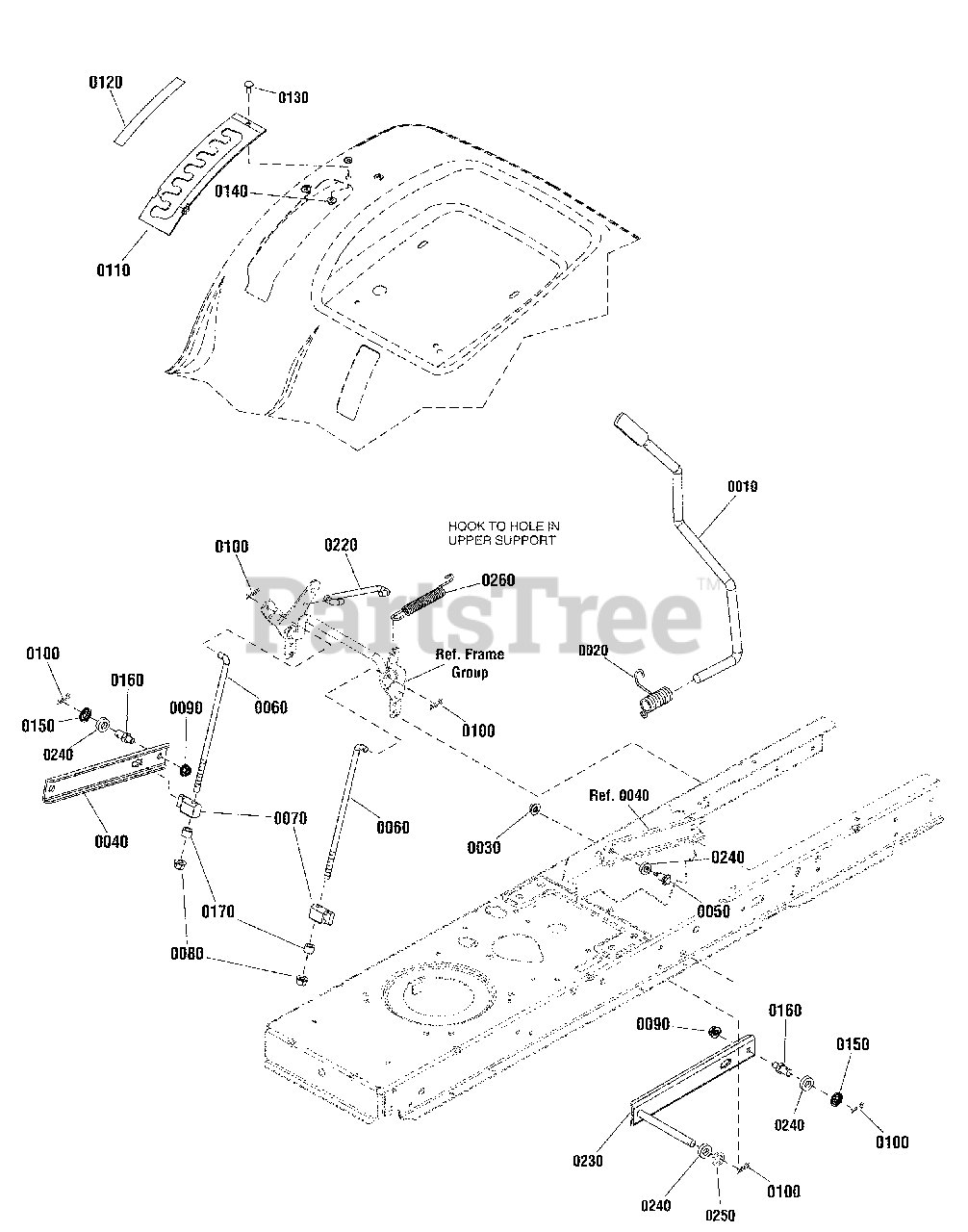

Lift Group Parts Diagram

  • Title
0010

Snapper 1728070

ROD, Lift Handle, 17.7"
(Superseded to 1728070SM)

$40.99

$

Usually ships in 2-12 days

0

0020

Snapper 1729652

SPRING, Torsion, 2.12 Inch
(Superseded to 1729652SM)

$6.49

$

In Stock, only 1 left!

0

0030

Snapper 1931277

NUT, Hex, Flange Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0040

Snapper 1731417BM

ARM, Rear Lift, RH
(Superseded to 1731417BMYP)

$14.99

$

Usually ships in 2-12 days

0

0050

Snapper 1732426

BOLT, Shoulder
(Superseded to 1732426SM)

$4.49

$

In Stock, only 1 left!

0

0060

Snapper 1727955

ROD, Lower Life, 10.00 LG
(Superseded to 1727955SM)

$18.99

$

In Stock, Qty 7

0

0070

Snapper 1731894

TRUNNION
(Superseded to 1731894SM)

$9.99

$

In Stock, only 3 left!

0

0080

Snapper 1960687

NUT, Hex Flange, 3/8-16 ESNA
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0090

Snapper 1931211

NUT, Hex, Flange Lock, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0100

Snapper 1960074

CLIP, Spring
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0110

Snapper 1727985A

QUADRANT, Lift Height
(Superseded to 1727985BMYP)

$12.99

$

Usually ships in 2-12 days

0

0120

Snapper 1730264

DECAL, Height Of Cut
(Superseded to 1730264SM)

$8.99

$

Usually ships in 2-12 days

0

0130

Snapper 1960252

BOLT, Carriage, 1/4-20 x 5/8 G5
(Superseded to 1960252SM)

$3.99

$

In Stock, only 1 left!

0

0140

Snapper 1930641

NUT, Hex Flange Whiz, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

0150

Snapper 1960170

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

0160

Snapper 721221

PIN, Threaded Shoulder
(Superseded to 704054)

$7.49

$

In Stock, Qty 20+

0

0170

Snapper 1666294

SPACER
(Superseded to 1666294SM)

$4.99

$

In Stock, Qty 20+

0

0220

Snapper 1727954

ROD, Lift, 5.43 LG
(Superseded to 1727954SM)

$6.99

$

Usually ships in 2-12 days

0

0230

Snapper 885523BM

ARM, Rear Lift, LH
(Superseded to 885523AYP)

$42.99

$

Usually ships in 2-12 days

0

0240

Snapper 885382

WASHER, Rubber
(Superseded to 885382YP)

$3.99

$

Usually ships in 2-12 days

0

0250

Snapper 720035

WASHER, Spring, 1/2
(Superseded to 0020X3MA)

$4.49

$

Usually ships in 2-12 days

0

0260

Snapper 722453

SPRING, Extension
(Superseded to 165X157MA)

$11.99

$

Usually ships in 2-12 days

0
