ELT 18V38RDF (1696112-00) - Snapper 38"/96cm Lawn Tractor, Rear-Discharge, 18hp Collector Group - 280 Liter Parts Diagram

38"/96cm Lawn Tractor, Rear-Discharge, 18hp

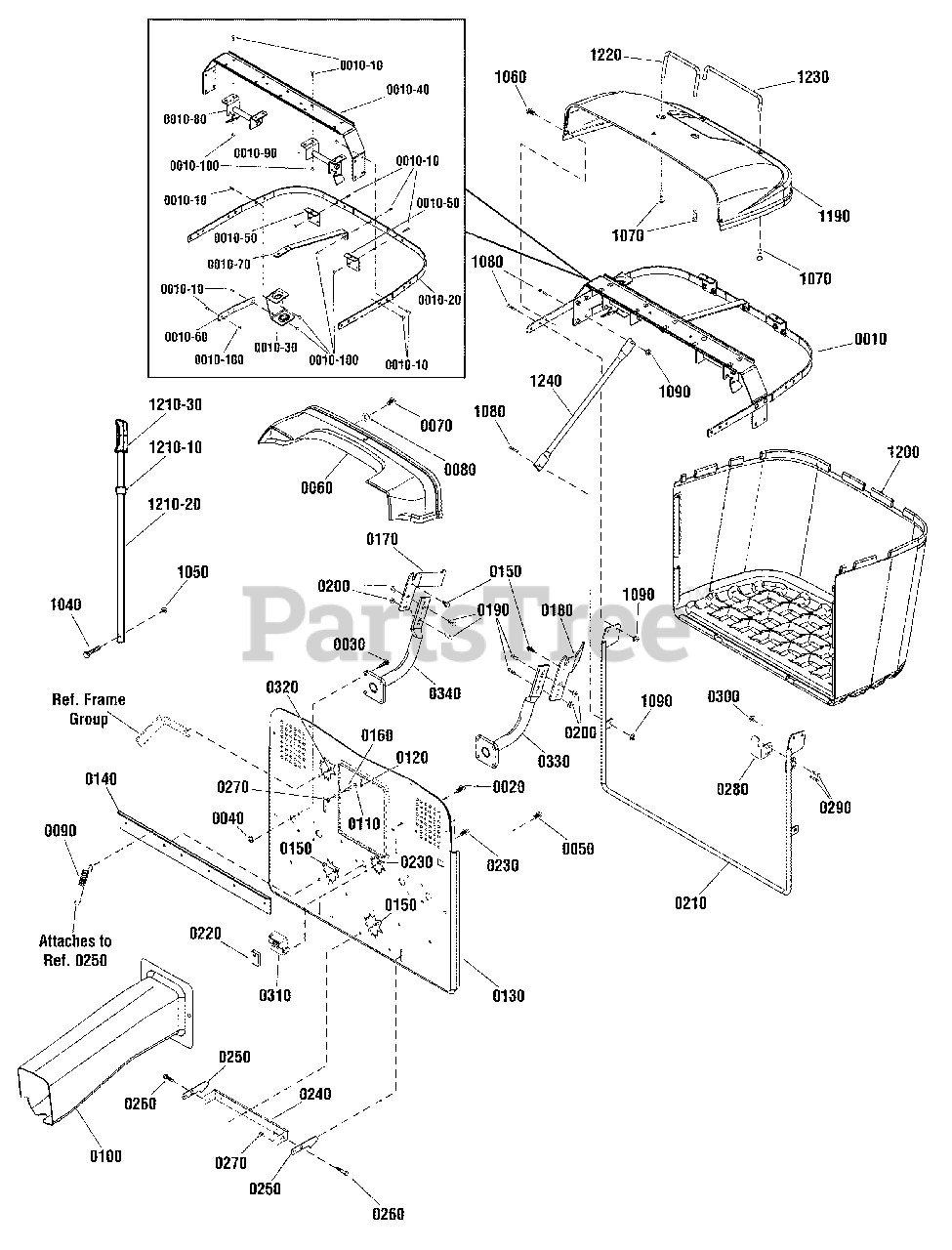

Collector Group - 280 Liter Parts Diagram

  • Title

0010-10

Snapper 720057

BOLT, Carriage, 1/4-20 X 5/8
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

0010-20

Snapper 885413A

FRAME, Upper
(Superseded to 885413AYP)

$94.99

$

Usually ships in 2-12 days

0

0010-30

Snapper 885416A

SUPPORT, Dump Handle
(Superseded to 885416AYP)

$20.99

$

Usually ships in 2-12 days

0

0010-40

Snapper 885507A

CROSS BRACE
(Superseded to 885507AYP)

$68.99

$

Usually ships in 2-12 days

0

0010-50

Snapper 885514A

BRACKET, Mounting, Long
(Superseded to 885514AYP)

$21.99

$

Usually ships in 2-12 days

0

0010-60

Snapper 885520A

SUPPORT STRAP, Dump Handle
(Superseded to 885520AYP)

$11.99

$

Usually ships in 2-12 days

0

0010-70

Snapper 885525A

SUPPORT, Back, Frame
(Superseded to 885525AYP)

$38.99

$

Usually ships in 2-12 days

0

0010-80

Snapper 885561A

BAGGER LOCATOR ASSEMBLY, LH
(Superseded to 885561AYP)

$50.99

$

Usually ships in 2-12 days

0

0010-90

Snapper 885562A

BAGGER LOCATOR ASSEMBLY, RH
(Superseded to 885562AYP)

$50.99

$

Usually ships in 2-12 days

0

0010-100

Snapper 1930641

NUT, Hex Flange, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

0020

Snapper 1664847

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0030

Snapper 1931202

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/4
(Superseded to 703167)

$3.99

$

In Stock, only 3 left!

0

0040

Snapper 720139

NUT, Hex Flange, Serrated, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0050

Snapper 1664847

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0060

Snapper 885400

COVER, Transition
(Superseded to 885400YP)

$153.99

$

Usually ships in 2-12 days

0

0070

Snapper 1664847

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0080

Snapper 1919326

WASHER, 5/16
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0090

Snapper 722494

SPRING, Extension
(Superseded to 165X92MA)

$5.49

$

In Stock, only 2 left!

0

0100

Snapper 885461

CHUTE
(Superseded to 885461YP)

$205.99

$

Usually ships in 2-12 days

0

0110

Snapper 1960170

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

0120

Snapper 1960074

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0130

Snapper 885651A

BACK PLATE
(Superseded to 885651BMYP)

$153.99

$

Usually ships in 2-12 days

0

0140

Snapper 885470A

BRACE, Lower Back Plate
(Superseded to 885470AYP)

$35.99

$

Usually ships in 2-12 days

0

0150

Snapper 1664847

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0160

Snapper 721221

PIN, Threaded Shoulder
(Superseded to 704054)

$7.49

$

In Stock, Qty 20+

0

0170

Snapper 885494A

PLATE, Rotation, RH
(Superseded to 885494AYP)

$26.99

$

Usually ships in 2-12 days

0

0180

Snapper 885473A

PLATE, Rotation, LH
(Superseded to 885473AYP)

$26.99

$

Usually ships in 2-12 days

0

0190

Snapper 1931333

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0200

Snapper 720139

NUT, Hex Flange, Serrated, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0210

Snapper 885566A

FRAME, Bagger
(Superseded to 885566AYP)

$107.99

$

Usually ships in 2-12 days

0

0220

Snapper 885573

SWITCH, Bag Full
(Superseded to 885573YP)

$37.99

$

Usually ships in 2-12 days

0

0230

Snapper 880760

SCREW, Plastite, #10-14 x 7/8
(Superseded to 880760YP)

$4.49

$

Usually ships in 2-12 days

0

0240

Snapper 885497A

BRACKET, Bagger Latch
(Superseded to 885497AYP)

$31.99

$

Usually ships in 2-12 days

0

0250

Snapper 885496A

LATCH, Bagger
(Superseded to 885496AYP)

$13.99

$

Usually ships in 2-12 days

0

0260

Snapper 720091

BOLT, Shoulder
(Superseded to 704206)

$7.99

$

In Stock, only 1 left!

0

0270

Snapper 720142

NUT, Hex Flange, Center Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0280

Snapper 885489A

PLATE, Switch
(Superseded to 885489AYP)

$9.99

$

Usually ships in 2-12 days

0

0290

Snapper 720057

BOLT, Carriage, 1/4-20 x 5/8
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

0300

Snapper 1930641

NUT, Hex Flange, Whiz Lock, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

0310

Snapper 885618

COVER, Bag Full Switch
(Superseded to 885618YP)

$17.99

$

Usually ships in 2-12 days

0

0320

Snapper 722858

CAPSCREW, 5/16-18 x 3/4
(Superseded to 26X249MA)

$

$

Not available

0330

Snapper 885652A

SUPPORT, Bagger, LH
(Superseded to 885652BMYP)

$87.99

$

Usually ships in 2-12 days

0

0340

Snapper 885653A

SUPPORT, Bagger, RH
(Superseded to 885653BMYP)

$87.99

$

Usually ships in 2-12 days

0

1040

Snapper 720033

CAPSCREW, Hex Flange Lock, 1/4-20 x 1-1/4
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

1050

Snapper 720146

NUT, Hex Flange, Lock, 1/4-20
(Superseded to 015X89MA)

$4.49

$

Usually ships in 2-12 days

0

1060

Snapper 885564

SCREW, Torx, 1/4-20
(Superseded to 885564YP)

$3.49

$

Usually ships in 2-12 days

0

1070

Snapper 7091016

SCREW, Hex Washer Head, Self Tap, 1/4-20 x 5/8
(Superseded to 7091016YP)

$4.49

$

In Stock, Qty 5

0

1080

Snapper 703841

BOLT, Carriage, 1/4-20 x 5/8

$3.99

$

Usually ships in 2-12 days

0

1090

Snapper 1930641

NUT, Hex Flange, Whiz Lock, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

1190

Snapper 885401

COVER, Collector, Red
(Superseded to 885401YP)

$330.99

$

Usually ships in 2-12 days

0

1200

Snapper 885510

BAG, Collector
(Superseded to 885510YP)

$250.99

$

Usually ships in 2-12 days

0

1210-10

Snapper 885433

ADJUSTER, Bagger Handle
(Superseded to 885433YP)

$7.49

$

Usually ships in 2-12 days

0

1210-20

Snapper 885518A

HANDLE, Bagger
(Superseded to 885518AYP)

$47.99

$

Usually ships in 2-12 days

0

1210-30

Snapper 1723359

GRIP, Lift Rod
(Superseded to 1723359SM)

$10.99

$

Usually ships in 2-12 days

0

1220

Snapper 885425A

HANDLE, Front
(Superseded to 885425AYP)

$40.99

$

Usually ships in 2-12 days

0

1230

Snapper 885430A

HANDLE, Back
(Superseded to 885430AYP)

$41.99

$

Usually ships in 2-12 days

0

1240

Snapper 885429A

STIFFENER
(Superseded to 885429AYP)

$23.99

$

Usually ships in 2-12 days

0
