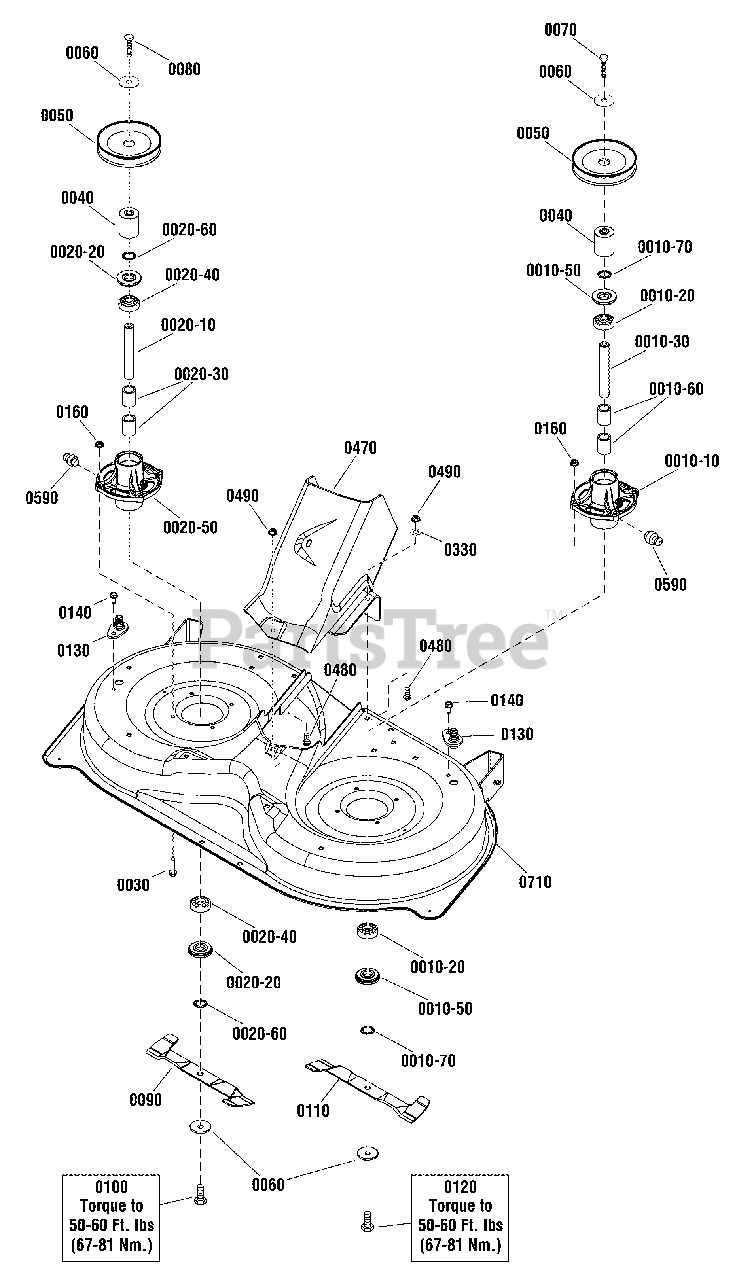

ELT 18V38RDF (1696112-00) - Snapper 38"/96cm Lawn Tractor, Rear-Discharge, 18hp 96cm Mower Deck - Housing, Arbors & Blade Parts Diagram

38"/96cm Lawn Tractor, Rear-Discharge, 18hp

96cm Mower Deck - Housing, Arbors & Blade Parts Diagram

  • Title

0010-10

Snapper 1735573

HOUSING, Spindle
(Superseded to 1735573YP)

$43.99

$

In Stock, Qty 8

0

0010-20

Snapper 1735399

BEARING, Ball, 20mm
(Superseded to 1735399YP)

$9.99

$

In Stock, Qty 20+

0

0010-30

Snapper 1735326

SHAFT, Spindle, LH
(Superseded to 1735326YP)

$27.99

$

In Stock, only 4 left!

0

0010-50

Snapper 1735323

SHIELD, Arbor
(Superseded to 1735323YP)

$6.99

$

In Stock, only 2 left!

0

0010-60

Snapper 1735328

SPACER, Bearing
(Superseded to 1735328YP)

$6.49

$

In Stock, only 3 left!

0

0010-70

Snapper 1960766

RING, Self Locking
(Superseded to 1960766YP)

$4.49

$

In Stock, Qty 20+

0

0020-10

Snapper 885420

SHAFT, Spindle, RH (LH Thread)
(Superseded to 885420YP)

$46.99

$

Usually ships in 2-12 days

0

0020-20

Snapper 1735323

SHIELD, Arbor
(Superseded to 1735323YP)

$6.99

$

In Stock, only 2 left!

0

0020-30

Snapper 1735328

SPACER, Bearing
(Superseded to 1735328YP)

$6.49

$

In Stock, only 3 left!

0

0020-40

Snapper 1735399

BEARING, Ball, 20mm
(Superseded to 1735399YP)

$9.99

$

In Stock, Qty 20+

0

0020-50

Snapper 1735573

HOUSING, Spindle
(Superseded to 1735573YP)

$43.99

$

In Stock, Qty 8

0

0020-60

Snapper 1960766

RING, Self Locking
(Superseded to 1960766YP)

$4.49

$

In Stock, Qty 20+

0

0030

Snapper 1930600

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/2
(Superseded to 1930600SM)

$4.99

$

In Stock, Qty 19

0

0040

Snapper 1750338

SPACER, Mower Drive
(Superseded to 1750338YP)

$16.99

$

Usually ships in 2-12 days

0

0050

Snapper 1737835

PULLEY, Deep Groove
(Superseded to 1737835YP)

$20.99

$

In Stock, only 1 left!

0

0060

Snapper 1656916

WASHER, Spring, 0.475ID x 1-3/4 OD
(Superseded to 1656916SM)

$7.49

$

In Stock, Qty 20+

0

0070

Snapper 1926110

CAPSCREW, Hex Head, 7/16-14 x 2-3/4. G5
(Superseded to 1926110SM)

$6.49

$

Usually ships in 2-12 days

0

0080

Snapper 885456

CAPSCREW, Socket Head, 7/16-14 x 2-3/4, LH
(Superseded to 703846)

$8.99

$

Usually ships in 2-12 days

0

0090

Snapper 885418BM

BLADE, RH, 19.5"
(Superseded to 885418BMYP)

$33.99

$

Usually ships in 2-12 days

0

0100

Snapper 885455

CAPSCREW, Socket Head, 7/16-14 x 1, LH
(Superseded to 703845)

$10.99

$

In Stock, only 2 left!

0

0110

Snapper 885419BM

BLADE, LH, 19.5"
(Superseded to 885419BZYP)

$41.99

$

Usually ships in 2-12 days

0

0120

Snapper 1920676

CAPSCREW, Hex Head, 7/16-14 x 1, G5
(Superseded to 1920676SM)

$5.49

$

In Stock, Qty 12

0

0130

Snapper 1735716

ADAPTER, Washout Port
(Superseded to 1756247YP)

$6.49

$

In Stock, only 1 left!

0

0140

Snapper 1664847

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0160

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0330

Snapper 1919326

WASHER, 5/16
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0470

Snapper 885460

DECK, CENTER CAP
(Superseded to 885460YP)

$193.99

$

Usually ships in 2-12 days

0

0480

Snapper 1931333

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0490

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0590

Snapper 1704314

FITTING, Grease
(Superseded to 1704314SM)

$4.99

$

In Stock, Qty 20+

0

0710

Snapper 885557BM

DECK ASSEMBLY
(Superseded to 885557AYP)

$

$

Not available
