ELT 18V38RDF (1696112-00) - Snapper 38"/96cm Lawn Tractor, Rear-Discharge, 18hp 96cm Mower Deck - Clutch Group Parts Diagram

38"/96cm Lawn Tractor, Rear-Discharge, 18hp

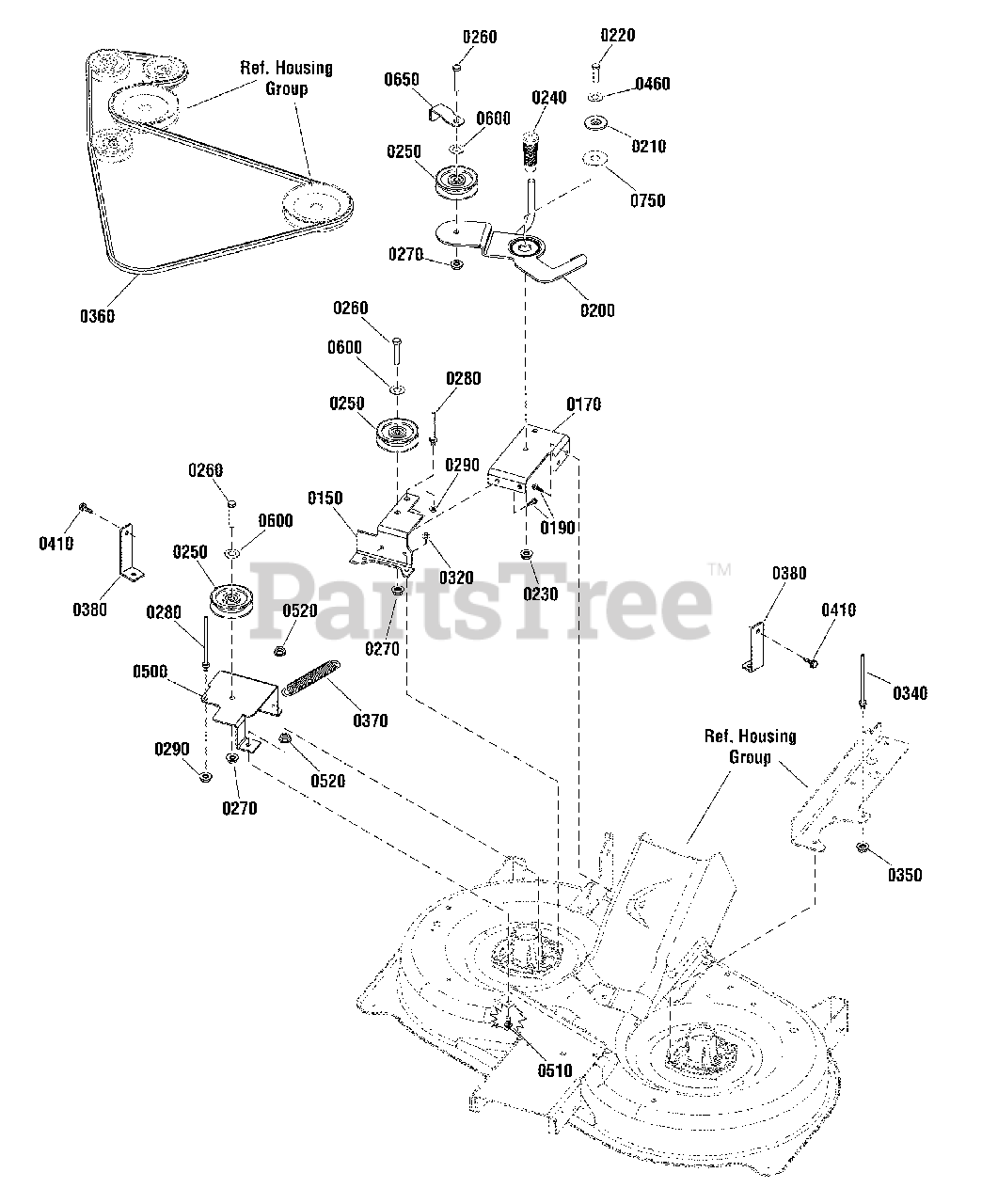

96cm Mower Deck - Clutch Group Parts Diagram

  • Title

0150

Snapper 885481BM

BRACKET, Idler, RH
(Superseded to 885481AYP)

$29.99

$

Usually ships in 2-12 days

0

0170

Snapper 885516BM

SUPPORT, Idler Arm
(Superseded to 885516AYP)

$27.99

$

Usually ships in 2-12 days

0

0190

Snapper 1664847

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0200

Snapper 885559BM

DECK IDLER ASSEMBLY
(Superseded to 885559AYP)

$49.99

$

Usually ships in 2-12 days

0

0210

Snapper 1727935

SPACER, Pivot, 0.330ID 1.76OD
(Superseded to 1727935SM)

$5.99

$

In Stock, only 1 left!

0

0220

Snapper 1921333

CAPSCREW, Hex Head, 5/16-18 x 1, G5
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

0230

Snapper 720145

NUT, Hex Flange, Center Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

0240

Snapper 721120

GRIP
(Superseded to 1753233YP)

$6.99

$

In Stock, Qty 20+

0

0250

Snapper 885482

PULLEY, Deck Idler
(Superseded to 885482YP)

$33.99

$

In Stock, only 1 left!

0

0260

Snapper 1923701

CAPSCREW, Hex Head, 3/8-16 x 2, G5
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

0270

Snapper 1931211

NUT, Hex Flange, Whiz Lock, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0280

Snapper 885534

BELT GUIDE
(Superseded to 885534YP)

$9.49

$

Usually ships in 2-12 days

0

0290

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0320

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0340

Snapper 721974

BELT GUIDE, Long
(Superseded to 1401105MA)

$5.49

$

In Stock, Qty 5

0

0350

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0360

Snapper 885483

BELT, Deck (91.35" EL, HAA section)
(Superseded to 885483YP)

$59.99

$

Usually ships in 2-12 days

0

0370

Snapper 1715435

SPRING, Extension, 1
(Superseded to 1715435SM)

$9.49

$

In Stock, Qty 20+

0

0380

Snapper 885527BM

UPSTOP
(Superseded to 885527AYP)

$7.49

$

Usually ships in 2-12 days

0

0410

Snapper 1664847

CAPSCREW, Hex Washer Head, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0460

Snapper 1919326

WASHER, 5/16
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0500

Snapper 885556BM

BRACKET, Idler, Fixed
(Superseded to 885556AYP)

$24.99

$

Usually ships in 2-12 days

0

0510

Snapper 1921333

CAPSCREW, Hex Head, 5/16-18 x 1, G5
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

0520

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0600

Snapper 1922755

WASHER, Flat, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

0650

Snapper 1677135BM

GUARD, Spring
(Superseded to 1677135ASM)

$12.99

$

In Stock, Qty 8

0

0750

Snapper 885649

SHIM

$

$

Not available
