ELT 18538 (2690796) - Snapper 38" Lawn Tractor, 18.5hp 38" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

38" Lawn Tractor, 18.5hp

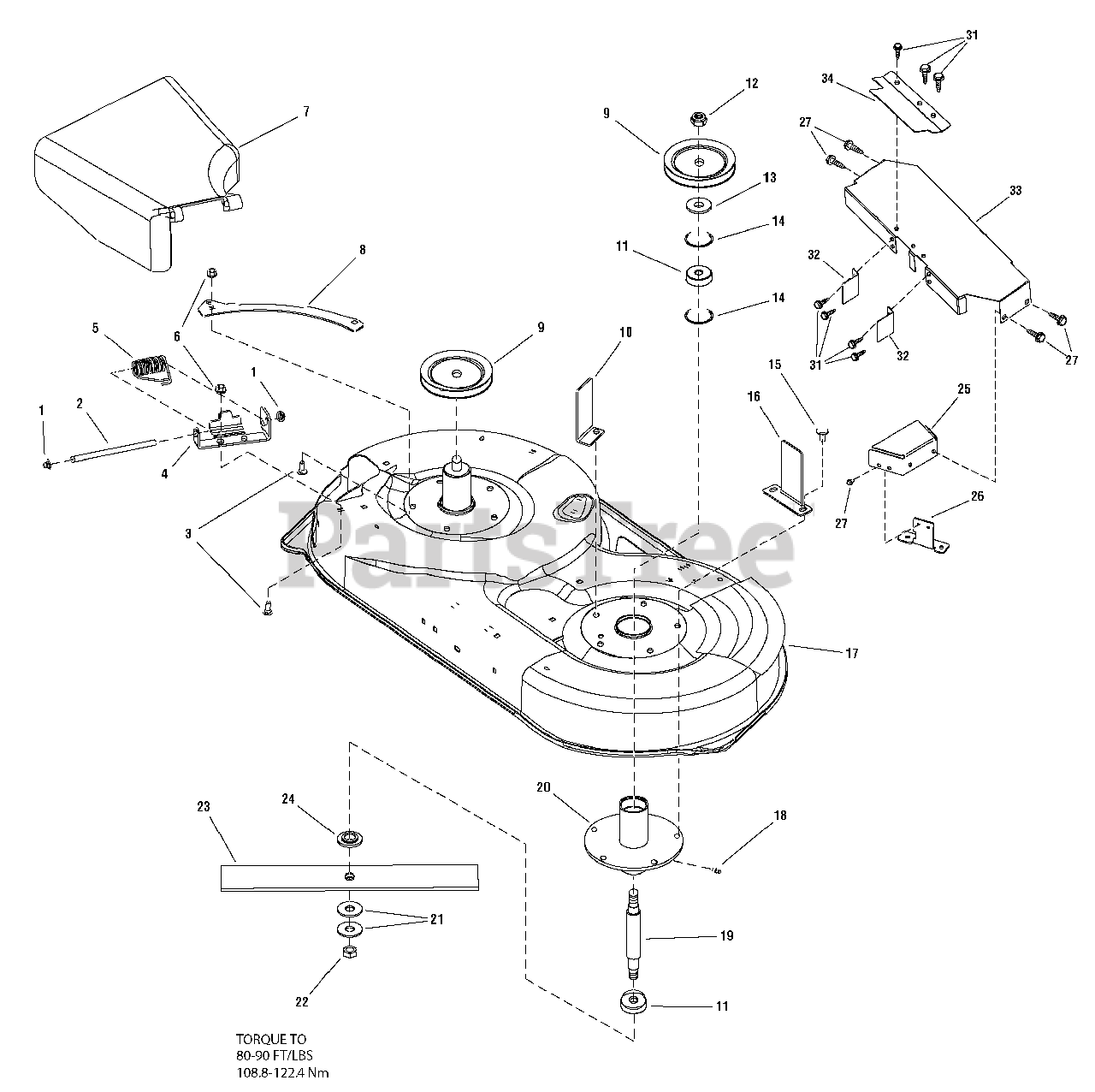

38" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

  • Title

1

Snapper 1960093

NUT, Push, 3/8
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

2

Snapper 721371

ROD, Deflector
(Superseded to 094957ZMA)

$10.99

$

In Stock, only 1 left!

0

3

Snapper 1931333

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

4

Snapper 721369A

BRACKET, Hinge 9GA
(Superseded to 094956E701MA)

$22.99

$

Usually ships in 2-12 days

0

5

Snapper 720154

SPRING, Torsion
(Superseded to 0166X4MA)

$6.49

$

In Stock, Qty 9

0

6

Snapper 1931277

NUT, Hex, Flange Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

7

Snapper 721339

DEFLECTOR & SUPPORT ASSEMBLY, Chute Riveted
(Superseded to 094707MA)

$108.99

$

In Stock, only 3 left!

0

8

Snapper 720911A

PLATE, Rear
(Superseded to 7300834BMYP)

Note: (38" Only)

$16.99

$

Usually ships in 2-12 days

0

9

Snapper 1732952

PULLEY, 5.25
(Superseded to 1732952SM)

Note: (38" Only)

$

$

Not available

10

Snapper 1732555A

UPSTOP, "L" 10GA
(Superseded to 1732555ASM)

$9.99

$

In Stock, only 1 left!

0

11

Snapper 2108202

BEARING, Upper
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

12

Snapper 1922014

NUT, Hex Lock, ESNA Light, 5/8-18, Thin
(Superseded to 703904)

$4.99

$

In Stock, Qty 18

0

13

Snapper 7072440

SPACER, Pulley, 1.755" OD, .655" ID, .280" Thick
(Superseded to 7072440SM)

$9.49

$

In Stock, Qty 19

0

14

Snapper 7012491

RETAINING RING, Extension, 1-3/4
(Superseded to 7012491SM)

$4.49

$

In Stock, Qty 20+

0

15

Snapper 1923683

SCREW, Hex, Washer Head, Taptite, 3/8-16 x 3/4
(Superseded to 703950)

$5.49

$

In Stock, only 1 left!

0

16

Snapper 1732555A

UPSTOP, "L" 10GA
(Superseded to 1732555ASM)

Note: (38" Only)

$9.99

$

In Stock, only 1 left!

0

17

Snapper 1687206

HOUSING, 38"
(Superseded to 1687206SM)

Note: (38" Only)

$512.99

$

Usually ships in 2-12 days

0

18

Snapper 1704314

FITTING, Grease
(Superseded to 1704314SM)

$4.99

$

In Stock, Qty 20+

0

19

Snapper 7072537

SHAFT, Spindle, 7.181" Long
(Superseded to 7072537SM)

$43.99

$

In Stock, Qty 20+

0

20

Snapper 1731372Z

TUBE & PLATE ASSEMBLY, Spindle
(Superseded to 1731372BMYP)

$98.99

$

In Stock, Qty 11

0

21

Snapper 7024467

WASHER, Belleville
(Superseded to 7024467SM)

$4.49

$

In Stock, Qty 20+

0

22

Snapper 7091633

NUT, Hex 9/16-18
(Superseded to 7091633SM)

$4.99

$

In Stock, Qty 20+

0

23

Snapper 1731914

BLADE, 38" Mower, 19.49" Long
(Superseded to 1731914ASM)

Note: (38" Only)

$27.99

$

In Stock, only 2 left!

0

24

Snapper 1731917

WASHER, Spindle Blade Powdered Metal
(Superseded to 1731917SM)

$9.49

$

In Stock, Qty 20+

0

25

Snapper 1736077A

COVER, Spindle
(Superseded to 1736077AYP)

Note: (38" Only) (CE/Export)

$28.99

$

Usually ships in 2-12 days

0

26

Snapper 1733889A

SUPPORT, Spindle Cover
(Superseded to 1733889ASM)

Note: (38" Only) (CE/Export)

$17.99

$

Usually ships in 2-12 days

0

27

Snapper 1925003

SCREW, Tapitite 1/4-20 x 1/2
(Superseded to 704130)

Note: (38" Only) (CE/Export)

$3.99

$

In Stock, Qty 7

0

31

Snapper 1675044

RIVET
(Superseded to 1675044SM)

$3.99

$

In Stock, only 1 left!

0

32

Snapper 1736024A

GUARD, Belt
(Superseded to 1736024AYP)

$4.99

$

Usually ships in 2-12 days

0

33

Snapper 1736021A

GUARD
(Superseded to 1736021AYP)

$91.99

$

Usually ships in 2-12 days

0

34

Snapper 1736022A

GUARD, Belt
(Superseded to 1736022AYP)

$13.99

$

Usually ships in 2-12 days

0
