ELT 1840RD (2690851) - Snapper 40" Lawn Tractor, 18hp Engine Group - 18HP & 24HP Parts Diagram

40" Lawn Tractor, 18hp

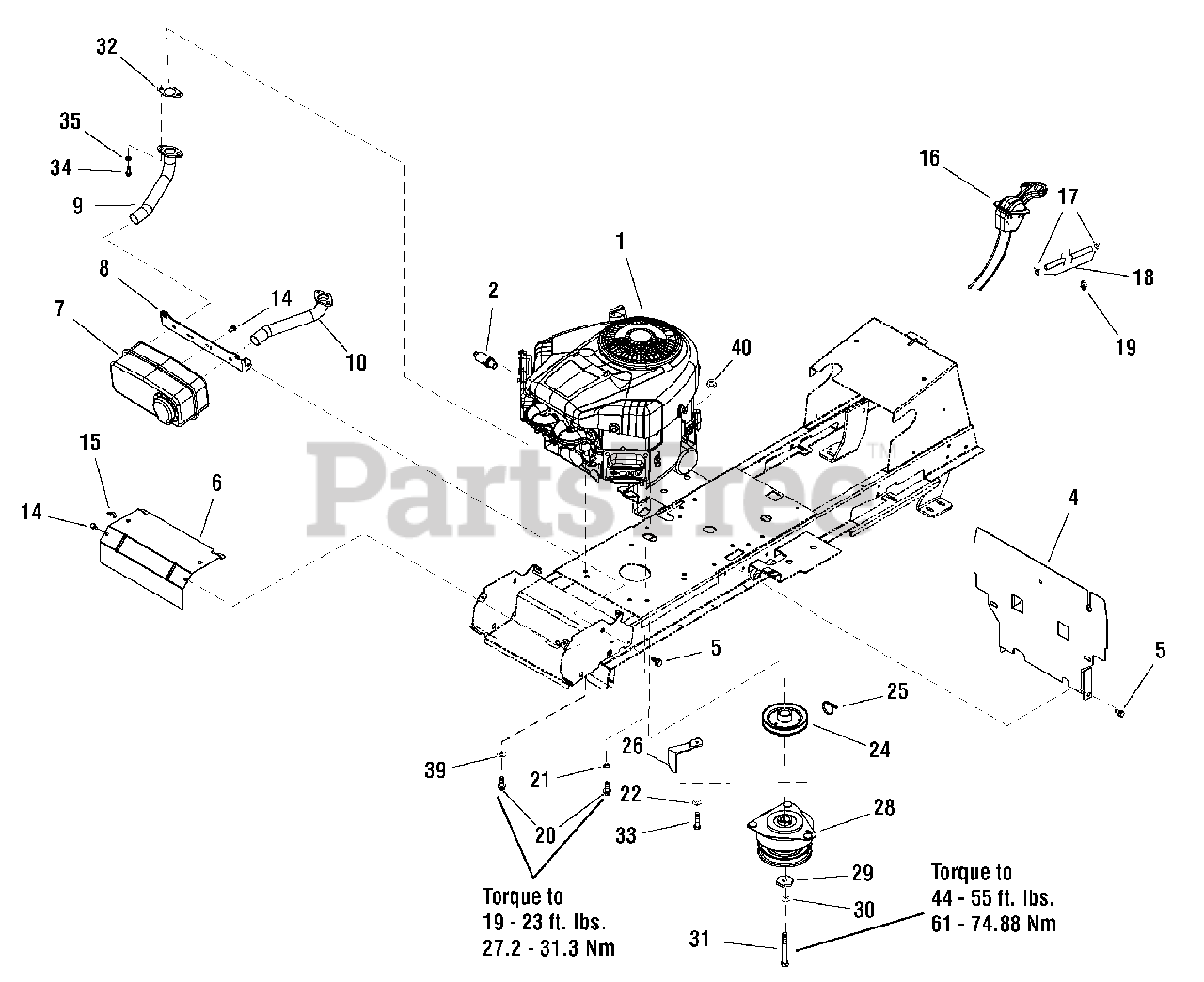

Engine Group - 18HP & 24HP Parts Diagram

  • Title

1

Snapper 405577-0130-B1

* ENGINE, 18HP, B&S Twin

Note: (Engine Model: 405577-0130-B1)

$

$

Not available

1

Snapper 445677-0129-B1

* ENGINE, 24HP, B&S Twin

Note: (Engine Model: 445677-0129-B1)

$

$

Not available

2

Snapper 1717473

VALVE, Shut-off
(Superseded to 1750159YP)

$15.99

$

Usually ships in 2-12 days

0

4

Snapper 1735962

HEAT SHIELD

$

$

Not available

5

Snapper 1930601

SCREW, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

6

Snapper 1727997

HEAT SHIELD
(Superseded to 1727997ASM)

$33.99

$

Usually ships in 2-12 days

0

7

Snapper 1727994

MUFFLER, B&S Twin
(Superseded to 1727994SM)

$98.99

$

Usually ships in 2-12 days

0

8

Snapper 1727976

BRACKET, Muffler Mount
(Superseded to 1727976BMYP)

$14.99

$

Usually ships in 2-12 days

0

9

Snapper 1727980

PIPE, Exhaust, LH Side
(Superseded to 1727980SM)

$37.99

$

In Stock, only 2 left!

0

10

Snapper 1727979

PIPE, Exhaust, RH Side
(Superseded to 1727979SM)

$37.99

$

In Stock, only 1 left!

0

14

Snapper 1925003

SCREW, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, only 3 left!

0

15

Snapper 2834683

CLIP, Wire
(Superseded to 703176)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper 1734505

CONTROL, Throttle (34.75" & 36.5")
(Superseded to 1734505SM)

$97.99

$

In Stock, only 2 left!

0

17

Snapper 1735883

CLAMP, Hose UM5008

$

$

Currently unavailable

18

Snapper 1735913

HOSE, Fuel 1-9920-247

$

$

Not available

19

Snapper 1730268

CLIP, Hose
(Superseded to 1730268SM)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper 2827187

SCREW, Taptite, 3/8-16 x 1
(Superseded to 1927187SM)

$4.49

$

In Stock, only 4 left!

0

21

Snapper 2820427

WASHER, Lock, External Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

22

Snapper 1924940

WASHER, Flat. 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

24

Snapper 1732576

PULLEY & HUB ASSEMBLY
(Superseded to 1732576SM)

$42.99

$

Usually ships in 2-12 days

0

25

Snapper 1735980

TIE

$

$

Not available

26

Snapper 1732875

ROD, Clutch Retainer, Long (BLK)
(Superseded to 1737421AYP)

$12.99

$

In Stock, Qty 10

0

28

Snapper 1732833

CLUTCH, Electric (LONG OGURA)
(Superseded to 1687296SM)

$402.99

$

In Stock, only 1 left!

0

29

Snapper 1708264

WASHER, Hex 1/2
(Superseded to 1708264SM)

$8.99

$

In Stock, Qty 5

0

30

Snapper 1918199

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

31

Snapper 1960649

CAPSCREW, Hex Head 7/16-20 x 3-1/2
(Superseded to 1960649SM)

$7.49

$

In Stock, only 1 left!

0

32

Snapper 1731214

GASKET, Exhaust
(Superseded to 1731214SM)

$4.99

$

Usually ships in 2-12 days

0

33

Snapper 2828635

SCREW, Hex Head, 3/8-16 x 1-1/4
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

34

Snapper 1936228

SCREW
(Superseded to 1936228SM)

$4.49

$

In Stock, only 1 left!

0

35

Snapper 1917356

LOCKWASHER
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

39

Snapper 1736999

WASHER, 8.4

$

$

Not available

40

Snapper 1737000

NUT, 8

$

$

Not available
