ELT 1840RD (2690851) - Snapper 40" Lawn Tractor, 18hp Back Plate Group - 18HP & 24HP Parts Diagram

40" Lawn Tractor, 18hp

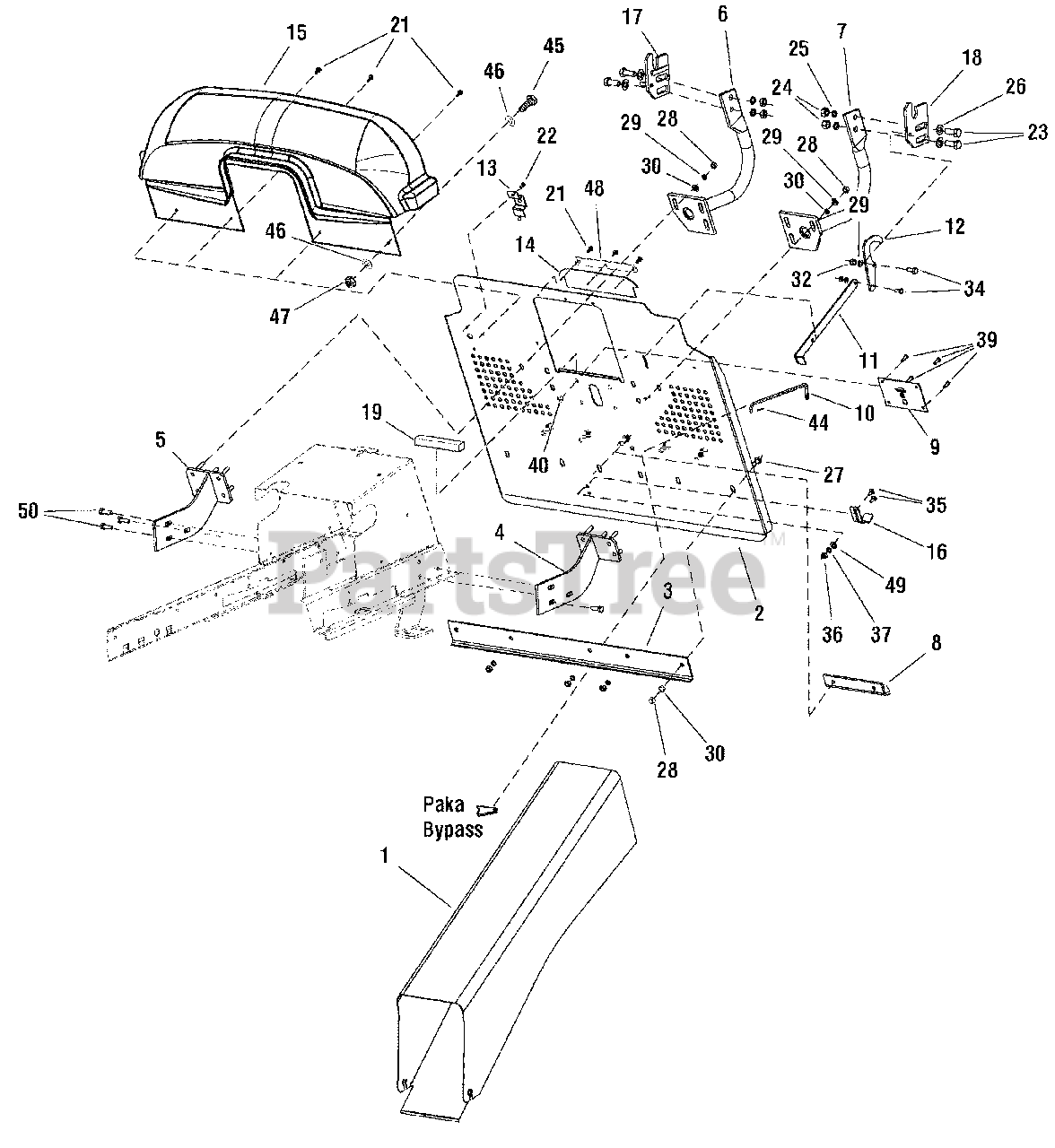

Back Plate Group - 18HP & 24HP Parts Diagram

  • Title

1

Snapper 1735985

TUNNEL

$

$

Not available

2

Snapper 1735849

BACK PLATE

$

$

Not available

3

Snapper 1735876

BRACE

$

$

Not available

4

Snapper 1735906

HOLDER, Back Plate, L.H.

$

$

Not available

5

Snapper 1735907

HOLDER, Back Plate, R.H.

$

$

Not available

6

Snapper 1735908

HOLDER, Collector, R.H.

$

$

Not available

7

Snapper 1735909

HOLDER, Collector, L.H.

$

$

Not available

8

Snapper 1735903

HITCH

$

$

Not available

9

Snapper 1735975

SWITCH, Full Collector

$

$

Not available

10

Snapper 1735977

TIE ROD, Bypass 0-8045-260

$

$

Not available

11

Snapper 1735978

LATCH, Tie Rod

$

$

Not available

12

Snapper 1735915

LATCH

$

$

Not available

13

Snapper 1735887

COVER, Switch

$

$

Not available

14

Snapper 1735939

PAD, Rubber 1-1332-332

$

$

Not available

15

Snapper 1735983

COVER, Plastic

$

$

Not available

16

Snapper 1735970

SPRING COLLECTOR, Lock

$

$

Not available

17

Snapper 1735904

HOLDER, Adjustable, Right

$

$

Not available

18

Snapper 1735905

HOLDER, Adjustable, Left

$

$

Not available

19

Snapper 1736998

RUBBER EDGE

$

$

Not available

21

Snapper 1735961

SCREW, ST 5.5 x 19 DIN 7504-K BN1880

$

$

Not available

22

Snapper 1735960

SCREW, ST 4.2 x 9.5 DIN 7504-K BN1880

$

$

Not available

23

Snapper 1735857

BOLT, M12 x 30

$

$

Not available

24

Snapper 1735927

NUT, M12

$

$

Not available

25

Snapper 1735993

WASHER, 13

$

$

Not available

26

Snapper 1735992

WASHER, 12

$

$

Not available

27

Snapper 1735871

BOLT, M8 x 25 DIN 6921 8.8

$

$

Not available

28

Snapper 1735934

NUT, M8

Note: (Use with washer Ref. 30)

$

$

Not available

28

Snapper 1751829

NUT, Flange Lock, M8

Note: (Washer Ref. 30 not required)

$

$

Not available

29

Snapper 1735989

WASHER, 8.4

$

$

Not available

30

Snapper 1736000

WASHER, 8

$

$

Not available

32

Snapper 1735935

NUT, M8

$

$

Not available

34

Snapper 1735868

BOLT, M8 x 40

$

$

Not available

35

Snapper 1735860

BOLT, M5 x 16

$

$

Not available

36

Snapper 1735930

NUT, M5

$

$

Not available

37

Snapper 1735997

WASHER, 5.3

$

$

Not available

39

Snapper 1735861

BOLT, M5 x 16

$

$

Not available

40

Snapper 1735931

NUT, M5

$

$

Not available

44

Snapper 1735963

SPINDLE, 2 x 20

$

$

Not available

45

Snapper 1735858

BOLT, M4 x 16

$

$

Currently unavailable

46

Snapper 1735995

WASHER, 4.3

$

$

Currently unavailable

47

Snapper 1735929

NUT, M4

$

$

Currently unavailable

48

Snapper 1739133

PAD, Steel

$

$

Not available

49

Snapper 1739134

WASHER, 5.3

$

$

Not available

50

Snapper 1930601

CAPSCREW, Hex Washer Head, Tapitie, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!
