ELT 175420 (2691044) - Snapper 42" Lawn Tractor, 17.5hp Wheels & Tires Group Parts Diagram

42" Lawn Tractor, 17.5hp

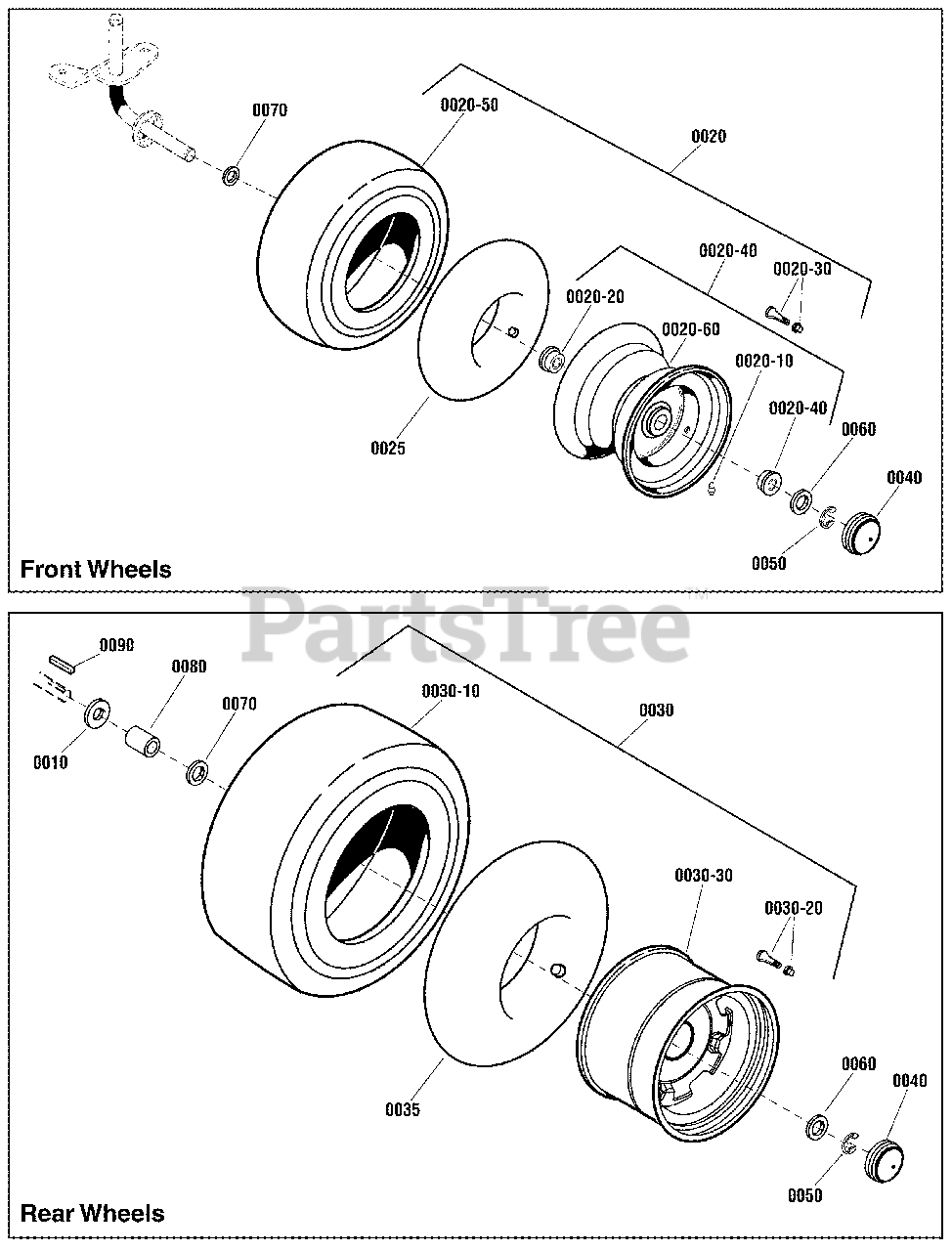

Wheels & Tires Group Parts Diagram

  • Title

0010

Snapper 2860202

WASHER, 3/4
(Superseded to 2860202SM)

$4.49

$

In Stock, Qty 20+

0

0020

Snapper 1729708

WHEEL & TIRE ASSEMBLY, Front
(Superseded to 1729708SM)

Note: (Includes Ref. Nos. 0020-10, 0020-20, 0020-30 & 0020-40)

$168.99

$

Usually ships in 2-12 days

0

0020-10

Snapper 2812808

FITTING, Lube
(Superseded to 2812808SM)

$4.49

$

In Stock, Qty 20+

0

0020-20

Snapper 1752171

BEARING, Flange
(Superseded to 1752171YP)

$11.99

$

In Stock, Qty 20+

0

0020-30

Snapper 2172353

VALVE STEM & CAP
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

0020-40

Snapper 1726301

WHEEL & BUSHING ASSEMBLY
(Superseded to 1726301SM)

Note: (Includes Ref. Nos. 0020-10 & 0020-20)

$82.99

$

In Stock, only 1 left!

0

0020-50

Snapper 1731951

TIRE, Turf Rider, 15 X 6.00 - 6
(Superseded to 1731951SM)

$131.99

$

In Stock, Qty 8

0

0020-60

WHEEL, Rim, Front

Note: (Not a serviceable part, order Ref. 0020-40)

$

$

Not available

0025

Snapper 1664090

TUBE, Tire, Front
(Superseded to 1664090SM)

$26.99

$

In Stock, only 3 left!

0

0030

Snapper 7102668

WHEEL & TIRE ASSEBMLY, Rear, 18 x 8.5-8
(Superseded to 7102668YP)

Note: (Includes Ref. Nos. 0030-10, 0030-20, 0030-30 & 0030-40)

$205.99

$

Usually ships in 2-12 days

0

0030-10

Snapper 7102670

TIRE, K358, 2-Ply, 18 x 8.5-8
(Superseded to 7102670YP)

$125.99

$

Usually ships in 2-12 days

0

0030-20

Snapper 720318

VALVE STEM & CAP
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

0030-30

WHEEL, Broached Hub, 8 x 7

Note: (Not a serviceable part. Order Ref. No. 0030)

$

$

Not available

0035

Snapper 2164247

TUBE, Tire, Rear
(Superseded to 2164247SM)

$40.99

$

Usually ships in 2-12 days

0

0040

Snapper 721318

HUB CAP
(Superseded to 094618MA)

$5.99

$

In Stock, only 4 left!

0

0050

Snapper 720010

E-RING, 3/4
(Superseded to 0011X3MA)

$5.49

$

In Stock, Qty 20+

0

0060

Snapper 722620

WASHER, Flat
(Superseded to 17X195MA)

$4.99

$

In Stock, only 4 left!

0

0070

Snapper 722598

WASHER, Flat, 3/4 x 1-1/4 x 16GA
(Superseded to 17X160MA)

$4.99

$

In Stock, Qty 20+

0

0080

Snapper 1730181

SPACER, 3/4 ID x 1-1/4 OD x 1-5/8"
(Superseded to 1730181SM)

$9.49

$

In Stock, only 2 left!

0

0090

Snapper 720258

KEY, Square, 3/16
(Superseded to 021553MA)

$4.99

$

In Stock, only 2 left!

0
