ELT 175420 (2691044) - Snapper 42" Lawn Tractor, 17.5hp Transmission Group - Hydro Gear Parts Diagram

42" Lawn Tractor, 17.5hp

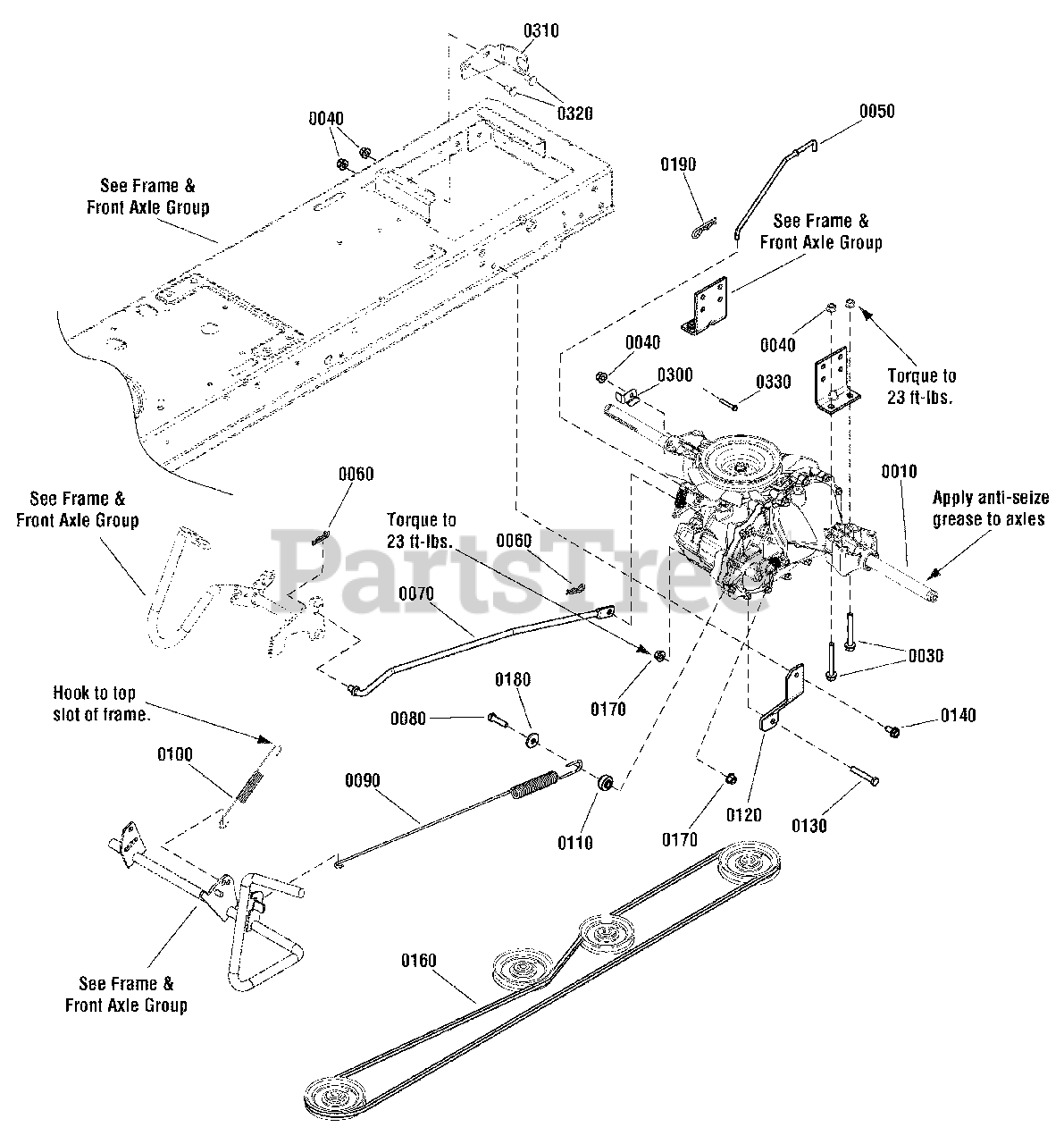

Transmission Group - Hydro Gear Parts Diagram

  • Title
0010

Snapper 1751792

TRANSMISSION, Hydro-Gear, T2
(Superseded to 1751792YP)

$1082.99

$

Usually ships in 2-12 days

0

0030

Snapper 1960586

CAPSCREW, Hex Flange, Whiz Lock, 5/16-18 x 2-1/2
(Superseded to 1960586SM)

$4.99

$

Usually ships in 2-12 days

0

0040

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0050

Snapper 1736716

ROD, Free Wheel
(Superseded to 1759749YP)

$14.99

$

Usually ships in 2-12 days

0

0060

Snapper 1722460

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

0070

Snapper 1751733

ROD, Speed Control
(Superseded to 1751733YP)

$29.99

$

Usually ships in 2-12 days

0

0080

Snapper 1921977

CAPSCREW, Hex Head, 5/16-18 x 1-1/4, G5
(Superseded to 1921977SM)

$4.99

$

In Stock, Qty 10

0

0090

Snapper 1736409

SPRING, Extension
(Superseded to 1736409YP)

$16.99

$

Usually ships in 2-12 days

0

0100

Snapper 1721995

SPRING, Extension, 5/8 OD x 6-5/8 Long
(Superseded to 1721995SM)

$8.49

$

Usually ships in 2-12 days

0

0110

Snapper 1736854

SPACER
(Superseded to 1736854YP)

$14.99

$

Usually ships in 2-12 days

0

0120

Snapper 1736410A

STRAP, Torque
(Superseded to 1736410AYP)

$20.99

$

In Stock, only 1 left!

0

0130

Snapper 1921978

CAPSCREW, Hex Head, 5/16-18 x 2, G5
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

0140

Snapper 1664847SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0160

Snapper 1737441

V-BELT, Drive Belt, HA, 88.46
(Superseded to 1737441YP)

$51.99

$

Usually ships in 2-12 days

0

0170

Snapper 1960686

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0180

Snapper 1919381

WASHER, 5/16
(Superseded to 1919381SM)

$4.49

$

In Stock, only 1 left!

0

0190

Snapper 1960221

CLIP, Hairpin
(Superseded to 704039)

$4.49

$

In Stock, Qty 9

0

0300

Snapper 1751901BM

BRACKET, Switch Actuator
(Superseded to 1751901BMYP)

$16.99

$

Usually ships in 2-12 days

0

0310

Snapper 1751900BM

SUPPORT, Switch
(Superseded to 1751900BMYP)

$16.99

$

Usually ships in 2-12 days

0

0320

Snapper 1931333

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0330

Snapper 1921332

CAPSCREW, Hex Head, 5/16-18 x 3/4, G5
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0
