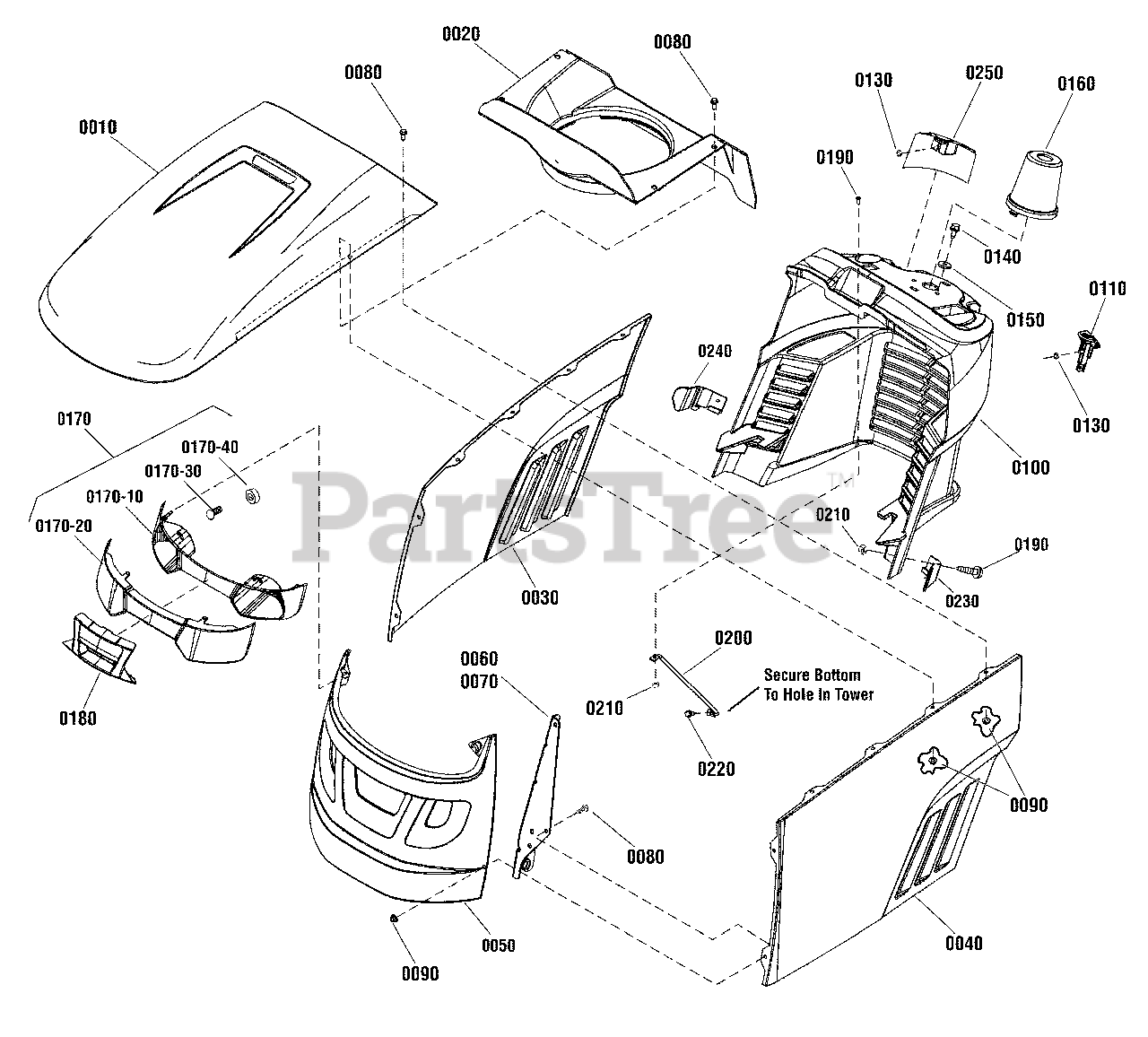

Hood, Grille & Dash Group Parts Diagram

  • Title

0010

Snapper 1728031D

HOOD, With Scoop
(Superseded to 1728031DSM)

$311.99

$

In Stock, only 1 left!

0

0020

Snapper 7102326

AIR DUCT, Plenum
(Superseded to 7102326YP)

$131.99

$

In Stock, only 1 left!

0

0030

Snapper 1727294D

PANEL, Side, R.H.
(Superseded to 1727294DSM)

$128.99

$

Usually ships in 2-12 days

0

0040

Snapper 1727295D

PANEL, Side, L.H.
(Superseded to 1727295DSM)

$111.99

$

Usually ships in 2-12 days

0

0050

Snapper 1728059D

GRILLE
(Superseded to 1728059DSM)

$143.99

$

Usually ships in 2-12 days

0

0060

Snapper 1727279A

HINGE, Hood, L.H.
(Superseded to 1727279BMYP)

$20.99

$

In Stock, only 1 left!

0

0070

Snapper 1727280A

HINGE, Hood, R.H.
(Superseded to 1727280ASM)

$20.99

$

Usually ships in 2-12 days

0

0080

Snapper 1960295

CAPSCREW, Hex Flange Whiz Lock, 1/4-20 x 5/8
(Superseded to 1960295SM)

$4.49

$

In Stock, only 1 left!

0

0090

Snapper 1930641

NUT, Hex Flange Whiz Lock Large, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

0100

Snapper 885583

CONSOLE
(Superseded to 885583YP)

$233.99

$

Usually ships in 2-12 days

0

0110

Snapper 1728089

KNOB, Brake Lock, Red
(Superseded to 1728089SM)

$7.49

$

In Stock, only 4 left!

0

0130

Snapper 1960518

PUSHNUT, 1/4
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

0140

Snapper 1664847

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0150

Snapper 1919381

WASHER, 5/16
(Superseded to 1919381SM)

$4.49

$

Usually ships in 2-12 days

0

0160

Snapper 1727999

COVER
(Superseded to 1727999SM)

$17.99

$

Usually ships in 2-12 days

0

0170

Snapper 1727296

HEADLIGHT ASSEMBLY
(Superseded to 1727296SM)

Note: (Includes Ref. Nos. 0170-10, 0170-20, 0170-30 & 0170-40)

$237.99

$

In Stock, Qty 7

0

0170-10

Snapper 1728973

REFLECTOR
(Superseded to 1728973SM)

$237.99

$

In Stock, Qty 7

0

0170-20

Snapper 1728974

LENS, Headlight
(Superseded to 1728974SM)

$237.99

$

In Stock, Qty 7

0

0170-30

Snapper 1677371

BULB, Headlight, 1141-12V 21CP
(Superseded to 1677371SM)

$30.99

$

In Stock, only 1 left!

0

0170-40

Snapper 1723451

SOCKET
(Superseded to 1723451SM)

$28.99

$

In Stock, only 1 left!

0

0180

Snapper 1728975

INSERT, Lightbar
(Superseded to 1728975SM)

$12.99

$

In Stock, only 1 left!

0

0190

Snapper 1960392

SCREW, Pan Head Phillips, #10-24 x 1/2
(Superseded to 1960392SM)

$3.99

$

Usually ships in 2-12 days

0

0200

Snapper 885435BM

ROD, Bagger Support
(Superseded to 885435AYP)

$18.99

$

Usually ships in 2-12 days

0

0210

Snapper 1933896

NUT, Nylock, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0220

Snapper 1925003

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, only 1 left!

0

0230

Snapper 1732030

GUIDE, Hood, L.H.
(Superseded to 1732030SM)

$7.49

$

In Stock, only 2 left!

0

0240

Snapper 1732031

GUIDE, Hood, R.H.
(Superseded to 1732031SM)

$7.49

$

In Stock, Qty 5

0

0250

Snapper 885686

PLUG, Cruise Control
(Superseded to 885686YP)

$3.49

$

Usually ships in 2-12 days

0
