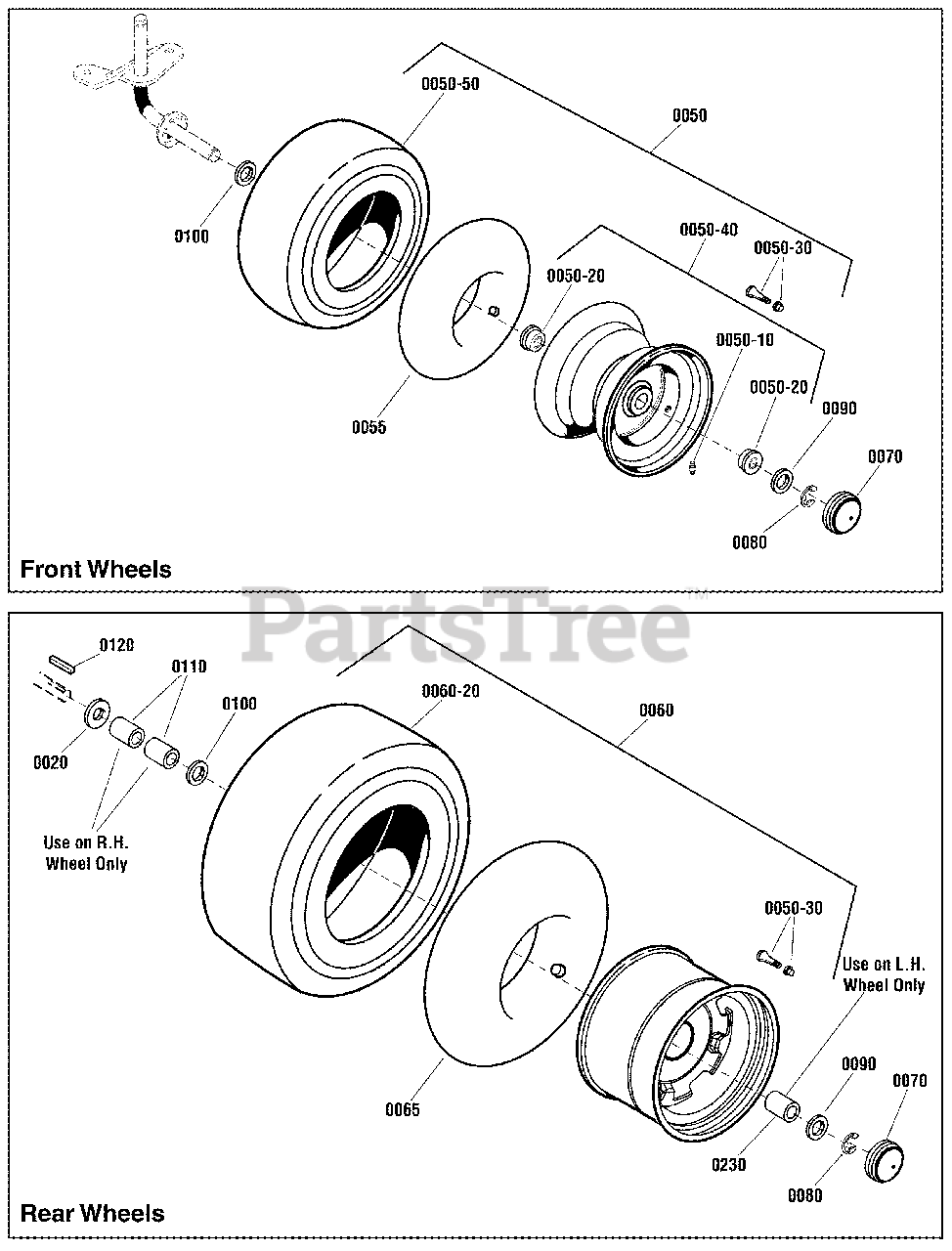

ELT 16538RD (2690935) - Snapper 38" Lawn Tractor, 16.5hp Wheel & Tire Group Parts Diagram

38" Lawn Tractor, 16.5hp

Wheel & Tire Group Parts Diagram

  • Title

0020

Snapper 2860202

WASHER, 3/4
(Superseded to 2860202SM)

$4.49

$

In Stock, Qty 20+

0

0050

Snapper 1729708

WHEEL& TIRE ASSEMBLY, Front
(Superseded to 1729708SM)

Note: (Includes Ref. Nos. 0090-10, 0090-20, 0090-30, 0090-40 & 0090-50)

$168.99

$

Usually ships in 2-12 days

0

0050-10

Snapper 2812808

FITTING, Lube
(Superseded to 2812808SM)

$4.49

$

In Stock, Qty 20+

0

0050-20

Snapper 1713167

BEARING, 3/4
(Superseded to 1752171YP)

$11.99

$

In Stock, Qty 20+

0

0050-30

Snapper 2172353

VALVE STEM & CAP
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

0050-40

Snapper 1726301

WHEEL & BUSHINGS ASSEMBLY, Front
(Superseded to 1726301SM)

Note: (Includes Ref. Nos. 0090-10 & 0090-30)

$82.99

$

In Stock, only 2 left!

0

0050-50

Snapper 1731951

TIRE, Kenda, Turf Rider, Front, 15 x 6.00 - 6
(Superseded to 1731951SM)

$131.99

$

In Stock, Qty 8

0

0055

Snapper 1664090

TUBE, Tire, Front
(Superseded to 1664090SM)

$26.99

$

In Stock, only 3 left!

0

0060

Snapper 885457

WHEEL & TIRE ASSEMBLY, Rear, 20 X 8-8
(Superseded to 885457YP)

Note: (Includes Ref. Nos. 0090-30 & 0100-20)

$239.99

$

Usually ships in 2-12 days

0

0060-20

TIRE, Rear, K358 x 20 x 8.94-8

Note: (Not a serviceable part, order Ref. 0060)

$

$

Not available

0065

Snapper 2164247

TUBE, Tire, Rear
(Superseded to 2164247SM)

$40.99

$

Usually ships in 2-12 days

0

0070

Snapper 721318

HUB CAP
(Superseded to 094618MA)

$5.99

$

In Stock, Qty 8

0

0080

Snapper 720010

E-RING
(Superseded to 0011X3MA)

$5.49

$

In Stock, Qty 20+

0

0090

Snapper 722620

WASHER, Flat
(Superseded to 17X195MA)

$4.99

$

In Stock, only 4 left!

0

0100

Snapper 722598

WASHER, Flat, 3/4 x 1-1/4 x 16GA
(Superseded to 17X160MA)

$4.99

$

In Stock, Qty 20+

0

0110

Snapper 1730181

SPACER, 3/4 ID x 1-1/4 OD x 1-5/8, RH
(Superseded to 1730181SM)

Note: (Use on R.H. Side Only)

$9.49

$

In Stock, only 2 left!

0

0120

Snapper 720258

KEY, Square, 3/16
(Superseded to 021553MA)

$4.99

$

In Stock, only 2 left!

0

0230

Snapper 885578

SPACER, Wheel, LH
(Superseded to 885578YP)

Note: (Use on L.H. Side Only)

$6.99

$

Usually ships in 2-12 days

0
