ELT 16538RD (2690935) - Snapper 38" Lawn Tractor, 16.5hp 38" Mower Deck - Support Group Parts Diagram

38" Lawn Tractor, 16.5hp

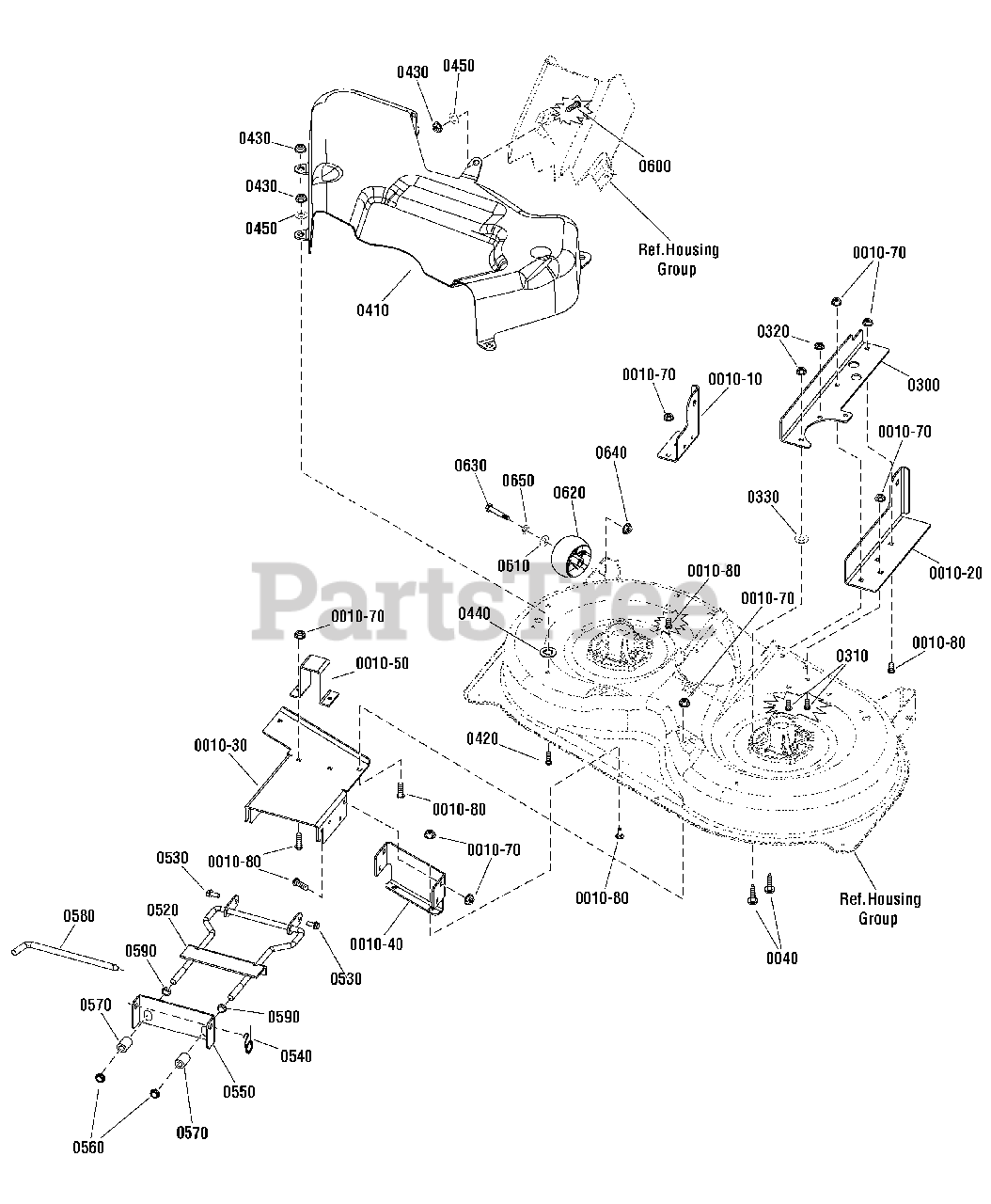

38" Mower Deck - Support Group Parts Diagram

  • Title

0010-10

Snapper 885462D

BRACKET, Deck, Rear

$

$

Currently unavailable

0010-20

Snapper 885463D

BRACKET, Rear Lift, LH
(Superseded to 885463AYP)

$37.99

$

Usually ships in 2-12 days

0

0010-30

Snapper 885464D

SUPPORT, Deck Front
(Superseded to 885464AYP)

$46.99

$

Usually ships in 2-12 days

0

0010-40

Snapper 885465D

BRACKET, Support
(Superseded to 885465AYP)

$38.99

$

Usually ships in 2-12 days

0

0010-50

Snapper 885519D

BRACKET, Front Upstop

$

$

Currently unavailable

0010-70

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0010-80

Snapper 1931333

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

0040

Snapper 1930600

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/2
(Superseded to 1930600SM)

$4.99

$

In Stock, Qty 19

0

0300

Snapper 885526A

BRACKET, Rear Lift, LH
(Superseded to 885526AYP)

$28.99

$

Usually ships in 2-12 days

0

0310

Snapper 1931333

BOLT, Carriage, Short Square Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

0320

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0330

Snapper 1919326

WASHER, 5/16
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0410

Snapper 885543

COVER, Pulley
(Superseded to 885543YP)

$279.99

$

Usually ships in 2-12 days

0

0420

Snapper 1931333

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

0430

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0440

Snapper 5025498

NUT, Push On, 5/16
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

0450

Snapper 1919326

WASHER, 5/16
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0520

Snapper 885576A

ROD ASSEMBLY, Front Hanger
(Superseded to 885576AYP)

$61.99

$

Usually ships in 2-12 days

0

0530

Snapper 1930591

CAPSCREW, Hex Lock Flange, 5/16-18 x 3/4
(Superseded to 80003531)

$5.49

$

In Stock, Qty 14

0

0540

Snapper 2176012

RETAINER, Pin Spring
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

0550

Snapper 1730221A

HANGER, Front
(Superseded to 1730221ASM)

$12.99

$

In Stock, only 2 left!

0

0560

Snapper 1960379

NUT, Hex Lock, ESNA LIGHT, 1/2-13
(Superseded to 1960379SM)

$4.99

$

In Stock, Qty 18

0

0570

Snapper 1679166

SPACER, 1/2 ID, 7/8 OD x 1-3/16
(Superseded to 1679166SM)

$7.49

$

In Stock, only 2 left!

0

0580

Snapper 1731414

ROD, Latch
(Superseded to 1731414SM)

$14.99

$

Usually ships in 2-12 days

0

0590

Snapper 1913744

NUT, Hex Jam, 1/2-13
(Superseded to 1913744SM)

$4.99

$

In Stock, Qty 19

0

0600

Snapper 720049

BOLT, Carriage, 5/16-18 x 5/8
(Superseded to 703159)

$3.99

$

In Stock, Qty 19

0

0610

Snapper 1960170

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

0620

Snapper 1714760

WHEEL, Gauge
(Superseded to 1714760SM)

$6.49

$

In Stock, Qty 20+

0

0630

Snapper 2108765

BOLT, 3/8-16 x 2-3/4
(Superseded to 2108765SM)

$6.49

$

In Stock, Qty 20+

0

0640

Snapper 1960687

NUT, Hex Flange, ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0650

Snapper 720035

WASHER, Spring, .30" ID
(Superseded to 0020X3MA)

Note: (was 7026257)

$4.49

$

Usually ships in 2-12 days

0
