ELT 150H33IBV (84901) - Snapper 33" Lawn Tractor, 15hp FRAME, CLUTCH, BRAKE & STEERING COMPONENTS Parts Diagram

33" Lawn Tractor, 15hp

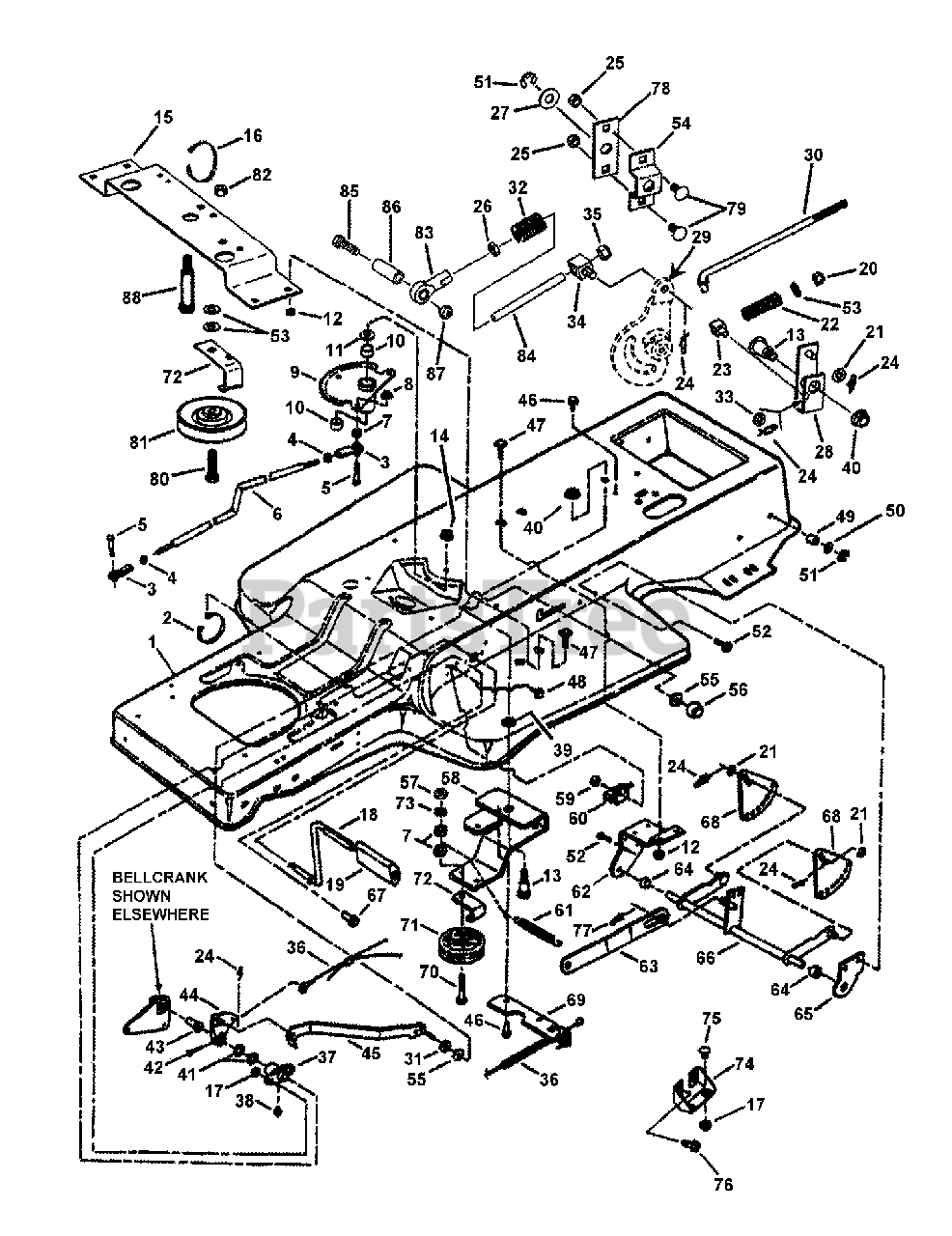

FRAME, CLUTCH, BRAKE & STEERING COMPONENTS Parts Diagram

  • Title

1

Snapper 7073345

FRAME, Tractor (I piece)

Note: used on Series "H" Models

$

$

Currently unavailable

1

Snapper 7075079

FRAME, Tractor (I piece)
(Superseded to 7075079YP)

Note: used on Series "I" Models

$287.99

$

Usually ships in 2-12 days

0

2

Snapper 7014451

CABLE TIE, 3.19
(Superseded to 7014451YP)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper 7027936

ROD END, Pump Control Linkage, 3/8-24 thread
(Superseded to 7027936SM)

$17.99

$

In Stock, only 2 left!

0

4

Snapper 7090482

NUT, 3/8-24 Hex Jam
(Superseded to 7090482SM)

$4.49

$

In Stock, only 1 left!

0

5

Snapper 7090163

SCREW, 3/8-24 x 1-1/4" Square Neck Carriage

$

$

Not available

6

Snapper 7028420

DRAGLINK

$

$

Not available

7

Snapper 7024180

SPACER, Tie Rod
(Superseded to 7024180YP)

$7.49

$

Usually ships in 2-12 days

0

8

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

9

Snapper 7053568

ASSEMBLY, Steering Sector (Includes 41267, Weldment & item 10)

$

$

Not available

10

Snapper 7012706

BEARING, Sleeve, .875 0.D. x .75
(Superseded to 7012706SM)

$10.99

$

In Stock, only 4 left!

0

11

Snapper 7031036

THRUST WASHER
(Superseded to 7031036YP)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 5

0

13

Snapper 7022381

SHOULDER BOLT, 1/2-13 thread
(Superseded to 7035849YP)

$59.99

$

Usually ships in 2-12 days

0

14

Snapper 7090975

NUT, 1/2-13 Hex Center Lock, GR A
(Superseded to 703894)

$3.49

$

In Stock, Qty 9

0

15

Snapper 7072636

BRACE, Sector Gear
(Superseded to 7072636YP)

$21.99

$

Usually ships in 2-12 days

0

16

Snapper 7012080

CABLE TIE, 7"
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

17

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR5
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

18

Snapper 7022743

PEDAL, Clutch/Brake
(Superseded to 7022743YP)

$30.99

$

Usually ships in 2-12 days

0

19

Snapper 7012661

PEDAL PAD
(Superseded to 7012661YP)

$

$

Not available

20

Snapper 7091299

NUT, 3/8-16-3B Hex Nyloc
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

21

Snapper 7090122

WASHER, 3/8" Flat SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

22

Snapper 7024381

SPRING, Brake
(Superseded to 7024381YP)

$3.99

$

Usually ships in 2-12 days

0

23

Snapper 7028037

SWIVEL, Inline Brake Arm
(Superseded to 7028037SM)

$75.99

$

In Stock, only 1 left!

0

24

Snapper 7091593

COTTER PIN, 3/8 x 1-7/32" Self Lock
(Superseded to 703355)

$3.99

$

In Stock, Qty 14

0

25

Snapper 7091575

NUT, 5/16-18 Hex Center Lock, GR5 or B
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

26

Snapper 7092031

NUT, 5/16-24 Hex Jam
(Superseded to 7092031SM)

$3.49

$

Usually ships in 2-12 days

0

27

Snapper 7090517

WASHER, .44" I.D. Flat
(Superseded to 7090517SM)

Note: Was 91300

$4.49

$

In Stock, Qty 8

0

28

Snapper 7058339

WELDMENT, Brake Bellcrank

$

$

Not available

29

ARM, Speed Control (Component of Transaxle, see Transmission Page)

$

$

Not available

30

Snapper 7072369

ROD, Brake- K46
(Superseded to 7072369YP)

$12.99

$

Usually ships in 2-12 days

0

31

Snapper 7090188

WASHER, 5/16 x .11/16 x .08 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

32

Snapper 7046782

SPRING, Rectangular Wire Die, Blue
(Superseded to 7046782YP)

$12.99

$

In Stock, only 1 left!

0

33

Snapper 7032070

WASHER, 13/32 x 3/4" Flat
(Superseded to 7032070YP)

$4.99

$

In Stock, only 1 left!

0

34

Snapper 7073607

SWIVEL, Shift Linkage- PM
(Superseded to 7073607SM)

$9.99

$

In Stock, only 2 left!

0

35

Snapper 7092058

NUT, 5/16-24 Hex Nyloc

$

$

Not available

36

Snapper 7072626

CABLE, Clutch/Brake- K46
(Superseded to 7072626YP)

$35.99

$

Usually ships in 2-12 days

0

37

Snapper 7052431

ASSEMBLY, Pivot-Foot Shaft (Includes item 38)

$

$

Not available

38

Snapper 7013864

LUBE FITTING, Straight (press-fit for .187 dia. Hole)
(Superseded to 7013864SM)

$3.49

$

In Stock, Qty 12

0

39

Snapper 7090509

WASHER, 1/2" Internal Tooth Lock
(Superseded to 7090509YP)

$4.49

$

In Stock, Qty 10

0

40

Snapper 7090619

NUT, 1/2-13 Hex Flange Lock
(Superseded to 703918)

$3.49

$

Usually ships in 2-12 days

0

41

Snapper 7027344

WASHER, .64 x .99 x .05 Flat
(Superseded to 7027344SM)

Note: Was 15992

$3.99

$

Usually ships in 2-12 days

0

42

Snapper 7023645

PIN, 3/16 x 1-1/2" Clevis
(Superseded to 7023645SM)

$3.49

$

Usually ships in 2-12 days

0

43

Snapper 7022742

BEARING, Flange
(Superseded to 7022742YP)

$21.99

$

Usually ships in 2-12 days

0

44

Snapper 7041236

ASSEMBLY, Clutch/Brake Arm
(Superseded to 7041236YP)

$43.99

$

Usually ships in 2-12 days

0

45

Snapper 7041244

WELDMENT, Parking Brake, OPPLT
(Superseded to 7041244YP)

$26.99

$

Usually ships in 2-12 days

0

46

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

47

Snapper 7090803

BOLT, 1/4-20 x 5/8" Flat Head Square Neck, GR2
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

48

Snapper 7091240

SCREW, #10-32 x 5/8" Hex Washer Head Machine, GR5
(Superseded to 7091240YP)

$4.99

$

In Stock, only 1 left!

0

49

Snapper 7011016

BUSHING, 1/2" Nylon
(Superseded to 7011016YP)

$4.49

$

In Stock, only 2 left!

0

50

Snapper 7091587

WASHER, .531 x 1.062 x .121 Flat SAE
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

51

Snapper 7014341

RING, 1/2" External Retaining
(Superseded to 703976)

$4.49

$

In Stock, Qty 9

0

52

Snapper 7091001

SCREW, 5/16-18 x 5/8" Truss Head (Torx)
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0

53

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0

54

Snapper 7072298

BRACKET, Pivot Mounting

$

$

Not available

55

Snapper 7023649

WASHER, 5/16 Nylon
(Superseded to 7023649YP)

$4.49

$

In Stock, only 2 left!

0

56

Snapper 7072403

KNOB, Brake/Clutch- 5/16-18 thread
(Superseded to 7072403YP)

$8.49

$

In Stock, only 1 left!

0

57

Snapper 7091302

NUT, 3/8-16 Hex , GR5 or B
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

58

Snapper 7033557

ARM, Idler-Traction Drive

$

$

Not available

59

Snapper 7090376

NUT, #10-32 Hex Nyloc
(Superseded to 703937)

$3.49

$

Usually ships in 2-12 days

0

60

Snapper 7023355

SWITCH- DPDT NC/NO
(Superseded to 7023355YP)

$17.99

$

In Stock, Qty 20+

0

61

Snapper 7024383

SPRING, Traction Drive
(Superseded to 7024383YP)

$9.99

$

Usually ships in 2-12 days

0

62

Snapper 7034410

BRACKET, Rear Lift/PTO Lever, Extruded
(Superseded to 7034410YP)

$13.99

$

Usually ships in 2-12 days

0

63

Snapper 7034347

LINK, Lift (33" Deck)

$

$

Not available

63

Snapper 7034850

LINK, Lift (38" Deck)
(Superseded to 7034850YP)

$17.99

$

Usually ships in 2-12 days

0

64

Snapper 7034384

SPACER, .515 x .688 x .403

$

$

Not available

65

Snapper 7033520

BRACKET, Deck Hang Pivot
(Superseded to 7033520YP)

$5.49

$

Usually ships in 2-12 days

0

66

Snapper 7041249

WELDMENT, Rear Lift Arm, 33" Deck

$

$

Not available

66

Snapper 7042597

WELDMENT, Rear Lift, 38" Deck
(Superseded to 7042597YP)

$131.99

$

Usually ships in 2-12 days

0

67

Snapper 7091000

SCREW, 5/16-18 x 7/8" Truss Head (Torx)
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0

68

Snapper 7034377

SECTOR, Lift Plate
(Superseded to 7034377YP)

$16.99

$

Usually ships in 2-12 days

0

69

Snapper 7034326

EXTENSION, Idler Arm
(Superseded to 7034326YP)

$76.99

$

Usually ships in 2-12 days

0

70

Snapper 7091501

SCREW, 3/8-16 x 2-1/2" Hex Head Cap, GR5
(Superseded to 703873)

$4.49

$

In Stock, only 2 left!

0

71

Snapper 7023954

PULLEY, 3.47 O.D. Flat Idler
(Superseded to 7023954YP)

$

$

Not available

72

Snapper 7033556

BELT GUIDE, 3-1/2" Dia.
(Superseded to 7033556YP)

$9.99

$

Usually ships in 2-12 days

0

73

Snapper 7091320

WASHER,3/8" Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

74

Snapper 7047072

BRACKET, Frame Brace

$

$

Not available

75

Snapper 7090731

BOLT, 5/16-18 x 1/2" Short Neck Carriage, GR5
(Superseded to 703798)

$4.49

$

In Stock, only 2 left!

0

76

Snapper 7091541

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap
(Superseded to 703228)

Note: Was 90368

$4.49

$

In Stock, Qty 20+

0

77

Snapper 7091593

PIN, 3/8 Self Lock Cotter
(Superseded to 703355)

Note: Was 24159

$3.99

$

In Stock, Qty 14

0

78

Snapper 7072598

BRACKET, Mounting Brace
(Superseded to 7072598YP)

$37.99

$

Usually ships in 2-12 days

0

79

Snapper 7090316

BOLT, 5/16-18 x 3/4" Square Neck Carriage GR5
(Superseded to 703225)

Note: Was 91097

$3.99

$

In Stock, Qty 18

0

80

Snapper 7091497

SCREW, 3/8-16 x 1-1/2" Hex Head Cap, GR5
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

81

Snapper 7024344

PULLEY, Idler V, 3.30 HA
(Superseded to 7024344YP)

$39.99

$

Usually ships in 2-12 days

0

82

Snapper 7091585

NUT, 3/8-16 Hex Center Lock, GR5 or B
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

83

Snapper 7027139

ROD END, Pump Control Linkage, 5/16-24 thread
(Superseded to 7027139YP)

$18.99

$

Usually ships in 2-12 days

0

84

Snapper 7073608

ROD, Shift Linkage
(Superseded to 7073608YP)

$2.49

$

Usually ships in 2-12 days

0

85

Snapper 7091540

SCREW, 5/16-18 x 1-1/2" Hex Head Cap, GR5
(Superseded to 703906)

Note: Was 91066

$4.99

$

In Stock, only 4 left!

0

86

Snapper 7029973

SPACER, .38 I.D. x .56 O.D. x .75 thick
(Superseded to 7029973SM)

$3.99

$

Usually ships in 2-12 days

0

87

Snapper 7091575

NUT, 5/16-18 Hex Center Lock, GR5 or B
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

88

Snapper 7024604

SHOULDER BOLT, 1/2-13 thread x 3"

$16.99

$

Usually ships in 2-12 days

0
