ELT 145H33FBV (84360) - Snapper 38" Lawn Tractor, 14.5hp Transmission Group (Hydro Drive) Parts Diagram

38" Lawn Tractor, 14.5hp

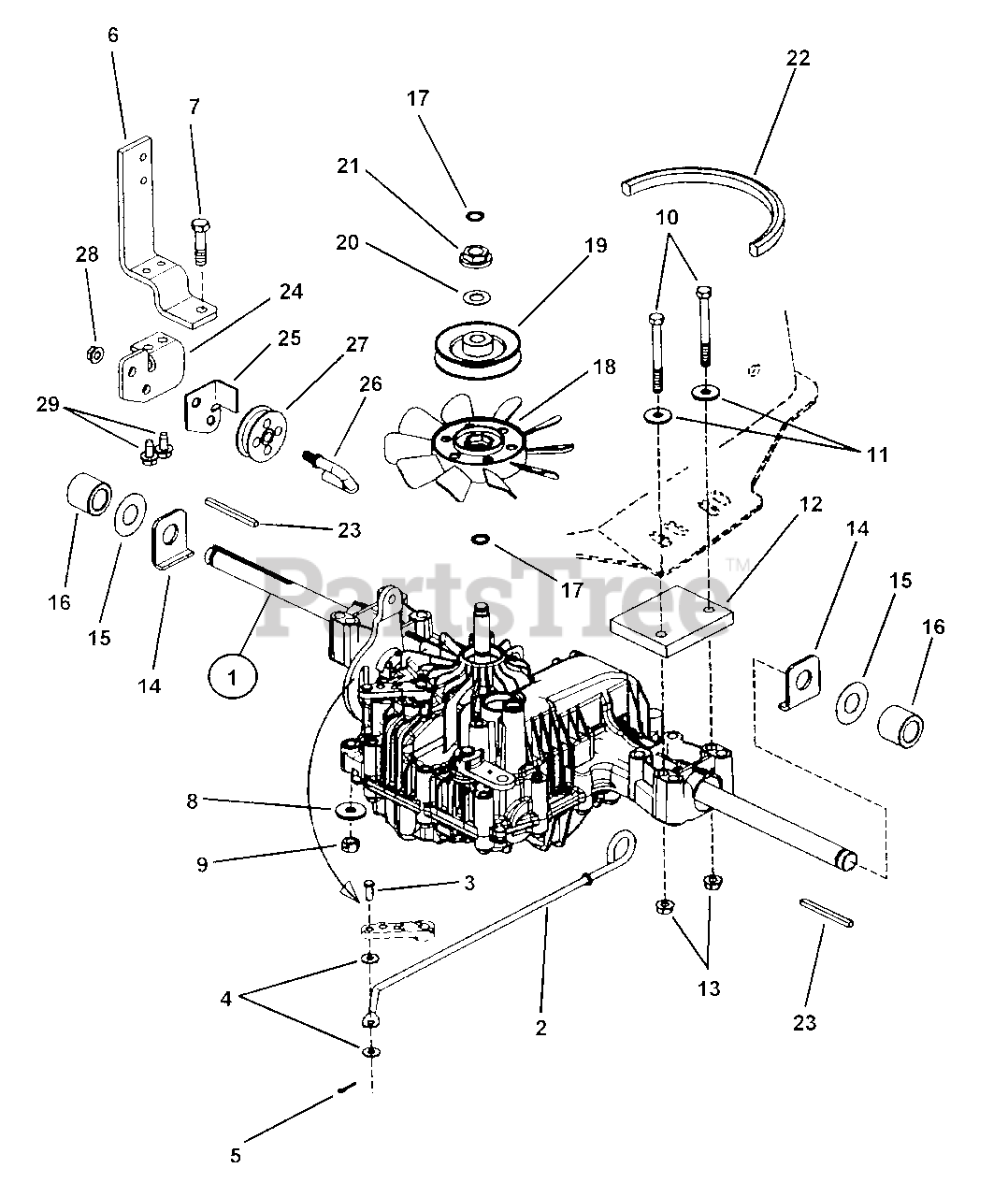

Transmission Group (Hydro Drive) Parts Diagram

  • Title

1

Snapper 7074398

ASSEMBLY, Transaxle, Tuff Torq
(Superseded to 7074398YP)

Note: Was 73114

$1481.99

$

Usually ships in 2-12 days

0

2

Snapper 7072387

ROD, Roll Release (K46)
(Superseded to 7072387YP)

$16.99

$

Usually ships in 2-12 days

0

3

Snapper 7091708

PIN, Clevis 1/4" x 5/8"
(Superseded to 7091708YP)

$5.99

$

Usually ships in 2-12 days

0

4

Snapper 7091294

WASHER, 1/4 x 5/8 x 1/16" Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

5

Snapper 7091597

PIN, 3/32" x 1/2" Cotter
(Superseded to 703312)

Note: Was 90555

$3.99

$

In Stock, Qty 20+

0

6

Snapper 7072601

BRACKET, Torque
(Superseded to 7072601YP)

$45.99

$

Usually ships in 2-12 days

0

7

Snapper 7091497

SCREW, 3/8-16 x 1-1/2" Hex Head Cap, Grade 5
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

8

Snapper 7090188

WASHER, 5/16 x 11/16 x 1/16", Grade 5
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 1 left!

0

9

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

10

Snapper 7091830

SCREW, 5/16-18 x 3-1/4" Hex Head Cap, Grade 5
(Superseded to 703870)

$4.49

$

Usually ships in 2-12 days

0

11

Snapper 7091675

WASHER, 5/16" Flat
(Superseded to 7091675YP)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 7072717

SPACER, Hydro Axle- K46

$

$

Not available

13

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock Grade 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

14

Snapper 7072884

WASHER, Axle
(Superseded to 7072884YP)

$8.49

$

Usually ships in 2-12 days

0

15

Snapper 7031036

WASHER, Thrust
(Superseded to 7031036YP)

$3.99

$

Usually ships in 2-12 days

0

16

Snapper 7072385

SPACER, Axle

$

$

Not available

17

* RING, E 15

Note: Vendor # 192154-89090

$

$

Not available

18

* FAN

Note: Vendor # 1A6460-83050

$

$

Not available

19

* PULLEY, 4" Diameter

Note: Vendor # 1A6460-25333

$

$

Not available

20

* WASHER, Wave

Note: Vendor # 1A6460-83060

$

$

Not available

21

* SPACER

Note: Vendor # 1A6460-25300

$

$

Not available

22

Snapper 7072657

BELT, Traction Drive (HA Section, 97.881 Effective Length)
(Superseded to 7072657YP)

$64.99

$

In Stock, only 3 left!

0

23

Snapper 7072386

KEY, 3/16" Square x 2-3/16" long
(Superseded to 7072386YP)

$5.49

$

In Stock, only 1 left!

0

24

Snapper 7072607

BRACKET, Spool

$

$

Not available

25

Snapper 7034399

GUIDE, Cable
(Superseded to 7034399YP)

$19.99

$

Usually ships in 2-12 days

0

26

Snapper 7029600

ROD, Spool Pivot
(Superseded to 7029600YP)

$16.99

$

Usually ships in 2-12 days

0

27

Snapper 7023182

SPOOL
(Superseded to 7023182YP)

$8.49

$

In Stock, only 1 left!

0

28

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

29

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0
