ELT 140H33DBV (82418) - Snapper 33" Lawn Tractor, 14hp Engine Components Parts Diagram

33" Lawn Tractor, 14hp

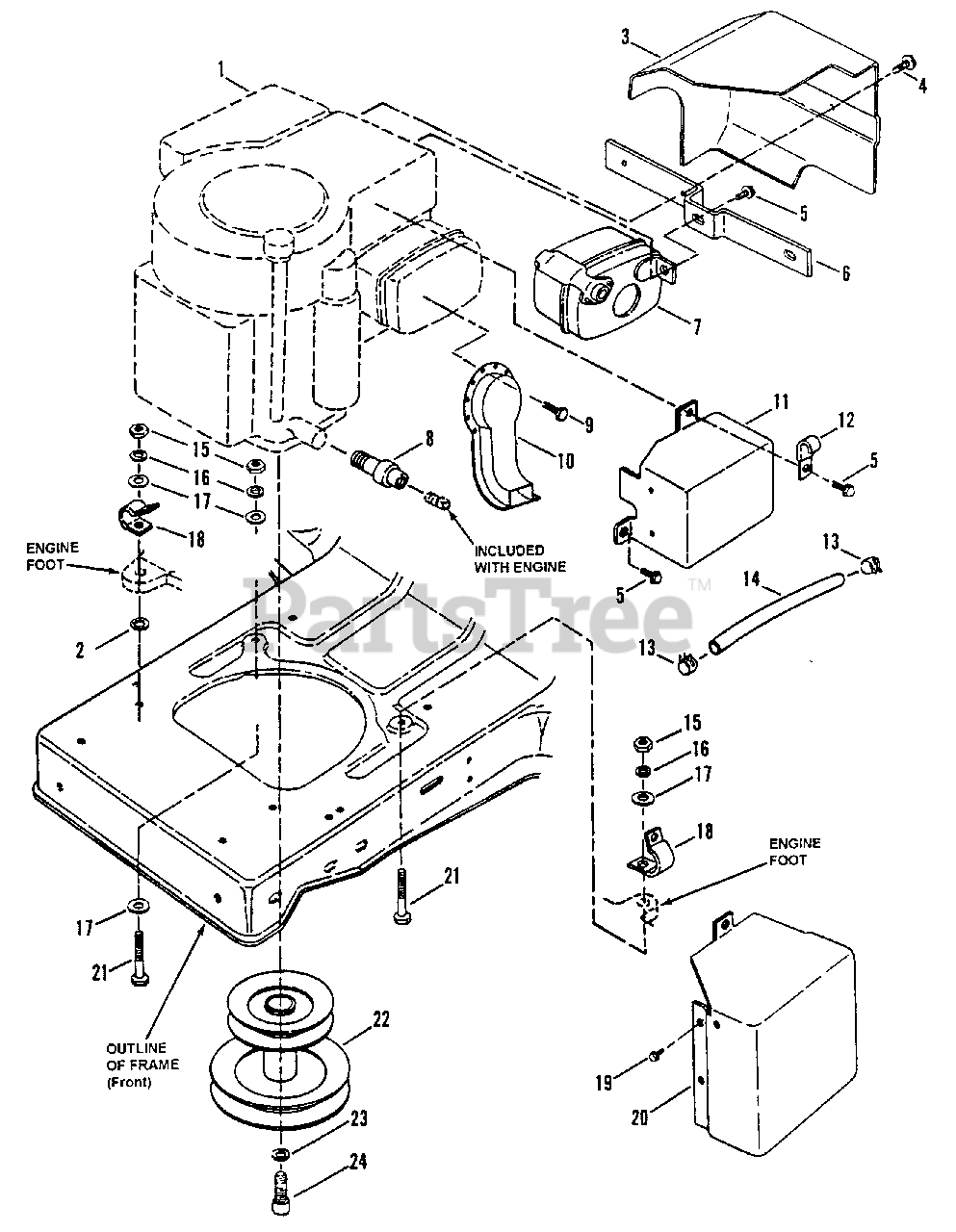

Engine Components Parts Diagram

  • Title

1

* ENGINE, B. & S. 12 HP, Model 283707-0134-01

Note: (Model: LT120G30DB)

$

$

Not available

1

* ENGINE, B. & S. 12 HP, Model 283707-0634-A1

Note: (Model: NLT120G30DB)

$

$

Not available

1

* ENGINE, B. & S. 12.5 HP, Model 289707-0120-01

Note: (Model: ELT125G33DB)

$

$

Not available

1

* ENGINE, B. & S. 12.5 HP, Model 82456-0171-01

Note: (Model: LT125G38DB)

$

$

Not available

1

* ENGINE, B. & S. 14 HP, Model 287707-0228-01 (1997)

Note: (Model: LT140H33DBV)

$

$

Not available

1

* ENGINE, B. & S. 14 HP, Model 287707-0229-01 (1997)

Note: (Model: ELT140H33DBV)

$

$

Not available

1

* ENGINE, B. & S. 14.5 HP, Model 287707-0249-01 (1997)

Note: (Model: LT145H38DBV)

$

$

Not available

1

* Same as above with addition of CARB Certification, 287707-0648-01

Note: (Model: NLT145H38DBV)

$

$

Not available

1

* ENGINE, B. & S. 14.5 HP, Model 287707-1228-E1 (1998)

Note: (Model: LT140H33DBV)

$

$

Not available

1

* ENGINE, B. & S. 14.5 HP, Model 287707-1249-E1 (1998)

Note: (Model: LT145H38DBV)

$

$

Not available

1

* ENGINE, B. & S. 14 HP, Model 287707-1229-E1 (1998)

Note: (Model: ELT140H33DBV)

$

$

Not available

2

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

3

Snapper 7017022

HEAT SHIELD
(Superseded to 7017022YP)

Note: (Models: LT125G38DB & NLT120G30DB Only!)

$99.99

$

Usually ships in 2-12 days

0

4

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

Note: Was 90307

$3.49

$

In Stock, Qty 11

0

5

Snapper 7091579

BOLT, 1/4-20 x 1/2" Hex Flange Lock, Grade 5
(Superseded to 7091579SM)

$3.99

$

In Stock, only 3 left!

0

6

Snapper 7038374

BRACKET, Heat Shield
(Superseded to 7038374YP)

Note: (Gear Drive Models Only!)

$38.99

$

Usually ships in 2-12 days

0

7

Snapper 7041824

MUFFLER, Exhaust
(Superseded to 691874)

Note: Was 52691 (Gear Drive Models Only)

$57.99

$

In Stock, only 3 left!

0

8

Snapper 7022486

EXTENSION, Oil Drain
(Superseded to 7022486YP)

Note: (Shown) (Gear Drive Models Only!)

$22.99

$

Usually ships in 2-12 days

0

8

Snapper 7027972

ASSEMBLY, Oil Valve
(Superseded to 7027972SM)

Note: (Not Shown) (Hydro Drive Models Only!)

$24.99

$

In Stock, Qty 9

0

9

Snapper 7091581

SCREW, #8-18 x 1/2" Hex Head, Self-Tapping
(Superseded to 7091581YP)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 7041537

EXTENSION, Muffler
(Superseded to 7041537YP)

Note: (All Hydro Models & Gear Drive Model: ELT125G33DB)

$82.99

$

Usually ships in 2-12 days

0

11

Snapper 7041269

HEAT SHIELD, Muffler

Note: (Shown) (Hydro Models Only!)

$

$

Not available

11

Snapper 7041680

HEAT SHIELD, Muffler

Note: (Not Shown) (Model: ELT125G33DB Only!)

$

$

Currently unavailable

12

Snapper 7026482

CLIP, "J" Type
(Superseded to 7026482YP)

Note: (Hydro Models Only!)

$3.49

$

In Stock, only 1 left!

0

13

Snapper 7029900

CLAMP, Fuel Line
(Superseded to 791850)

Note: Was 12222

$3.49

$

In Stock, Qty 20+

0

14

Snapper 7029982

LINE, Fuel, 14" Long
(Superseded to 7029982SM)

Note: (Models: LT140H33DBV, LT140H33DBV, LT145H38DBV & NLT145H38DBV)

$7.49

$

Usually ships in 2-12 days

0

14

Snapper 7032015

LINE, 7" Long
(Superseded to 791766)

Note: (Models: LT120G30DB, ELT125G33DB & NLT120G30DB & LT125G38DB)

$7.99

$

In Stock, Qty 20+

0

15

Snapper 7091511

NUT, 5/16-18 Hex, Grade 5
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

16

Snapper 7091315

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

17

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 3 left!

0

18

Snapper 7015861

CLIP, Wiring Harness
(Superseded to 7015861SM)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper 7091075

SCREW, #10-24 x 5/8" Hex Washer Head, Self-Tapping
(Superseded to 7091075SM)

$4.49

$

In Stock, Qty 5

0

20

Snapper 7041677

HEAT SHIELD, Muffler
(Superseded to 7041677YP)

Note: (Shown) (Model:LT140H33DBV)

$103.99

$

Usually ships in 2-12 days

0

20

Snapper 7041679

HEAT SHIELD, Muffler

Note: (Not Shown) (Model: ELT125G33DB)

$

$

Currently unavailable

21

Snapper 7090669

SCREW, 5/16-18 x 1-3/4" Hex Head Cap, Grade 5
(Superseded to 7090669YP)

$4.49

$

In Stock, only 1 left!

0

22

Snapper 7027767

ASSEMBLY, Engine Pulley

Note: (Models: LT120G30DB, ELT125G33DB, NLT120G30DB & LT125G38DB)

$

$

Not available

22

Snapper 7028028

ASSEMBLY, Engine Pulley
(Superseded to 7028028YP)

Note: (Models: LT140H33DBV & LT140H33DBV)

$106.99

$

Usually ships in 2-12 days

0

22

Snapper 7042818

ASSEMBLY, Engine Pulley
(Superseded to 7042818YP)

Note: (Model: LT125G38DB)

$70.99

$

Usually ships in 2-12 days

0

22

Snapper 7036577

ASSEMBLY, Engine Pulley
(Superseded to 7036577YP)

Note: (Models: LT145H38DBV & NLT145H38DBV)

$142.99

$

Usually ships in 2-12 days

0

23

Snapper 7091301

WASHER, 7/16 Split Lock
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

24

Snapper 7091531

SCREW, 7/16-20 x 1" Socket Head Cap

$

$

Not available
