ELT 140H33BBV (80649) - Snapper 33" Lawn Tractor, 14hp Steering Wheel, Console, Fuel Tank Parts Diagram

33" Lawn Tractor, 14hp

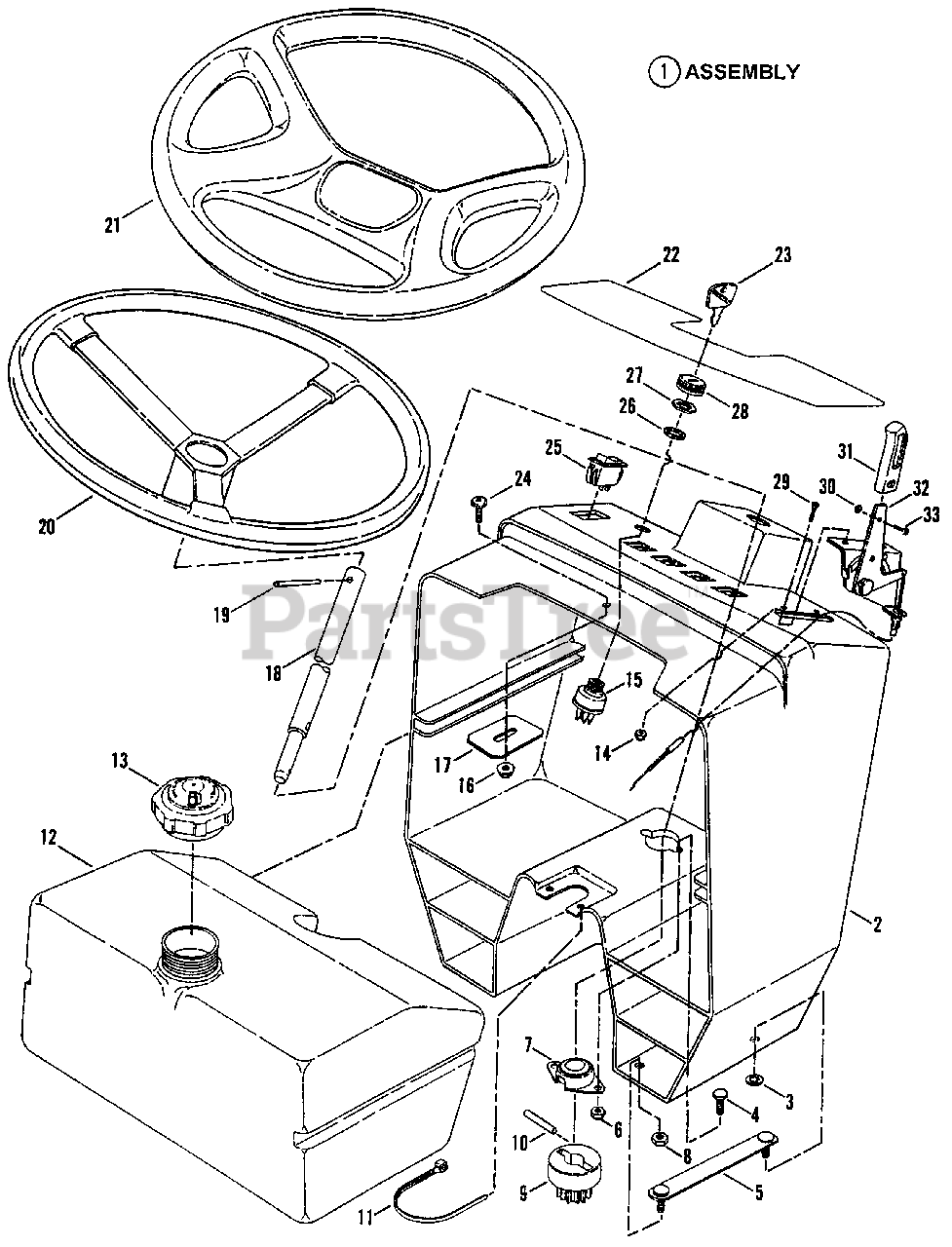

Steering Wheel, Console, Fuel Tank Parts Diagram

  • Title

1

Snapper 7052825

ASSEMBLY, Console
(Superseded to 7053746YP)

Note: Was 52825 (Includes 2 thru 7)

$199.99

$

Usually ships in 2-12 days

0

2

Snapper 7053746

CONSOLE
(Superseded to 7053746YP)

Note: Was 24376

$199.99

$

Usually ships in 2-12 days

0

3

Snapper 7011791

RETAINER
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

4

Snapper 7091495

SCREW, 1/4-20 x 3/4" Hex Head Cap, Grade 5
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

5

Snapper 7052891

ASSEMBLY, Strap-Clinch Stud
(Superseded to 7052891YP)

$25.99

$

Usually ships in 2-12 days

0

6

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

7

Snapper 7026196

ASSEMBLY, Flange Bearing
(Superseded to 7026196SM)

$7.49

$

In Stock, only 2 left!

0

8

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

9

Snapper 7022368

GEAR, Pinion, Steering Shaft
(Superseded to 7022368YP)

$20.99

$

Usually ships in 2-12 days

0

10

Snapper 7022369

PIN, Dowel, 1/4 x 1-1/4"
(Superseded to 7022369YP)

$4.49

$

Usually ships in 2-12 days

0

11

Snapper 7024641

TIE, Wire
(Superseded to 7024641YP)

$5.99

$

In Stock, only 1 left!

0

12

Snapper 7052907

ASSEMBLY, Fuel Tank

Note: (Includes item 13)

$

$

Not available

13

Snapper 7012515

CAP, Fuel Tank
(Superseded to 7012515YP)

Note: Was 14363

$19.99

$

In Stock, only 3 left!

0

14

Snapper 7091290

NUT, #10-24 Hex Nyloc
(Superseded to 703412)

Note: Was 91599

$4.49

$

In Stock, only 2 left!

0

15

Snapper 7027698

KEYSWITCH
(Superseded to 7027698YP)

Note: Was 18562 (Includes item 27) (Gear Drive Models)

$32.99

$

In Stock, Qty 9

0

15

Snapper 7026343

KEYSWITCH
(Superseded to 7026343SM)

Note: (Includes item 27) (Hydro Drive Models)

$38.99

$

In Stock, Qty 17

0

16

Snapper 7090951

NUT, 5/16-18 Hex Flange Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

17

Snapper 7033883

BRACKET, Hood Latch Catch
(Superseded to 7033883YP)

$5.99

$

Usually ships in 2-12 days

0

18

Snapper 7022380

SHAFT, Steering
(Superseded to 7022380YP)

$67.99

$

Usually ships in 2-12 days

0

19

Snapper 7012765

ROLL-PIN

$

$

Not available

20

Snapper 7027865

STEERING WHEEL

Note: Was 27865 (Models LT120G30BB, LT125G33BB, & ELT125G33BB) (Gear Drive) (Model Year 1995)

$

$

Not available

20

Snapper 7028622

STEERING WHEEL

Note: Was 28622 (Models LT120G30BB, LT125G33BB, & ELT125G33BB) (Gear Drive) (Model Year 1996)

$

$

Not available

21

Snapper 7029595

STEERING WHEEL
(Superseded to 7029595YP)

Note: (Models ELT140H33BBV, LT140H33BBV, LT140H38BBV, LT150H38BBV, & LT155H42BBV) (Hydro Drive)

$94.99

$

Usually ships in 2-12 days

0

21

Snapper 7022388

STEERING WHEEL

Note: (Not Shown) (Models BH140H33BBV & BH140H38BBV) (Hydro Drive)

$

$

Not available

22

Snapper 7024627

DECAL, Console

Note: (Models LT120G30BB, LT125G33BB, & ELT125G33BB) (Gear Drive)

$

$

Not available

22

Snapper 7027835

DECAL, Console
(Superseded to 7027835YP)

Note: (ELT140H33BBV, LT140H33BBV, LT140H38BBV, LT150H38BBV, & LT155H42BBV) (Hydro Drive - With Lights)

$17.99

$

Usually ships in 2-12 days

0

22

Snapper 7026709

DECAL, Console

Note: (Models BH140H33BBV & BH140H38BBV)

$

$

Currently unavailable

23

Snapper 7073406

KEY, Switch (With Cover)
(Superseded to 1717163SM)

Note: Was 23504

$8.99

$

In Stock, Qty 20+

0

24

Snapper 7091001

SCREW, 5/16-18 x 5/8" Truss Head, Torx
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0

25

Snapper 7023187

SWITCH, Lights
(Superseded to 7023187YP)

Note: (Hydro Drive Models Only!)

$14.99

$

In Stock, only 1 left!

0

26

Snapper 7029714

SPACER

$

$

Not available

27

Snapper 7012685

NUT, 5/8-32 Hex
(Superseded to 7012685YP)

Note: Was 29721

$3.99

$

Usually ships in 2-12 days

0

28

Snapper 7023506

BEZEL
(Superseded to 7023506SM)

$4.49

$

Usually ships in 2-12 days

0

29

Snapper 7091188

SCREW, #10-24 x 5/8" Machine

$

$

Not available

30

Snapper 7091018

NUT, #8-32 Hex
(Superseded to 7091018YP)

$3.99

$

In Stock, Qty 9

0

31

Snapper 7023655

HANDLE, Throttle Control
(Superseded to 7023655YP)

$

$

Not available

32

Snapper 7024642

CONTROL, Throttle
(Superseded to 7024642YP)

$32.99

$

Usually ships in 2-12 days

0

33

Snapper 7091017

SCREW, #8-32 x 3/8" Cross-Recessed, Fillester Head
(Superseded to 7091017YP)

$3.99

$

In Stock, only 4 left!

0
