ELT 140H33BBV (80649) - Snapper 33" Lawn Tractor, 14hp Front Axle Parts Diagram

33" Lawn Tractor, 14hp

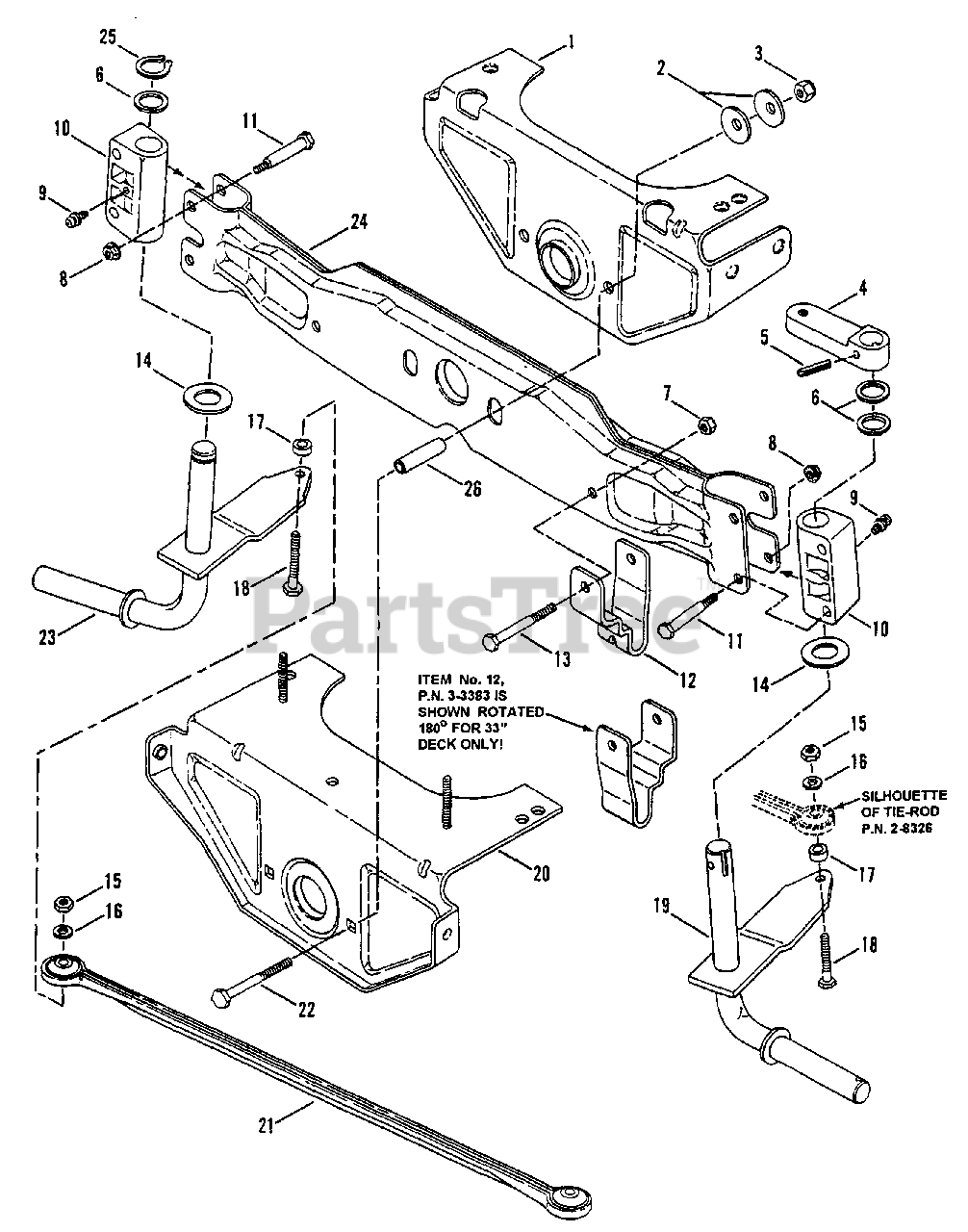

Front Axle Parts Diagram

  • Title

1

Snapper 7033374

BRACKET, Axle (Rear)
(Superseded to 7033374YP)

$

$

Not available

2

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

Usually ships in 2-12 days

0

3

Snapper 7091299

NUT, 3/8-16 Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

4

Snapper 7019034

ARM, Steering
(Superseded to 7019034YP)

$

$

Not available

5

Snapper 7090842

ROLL-PIN, 1/4 x 1-1/4"
(Superseded to 7090842YP)

$4.49

$

In Stock, only 2 left!

0

6

Snapper 7010935

WASHER, Shim
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7091575

NUT, 5/18-18 Center Lock
(Superseded to 703164)

Note: Was 90184

$3.49

$

In Stock, Qty 17

0

8

Snapper 7091545

NUT, 1/4-20 Hex Flg. Top-Lock
(Superseded to 703916)

Note: Was 90477

$4.99

$

In Stock, Qty 6

0

9

Snapper 7013864

LUBE FITTING, Straight (press-fit for .187 dia. Hole)
(Superseded to 7013864SM)

$3.49

$

In Stock, Qty 12

0

10

Snapper 7019467

BEARING, Spindle
(Superseded to 7019467YP)

$32.99

$

Usually ships in 2-12 days

0

11

Snapper 7022758

BOLT, 1/4-20 x 1-41/64" Shoulder
(Superseded to 7022758YP)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 7033383

BRACKET, Deck Hanger
(Superseded to 7033383YP)

$11.99

$

Usually ships in 2-12 days

0

13

Snapper 7091046

SCREW, 5/16-18 x 2-1/2" Hex Head Cap
(Superseded to 703868)

$4.99

$

In Stock, only 3 left!

0

14

Snapper 7031036

WASHER, Thrust
(Superseded to 7031036YP)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 7091302

NUT, 3/8-16 Hex, Grade 5
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

16

Snapper 7091320

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

17

Snapper 7024180

SPACER, Tie-Rod
(Superseded to 7024180YP)

$7.49

$

Usually ships in 2-12 days

0

18

Snapper 7091497

SCREW, 3/8-16 x 1-1/2" Hex Head Cap, Grade 5
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

19

Snapper 7041246

SPINDLE ASSY., Left Hand, Long
(Superseded to 7041246YP)

Note: (For 13" Tires - 30" & 33" Decks)

$204.99

$

In Stock, only 1 left!

0

19

Snapper 7041250

SPINDLE ASSY., Left Hand, Short
(Superseded to 7041250BMYP)

Note: (For 15" Tires - 38 & 42" Decks)

$204.99

$

Usually ships in 2-12 days

0

20

Snapper 7052490

BRACKET ASSEMBLY, Axle (Front)
(Superseded to 7052490YP)

$168.99

$

Usually ships in 2-12 days

0

21

Snapper 7028326

TIE-ROD
(Superseded to 7028326YP)

$50.99

$

Usually ships in 2-12 days

0

22

Snapper 7090590

BOLT, 3/8-16 x 3 Hex Head
(Superseded to 7090590YP)

$4.49

$

Usually ships in 2-12 days

0

23

Snapper 7041245

SPINDLE ASSY., Right Hand, Long
(Superseded to 7041245YP)

Note: (For 13 Tires - 30" & 33" Decks)

$167.99

$

Usually ships in 2-12 days

0

23

Snapper 7041251

SPINDLE ASSY., Right Hand, Short
(Superseded to 7041251YP)

Note: (For 15" Tires - 38 & 42 Decks)

$237.99

$

Usually ships in 2-12 days

0

24

Snapper 7040986

AXLE, Front
(Superseded to 7040986YP)

$250.99

$

Usually ships in 2-12 days

0

25

Snapper 7010746

RING, Retaining
(Superseded to 703975)

$3.99

$

In Stock, Qty 19

0

26

Snapper 7026595

SPACER
(Superseded to 7026595YP)

$10.99

$

Usually ships in 2-12 days

0
