ELT 140H33ABV (80562) - Snapper 33" Lawn Tractor, 14hp Transmission Group Parts Diagram

33" Lawn Tractor, 14hp

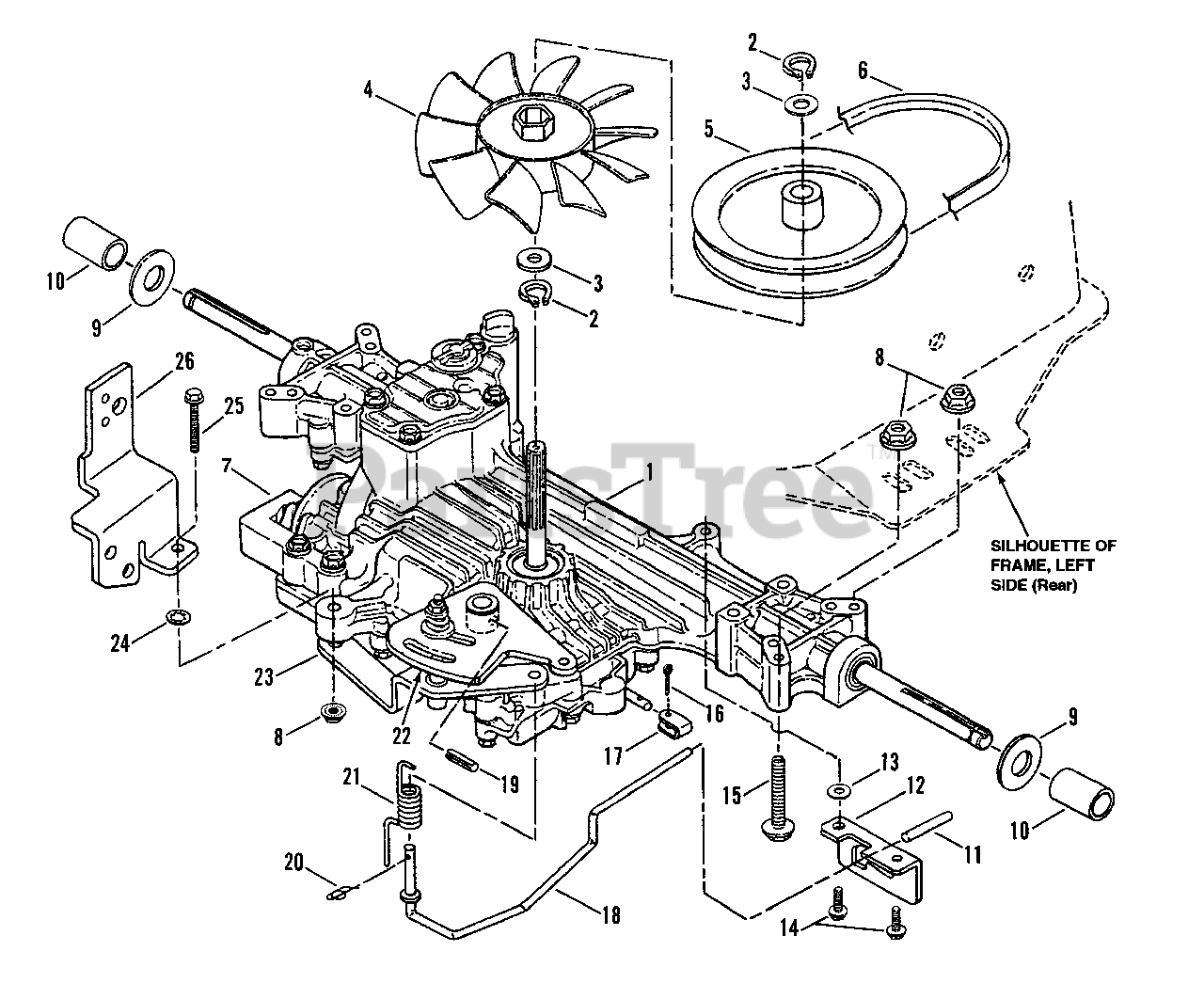

Transmission Group Parts Diagram

  • Title

1

Snapper 7028668

TRANSAXLE ASSEMBLY
(Superseded to 7028668YP)

$1367.99

$

Usually ships in 2-12 days

0

2

Snapper 7028078

RING, Retaining

$4.49

$

Usually ships in 2-12 days

0

3

Snapper 7028084

WASHER, Fan/Hub

$2.49

$

Usually ships in 2-12 days

0

4

Snapper 7028076

FAN
(Superseded to 7028076YP)

$17.99

$

In Stock, only 1 left!

0

5

Snapper 7028077

PULLEY, Drive
(Superseded to 7028077YP)

$70.99

$

In Stock, only 1 left!

0

6

Snapper 7028334

BELT, Traction Drive
(Superseded to 7028334SM)

$64.99

$

Usually ships in 2-12 days

0

7

Snapper 7091489

Brake Arm
(Superseded to 7091489YP)

Note: Not Shown

$

$

Not available

8

Snapper 7091601

NUT, 5/16-18 Hx. Flg. Lk.
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

9

Snapper 7033701

WASHER, Flat

$2.99

$

Usually ships in 2-12 days

0

10

Snapper 7028049

SPACER

$

$

Not available

11

Snapper 7034137

GRIP, Roll Release
(Superseded to 7034137YP)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7034139

DETENT, Roll Release

$

$

Not available

13

Snapper 7032070

WASHER, 3/4" O.D. Flat
(Superseded to 7032070YP)

$4.99

$

In Stock, only 1 left!

0

14

Snapper 7090967

SCREW, 3/8-16 x 1 1/4" Self-Tapping

$

$

Not available

15

Snapper 7090702

BOLT, 5/16-18 x 2 1/4" Hex Flange Lock
(Superseded to 7090702YP)

$3.99

$

Usually ships in 2-12 days

0

16

Snapper 7091516

COTTER-PIN, 5/32 x 1"
(Superseded to 703984)

Note: Was 90364

$4.49

$

In Stock, Qty 14

0

17

Snapper 7034154

LINK, Roll Release
(Superseded to 7034154YP)

$9.99

$

In Stock, only 1 left!

0

18

Snapper 7034140

WIREFORM, Roll Release
(Superseded to 7034140YP)

$6.99

$

Usually ships in 2-12 days

0

19

Snapper 7034146

ROLL-PIN, Speed Control Arm
(Superseded to 7034146YP)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper 7034162

COTTER-PIN, 5/16 Self-Locking
(Superseded to 704030)

$4.49

$

In Stock, only 2 left!

0

21

Snapper 7034155

SPRING, Torsion, Roll Release
(Superseded to 7034155YP)

$7.99

$

Usually ships in 2-12 days

0

22

Snapper 7053386

ASSEMBLY, Speed Control/Friction
(Superseded to 7053386YP)

Note: (Includes Part No's. Listed Below)

$96.99

$

Usually ships in 2-12 days

0

22

Snapper 7041612

WELDMENT, Speed Control Arm

$

$

Not available

22

Snapper 7028036

SPRING
(Superseded to 7028036YP)

$6.99

$

Usually ships in 2-12 days

0

22

Snapper 7034192

STUD, Friction

$

$

Not available

22

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90593

$4.99

$

In Stock, Qty 20+

0

22

Snapper 7091047

WASHER, 13/32" I.D. x 1 1/2" O.D.

$

$

Not available

22

Snapper 7034267

WASHER, Friction Pad
(Superseded to 7034267YP)

$4.49

$

Usually ships in 2-12 days

0

23

Snapper 7053380

SUPPORT, Friction Stud Assembly
(Superseded to 7053380YP)

Note: (Includes Part No's. Listed Below)

$19.99

$

Usually ships in 2-12 days

0

23

Snapper 7012306

BUSHING, Flange
(Superseded to 703973)

$5.99

$

In Stock, Qty 13

0

23

Snapper 7034178

SUPPORT, Friction Stud
(Superseded to 7034178YP)

$19.99

$

Usually ships in 2-12 days

0

24

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

25

Snapper 7091592

BOLT, 5/16-18 x 2" Hex Flange Lock
(Superseded to 704062)

Note: Was 90586

$4.49

$

Usually ships in 2-12 days

0

26

Snapper 7034127

BRACKET, Spool
(Superseded to 7034127YP)

$50.99

$

In Stock, only 1 left!

0
