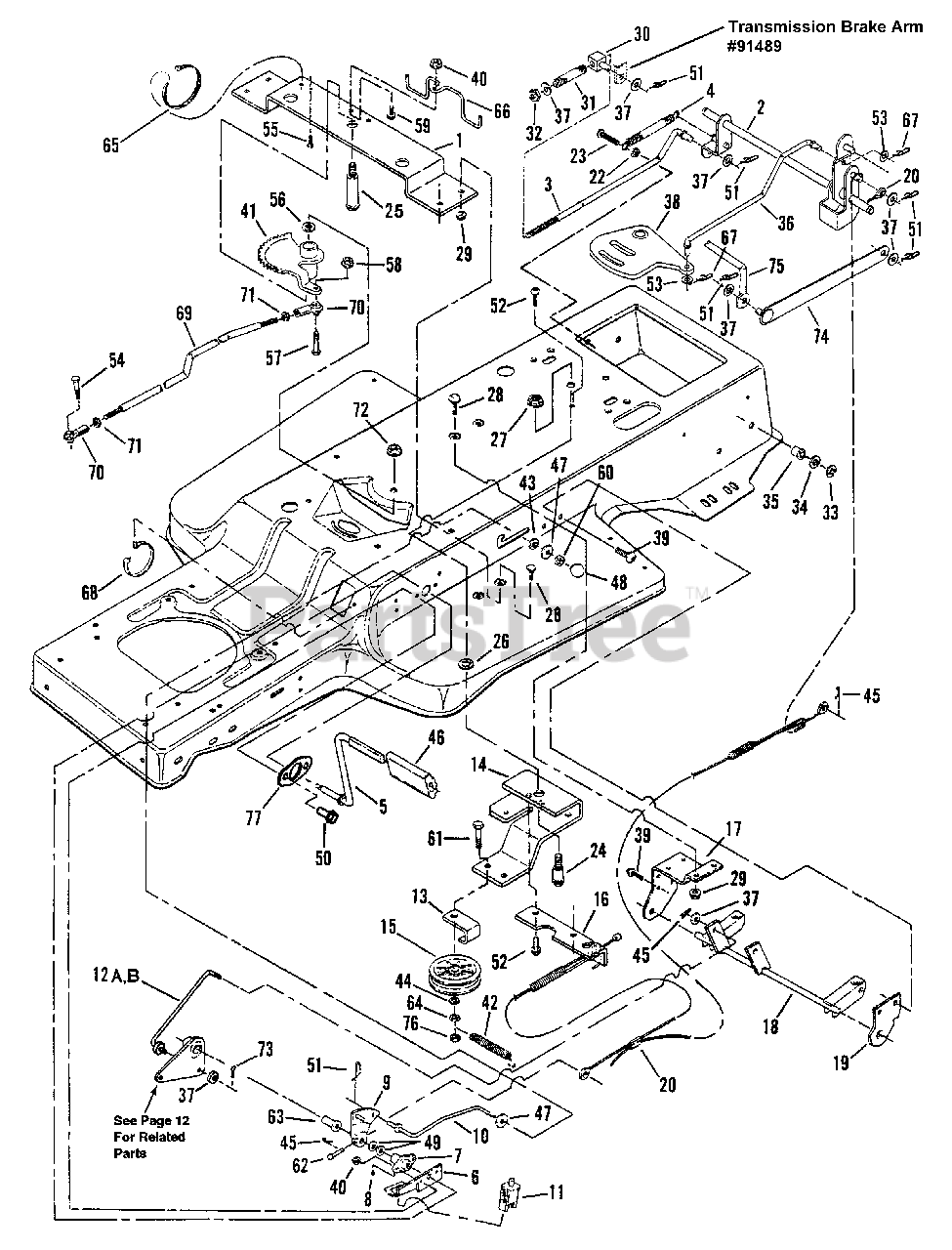

ELT 140H33ABV (80562) - Snapper 33" Lawn Tractor, 14hp Clutch, Brake & Steering Components Parts Diagram

33" Lawn Tractor, 14hp

Clutch, Brake & Steering Components Parts Diagram

  • Title

1

Snapper 7033627

BRACE, Sector Gear
(Superseded to 7033627YP)

$45.99

$

Usually ships in 2-12 days

0

2

Snapper 7041589

WELDMENT, Brake Arm
(Superseded to 7041589YP)

$150.99

$

Usually ships in 2-12 days

0

3

Snapper 7028034

ROD, Brake
(Superseded to 7028034YP)

$14.99

$

In Stock, only 1 left!

0

4

Snapper 7012264

SPRING
(Superseded to 7012264YP)

$6.99

$

In Stock, Qty 16

0

5

Snapper 7022743

PEDAL, Park Brake
(Superseded to 7022743YP)

$30.99

$

Usually ships in 2-12 days

0

6

Snapper 7033558

BRACKET, Brake Switch
(Superseded to 7033558YP)

$37.99

$

Usually ships in 2-12 days

0

7

Snapper 7052431

ASSEMBLY, Foot Shaft Pivot

Note: (Includes Item 8)

$

$

Not available

8

Snapper 7014871

FITTING, 3/16 Lube
(Superseded to 7014871SM)

$4.49

$

In Stock, only 4 left!

0

9

Snapper 7053240

ASSEMBLY, Clutch/Brake Arm
(Superseded to 7053240YP)

$26.99

$

Usually ships in 2-12 days

0

10

Snapper 7024057

LATCH, Park Brake
(Superseded to 7024057YP)

$6.49

$

Usually ships in 2-12 days

0

11

Snapper 7022886

SWITCH (NC/NO)
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

12A

Snapper 7026705

ROD, Lift Link

Note: (For 33" Models)

$

$

Currently unavailable

12B

Snapper 7026590

ROD, Lift Link
(Superseded to 7026590YP)

Note: (For 38" Models)

$5.99

$

Usually ships in 2-12 days

0

13

Snapper 7033556

GUIDE, Pulley
(Superseded to 7033556YP)

$9.99

$

Usually ships in 2-12 days

0

14

Snapper 7033557

ARM, Idler (Traction Drive)

$

$

Not available

15

Snapper 7023954

PULLEY
(Superseded to 7023954YP)

$

$

Not available

16

Snapper 7033595

EXTENSION, Idler Arm

$

$

Not available

17

Snapper 7033521

BRACKET, Rear Lift/PTO Lever
(Superseded to 7033521YP)

$22.99

$

Usually ships in 2-12 days

0

18

Snapper 7041306

WELDMENT, Rear Lift
(Superseded to 7041306YP)

Note: (For 33" Models)

$85.99

$

Usually ships in 2-12 days

0

18

Snapper 7041369

WELDMENT, Rear Lift
(Superseded to 7041369YP)

Note: (For 38" Models)

$78.99

$

Usually ships in 2-12 days

0

19

Snapper 7033520

BRACKET, Deck Hang Pivot
(Superseded to 7033520YP)

$5.49

$

Usually ships in 2-12 days

0

20

Snapper 7024115

ASSEMBLY, Clutch/Brake Cable
(Superseded to 7024115YP)

$39.99

$

Usually ships in 2-12 days

0

22

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

Note: Was 90184

$3.49

$

In Stock, Qty 19

0

23

Snapper 7091524

SCREW, 5/16-18 x 1-1/4" Self-Tapping
(Superseded to 703167)

Note: Was 91151

$3.99

$

In Stock, Qty 5

0

24

Snapper 7022381

BOLT, 1/2-13 x 2" Shoulder
(Superseded to 7035849YP)

$59.99

$

Usually ships in 2-12 days

0

25

Snapper 7024604

BOLT, 1/2-13 x 3-7/8" Shoulder

$16.99

$

Usually ships in 2-12 days

0

26

Snapper 7090509

WASHER, 1/2 Internal Lock
(Superseded to 7090509YP)

$4.49

$

In Stock, Qty 10

0

27

Snapper 7090619

NUT, 1/2-13 Hex Flange Lock
(Superseded to 703918)

$3.49

$

Usually ships in 2-12 days

0

28

Snapper 7090803

BOLT, 1/4-20 x 5/8" Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

29

Snapper 7091584

NUT, 1/4-20 Flange Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 6

0

30

Snapper 7028037

SWIVEL, Inline Brake
(Superseded to 7028037SM)

$75.99

$

In Stock, only 1 left!

0

31

Snapper 7028091

SPRING, Brake
(Superseded to 7028091YP)

$3.49

$

Usually ships in 2-12 days

0

32

Snapper 7076949

NUT, 3/8-16 Hex Nyloc

$

$

Currently unavailable

33

Snapper 7014341

RING, 1/2" Ext. Retaining
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

34

Snapper 7090250

WASHER, 1/2 Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

35

Snapper 7011016

BEARING, Nylon
(Superseded to 7011016YP)

$4.49

$

In Stock, only 3 left!

0

36

Snapper 7034159

LINK, Speed

$

$

Not available

37

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

38

Snapper 7041612

ARM, Trans. Speed Control

$

$

Not available

39

Snapper 7091001

SCREW,5/16-18x5/8" Truss Head (Torx)
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0

40

Snapper 7091601

NUT, 5/16-18 Hex Fla. Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

41

Snapper 7052809

ASSEMBLY, Sector Gear

$

$

Not available

42

Snapper 7024383

SPRING, Idler
(Superseded to 7024383YP)

$9.99

$

Usually ships in 2-12 days

0

43

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

44

Snapper 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

45

Snapper 7091503

PIN, 3/32 x 1-1/2" Hair
(Superseded to 7091503SM)

Note: Was 15067

$3.99

$

In Stock, Qty 20+

0

46

Snapper 7012661

PAD, Pedal
(Superseded to 7012661YP)

$

$

Not available

47

Snapper 7023649

WASHER,5/16 Nylon
(Superseded to 7023649YP)

$4.49

$

In Stock, only 2 left!

0

48

Snapper 7023188

KNOB, Push/Pull
(Superseded to 7023188YP)

$4.99

$

Usually ships in 2-12 days

0

49

Snapper 7027344

WASHER, 5/8 Flat
(Superseded to 7027344SM)

Note: Was 15992

$3.99

$

Usually ships in 2-12 days

0

50

Snapper 7091000

SCREW,5/16-18 x 7/8" Truss Head (Torx)
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0

51

Snapper 7091593

PIN, 3/64 x 1-7/32" Cotter (Self Locking)
(Superseded to 703355)

Note: Was 24159

$3.99

$

In Stock, Qty 14

0

52

Snapper 7090361

SCREW, 5/16-18x 5/8" Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

53

Snapper 7090188

WASHER,5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

54

Snapper 7090163

SCREW, 3/8-24 x 1-1/4" Hex Head Cap

$

$

Not available

55

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 11

0

56

Snapper 7031036

WASHER, 3/4 Thrust
(Superseded to 7031036YP)

$3.99

$

Usually ships in 2-12 days

0

57

Snapper 7091497

SCREW, 3/8-16 x 1-1/2" Hex Head Cap
(Superseded to 703406)

Note: Was 90655

$4.99

$

In Stock, only 1 left!

0

58

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

59

Snapper 7090595

BOLT, 5/16-18 x 3/4" Hex Flange Lock
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

60

Snapper 7023189

RING, Tolerance
(Superseded to 7023189YP)

$5.99

$

In Stock, only 1 left!

0

61

Snapper 7090629

SCREW, 3/8-16 x 2-1/4" Hex Head Cap
(Superseded to 7090629YP)

$2.49

$

Usually ships in 2-12 days

0

62

Snapper 7023645

PlN, 3/16 x 1-1/2" Clevis
(Superseded to 7023645SM)

$3.49

$

Usually ships in 2-12 days

0

63

Snapper 7022742

BEARING, Flange
(Superseded to 7022742YP)

$21.99

$

Usually ships in 2-12 days

0

64

Snapper 7091302

NUT, 3/8-16 Hex Nut
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

65

Snapper 7012080

TIE, Cable
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

66

Snapper 7026459

GUIDE, Drive Belt
(Superseded to 7026459YP)

$4.99

$

Usually ships in 2-12 days

0

67

Snapper 7034162

PIN, 5/16 Cotter (Self-Locking)
(Superseded to 704030)

$4.49

$

In Stock, only 2 left!

0

68

Snapper 7014451

TIE, Wire
(Superseded to 7014451YP)

$3.49

$

Usually ships in 2-12 days

0

69

Snapper 7052728

ASSEMBLY, Drag Link

Note: (Includes Items 69 Thru 71)

$

$

Currently unavailable

69

Snapper 7022846

LINK, Drag
(Superseded to 7022846YP)

$34.99

$

Usually ships in 2-12 days

0

70

Snapper 7027936

BALL JOINT, 3/8-24
(Superseded to 7027936SM)

Note: Was 23200

$17.99

$

In Stock, only 2 left!

0

71

Snapper 7090482

NUT, 3/8-24 Hex Jam
(Superseded to 7090482SM)

$4.49

$

In Stock, only 1 left!

0

72

Snapper 7090975

NUT, 1/2-13 Hex Center Lock
(Superseded to 703894)

$3.49

$

In Stock, Qty 9

0

73

Snapper 7091597

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

74

Snapper 7041590

LINK, Shift
(Superseded to 7041590YP)

$39.99

$

Usually ships in 2-12 days

0

75

Snapper 7052920

ASSEMBLY, Shift Lever (Lower)
(Superseded to 7052920YP)

$23.99

$

Usually ships in 2-12 days

0

76

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 2 left!

0

77

Snapper 7063052

WASHER, Pivot- Stiffener
(Superseded to 7063052YP)

Note: Was 46778

$20.99

$

Usually ships in 2-12 days

0
