ELT 125G33DB (82417) - Snapper 33" Lawn Tractor, 12.5hp Belt Guide Assembly Parts Diagram

33" Lawn Tractor, 12.5hp

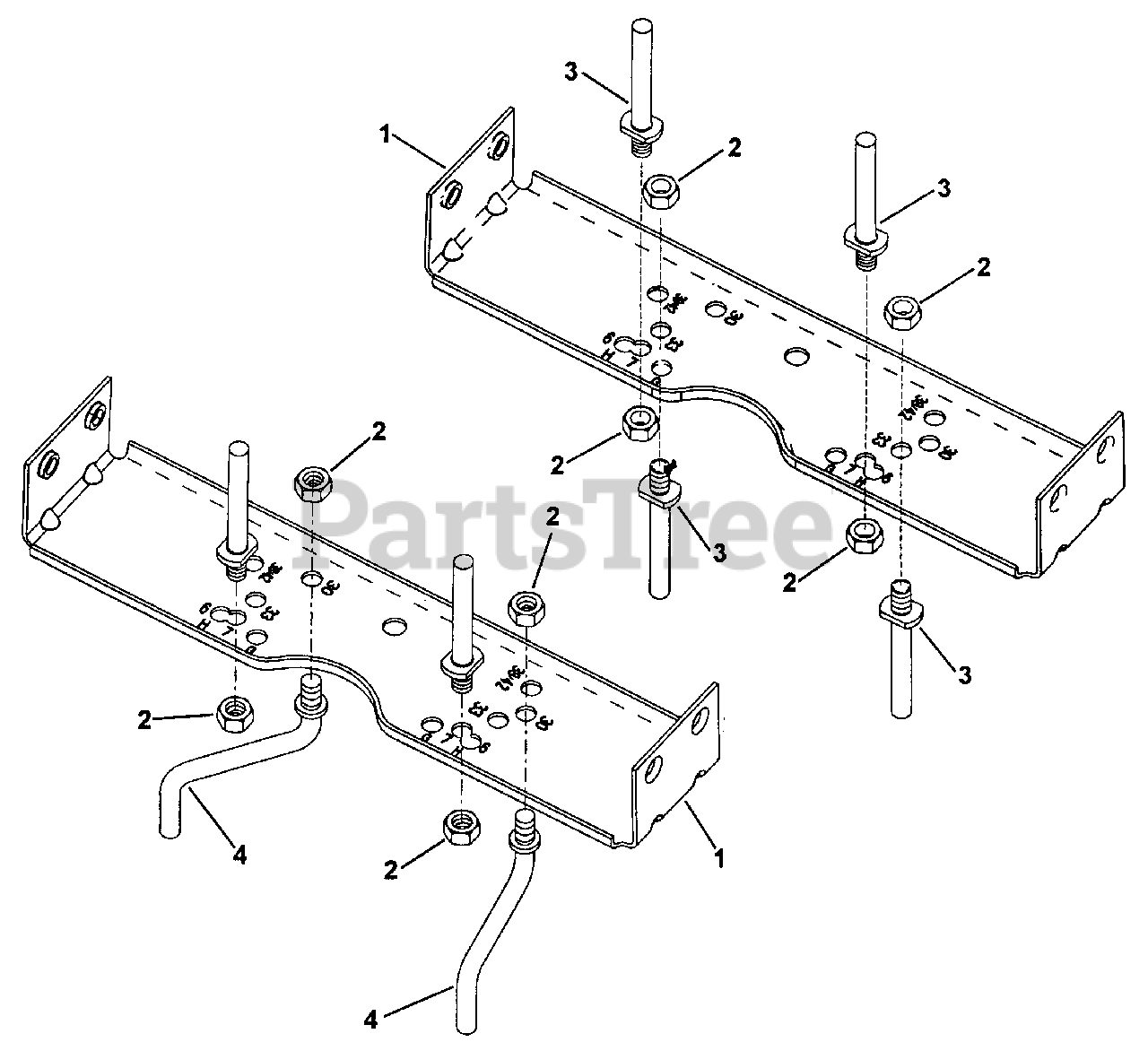

Belt Guide Assembly Parts Diagram

  • Title

1

Snapper 7035963

BRACKET, Belt Guide
(Superseded to 7035963YP)

$35.99

$

Usually ships in 2-12 days

0

2

Snapper 7091575

NUT, 5/16-18 Hex Center Lock, Grade B or 5
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

3

Snapper 7028303

STUD, Belt Guide
(Superseded to 7028303YP)

$18.99

$

Usually ships in 2-12 days

0

4

Snapper 7035528

STUD, Belt Guide 38" Dual Brake Deck
(Superseded to 7035528YP)

$37.99

$

Usually ships in 2-12 days

0
