ELT 125D331KV (80396) - Snapper 33" Lawn Tractor, 12.5hp Steering & Front Axle Parts Parts Diagram

33" Lawn Tractor, 12.5hp

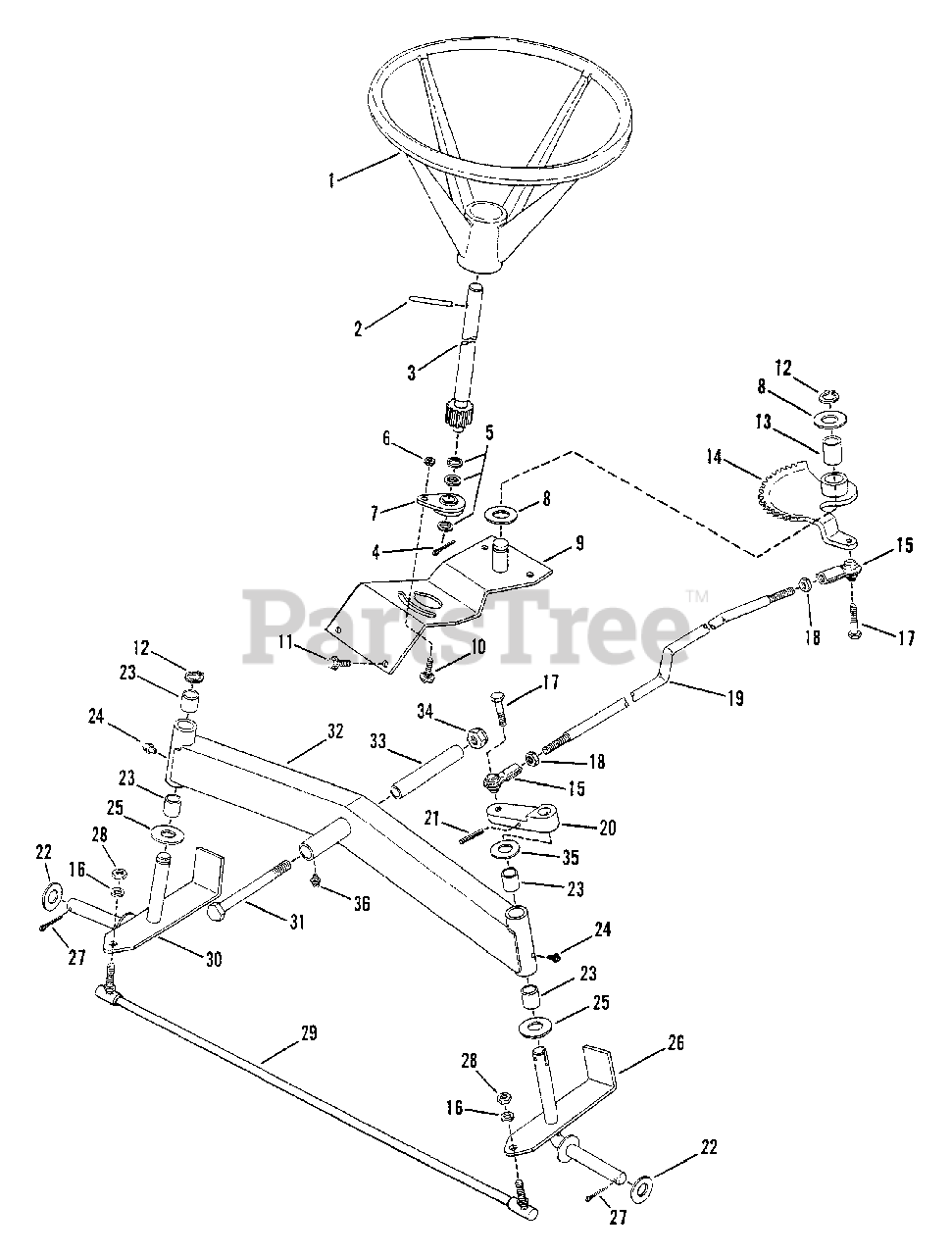

Steering & Front Axle Parts Parts Diagram

  • Title

1

Snapper 7017040

WHEEL, Steering

$

$

Currently unavailable

2

Snapper 7012765

PIN, 1/4 x 2-1/4" Roll

$

$

Not available

3

Snapper 7040610

SHAFT, Steering
(Superseded to 7040610YP)

$207.99

$

Usually ships in 2-12 days

0

4

Snapper 7091313

PIN, Cotter 3/32 x 1"
(Superseded to 704058)

Note: Was 90038

$3.49

$

In Stock, only 1 left!

0

5

Snapper 7014296

WASHER, 1/2 x 3/4" Dia. Shim
(Superseded to 7014296YP)

$4.49

$

In Stock, only 4 left!

0

6

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 5

0

7

Snapper 7052562

ADJUSTER, Steering
(Superseded to 7052562YP)

Note: Was 51751

$43.99

$

Usually ships in 2-12 days

0

8

Snapper 7011071

WASHER, Thrust
(Superseded to 7011071YP)

$3.99

$

In Stock, Qty 20+

0

9

Snapper 7047938

ASSEMBLY, Steering Support
(Superseded to 7047938YP)

$54.99

$

Usually ships in 2-12 days

0

10

Snapper 7091573

BOLT, 1/4-20 x 5/8" Short Neck Carriage
(Superseded to 7091573YP)

Note: Was 90551

$4.49

$

In Stock, only 1 left!

0

11

Snapper 7090361

SCREW, 5/16-18 x 5/8" Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

12

Snapper 7010746

RING, Retaining
(Superseded to 703975)

$3.99

$

In Stock, Qty 19

0

13

Snapper 7015048

BEARING
(Superseded to 7015048YP)

$17.99

$

In Stock, only 1 left!

0

14

Snapper 7051752

ASSEMBLY, Sector
(Superseded to 7051752YP)

$237.99

$

In Stock, only 1 left!

0

15

Snapper 7027936

BALL JOINT, Drag Link 3/8-24
(Superseded to 7027936SM)

Note: Was 23200

$17.99

$

In Stock, only 2 left!

0

16

Snapper 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

17

Snapper 7090163

SCREW, 318-24 x 1 1/4" Hex Head Cap

$

$

Not available

18

Snapper 7090482

NUT, 3/8-24 Hex Jam
(Superseded to 7090482SM)

$4.49

$

In Stock, only 1 left!

0

19

Snapper 7016062

DRAG-LINK

$

$

Not available

20

Snapper 7019034

ARM, Steering
(Superseded to 7019034YP)

$

$

Not available

21

Snapper 7090842

PIN, 1/4x1-1/4" Roll
(Superseded to 7090842YP)

$4.49

$

In Stock, only 2 left!

0

22

Snapper 7032027

WASHER, 49/64 x 1-1/2" Dia. Flat
(Superseded to 7032027SM)

$4.49

$

In Stock, Qty 7

0

23

Snapper 7012706

BEARING, Sleeve
(Superseded to 7012706SM)

$10.99

$

In Stock, only 4 left!

0

24

Snapper 7013864

LUBE FITTING, Straight (press-fit for .187 dia. Hole)
(Superseded to 7013864SM)

$3.49

$

In Stock, Qty 12

0

25

Snapper 7031036

WASHER, Thrust
(Superseded to 7031036YP)

$3.99

$

Usually ships in 2-12 days

0

26

Snapper 7040977

ASSEMBLY, Spindle (Left Hand)
(Superseded to 7040977YP)

$78.99

$

Usually ships in 2-12 days

0

27

Snapper 7091516

PIN, 5/32 x 1" Cotter
(Superseded to 703984)

Note: Was 90364

$4.49

$

In Stock, Qty 11

0

28

Snapper 7091630

NUT, 3/8-24 Hex
(Superseded to 703895)

Note: Was 90155

$4.49

$

Usually ships in 2-12 days

0

29

Snapper 7017608

TIE-ROD
(Superseded to 7017608YP)

$91.99

$

Usually ships in 2-12 days

0

30

Snapper 7040976

ASSEMBLY, Spindle (Right Hand)
(Superseded to 7040976YP)

$77.99

$

Usually ships in 2-12 days

0

31

Snapper 7090993

SCREW, 1/2-20 x 4 1/2" Hex Head Cap
(Superseded to 7090993YP)

$5.49

$

In Stock, only 1 left!

0

32

Snapper 7057536

ASSEMBLY, Front Axle
(Superseded to 7057536YP)

Note: (Includes four item 23, two item 24, one item 36)

$387.99

$

Usually ships in 2-12 days

0

33

Snapper 7022070

SPACER, Axle Pivot

$

$

Not available

34

Snapper 7090819

NUT, 1/2-20 Hex Lock
(Superseded to 7090819YP)

$3.49

$

In Stock, only 1 left!

0

35

Snapper 7010935

WASHER, 314 x 1-1/8" Dia.
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

36

Snapper 7014871

FITTING, Lube
(Superseded to 7014871SM)

$4.49

$

In Stock, only 4 left!

0
