ELT 125380 (7800409) - Murray 38" Lawn Tractor, Gear Drive, 12.5hp (2009) Hood & Seat Group Parts Diagram

38" Lawn Tractor, Gear Drive, 12.5hp

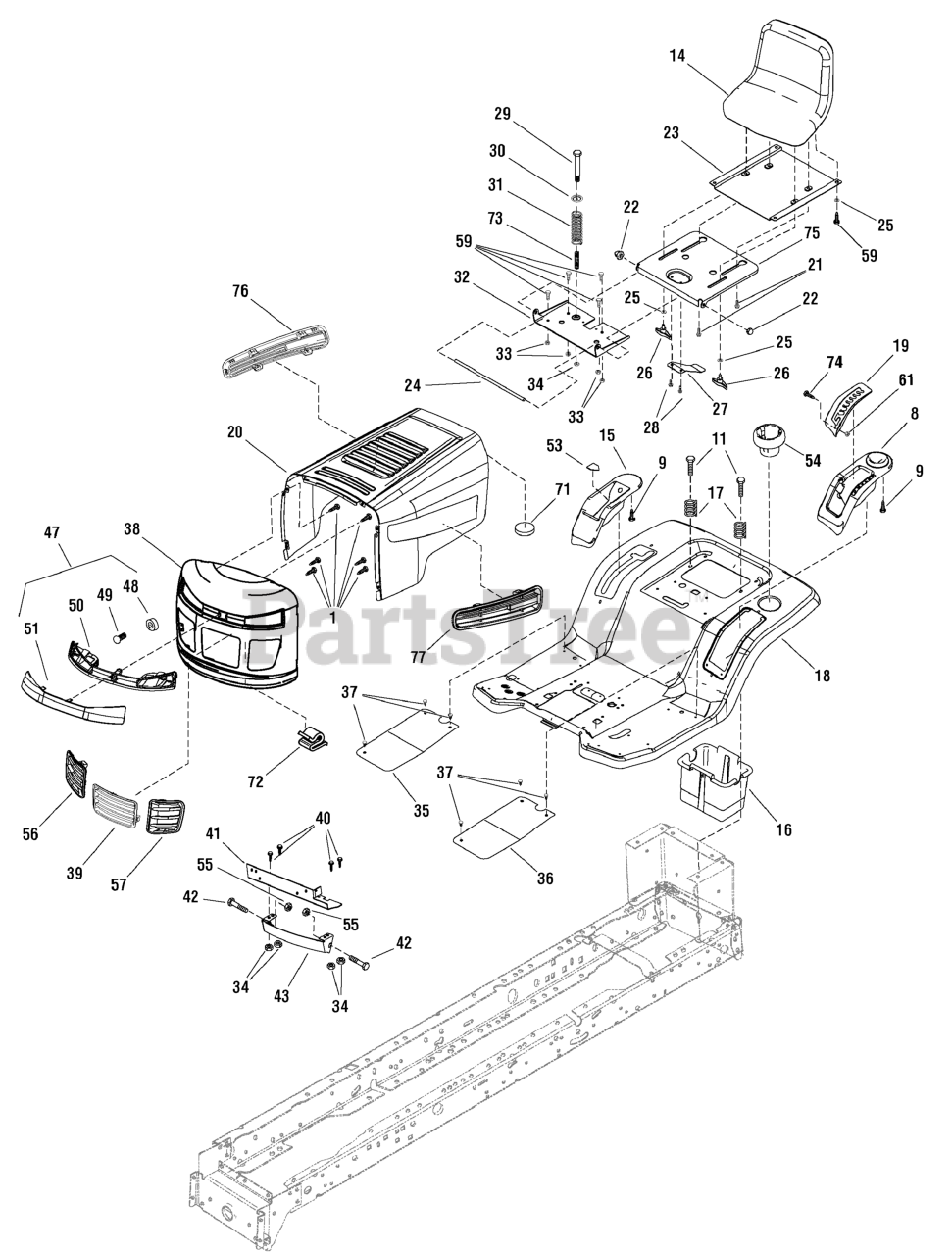

Hood & Seat Group Parts Diagram

  • Title

1

Murray 26X270MA

SCREW, Thread Forming

$4.49

$

In Stock, Qty 13

0

8

Murray 7101770YP

POD, With Cup Holder

Note: (Used on 17.5HP & 22HP)

$45.99

$

Usually ships in 2-12 days

0

9

Murray 7090952YP

SCREW, Thread Cutting, 1/4-20

$4.99

$

Usually ships in 2-12 days

0

11

Murray 26X249MA

CAPSCREW, 5/16-18 x 3/4

$

$

Not available

14

Murray 7101860YP

SEAT, High Back
(Superseded to 1687498YP)

Note: (Used on 12.5HP & 15.5HP)

$445.99

$

Usually ships in 2-12 days

0

14

Murray 1001854MA

SEAT, Low Back

Note: (Used on 17.5HP & 22HP)

$478.99

$

Usually ships in 2-12 days

0

15

Murray 7101771YP

POD, With Compartment

Note: (Used on 17.5HP & 22HP)

$45.99

$

Usually ships in 2-12 days

0

16

Murray 690424MA

CONTAINER, Battery

$45.99

$

In Stock, only 1 left!

0

17

Murray 164X30MA

SPRING, Compression

$15.99

$

Usually ships in 2-12 days

0

18

Murray 7300843ZMA

DECK, Seat

Note: (Used on Models 7800409 & 7800410)

$330.99

$

Usually ships in 2-12 days

0

18

Murray 7300677ZYP

DECK, Seat

Note: (Used on Model 7800411)

$444.99

$

Usually ships in 2-12 days

0

18

Murray 7300842ZYP

DECK, Seat

Note: (Used on 17.5HP & 22HP)

$319.99

$

Usually ships in 2-12 days

0

19

Murray 7300839BMYP

PLATE, Index

Note: (Used on 12.5HP & 15.5HP)

$19.99

$

Usually ships in 2-12 days

0

19

Murray 7300865BMYP

PLATE, Index

Note: (Used on 17.5HP & 22HP)

$22.99

$

Usually ships in 2-12 days

0

20

Murray 7300786ZMA

HOOD

Note: (Used on 12.5HP & 15.5HP)

$284.99

$

Usually ships in 2-12 days

0

20

Murray 7300964ZYP

HOOD

Note: (Used on 17.5HP)

$296.99

$

Usually ships in 2-12 days

0

20

Murray 7400263ZYP

HOOD

Note: (Used on 22HP)

$296.99

$

Usually ships in 2-12 days

0

21

Murray 009X56MA

BOLT, Shoulder 5/16-18 x 5/8

$3.49

$

Usually ships in 2-12 days

0

22

Murray 028X23MA

CAP, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

23

Murray 7400286YP

SEAT PLATE

Note: (Used on 17.5HP & 22HP)

$62.99

$

Usually ships in 2-12 days

0

24

Murray 094156ZMA

ROD, Pivot

$7.99

$

Usually ships in 2-12 days

0

25

Murray 017X47MA

WASHER, Flat, 5/16
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

26

Murray 1001054MA

BOLT, Wing 5/16-18 x 1/2

$6.99

$

Usually ships in 2-12 days

0

27

Murray 094057MA

LEAF SPRING

$5.99

$

Usually ships in 2-12 days

0

28

Murray 26X229MA

SCREW, 1/4-14 x 3/8

$4.49

$

In Stock, only 1 left!

0

29

Murray 009X55MA

BOLT, Shoulder 1/4-20 x 5/16

$3.49

$

Usually ships in 2-12 days

0

30

Murray 094155ZMA

WASHER, Cup

$3.99

$

Usually ships in 2-12 days

0

31

Murray 164X31MA

SPRING, Compression

$7.99

$

In Stock, only 2 left!

0

32

Murray 7300794BMYP

BRACKET, Seat Pivot

$33.99

$

Usually ships in 2-12 days

0

33

Murray 15X123MA

NUT, Nylock 5/16-18

$3.99

$

Usually ships in 2-12 days

0

34

Murray 015X89MA

NUT, Hex Flange Lock, 1/4-20

$4.49

$

Usually ships in 2-12 days

0

35

Murray 094998MA

MAT, Right

Note: (Used on 12.5HP & 15.5HP)

$

$

Not available

35

Murray 095409MA

MAT, Molded Right

Note: (Used on 17.5HP & 22HP)

$32.99

$

Usually ships in 2-12 days

0

36

Murray 094999MA

MAT, Left

Note: (Used on 12.5HP & 15.5HP)

$18.99

$

In Stock, only 1 left!

0

36

Murray 095408MA

MAT, Molded Left

Note: (Used on 17.5HP & 22HP)

$30.99

$

Usually ships in 2-12 days

0

37

Murray 0193X1MA

FASTENER, Panel

$3.99

$

In Stock, only 1 left!

0

38

Murray 7300778ZMA

GRILLE

Note: (Used on 12.5HP & 15.5HP)

$125.99

$

Usually ships in 2-12 days

0

38

Murray 7400282ZYP

GRILLE

Note: (Used on 17.5HP & 22HP)

$118.99

$

In Stock, only 1 left!

0

39

Murray 1741762MA

INSERT, Center Grille

Note: (Used on 12.5HP & 15.5HP)

$42.99

$

Usually ships in 2-12 days

0

39

Murray 1741767YP

INSERT, Center Grille

Note: (Used on 17.5HP & 22HP)

$16.99

$

Usually ships in 2-12 days

0

40

Murray 7090072SM

SCREW, 1/4-20 x 5/8
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

41

Murray 1740529MA

BRACKET, Support

Note: (Used on 12.5HP & 15.5HP)

$

$

Currently unavailable

42

Murray 009X58MA

BOLT, Shoulder
(Superseded to 702315)

$6.99

$

Usually ships in 2-12 days

0

43

Murray 1740530BMYP

BRACKET, Lower Pivot

Note: (Used on 12.5HP & 15.5HP)

$32.99

$

Usually ships in 2-12 days

0

43

Murray 7300758BMYP

BRACKET, Lower Pivot

Note: (Used on 17.5HP & 22HP)

$37.99

$

Usually ships in 2-12 days

0

47

Murray 7500571YP

HEADLIGHT ASSEMBLY
(Superseded to 7600160YP)

Note: (Includes Ref. Nos. 48, 49, 50 & 51)

$90.99

$

Usually ships in 2-12 days

0

48

Murray 1001716MA

SOCKET, Lamp

$7.99

$

In Stock, Qty 7

0

49

Murray 090084MA

BULB, Light
(Superseded to 1677371SM)

Note: (Used on 12.5HP & 15.5HP)

$30.99

$

In Stock, only 1 left!

0

49

Murray 1677371SM

BULB, 12.8V

Note: (Used on 17.5HP & 22HP)

$30.99

$

In Stock, only 1 left!

0

50

Murray 1001805MA

HOUSING, Light

Note: (Used on 12.5HP & 15.5HP)

$31.99

$

Usually ships in 2-12 days

0

50

Murray 1001819MA

HOUSING, Light

Note: (Used on 17.5HP & 22HP)

$36.99

$

Usually ships in 2-12 days

0

51

Murray 1001806MA

LENS, Light

Note: (Used on 12.5HP & 15.5HP)

$28.99

$

Usually ships in 2-12 days

0

51

Murray 1001820MA

LENS, Light

Note: (Used on 17.5HP & 22HP)

$53.99

$

Usually ships in 2-12 days

0

53

Murray 7101493YP

INDICATOR, Cutting Height

Note: (Used on 17.5HP & 22HP)

$3.99

$

Usually ships in 2-12 days

0

54

Murray 1741770MA

HOLDER, Cup

$11.99

$

Usually ships in 2-12 days

0

55

Murray 015X84MA

NUT, Centerlock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

56

Murray 1741764MA

INSERT, Right Grille

Note: (Used on 12.5HP & 15.5HP)

$16.99

$

Usually ships in 2-12 days

0

56

Murray 1741768YP

INSERT, Right Grille

Note: (Used on 17.5HP & 22HP)

$10.99

$

Usually ships in 2-12 days

0

57

Murray 1741763MA

INSERT, Left Grille

Note: (Used on 12.5HP & 15.5HP)

$16.99

$

Usually ships in 2-12 days

0

57

Murray 1741769YP

INSERT, Left Grille

Note: (Used on 17.5HP & 22HP)

$22.99

$

Usually ships in 2-12 days

0

59

Murray 001X45MA

BOLT, Hex, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

61

Murray 015X81MA

NUT, Flange Lock 1/4-20

$4.99

$

Usually ships in 2-12 days

0

71

Murray 094376MA

BUMPER

$3.49

$

Usually ships in 2-12 days

0

72

Murray 028X83MA

S-Clip

$3.99

$

In Stock, only 2 left!

0

73

Murray 7074511SM

SPRING, Brake Compression

$10.99

$

Usually ships in 2-12 days

0

74

Murray 009X47MA

SCREW, Shoulder #10-24

$4.49

$

Usually ships in 2-12 days

0

75

Murray 7300875BMYP

SUPPORT, Seat

$65.99

$

Usually ships in 2-12 days

0

76

Murray 1741761MA

INSERT, Right Hood

Note: (Used on 12.5HP & 15.5HP)

$11.99

$

Usually ships in 2-12 days

0

76

Murray 1741766YP

INSERT, Right Hood

Note: (Used on 17.5HP & 22HP)

$22.99

$

Usually ships in 2-12 days

0

77

Murray 1741760MA

INSERT, Left Hood

Note: (Used on 12.5HP & 15.5HP)

$11.99

$

Usually ships in 2-12 days

0

77

Murray 1741765YP

INSERT, Left Hood

Note: (Used on 17.5HP & 22HP)

$22.99

$

Usually ships in 2-12 days

0
