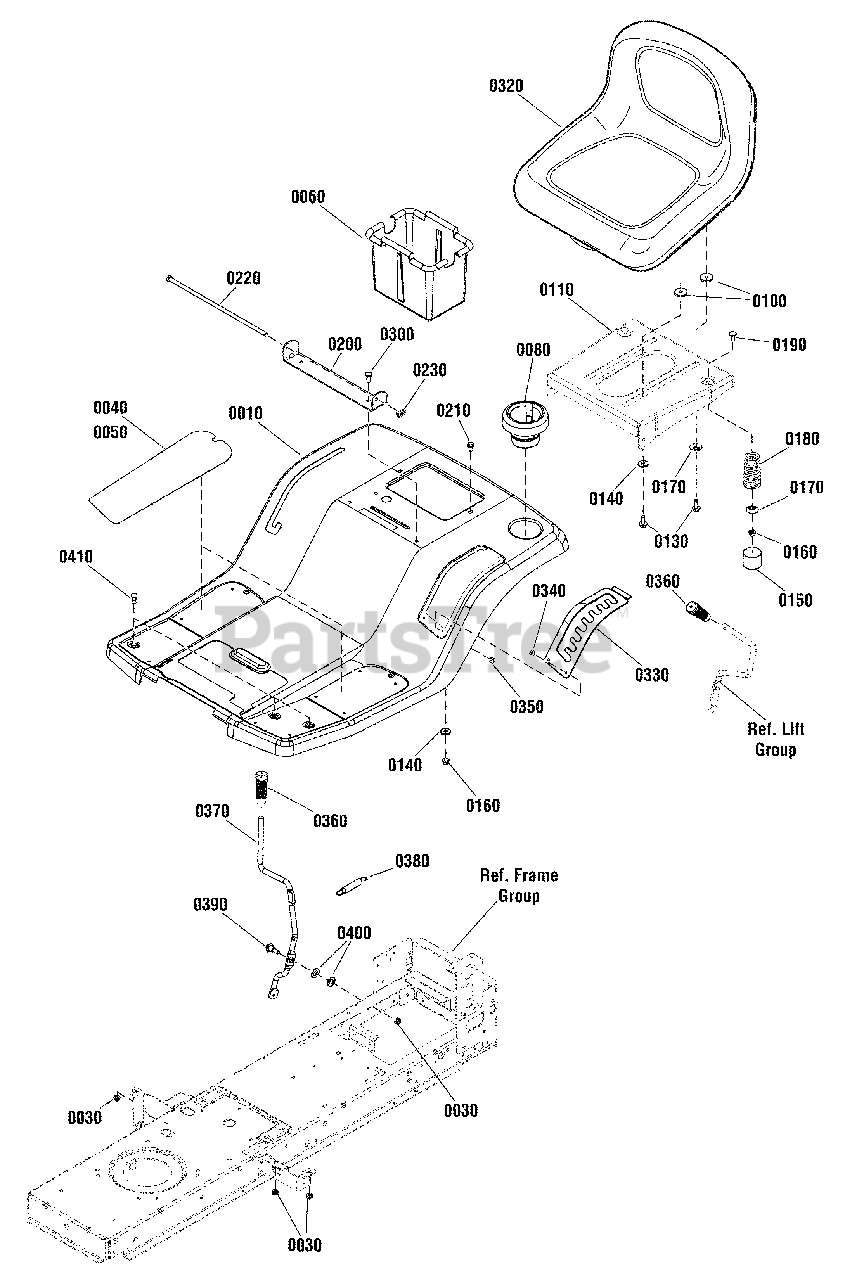

ELT 125380 (2691084) - Snapper 38" Lawn Tractor, 12.5hp Seat Deck Group Parts Diagram

38" Lawn Tractor, 12.5hp

Seat Deck Group Parts Diagram

  • Title

0010

Snapper 1750975D

DECK, Seat

$

$

Currently unavailable

0030

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0040

Snapper 721378

MAT, Running Board, RH
(Superseded to 094998MA)

$

$

Not available

0050

Snapper 1751116

MAT, Running Board, LH
(Superseded to 1751116YP)

$13.99

$

Usually ships in 2-12 days

0

0060

Snapper 725181

CONTAINER, Battery
(Superseded to 690424MA)

$45.99

$

In Stock, only 1 left!

0

0080

Snapper 721503

HOLDER, Beverage
(Superseded to 1001542MA)

$11.99

$

Usually ships in 2-12 days

0

0100

Snapper 1731300

SPACER, 5/16 ID x 1-1/4 OD x 5/16"
(Superseded to 1731300SM)

$5.49

$

Usually ships in 2-12 days

0

0110

Snapper 1752228BM

SUPPORT, Seat
(Superseded to 1752228BMYP)

$66.99

$

Usually ships in 2-12 days

0

0130

Snapper 1960667

CAPSCREW, Hex Flange, Whiz Lock, 5/16-18 x 1
(Superseded to 1960667SM)

$4.99

$

Usually ships in 2-12 days

0

0140

Snapper 1919381

WASHER, 5/16
(Superseded to 1919381SM)

$4.49

$

Usually ships in 2-12 days

0

0150

Snapper 1751945

COVER, Spring
(Superseded to 1751945YP)

$5.99

$

Usually ships in 2-12 days

0

0160

Snapper 1960686

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0170

Snapper 1709256

WASHER, Spring, 5/16 x 1-1/4
(Superseded to 1709256SM)

$5.99

$

In Stock, only 2 left!

0

0180

Snapper 1751810

SPRING, Compression
(Superseded to 1751810YP)

$13.99

$

Usually ships in 2-12 days

0

0190

Snapper 1960282

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

0200

Snapper 1750968BM

BRACKET, Seat Pivot
(Superseded to 1750968BMYP)

$18.99

$

Usually ships in 2-12 days

0

0210

Snapper 1930601

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

0220

Snapper 1751493

ROD, Seat Pivot
(Superseded to 1751493YP)

$10.99

$

Usually ships in 2-12 days

0

0230

Snapper 7091593

PIN, Cotter, Self Lock, 3/8
(Superseded to 703355)

$3.99

$

In Stock, Qty 14

0

0300

Snapper 1931334

BOLT, Carriage, Short Neck, 5/16-18 x 7/8, G5
(Superseded to 704065)

$4.49

$

In Stock, Qty 6

0

0320

Snapper 1752062

SEAT ASSEMBLY
(Superseded to 1761589YP)

$213.99

$

Usually ships in 2-12 days

0

0330

Snapper 1751159BM

QUADRANT, Mower Lift
(Superseded to 1751159BMYP)

$18.99

$

Usually ships in 2-12 days

0

0340

Snapper 720095

BOLT, Shoulder
(Superseded to 009X47MA)

$4.49

$

Usually ships in 2-12 days

0

0350

Snapper 720140

NUT, McLean Lock, #10-24
(Superseded to 015X81MA)

$4.99

$

Usually ships in 2-12 days

0

0360

Snapper 721120

GRIP
(Superseded to 1753233YP)

$6.99

$

In Stock, Qty 20+

0

0370

Snapper 1750976

ROD, Manual PTO, J Hook, RH
(Superseded to 1750976YP)

$30.99

$

Usually ships in 2-12 days

0

0380

Snapper 2156302

SPRING
(Superseded to 2156302SM)

$6.49

$

In Stock, Qty 20+

0

0390

Snapper 1752072

BOLT, Shoulder
(Superseded to 1752072YP)

$4.99

$

Usually ships in 2-12 days

0

0400

Snapper 1960170

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

0410

Snapper 1931333

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0
