ELT 125380 (2691084) - Snapper 38" Lawn Tractor, 12.5hp Hood, Grille & Dash Group Parts Diagram

38" Lawn Tractor, 12.5hp

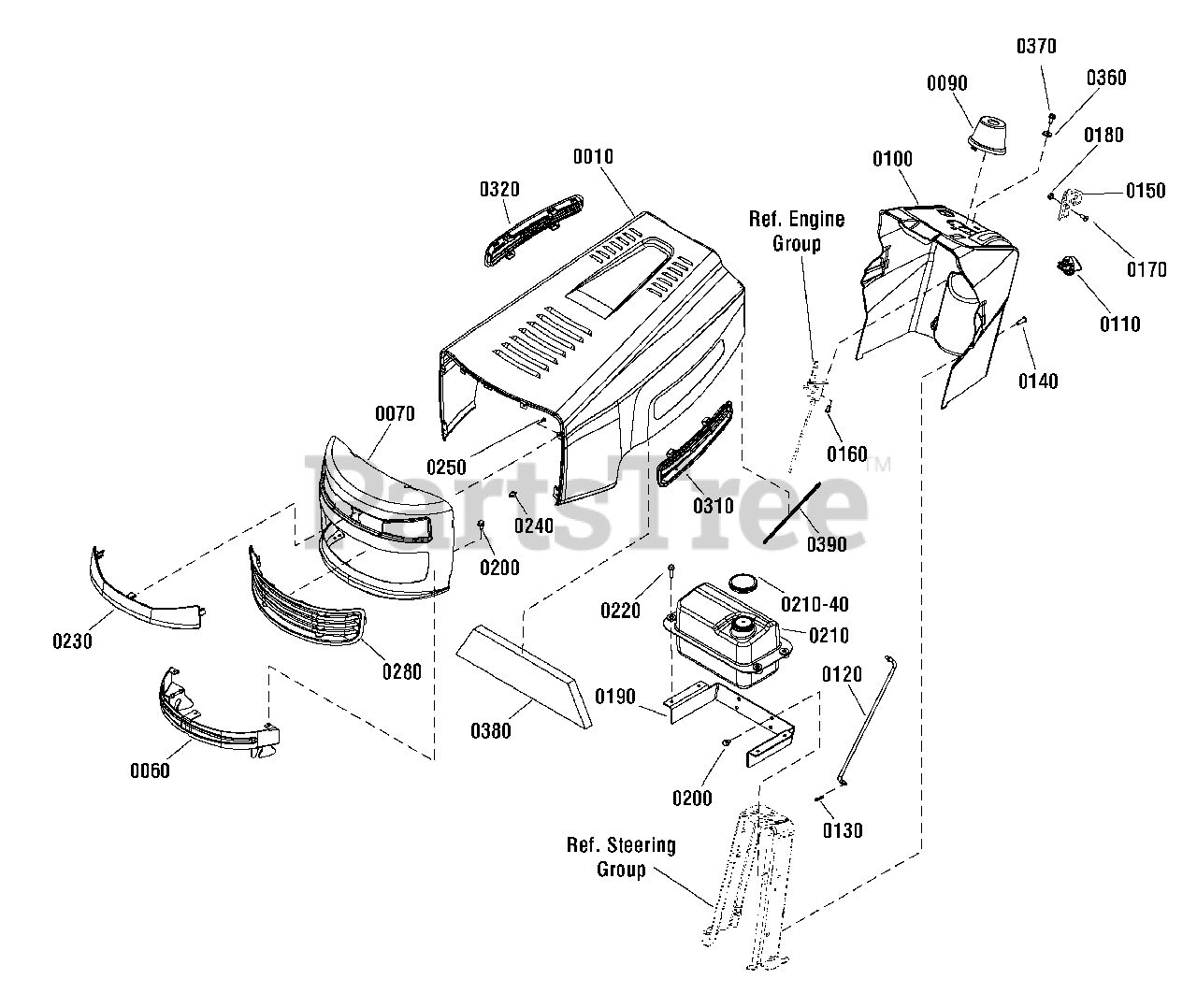

Hood, Grille & Dash Group Parts Diagram

  • Title

0010

Snapper 1750971D

HOOD
(Superseded to 1750971DYP)

$769.99

$

Usually ships in 2-12 days

0

0060

Snapper 1750659BM

BRACKET, Hinge Hood / Bumper
(Superseded to 1750659BMYP)

$48.99

$

Usually ships in 2-12 days

0

0070

Snapper 1751786D

GRILLE, 1 Hole
(Superseded to 1751786DYP)

$170.99

$

Usually ships in 2-12 days

0

0090

Snapper 1751114

COVER, Steering Shaft
(Superseded to 1751114YP)

$16.99

$

Usually ships in 2-12 days

0

0100

Snapper 1750990

DASH
(Superseded to 1750990YP)

$188.99

$

Usually ships in 2-12 days

0

0110

Snapper 1721891

KNOB, Push On, Red Plastic "P"
(Superseded to 1721891SM)

$9.99

$

In Stock, only 1 left!

0

0120

Snapper 1738929

ROD, Parking Brake
(Superseded to 1738929YP)

$31.99

$

Usually ships in 2-12 days

0

0130

Snapper 1722460

PIN, Quick, 1-3/16 Long
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

0140

Snapper 1960556

SCREW, Truss Head Torx, 1/4-20 x 3/4
(Superseded to 1960556SM)

$4.49

$

Usually ships in 2-12 days

0

0150

Snapper 1739312

KNOB, Throttle
(Superseded to 1739312YP)

$11.99

$

Usually ships in 2-12 days

0

0160

Snapper 1739329

SCREW, Washer Head, 5MM x 12MM Long
(Superseded to 1739329YP)

$4.49

$

Usually ships in 2-12 days

0

0170

Snapper 797483

SCREW, Phillips Head, 8-32 x 3/8

$4.49

$

Usually ships in 2-12 days

0

0180

Snapper 7091018

NUT, #8-32 Hex, GR 2B
(Superseded to 7091018YP)

$3.99

$

In Stock, Qty 9

0

0190

Snapper 1750974BM

SUPPORT, Fuel Tank
(Superseded to 1750974BMYP)

$36.99

$

Usually ships in 2-12 days

0

0200

Snapper 1930601

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

0210

Snapper 1750972

TANK, Fuel
(Superseded to 1750972YP)

$168.99

$

Usually ships in 2-12 days

0

0390

Snapper 1752551

STRIP, Trim, 10"
(Superseded to 1752551YP)

$12.99

$

Usually ships in 2-12 days

0

0210-40

Snapper 1751942

CAP, Fuel
(Superseded to 1751942YP)

$16.99

$

Usually ships in 2-12 days

0

0230

Snapper 1751735

INSERT, Headlight
(Superseded to 1751735YP)

$30.99

$

Usually ships in 2-12 days

0

0240

Snapper 720382

RETAINERS, S-Clips
(Superseded to 028X83MA)

$3.99

$

In Stock, only 2 left!

0

0250

Snapper 729075

SCREW, Thread Forming
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

0310

Snapper 1741760

INSERT, Left Hood
(Superseded to 1741760MA)

$11.99

$

Usually ships in 2-12 days

0

0320

Snapper 1741761

INSERT, Right Hood
(Superseded to 1741761MA)

$11.99

$

Usually ships in 2-12 days

0

0360

Snapper 1919381

WASHER, 5/16
(Superseded to 1919381SM)

$4.49

$

In Stock, only 2 left!

0

0370

Snapper 1664847

SCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0380

Snapper 1752484

FOAM, Hood
(Superseded to 1752484YP)

$19.99

$

Usually ships in 2-12 days

0

0390

Snapper 1752551

STRIP, Trim, 10"
(Superseded to 1752551YP)

$12.99

$

Usually ships in 2-12 days

0
