ELT 125380 (2691084) - Snapper 38" Lawn Tractor, 12.5hp Frame & Front Axle Group Parts Diagram

38" Lawn Tractor, 12.5hp

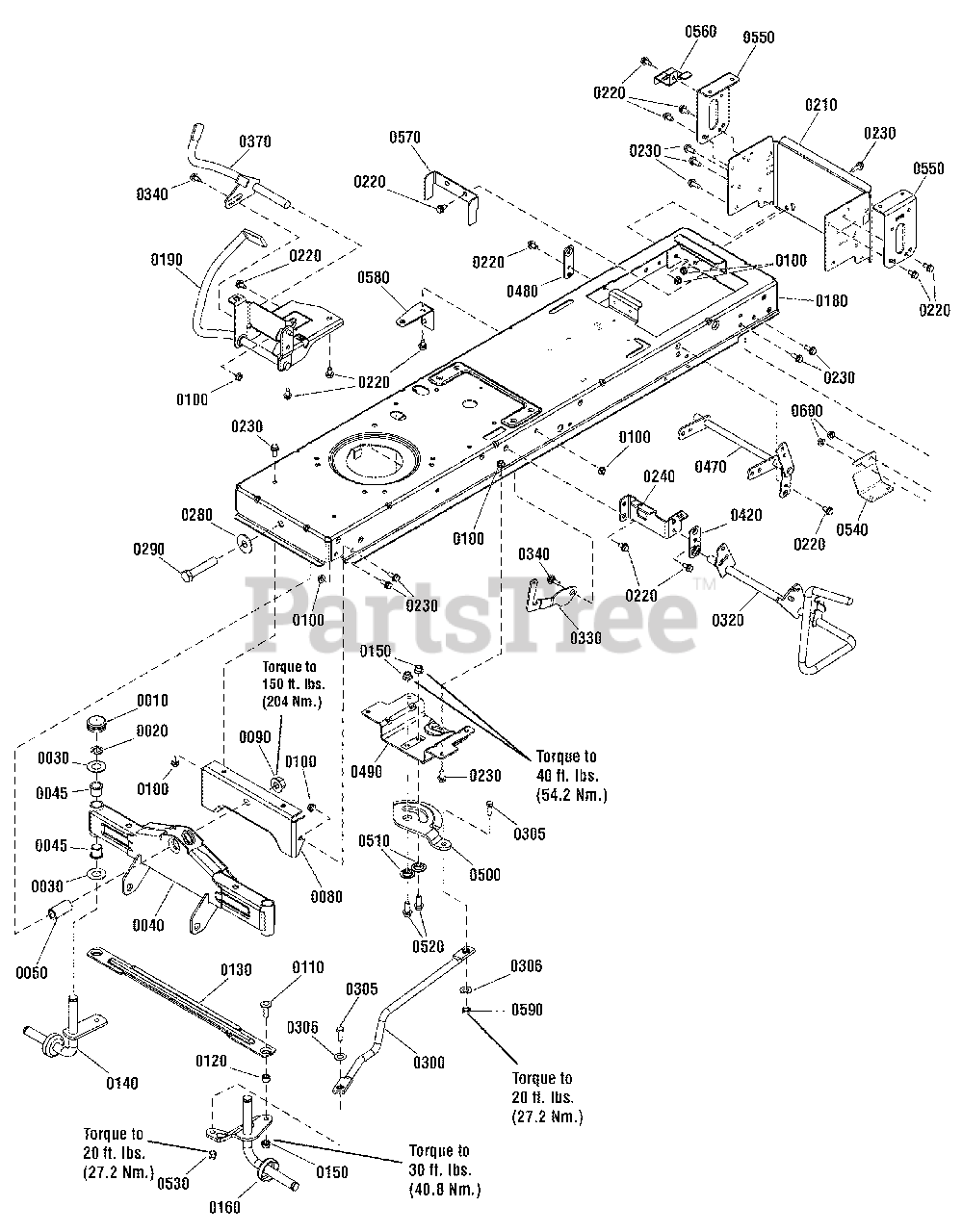

Frame & Front Axle Group Parts Diagram

  • Title

0010

Snapper 721318

HUB CAP
(Superseded to 094618MA)

$5.99

$

In Stock, only 4 left!

0

0020

Snapper 720010

E-RING
(Superseded to 0011X3MA)

$5.49

$

In Stock, Qty 20+

0

0030

Snapper 722620

WASHER, Flat
(Superseded to 17X195MA)

$4.99

$

In Stock, only 4 left!

0

0040

Snapper 1751899

AXLE ASSEMBLY
(Superseded to 1751899YP)

$113.99

$

Usually ships in 2-12 days

0

0045

Snapper 2176440

BUSHING, Nylon
(Superseded to 2176440SM)

$4.99

$

In Stock, Qty 20+

0

0050

Snapper 1738193

SPACER, 5/8 ID x 1 OD x 2"
(Superseded to 1738193YP)

$6.49

$

In Stock, only 1 left!

0

0080

Snapper 1727902

PLATE, Axle Support
(Superseded to 1727902SM)

$43.99

$

Usually ships in 2-12 days

0

0090

Snapper 2860646

NUT, Hex Flange, Two Way Lock, 5/8-11
(Superseded to 2860646SM)

$10.99

$

In Stock, Qty 6

0

0100

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0110

Snapper 1960032

CAPSCREW, Hex Head, 3/8-16 x 1-1/4
(Superseded to 1960032SM)

$5.49

$

In Stock, only 1 left!

0

0120

Snapper 1611705

SPACER, 3/8 ID x 5/8 OD x 5/16"
(Superseded to 1611705SM)

$4.49

$

In Stock, Qty 19

0

0130

Snapper 1751964

TIE ROD
(Superseded to 1751964BMYP)

$32.99

$

In Stock, Qty 5

0

0140

Snapper 1727872A

WHEEL SPINDLE ASSEMBLY, RH
(Superseded to 1727872ASM)

$98.99

$

In Stock, Qty 20+

0

0150

Snapper 1930645

NUT, Hex Flange, Two Way Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0160

Snapper 1751922

ARM, Steering, LH
(Superseded to 1751922YP)

$109.99

$

Usually ships in 2-12 days

0

0180

Snapper 1750275

FRAME
(Superseded to 1750275YP)

$222.99

$

Usually ships in 2-12 days

0

0190

Snapper 1750606

PEDAL, Forward
(Superseded to 1750606YP)

$54.99

$

Usually ships in 2-12 days

0

0210

Snapper 1750989

SUPPORT, Frame, Rear
(Superseded to 1750989YP)

$35.99

$

Usually ships in 2-12 days

0

0220

Snapper 1930601

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

0230

Snapper 1930591

CAPSCREW, Hex Flange, Whiz Lock, 5/16-18 x 3/4
(Superseded to 80003531)

$5.49

$

In Stock, Qty 14

0

0240

Snapper 1750795

SUPPORT, Foot Rest, LH
(Superseded to 1750795YP)

$20.99

$

Usually ships in 2-12 days

0

0280

Snapper 1960035

WASHER, 5/8
(Superseded to 1960035SM)

$4.49

$

In Stock, only 2 left!

0

0290

Snapper 2860744

CAPSCREW, Hex Head, 5/8-11 x 3-1/4, G5
(Superseded to 2860744SM)

$8.49

$

Usually ships in 2-12 days

0

0300

Snapper 1738051

DRAG LINK ASSEMBLY
(Superseded to 1738051YP)

$60.99

$

In Stock, Qty 12

0

0305

Snapper 1921977

CAPSCREW, Hex Head, 5/16-18 x 1-1/4, G5
(Superseded to 1921977SM)

$4.99

$

In Stock, Qty 7

0

0306

Snapper 1924874

WASHER, 5/16
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

0320

Snapper 1750608

BRAKE PEDAL
(Superseded to 1750608YP)

$62.99

$

Usually ships in 2-12 days

0

0330

Snapper 1735595

LATCH, Brake Lock
(Superseded to 1735595ASM)

$10.99

$

Usually ships in 2-12 days

0

0600

Snapper 720145

NUT, Centerlock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

0370

Snapper 1751551

PEDAL ASSEMBLY, Reverse
(Superseded to 1751551YP)

$23.99

$

Usually ships in 2-12 days

0

0420

Snapper 1727911A

PLATE, Bearing
(Superseded to 1727911ASM)

$12.99

$

Usually ships in 2-12 days

0

0470

Snapper 1750767

LIFT SHAFT ASSEMBLY
(Superseded to 1750767YP)

$39.99

$

Usually ships in 2-12 days

0

0480

Snapper 1750798

PLATE, Bearing
(Superseded to 1750798YP)

$6.99

$

Usually ships in 2-12 days

0

0490

Snapper 1727940

BRACKET, Secotr Support
(Superseded to 1727940SM)

$

$

Not available

0500

Snapper 1751110

GEAR, Steering
(Superseded to 1751110YP)

$34.99

$

In Stock, Qty 20+

0

0510

Snapper 1728122

SPACER, Sector Gear
(Superseded to 1728122SM)

$5.49

$

In Stock, Qty 10

0

0520

Snapper 1934654

CAPSCREW, Hex Flange, Whiz Lock, 3/8-16 x 1
(Superseded to 704038)

$5.99

$

In Stock, only 2 left!

0

0530

Snapper 1930645

NUT, Hex Flange, Two Way Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0540

Snapper 1739792

SUPPORT, Transmission, General Transmission
(Superseded to 1739792YP)

$19.99

$

Usually ships in 2-12 days

0

0550

Snapper 1752218

SUPPORT, Seat Deck
(Superseded to 1752218YP)

$21.99

$

Usually ships in 2-12 days

0

0560

Snapper 1751160

SUPPORT, MPTO Switch
(Superseded to 1751160YP)

$18.99

$

Usually ships in 2-12 days

0

0570

Snapper 1750169

GUIDE, Belt
(Superseded to 1750169YP)

$16.99

$

Usually ships in 2-12 days

0

0580

Snapper 1750784

BRACKET, Cable
(Superseded to 1750784YP)

$8.49

$

Usually ships in 2-12 days

0

0590

Snapper 1935048

NUT, Hex Flange, Two Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

0600

Snapper 720145

NUT, Centerlock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0
