ELT 125380 (2691084) - Snapper 38" Lawn Tractor, 12.5hp 38" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

38" Lawn Tractor, 12.5hp

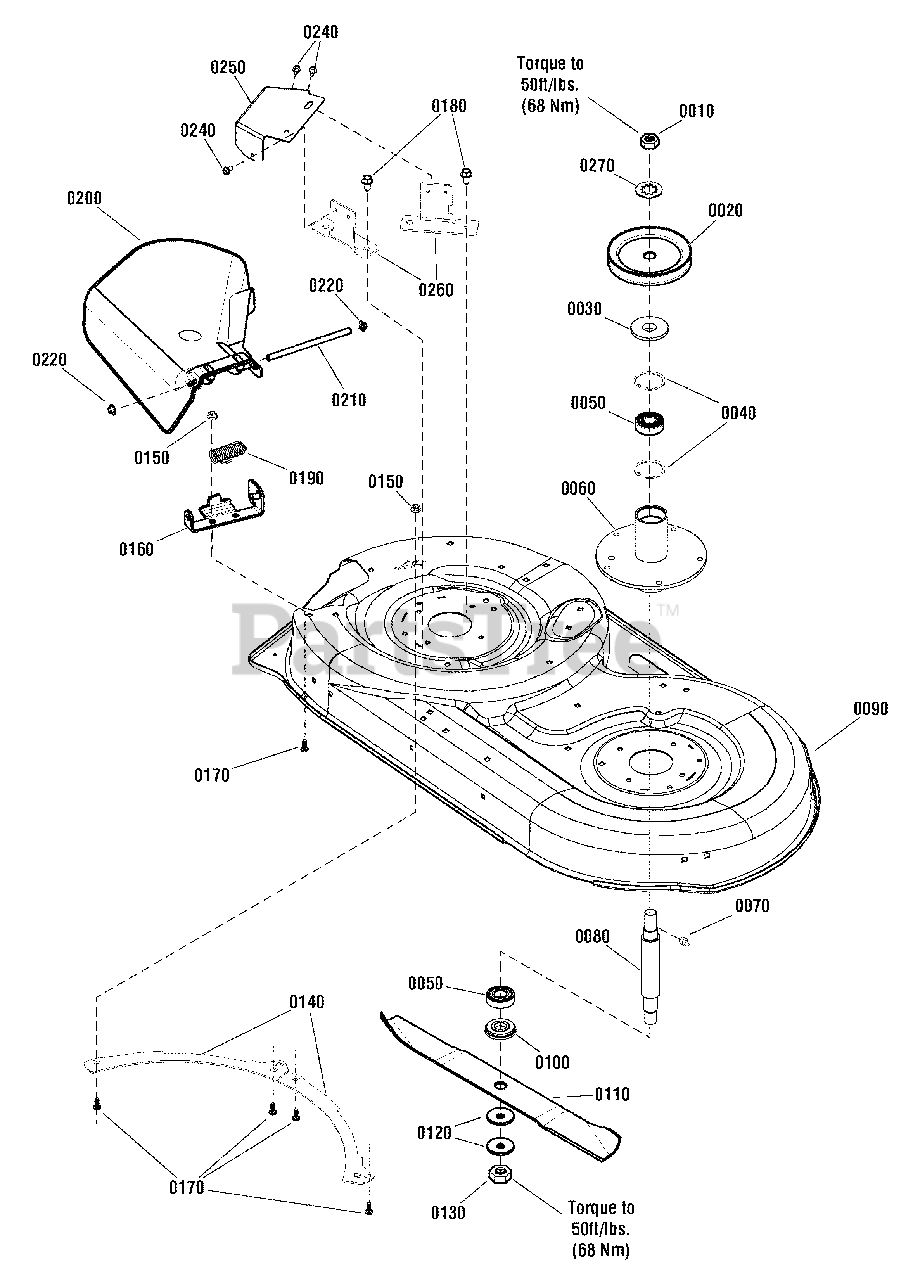

38" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

  • Title

0010

Snapper 1922014

NUT, Hex Jam, 5/8-18
(Superseded to 703904)

$4.99

$

In Stock, Qty 19

0

0020

Snapper 1751088

PULLEY, Spindle, 5-1/4 OD
(Superseded to 1751088YP)

$35.99

$

Usually ships in 2-12 days

0

0030

Snapper 7072440

SPACER, Pulley
(Superseded to 7072440SM)

$9.49

$

In Stock, Qty 19

0

0040

Snapper 7012491

RING, Retaining, 1-3/4
(Superseded to 7012491SM)

$4.49

$

In Stock, Qty 20+

0

0050

Snapper 2108202

BEARING, Ball, 3/4 ID x 1-3/4 OD x 5/8"
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

0060

Snapper 1731372BM

SPINDLE HOUSING
(Superseded to 1731372BMYP)

$98.99

$

In Stock, Qty 11

0

0070

Snapper 1704314

FITTING, Grease
(Superseded to 1704314SM)

$4.99

$

In Stock, Qty 20+

0

0080

Snapper 7072537

SHAFT, Spindle
(Superseded to 7072537SM)

$43.99

$

In Stock, Qty 20+

0

0090

Snapper 1731204D

HOUSING, 38"
(Superseded to 1687206SM)

$512.99

$

Usually ships in 2-12 days

0

0100

Snapper 1731917

WASHER, Spindle Blade
(Superseded to 1731917SM)

$9.49

$

In Stock, Qty 20+

0

0110

Snapper 1737534A

BLADE, Mower, 38"
(Superseded to 1737534AYP)

$27.99

$

Usually ships in 2-12 days

0

0120

Snapper 7024467

WASHER, Belleville, 1-3/4 Dia.
(Superseded to 7024467SM)

$4.49

$

In Stock, Qty 20+

0

0130

Snapper 7091633

NUT, Hex, 9/16F
(Superseded to 7091633SM)

$4.99

$

In Stock, Qty 20+

0

0140

Snapper 7300834BM

PLATE, Rear
(Superseded to 7300834BMYP)

$16.99

$

Usually ships in 2-12 days

0

0150

Snapper 80002728

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0160

Snapper 721369BM

BRACKET, Hinge
(Superseded to 094956E701MA)

$22.99

$

Usually ships in 2-12 days

0

0170

Snapper 1931333

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0180

Snapper 1923683

CAPSCREW, Hex Washer Head, Taptite, 3/8-16 x 3/4
(Superseded to 703950)

$5.49

$

In Stock, only 1 left!

0

0190

Snapper 720154

SPRING, Torsion
(Superseded to 0166X4MA)

$6.49

$

In Stock, Qty 9

0

0200

Snapper 721339

DEFLECTOR & SUPPORT ASMY, Chute
(Superseded to 094707MA)

$108.99

$

In Stock, only 3 left!

0

0210

Snapper 721371

ROD, Deflector
(Superseded to 094957ZMA)

$10.99

$

In Stock, only 1 left!

0

0220

Snapper 1960093

NUT, Push Pal, 3/8
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

0240

Snapper 722866

SCREW, Hex 1/4 x 1/2
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

0250

Snapper 1752034BM

COVER, Mower Spindle
(Superseded to 1752034BMYP)

$26.99

$

Usually ships in 2-12 days

0

0260

Snapper 1733889A

SUPPORT, Spindle Guard
(Superseded to 1733889ASM)

$17.99

$

Usually ships in 2-12 days

0

0270

Snapper 7090880

WASHER, Internal Tooth, 5/8
(Superseded to 1960547SM)

$4.49

$

In Stock, only 4 left!

0
