ELT 125380 (2691084) - Snapper 38" Lawn Tractor, 12.5hp 38" Mower Deck - Height Adjust Group Parts Diagram

38" Lawn Tractor, 12.5hp

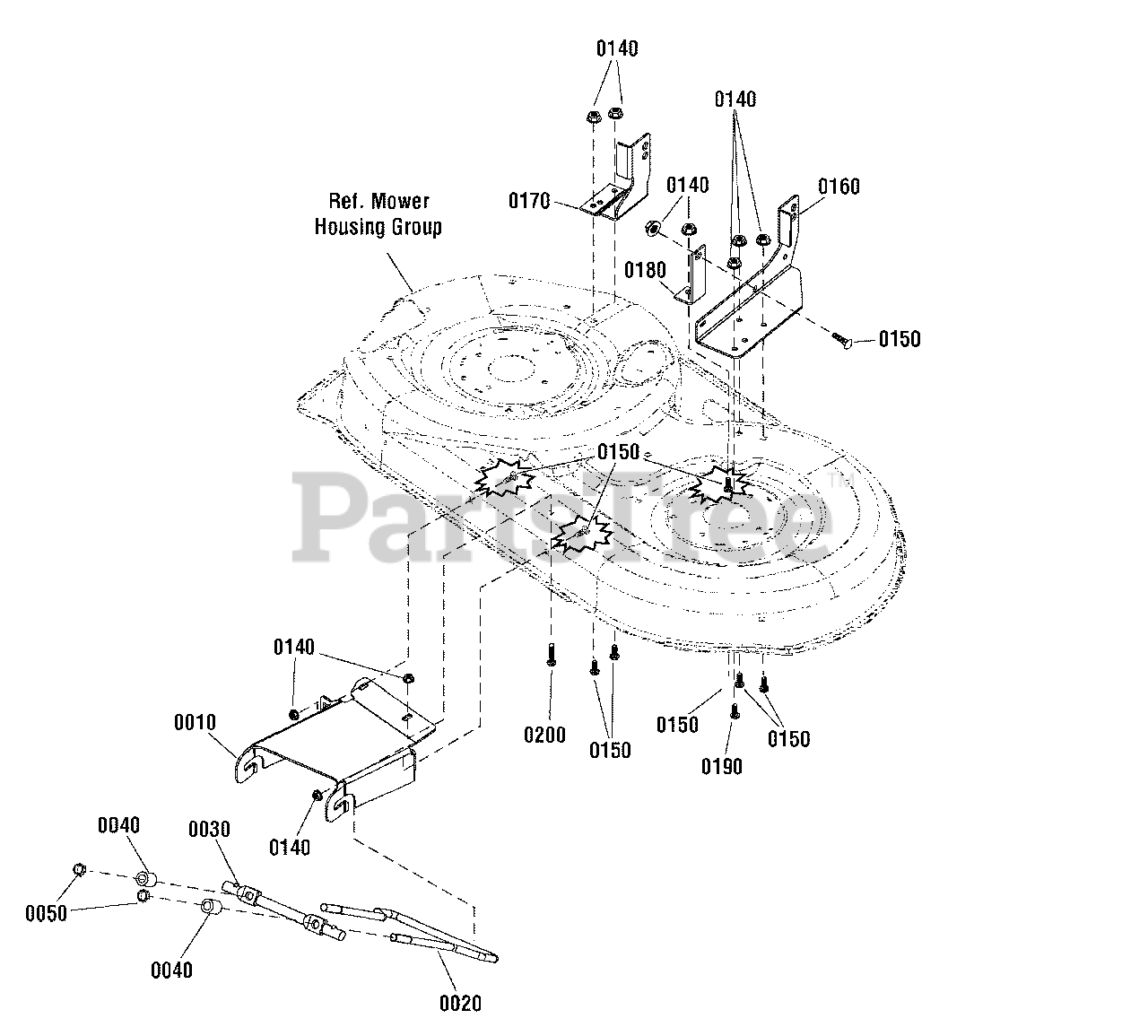

38" Mower Deck - Height Adjust Group Parts Diagram

  • Title
0010

Snapper 1731967BM

HITCH, Front
(Superseded to 1731967BMYP)

$46.99

$

Usually ships in 2-12 days

0

0020

Snapper 1730097

ROD, Bail
(Superseded to 1730097SM)

$43.99

$

Usually ships in 2-12 days

0

0030

Snapper 1751385

ROD, Front Mower Lift
(Superseded to 1751385YP)

$13.99

$

Usually ships in 2-12 days

0

0040

Snapper 1750997

SPACER, 1/2 ID x 7/8 OD 5/8"
(Superseded to 1750997YP)

$4.49

$

Usually ships in 2-12 days

0

0050

Snapper 1960379

NUT, Hex Lock, ESNA LIGHT, 1/2-13
(Superseded to 1960379SM)

$4.99

$

In Stock, Qty 18

0

0140

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0150

Snapper 1931333

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

0160

Snapper 1751168BM

SUPPORT, Mower, LH
(Superseded to 1753662BMYP)

$40.99

$

Usually ships in 2-12 days

0

0170

Snapper 1751169BM

SUPPORT, Mower, RH
(Superseded to 1753663BMYP)

$15.99

$

In Stock, only 1 left!

0

0180

Snapper 1730201A

BRACE, Mower Support
(Superseded to 1730201ASM)

$19.99

$

In Stock, only 1 left!

0

0190

Snapper 1931335

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 12

0

0200

Snapper 1960223

BOLT, Carriage, 5/16-18 x 1-1/4, G5
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

0200

Snapper 1960223

BOLT, Carriage, Short Neck, 5/16-18 x 1-1/4, G5
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0
