ELT 125380 (2691084) - Snapper 38" Lawn Tractor, 12.5hp 38" Mower Deck - Clutch Group Parts Diagram

38" Lawn Tractor, 12.5hp

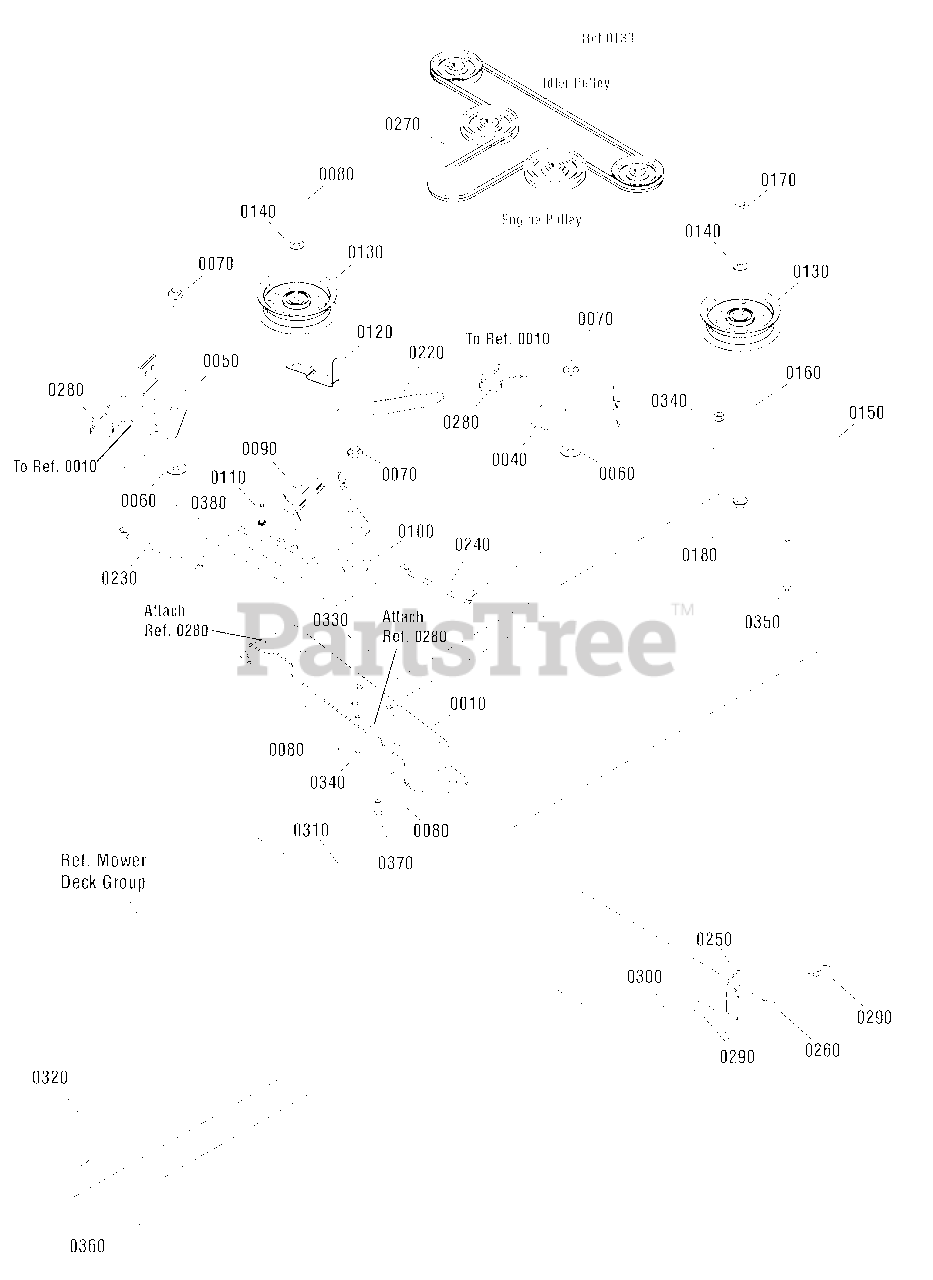

38" Mower Deck - Clutch Group Parts Diagram

  • Title

0010

Snapper 1751608BM

SUPPORT, Brake Arms
(Superseded to 1751608BMYP)

$26.99

$

Usually ships in 2-12 days

0

0040

Snapper 1750787

BRAKE ARM ASSEMBLY, LH
(Superseded to 1750787YP)

$13.99

$

Usually ships in 2-12 days

0

0050

Snapper 1751345

BRAKE ARM ASSEMBLY, RH
(Superseded to 1751345YP)

$16.99

$

Usually ships in 2-12 days

0

0060

Snapper 1922611

WASHER, 3/8
(Superseded to 1922611SM)

$6.99

$

In Stock, only 1 left!

0

0070

Snapper 1752070

BOLT, Shoulder
(Superseded to 1752070YP)

$2.49

$

Usually ships in 2-12 days

0

0080

Snapper 720142

NUT, Hex Flange, Center Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0090

Snapper 1752525BM

ARM, Idler
(Superseded to 1752525BMYP)

$30.99

$

Usually ships in 2-12 days

0

0100

Snapper 1924356

WASHER, 3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

0110

Snapper 1931353

BOLT, Carriage, Short Neck, 3/8-16 x 1-3/4, G5
(Superseded to 703858)

$4.99

$

In Stock, Qty 6

0

0120

Snapper 726822

SPRING, Belt Guide
(Superseded to 726822YP)

$10.99

$

Usually ships in 2-12 days

0

0130

Snapper 1736540

PULLEY, Idler
(Superseded to 1736540YP)

$35.99

$

In Stock, only 3 left!

0

0140

Snapper 1924940

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0150

Snapper 1750785BM

SUPPORT, Idler, RH
(Superseded to 1750785BMYP)

$13.99

$

Usually ships in 2-12 days

0

0160

Snapper 1960071

WASHER, 3/8
(Superseded to 1960071SM)

$8.49

$

In Stock, only 1 left!

0

0170

Snapper 7091501

CAPSCREW, Hex Head, 3/8-16 x 2-1/2, G5
(Superseded to 703873)

$4.49

$

In Stock, only 3 left!

0

0180

Snapper 1928352

NUT, Hex Flange, Whiz Lock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 5

0

0220

Snapper 1718016

SPRING, Extension
(Superseded to 1752846YP)

$46.99

$

Usually ships in 2-12 days

0

0230

Snapper 1751454

ROD, Mower Brake
(Superseded to 1751454YP)

$13.99

$

Usually ships in 2-12 days

0

0240

Snapper 1751494

ROD, Mower Brake
(Superseded to 1751494YP)

$14.99

$

Usually ships in 2-12 days

0

0250

Snapper 1751471BM

BRACKET, Cable Mounting
(Superseded to 1751471BMYP)

$15.99

$

Usually ships in 2-12 days

0

0260

Snapper 1664847

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0270

Snapper 1732204

V-BELT, Arbor Drive, 91.1 Kevlar
(Superseded to 1732204SM)

$55.99

$

In Stock, only 4 left!

0

0280

Snapper 72510

SPRING, Torsion, Brake

$

$

Currently unavailable

0290

Snapper 1750977

CABLE, Manual PTO
(Superseded to 1750977YP)

$30.99

$

Usually ships in 2-12 days

0

0300

Snapper 87005AGS

PIN, Quick Release, 1/4 - 1/2
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0310

Snapper 1752532BM

GUIDE, Belt, Rear
(Superseded to 1752532BMYP)

$14.99

$

Usually ships in 2-12 days

0

0320

Snapper 1752533BM

GUIDE, Belt, Front
(Superseded to 1752533BMYP)

$14.99

$

Usually ships in 2-12 days

0

0330

Snapper 7028303

STUD, Belt Guide
(Superseded to 7028303YP)

$18.99

$

Usually ships in 2-12 days

0

0340

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0350

Snapper 720908

SCREW, Guide, 5/16-18
(Superseded to 091754MA)

$16.99

$

Usually ships in 2-12 days

0

0360

Snapper 720145

NUT, Hex Flange, Centerlock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

0370

Snapper 1931333

BOLT, Carriage, Short Neck, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

0380

Snapper 2159106

SPRING, Extension
(Superseded to 703144)

$5.99

$

In Stock, Qty 6

0
