ELT 120G30AB (80394) - Snapper 30" Lawn Tractor, 12hp Hood, Bumper & Components Parts Diagram

30" Lawn Tractor, 12hp

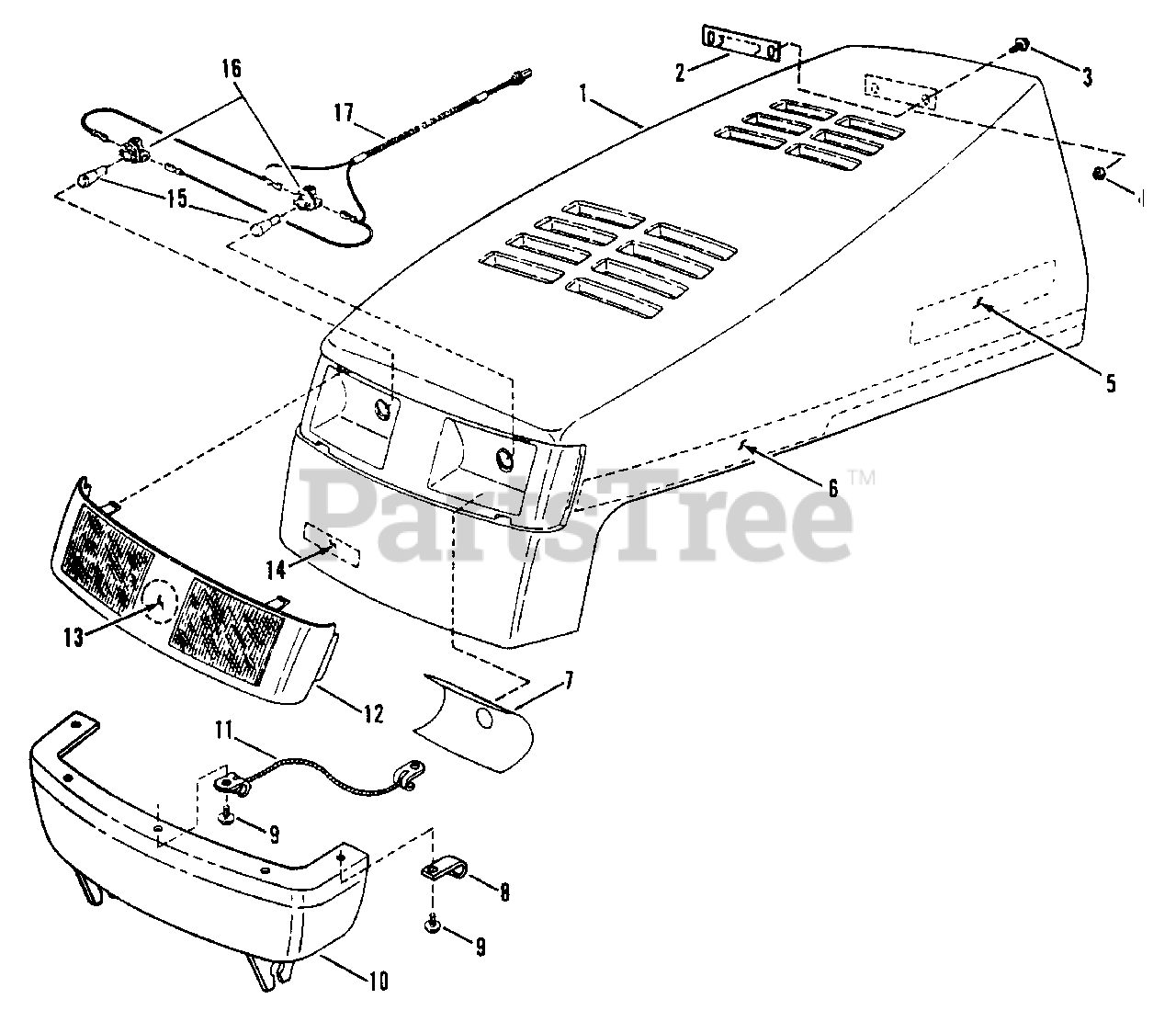

Hood, Bumper & Components Parts Diagram

  • Title

1

Snapper 7024605

HOOD
(Superseded to 7063298YP)

Note: Was 24605

$1036.99

$

Usually ships in 2-12 days

0

2

Snapper 7024718

LATCH, Spring
(Superseded to 7024718YP)

$23.99

$

Usually ships in 2-12 days

0

3

Snapper 7090999

SCREW, 1/4-20 x 5/8" Truss Head, Torx
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

5

Snapper 7024903

DECAL-SNAPPER, 8" Molded Logo, White Letters

Note: (30" Model)

$

$

Currently unavailable

5

Snapper 7024980

DECAL-SNAPPER, 8" Molded Logo, Silver Letters

Note: Was 16974 or 36438 (38" Model)

$

$

Not available

6

Snapper 7024899

DECAL, Hood, Right Side

Note: (30" Model)

$

$

Not available

6

Snapper 7024900

DECAL, Hood, Left Side

Note: (30" Model)

$

$

Not available

6

Snapper 7024955

DECAL, Hood, Right Side
(Superseded to 7024955YP)

Note: (38" Model)

$11.99

$

Usually ships in 2-12 days

0

6

Snapper 7024956

DECAL, Hood, Left Side

Note: (38" Model)

$

$

Not available

7

Snapper 7017174

DECAL, Lens, Right Side (Not shown)
(Superseded to 7017174YP)

Note: (38" Model)

$7.99

$

Usually ships in 2-12 days

0

7

Snapper 7017175

DECAL, Lens, Left Side
(Superseded to 7017175YP)

Note: (38" Model)

$7.99

$

Usually ships in 2-12 days

0

8

Snapper 7026482

CLIP "J"
(Superseded to 7026482YP)

Note: (38" Model)

$3.49

$

In Stock, only 1 left!

0

9

Snapper 7091106

SCREW, M4.8 x 1.59 x 16.00MM Special
(Superseded to 7091106YP)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 7029620

SUPPORT, Hood
(Superseded to 7029620YP)

$104.99

$

Usually ships in 2-12 days

0

11

Snapper 7026114

LANYARD, Hood
(Superseded to 7073446YP)

$9.99

$

Usually ships in 2-12 days

0

12

Snapper 7024892

LENS, Solid Black
(Superseded to 7024892YP)

Note: (30" Model)

$41.99

$

Usually ships in 2-12 days

0

12

Snapper 7024893

LENS, Clear
(Superseded to 7024893YP)

Note: (38" Model)

$45.99

$

Usually ships in 2-12 days

0

13

Snapper 7022974

DECAL, Molded Medallion, Convertible Mower
(Superseded to 7022974YP)

Note: (38" Model)

$6.49

$

Usually ships in 2-12 days

0

14

Snapper 7024904

DECAL, SNAPPER, 4" Molded Logo, White Letters

Note: (30" Model)

$

$

Not available

14

Snapper 7022967

DECAL, SNAPPER, 4" Molded Logo, Teal Letters

Note: (38" Model)

$

$

Currently unavailable

15

Snapper 7026172

BULB, Headlights
(Superseded to 7026172YP)

Note: (38" Model)

$14.99

$

In Stock, only 1 left!

0

16

Snapper 7024709

SOCKET, Headlight Bulb

Note: (38" Model)

$

$

Not available

17

Snapper 7026171

HARNESS, Headlight Wiring
(Superseded to 7026171YP)

$11.99

$

Usually ships in 2-12 days

0

Snapper 7063298

HOOD ASSEMBLY
(Superseded to 7063298YP)

Note: Was 52922 or 61383 (Includes 1, 2, 3 (qty.2), 4 (qty.2), 9 (qty.5), 10 and 12 (2-4892)

$1036.99

$

Usually ships in 2-12 days

0
