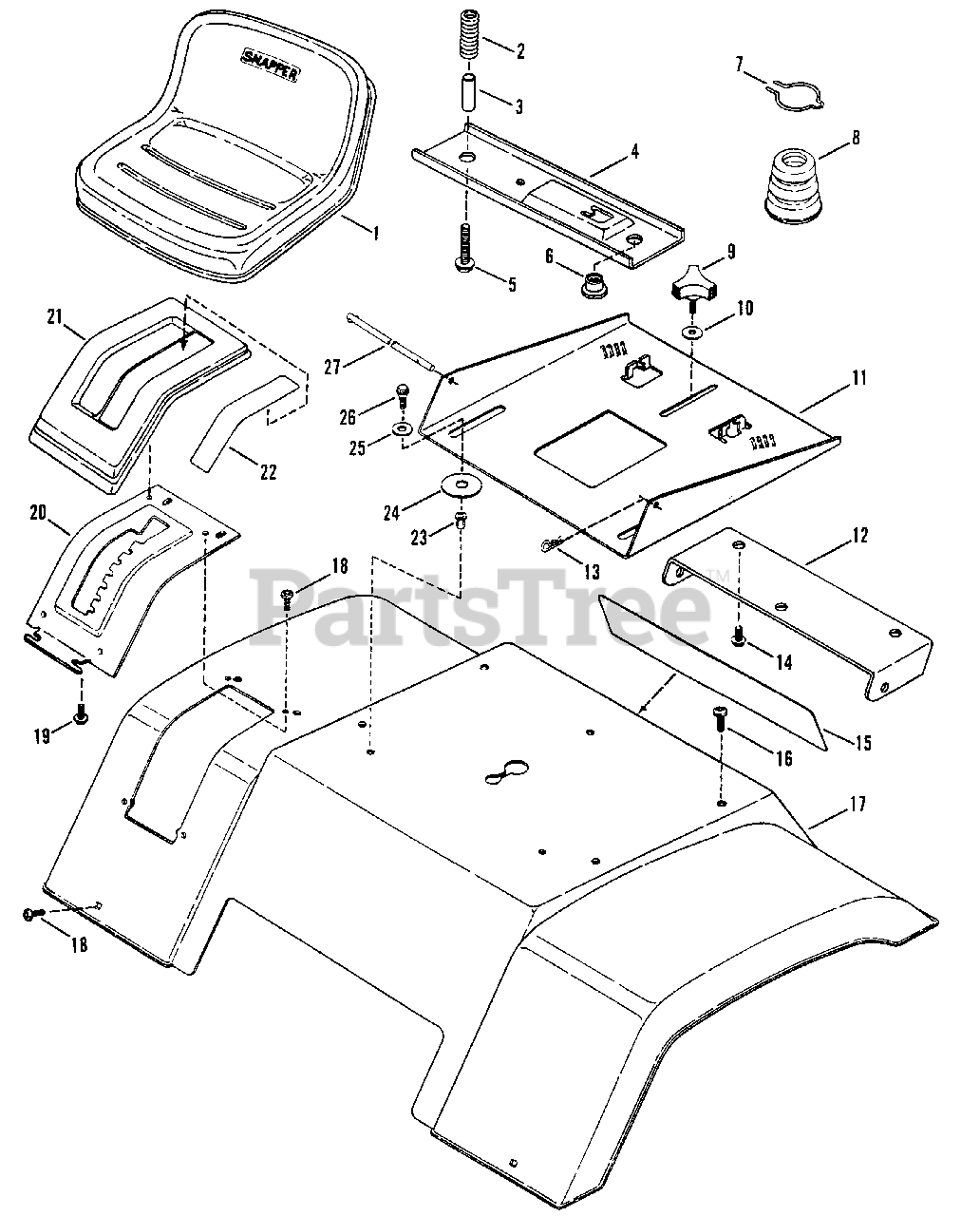

ELT 115D331B (80321) - Snapper 33" Lawn Tractor, 11.5hp Seat, Rear Fender Parts Diagram

33" Lawn Tractor, 11.5hp

Seat, Rear Fender Parts Diagram

  • Title

1

Snapper 7022545

SEAT, Operator's

$

$

Not available

2

Snapper 7022278

SPRING, Seat Switch

$1.99

$

In Stock, only 1 left!

0

3

Snapper 7022794

SPACER, Seat
(Superseded to 7022794YP)

$26.99

$

In Stock, only 2 left!

0

4

Snapper 7033362

HOLDER, Seat Switch
(Superseded to 7033362YP)

$23.99

$

Usually ships in 2-12 days

0

5

Snapper 7091592

BOLT, 5/16-18 x 2" Hex Flange Lock
(Superseded to 704062)

Note: Was 90586

$4.49

$

Usually ships in 2-12 days

0

6

Snapper 7022793

BUSHING, Seat
(Superseded to 7022793YP)

$2.99

$

Usually ships in 2-12 days

0

7

Snapper 7019348

CLIP, Seat Bumper
(Superseded to 7019348YP)

$24.99

$

In Stock, only 2 left!

0

8

Snapper 7019109

CUSHION, Seat
(Superseded to 7019109YP)

$18.99

$

In Stock, Qty 20+

0

9

Snapper 7023191

KNOB, Seat Adjustment
(Superseded to 7023191SM)

$6.99

$

In Stock, only 2 left!

0

10

Snapper 7011763

WASHER
(Superseded to 7011763SM)

$4.49

$

In Stock, only 3 left!

0

11

Snapper 7033360

SUPPORT, Seat
(Superseded to 7033360YP)

$63.99

$

Usually ships in 2-12 days

0

12

Snapper 7033361

BRACKET, Seat Support
(Superseded to 7033361YP)

$41.99

$

Usually ships in 2-12 days

0

13

Snapper 7012431

PIN, Hair
(Superseded to 7012431SM)

$2.99

$

Usually ships in 2-12 days

0

14

Snapper 7090721

BOLT, 5/16-18 x 1/2" Hex Flange Lock
(Superseded to 7090721YP)

$3.49

$

In Stock, only 4 left!

0

15

Snapper 7017149

DECAL, SNAPPER, Molded Logo

Note: (LT115D33 & LT115D41)

$

$

Not available

Snapper 7022972

DECAL, SNAPPER, Molded Logo

Note: (RLT115033)

$

$

Currently unavailable

16

Snapper 7091000

SCREW, 5/16-18 x 7/8" Torx Head, Self-Tapping
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0

17

Snapper 7033049

FENDER, Rear

$

$

Currently unavailable

18

Snapper 7090999

SCREW, 1/4-20 x 5/8" Torx Head, Self-Tapping
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

19

Snapper 7091105

SCREW, #10-16 x 1/2" Self-Tapping
(Superseded to 7091105YP)

$5.49

$

In Stock, only 4 left!

0

20

Snapper 7033048

DETENT, Shift

$

$

Not available

21

Snapper 7019416

COVER, Shift Detent

$

$

Not available

22

Snapper 7073424

DECAL, Shift Cover

Note: Was 16576

$

$

Not available

23

Snapper 7023193

RIV-NUT, 5/16-18
(Superseded to 7023193YP)

$3.49

$

Usually ships in 2-12 days

0

24

Snapper 7032692

SPACER
(Superseded to 7032692YP)

$3.49

$

Usually ships in 2-12 days

0

25

Snapper 7023192

WASHER

$

$

Not available

26

Snapper 7015761

SCREW, Shoulder, 5/16-18 x 3/4"
(Superseded to 703839)

$5.49

$

In Stock, only 3 left!

0

27

Snapper 7019035

ROD, Seat Hinge
(Superseded to 7019035YP)

$21.99

$

Usually ships in 2-12 days

0
