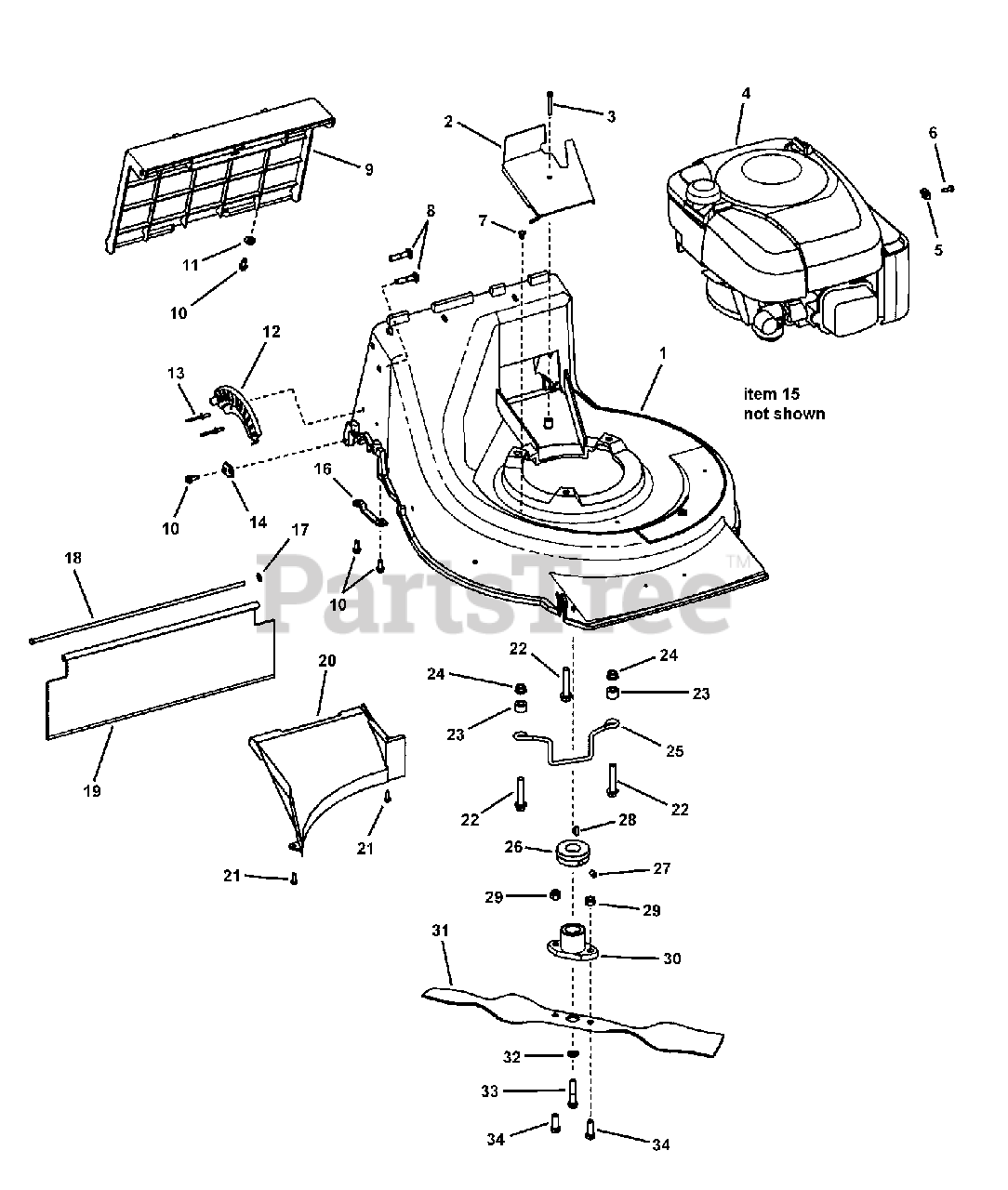

ELP 21703BV (80662) - Snapper 21" Walk-Behind Mower, 7hp ENGINE, CUTTING DECK, BLADE Parts Diagram

21" Walk-Behind Mower, 7hp

ENGINE, CUTTING DECK, BLADE Parts Diagram

  • Title

1

Snapper 7061962

DECK, 21" Cast Aluminum Rocker (Red)
(Superseded to 7061962YP)

Note: was 7073626

$1025.99

$

Usually ships in 2-12 days

0

2

Snapper 7074124

BELT COVER, Commercial Metal B&S
(Superseded to 7074124YP)

$34.99

$

Usually ships in 2-12 days

0

3

Snapper 7091201

SCREW, #10-24 x 1-1/2" Slotted Hex Washer Head Self-Tap
(Superseded to 7091201YP)

$3.49

$

Usually ships in 2-12 days

0

4

* ENGINE, 6.75 H.P. Briggs Dov, Euro, Mod. 100602-0122-B1

$

$

Not available

4

* ENGINE, 7.0 H.P. Briggs Intek, Euro, Mod. 128602-0112-E1

$

$

Not available

4

* ENGINE, 7.0 H.P. Briggs Dov, Euro OHV, Mod. 100602-0139-B1

$

$

Not available

5

Snapper 7023153

CLAMP, Casing
(Superseded to 7023153YP)

$3.99

$

Usually ships in 2-12 days

0

6

Snapper 7023154

SCREW, #10-32 x 5/8" Self-Tap
(Superseded to 7023154YP)

$

$

Not available

7

Snapper 7073293

PLUG, Hole (Polyethylene)
(Superseded to 7073293YP)

$2.99

$

Usually ships in 2-12 days

0

8

Snapper 7091714

BOLT, 5/16-18 x 1" Round Head Carriage GR 5
(Superseded to 703483)

Note: or 7091238

$3.99

$

In Stock, only 1 left!

0

9

Snapper 7052881

ASSEMBLY, Discharge Door
(Superseded to 7052881YP)

$75.99

$

In Stock, only 1 left!

0

10

Snapper 7091819

SCREW, 1/4-20 x 5/8" Hex Washer Face Self-Tap
(Superseded to 703054)

Note: or 7090362

$4.49

$

In Stock, Qty 5

0

11

Snapper 7091294

WASHER, .28 x .63 x .06 Flat
(Superseded to 703332)

Note: was 7090055

$4.49

$

In Stock, Qty 20+

0

12

Snapper 7033752

PLATE, Height Adjust
(Superseded to 7033752YP)

$23.99

$

Usually ships in 2-12 days

0

13

Snapper 7091191

RIVET, 3/16 x 1/2" Steel
(Superseded to 7091191YP)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 7043835

BRACKET, RH Trailing Shield Pivot Rod
(Superseded to 7043835YP)

$18.99

$

Usually ships in 2-12 days

0

15

Snapper 7043836

BRACKET, LH Trailing Shield Pivot Rod
(Superseded to 7043836YP)

Note: not shown

$20.99

$

Usually ships in 2-12 days

0

16

Snapper 7033732

SUPPORT, Rear Axle
(Superseded to 7033732YP)

$9.99

$

Usually ships in 2-12 days

0

17

Snapper 7091892

PUSHNUT, 1/4" Black
(Superseded to 7091892YP)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper 7043808

ROD, Trailing Shield Pivot (1/4" Dia. x 16-1/4" long)
(Superseded to 7043808YP)

$56.99

$

Usually ships in 2-12 days

0

19

Snapper 7043870

SHIELD, Trailing, Commercial Cast
(Superseded to 7043870YP)

$28.99

$

Usually ships in 2-12 days

0

20

Snapper 7024595

BAFFLE, Discharge
(Superseded to 7024595YP)

$26.99

$

Usually ships in 2-12 days

0

21

Snapper 7091075

SCREW, #10-24 x 5/8" Slotted Hex Washer Head Self-Tap
(Superseded to 7091075SM)

$4.49

$

In Stock, Qty 5

0

22

Snapper 7091088

SCREW, 3/8-16 x 2" Hex Head Self-Tap
(Superseded to 7091088YP)

$6.49

$

Usually ships in 2-12 days

0

23

Snapper 7016719

IDLER SPACER
(Superseded to 7016719YP)

$7.49

$

Usually ships in 2-12 days

0

24

Snapper 7090613

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: or 7091619

$4.99

$

In Stock, Qty 20+

0

25

Snapper 7072143

BELT GUIDE (Wireform)
(Superseded to 7072143YP)

$28.99

$

Usually ships in 2-12 days

0

26

Snapper 7015780

PULLEY, Traction Drive (25mm x 2-1/8" O.D.)
(Superseded to 7015780YP)

$30.99

$

Usually ships in 2-12 days

0

27

Snapper 7092086

SET SCREW, 5/16-18 x 1/2" Hex Recess
(Superseded to 7092086YP)

$4.99

$

Usually ships in 2-12 days

0

28

Snapper 7091214

KEY, Hi-Pro #HP506 (Briggs engine)
(Superseded to 7091214YP)

$4.99

$

In Stock, only 1 left!

0

29

Snapper 7076979

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

30

Snapper 7026631

HUB, Blade Drive, 25mm Internal Dia.

Note: (with integral key)

$

$

Not available

31

Snapper 7026428

BLADE, 21" Bagging
(Superseded to 7026428BZYP)

$29.99

$

In Stock, only 1 left!

0

32

Snapper 7079268

WASHER, 3/8" Split Lock (Heavy)
(Superseded to 7079268YP)

$3.49

$

In Stock, Qty 7

0

33

Snapper 7090483

SCREW, 3/8-24 x 1-3/4" Hex Head Cap GR 5
(Superseded to 703866)

$4.49

$

In Stock, only 1 left!

0

34

Snapper 7091304

SCREW, 3/8-16 x 1" Hex Head Cap, GR 5
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0
