21" Walk-Behind Mower, 7hp

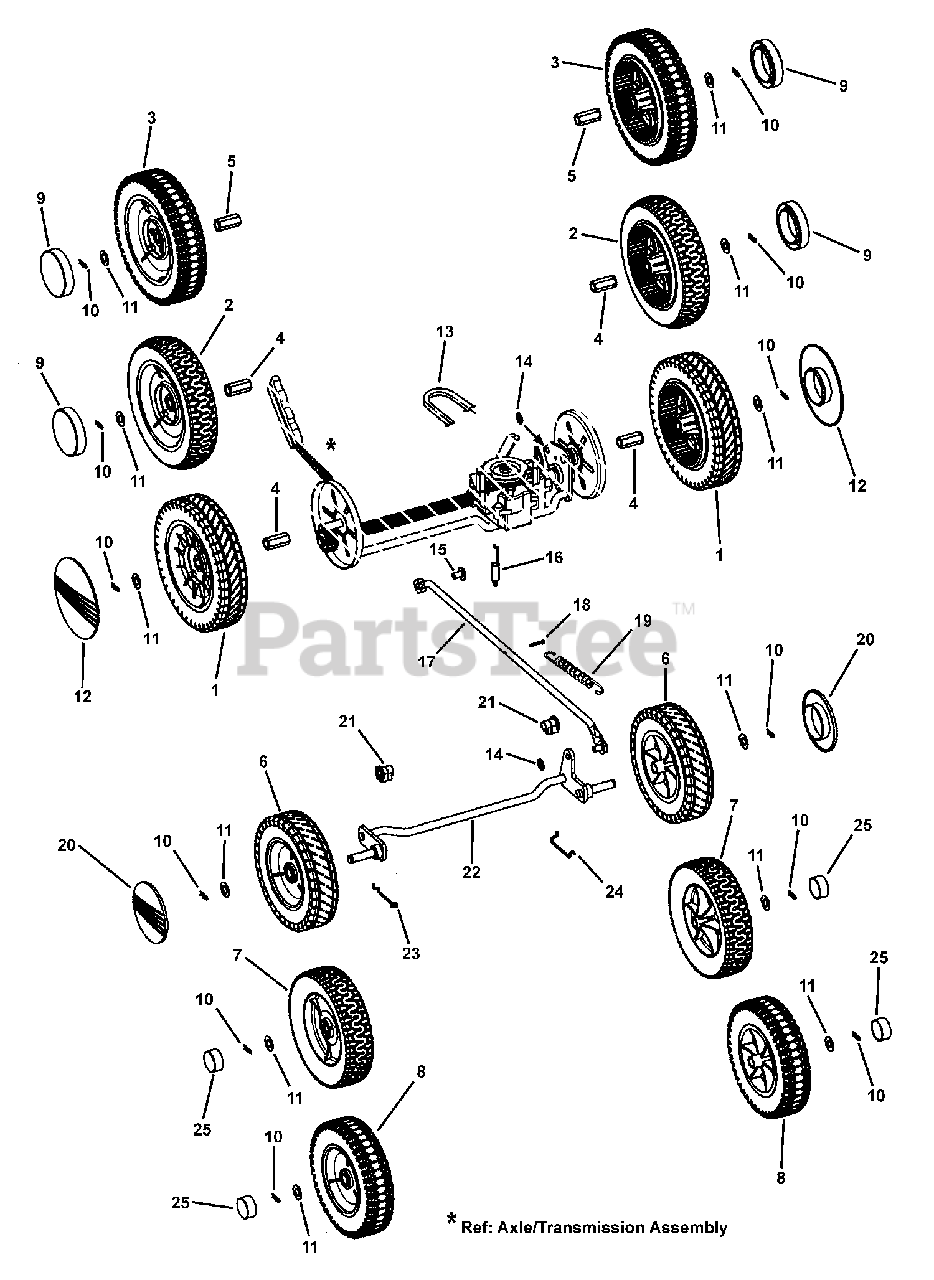

WHEELS, FRONT & REAR Parts Diagram

  • Title

1

Snapper 7074629

REAR WHEEL ASSY, 9 x 2 ("Mass" Tread)
(Superseded to 7104781YP)

Note: includes Bushing 7073618; use with Hub 7024540

$40.99

$

In Stock, only 1 left!

0

2

Snapper 7100184

REAR WHEEL ASSY, 9 x 2 (LS Tread)
(Superseded to 7104781YP)

Note: includes Bushing 7073618; use with Hub 7100114

$40.99

$

In Stock, only 1 left!

0

3

Snapper 7101104

REAR WHEEL ASSY, 9 x 2 (Double Bar II Tread)
(Superseded to 7104781YP)

Note: includes Bushing 7024541; use with Hub 7100114

$40.99

$

In Stock, only 1 left!

0

4

Snapper 7073618

BUSHING, Wheel (powdered metal)
(Superseded to 7073618YP)

$7.99

$

In Stock, only 1 left!

0

5

Snapper 7024541

BUSHING, Wheel (nylon)
(Superseded to 7073618YP)

$7.99

$

In Stock, only 1 left!

0

6

Snapper 7028456

FRONT WHEEL ASSY, 8 x 2 ("Mass" Tread)
(Superseded to 7500540YP)

Note: use with Hub 7016152

$40.99

$

In Stock, only 2 left!

0

7

Snapper 7100015

FRONT WHEEL ASSY, 8 x 2, (LS Tread)
(Superseded to 7101127YP)

$41.99

$

In Stock, only 1 left!

0

8

Snapper 7101105

FRONT WHEEL ASSY, 8 x 2, (Double Bar II Tread)
(Superseded to 7101127YP)

$41.99

$

In Stock, only 1 left!

0

9

Snapper 7100114

HUB CAP, 3-1/4" Diameter, Black
(Superseded to 7100114YP)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 7091193

HAIRPIN, 1/16 x 29/32" Cotter
(Superseded to 7091193YP)

$5.99

$

Usually ships in 2-12 days

0

11

Snapper 7091192

WASHER, 1/2" Flat
(Superseded to 7091192SM)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 7024540

HUB CAP, 9" Euro
(Superseded to 7024540YP)

$5.49

$

Usually ships in 2-12 days

0

13

Snapper 7029492

BELT, Traction Drive, Sect. 3L, 33.20" effective length
(Superseded to 7029492YP)

Note: engine/transmission

$22.99

$

In Stock, Qty 15

0

14

Snapper 7013946

WHEEL RETAINER, 3/8"
(Superseded to 7013946YP)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 7091232

PIN, 3/8 x 5/8"
(Superseded to 7091232YP)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper 7046522

SPRING, Clutch
(Superseded to 7046522YP)

Note: (Also shown on Transmission Page)

$9.49

$

Usually ships in 2-12 days

0

17

Snapper 7041364

WELDMENT, Tie Bar
(Superseded to 7041364AYP)

$119.99

$

Usually ships in 2-12 days

0

18

Snapper 7091598

COTTER PIN, 1/8 x 3/4"
(Superseded to 703958)

Note: was 7090365

$4.49

$

In Stock, only 4 left!

0

19

Snapper 7024751

SPRING, Tie Bar
(Superseded to 7024751YP)

$12.99

$

Usually ships in 2-12 days

0

20

Snapper 7016152

HUB CAP, Front Wheels

$

$

Not available

21

Snapper 7024558

BUSHING, Front Axle
(Superseded to 7024558YP)

$3.99

$

Usually ships in 2-12 days

0

22

Snapper 7041344

WELDMENT, Front Axle
(Superseded to 7041344YP)

$115.99

$

Usually ships in 2-12 days

0

23

Snapper 7034341

SPRING, Axle Retaining RH
(Superseded to 7034341YP)

$8.99

$

Usually ships in 2-12 days

0

24

Snapper 7034340

SPRING, Axle Retaining LH
(Superseded to 7034340YP)

$7.49

$

Usually ships in 2-12 days

0

25

Snapper 7100088

HUB CAP, 1-3/8: Diameter
(Superseded to 020107MA)

Note: black

$4.49

$

Usually ships in 2-12 days

0
