ELP 21703BDV (7800255) - Snapper 21" Walk-Behind Mower, 7hp TRANSMISSION Parts Diagram

21" Walk-Behind Mower, 7hp

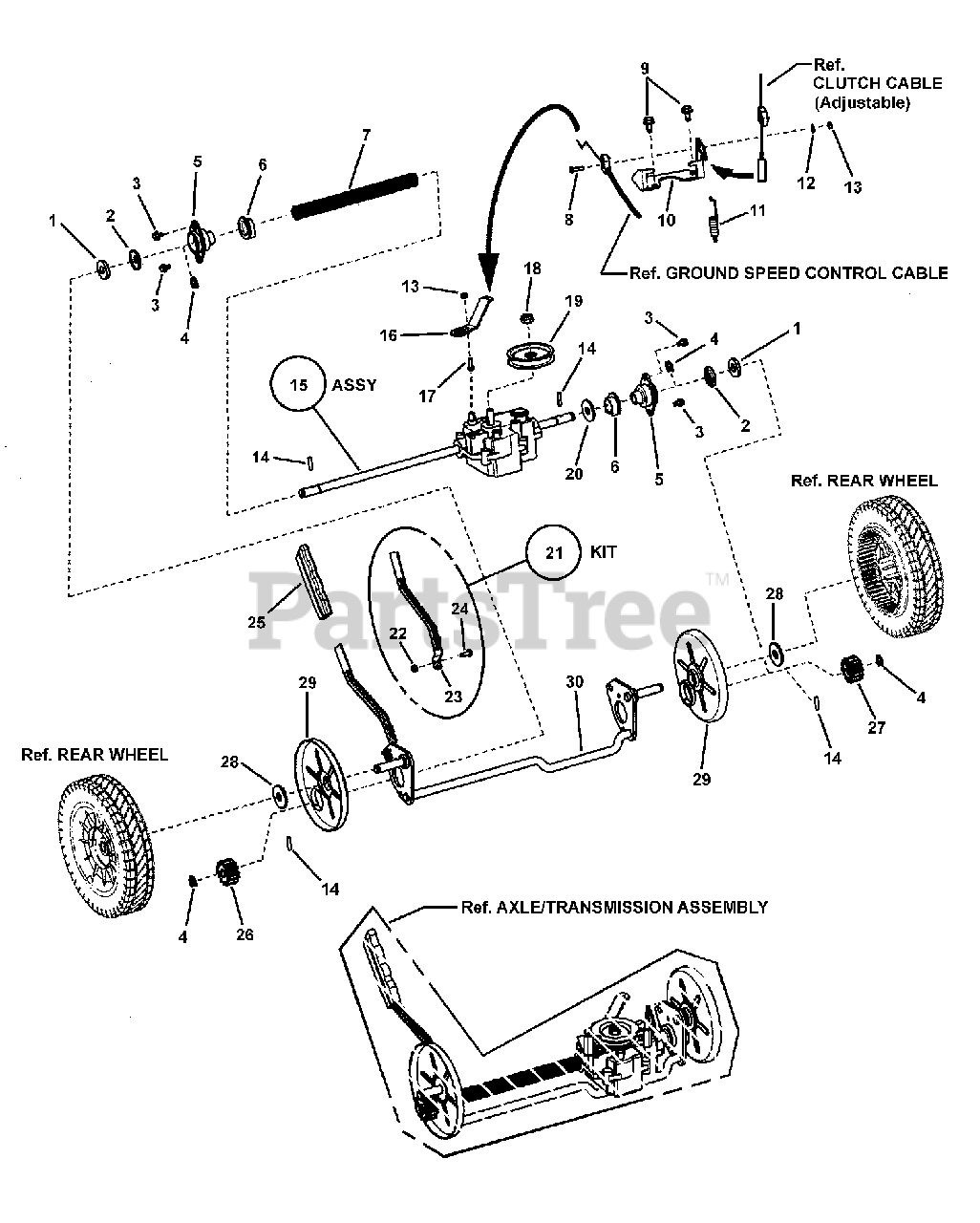

TRANSMISSION Parts Diagram

  • Title

AXLE/TRANSMISSION ASSEMBLY (Ref. only, not a parts sale item)

$

$

Not available

1

Snapper 7026479

SEAL, Pinion (Felt)
(Superseded to 7026479YP)

$4.49

$

Usually ships in 2-12 days

0

2

Snapper 7026478

RETAINER, Pinion Seal
(Superseded to 7026478YP)

$3.99

$

Usually ships in 2-12 days

0

3

Snapper 7091084

SCREW, 1/4-20 x 3/8" Hex Washer Head, Self-Tap
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

4

Snapper 7014341

RING, External Retaining
(Superseded to 703976)

Note: Waldes # 5133-50

$4.49

$

In Stock, Qty 9

0

5

Snapper 7025066

ASSEMBLY, Bearing Carrier
(Superseded to 7025066YP)

Note: includes bearing p/n 7024724

$38.99

$

Usually ships in 2-12 days

0

6

Snapper 7024715

BUSHING, Rear Axle (S/P)
(Superseded to 7024715YP)

$3.99

$

In Stock, only 2 left!

0

7

Snapper 7024748

TUBING, 5/8 I.D. Convoluted
(Superseded to 7024748YP)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper 7091941

SCREW, #10-24 x 3/4" Pan Head Machine
(Superseded to 7091941YP)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Head, Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

10

Snapper 7035325

BRACKET, Transmission
(Superseded to 7035325YP)

$71.99

$

Usually ships in 2-12 days

0

11

Snapper 7046522

SPRING, Clutch
(Superseded to 7046522YP)

$9.49

$

Usually ships in 2-12 days

0

12

Snapper 7091552

WASHER, 7/32" Flat
(Superseded to 7091552SM)

$3.99

$

In Stock, Qty 14

0

13

Snapper 7091267

* NUT, #10-24 Hex Center Lock
(Superseded to 7091267SM)

$3.99

$

In Stock, Qty 6

0

14

Snapper 7024749

PAWL, 3/16" O.D.
(Superseded to 7024749YP)

$19.99

$

Usually ships in 2-12 days

0

15

Snapper 7028813

TRANSMISSION ASSY, 3SP Commercial
(Superseded to 7028813YP)

$225.99

$

Usually ships in 2-12 days

0

16

Snapper 7035540

* LEVER, Transmission (Metal)
(Superseded to 7035540YP)

$12.99

$

Usually ships in 2-12 days

0

17

Snapper 7091075

* SCREW, #10-24 x 5/8" Slotted Hex Washer Head Self-Tap
(Superseded to 7091075SM)

$4.49

$

In Stock, Qty 5

0

18

Snapper 7091187

NUT, M10 x 1.50 Hex Nyloc
(Superseded to 7091187SM)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper 7029494

PULLEY, Transmission
(Superseded to 7029494YP)

$62.99

$

Usually ships in 2-12 days

0

20

Snapper 7024879

WASHER, Felt
(Superseded to 7024879YP)

$6.49

$

Usually ships in 2-12 days

0

21

Snapper 7061272

KIT, Height Adjusting Lever (incl. items 22-24)
(Superseded to 7061272YP)

$31.99

$

Usually ships in 2-12 days

0

22

Snapper 7090376

NUT, #10-32 Hex Nyloc
(Superseded to 703937)

$3.49

$

Usually ships in 2-12 days

0

23

Snapper 7033967

LEVER, Height Adjusting (Black)
(Superseded to 7061272YP)

$31.99

$

Usually ships in 2-12 days

0

24

Snapper 7091289

SCREW, #10-32 x 5/8, Hex Washer Self-Tap, GR 5
(Superseded to 7091289YP)

$3.49

$

Usually ships in 2-12 days

0

25

Snapper 7026420

GRIP, Flat Bar
(Superseded to 7105356YP)

$5.49

$

Usually ships in 2-12 days

0

26

Snapper 7024549

PINION, RH Drive
(Superseded to 7024549YP)

$8.49

$

Usually ships in 2-12 days

0

27

Snapper 7024550

PINION, LH Drive
(Superseded to 7024550YP)

$8.99

$

In Stock, only 1 left!

0

28

Snapper 7091194

WASHER, 17/32" Flat
(Superseded to 7091194YP)

$4.49

$

Usually ships in 2-12 days

0

29

Snapper 7024573

SHIELD, Dust
(Superseded to 7024573YP)

$3.49

$

Usually ships in 2-12 days

0

30

Snapper 7074207

WELDMENT, Rear Axle
(Superseded to 7074207YP)

$94.99

$

Usually ships in 2-12 days

0
