ELP 21702BV (85621) - Snapper 21" Walk-Behind Mower, 7hp WHEELS, FRONT & REAR Parts Diagram

21" Walk-Behind Mower, 7hp

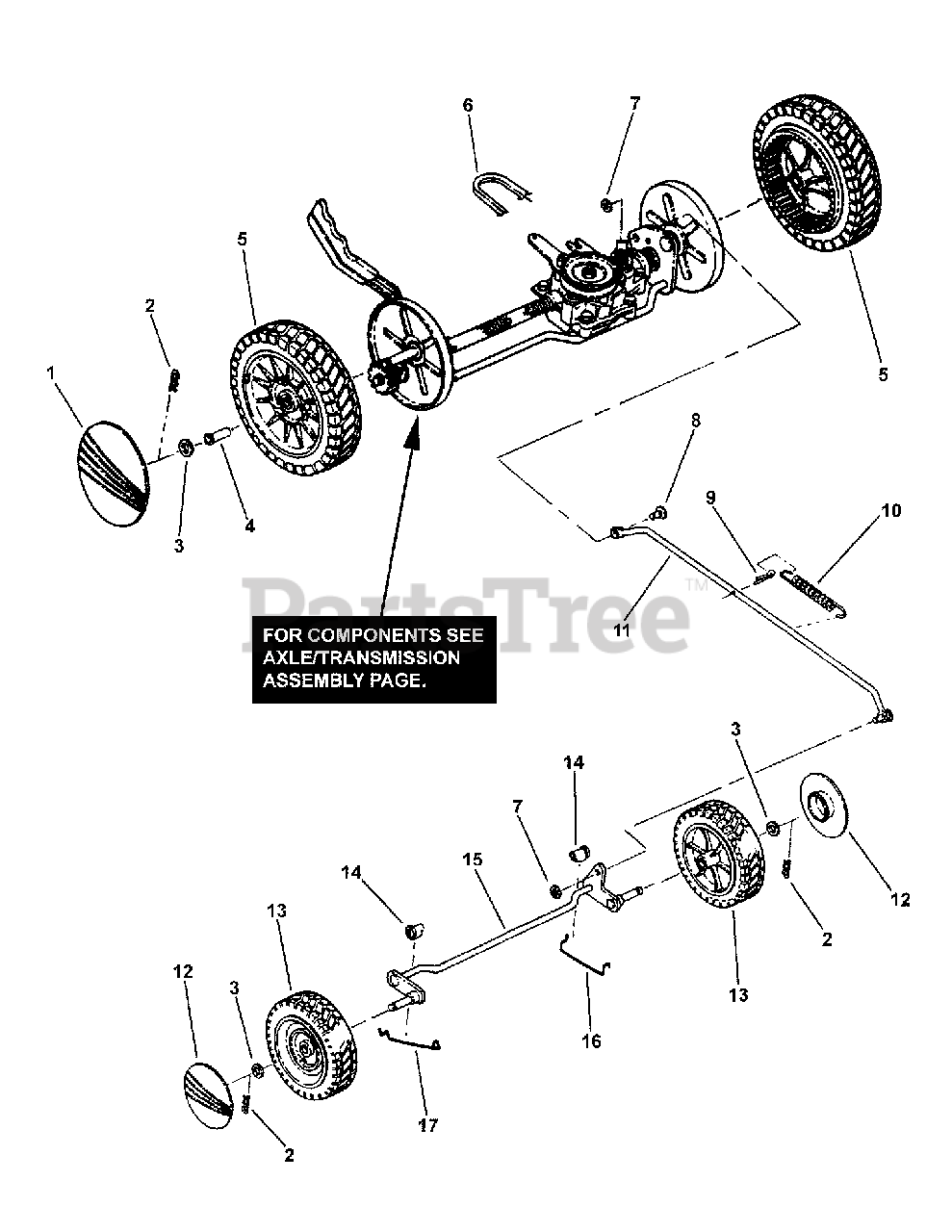

WHEELS, FRONT & REAR Parts Diagram

  • Title
1

Snapper 7024540

HUB-CAP, Rear Wheel
(Superseded to 7024540YP)

$5.49

$

Usually ships in 2-12 days

0

2

Snapper 7091193

HAIRPIN, 1/16 x 29/32" Cotter
(Superseded to 7091193YP)

$5.99

$

Usually ships in 2-12 days

0

3

Snapper 7091192

WASHER, 1/2" Flat
(Superseded to 7091192SM)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 7073618

BUSHING, Rear Wheel
(Superseded to 7073618YP)

$7.99

$

In Stock, only 2 left!

0

5

Snapper 7074629

ASSEMBLY, Rear Drive Wheel - 9.0 x 2.0
(Superseded to 7104781YP)

Note: includes item 4

$40.99

$

Usually ships in 2-12 days

0

6

Snapper 7029492

BELT, Traction (3L Sect, 33.200" effective length)
(Superseded to 7029492YP)

$22.99

$

In Stock, Qty 15

0

7

Snapper 7013946

RETAINER, Wheel
(Superseded to 7013946YP)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 7091232

PIN, 3/8 x 5/8" Tie Bar
(Superseded to 7091232YP)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 7090365

PIN, 1/8 x 3/4" Cotter
(Superseded to 703958)

$4.49

$

In Stock, only 4 left!

0

10

Snapper 7024751

SPRING, Tie Bar
(Superseded to 7024751YP)

$12.99

$

Usually ships in 2-12 days

0

11

Snapper 7041364

WELDMENT, Tie Bar
(Superseded to 7041364AYP)

$119.99

$

Usually ships in 2-12 days

0

12

Snapper 7016152

HUB-CAP, Front Wheel

$

$

Not available

13

Snapper 7028456

ASSEMBLY, Wheel Front
(Superseded to 7500540YP)

$40.99

$

In Stock, only 2 left!

0

14

Snapper 7024558

BUSHING, Front Axle
(Superseded to 7024558YP)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 7041344

WELDMENT, Front Axle
(Superseded to 7041344YP)

$115.99

$

Usually ships in 2-12 days

0

16

Snapper 7034340

SPRING, Axle Retaining Left Hand
(Superseded to 7034340YP)

$7.49

$

Usually ships in 2-12 days

0

17

Snapper 7034341

SPRING, Axle Retaining Right Hand
(Superseded to 7034341YP)

$8.99

$

Usually ships in 2-12 days

0
