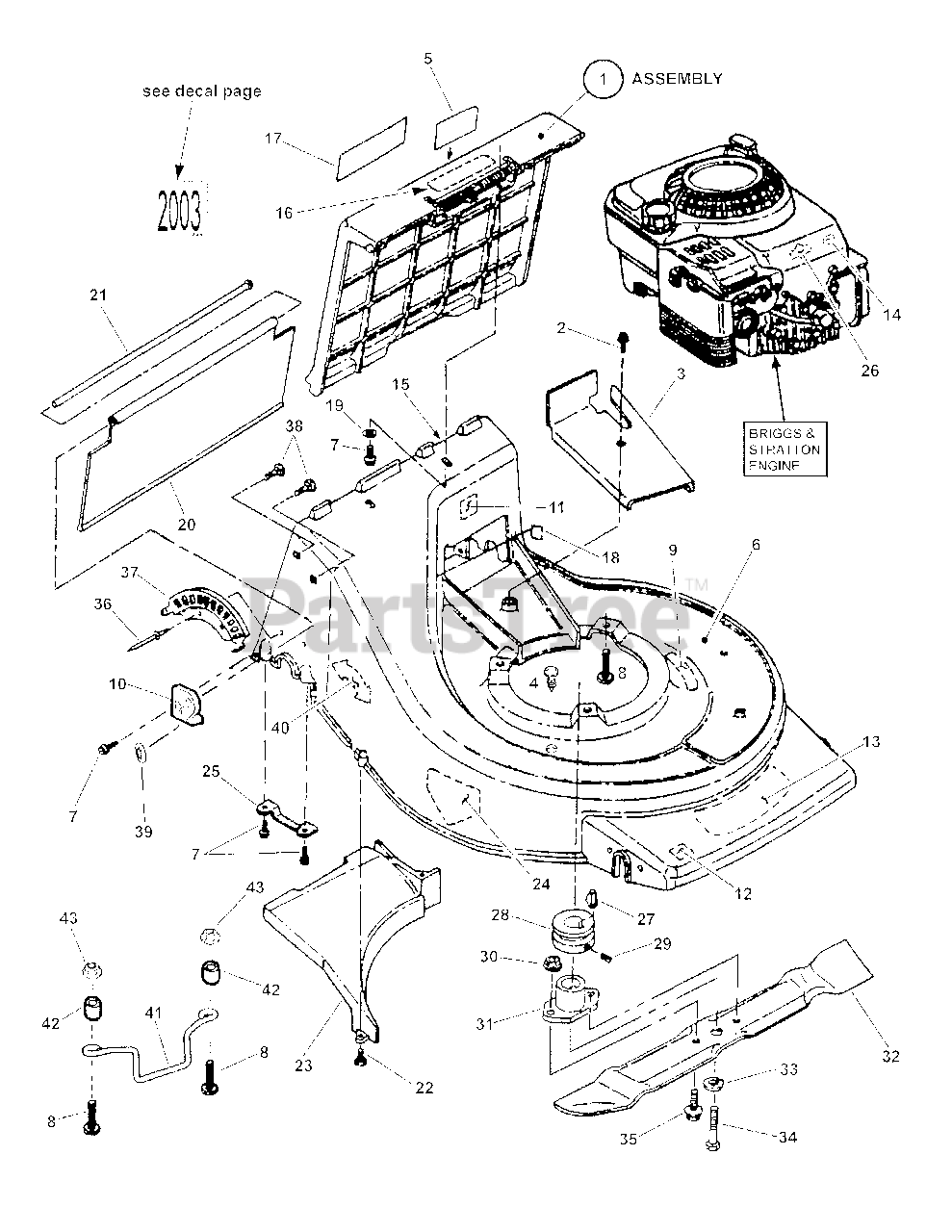

ELP 21602E (84642) - Snapper 21" Walk-Behind Mower, 6hp CUTTING DECK, BLADE Parts Diagram

21" Walk-Behind Mower, 6hp

CUTTING DECK, BLADE Parts Diagram

  • Title

1

Snapper 7052881

ASSEMBLY, Discharge Door
(Superseded to 7052881YP)

$75.99

$

In Stock, only 1 left!

0

2

Snapper 7091201

SCREW, #10-24 x 1-1/2" Slotted Hex Washer Head Self-Tap
(Superseded to 7091201YP)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper 7074124

COVER, Belt/Tie Bar
(Superseded to 7074124YP)

$34.99

$

Usually ships in 2-12 days

0

4

Snapper 7073293

HOLE PLUG, Polyethylene
(Superseded to 7073293YP)

$2.99

$

Usually ships in 2-12 days

0

5

Snapper 7046357

DECAL, Warning 1997
(Superseded to 7046357YP)

$14.99

$

Usually ships in 2-12 days

0

6

Snapper 7073626

DECK, 21" Cast Aluminum Rocker
(Superseded to 7061962YP)

Note: used on ELP21602, ELP21502KWV & ELP216752BV

$1025.99

$

Usually ships in 2-12 days

0

6

Snapper 7073627

DECK, 21" Cast Aluminum Rocker
(Superseded to 7061962YP)

Note: used on ELP21602E

$1025.99

$

Usually ships in 2-12 days

0

7

Snapper 7090362

SCREW, 1/4-20 x 5/8" Hex Washer Self-Tap
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

8

Snapper 7091088

SCREW, 3/8-16 x 2" Hex Head Self-Tap
(Superseded to 7091088YP)

$6.49

$

Usually ships in 2-12 days

0

9

Snapper 7072921

DECAL, Warning (Deck)
(Superseded to 7072921YP)

$9.49

$

Usually ships in 2-12 days

0

10

Snapper 7043835

BRACKET, RH Trailing Shield Pivot Rod
(Superseded to 7043835YP)

$18.99

$

Usually ships in 2-12 days

0

--

Snapper 7043836

BRACKET, LH Trailing Shield Pivot Rod
(Superseded to 7043836YP)

Note: not shown

$20.99

$

Usually ships in 2-12 days

0

11

Snapper 7074135

DECAL, Sound 100 dB (Euro)
(Superseded to 7074135SM)

$4.99

$

Usually ships in 2-12 days

0

12

Snapper 7029776

DECAL, Euro Community (CE)
(Superseded to 7029776SM)

$7.99

$

Usually ships in 2-12 days

0

13

Snapper 7046714

LOGO, SNAPPER Cast Aluminum Series
(Superseded to 7046714YP)

$10.99

$

In Stock, only 2 left!

0

14

Snapper 7029779

DECAL, Spark Plug International Symbol (Euro)
(Superseded to 7029779YP)

$6.49

$

Usually ships in 2-12 days

0

15

Snapper 7029784

DECAL,Deck/Chute International Warning (Euro)
(Superseded to 7029784SM)

$5.99

$

Usually ships in 2-12 days

0

16

Snapper 7046924

DECAL, Chute Deflector Warning
(Superseded to 7046924YP)

Note: used on ELP21602, ELP21502KWV & ELP216752BV

$5.99

$

Usually ships in 2-12 days

0

17

Snapper 7028439

DECAL, Convertible Mower

$

$

Not available

18

Snapper 7029470

DECAL, Patent Numbers
(Superseded to 7029470YP)

$6.99

$

In Stock, only 1 left!

0

19

Snapper 7090055

WASHER, 1/4" Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

20

Snapper 7024753

SHIELD, Trailing
(Superseded to 7043870YP)

Note: used on ELP21602, ELP21602E & ELP21502KWV

$28.99

$

Usually ships in 2-12 days

0

20

Snapper 7043870

SHIELD, Trailing
(Superseded to 7043870YP)

Note: used on ELP216752BV

$28.99

$

Usually ships in 2-12 days

0

21

Snapper 7043808

ROD, Trailing Shield Pivot (Long)
(Superseded to 7043808YP)

$56.99

$

Usually ships in 2-12 days

0

22

Snapper 7091075

SCREW, #10-24 x 5/8" Hex Washer Self-Tap
(Superseded to 7091075SM)

$4.49

$

In Stock, Qty 5

0

23

Snapper 7024595

BAFFLE, Discharge
(Superseded to 7024595YP)

$26.99

$

Usually ships in 2-12 days

0

24

Snapper 7013010

DECAL, Danger, Cut Finger
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 11

0

24

Snapper 7022841

DECAL, Warning (Deck) (Euro)
(Superseded to 7022841SM)

$72.99

$

In Stock, only 1 left!

0

25

Snapper 7033732

SUPPORT, Rear Axle
(Superseded to 7033732YP)

$9.99

$

Usually ships in 2-12 days

0

26

Snapper 7029619

LOGO, Briggs & Stratton

$

$

Currently unavailable

27

Snapper 7091214

KEY, Hi-Pro #HP506 (Briggs engine)
(Superseded to 7091214YP)

$4.99

$

In Stock, only 1 left!

0

27

Snapper 7010783

KEY, Hi-Pro #HP-505 (Kawasaki engine)
(Superseded to 7010783YP)

$3.99

$

Usually ships in 2-12 days

0

28

Snapper 7015780

PULLEY, Traction Drive (25mm x 2-1/8" O.D.)
(Superseded to 7015780YP)

Note: used on ELP21602, ELP21602E & ELP216752BV

$30.99

$

Usually ships in 2-12 days

0

28

Snapper 7021764

PULLEY, Traction Drive (.88 x 2.12 O.D.)
(Superseded to 7021764YP)

Note: used on ELP21502KWV

$54.99

$

In Stock, only 1 left!

0

29

Snapper 7090201

SCREW, 5/16-18 x 5/16" Hex Socket Set
(Superseded to 7090201SM)

$

$

Not available

30

Snapper 7076979

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

31

Snapper 7026631

HUB, 25 mm Blade Drive

Note: used on ELP21602, ELP21602E & ELP216752BV

$

$

Not available

31

Snapper 7026630

HUB, 7/8" I.D.Blade Drive
(Superseded to 7026630YP)

Note: used on ELP21502KWV

$13.99

$

Usually ships in 2-12 days

0

32

Snapper 7026428

BLADE, 21" Mulching/Bagging
(Superseded to 7026428BZYP)

$29.99

$

In Stock, only 1 left!

0

33

Snapper 7079268

WASHER, 3/8" Split Lock (Heavy)
(Superseded to 7079268YP)

$3.49

$

In Stock, Qty 7

0

34

Snapper 7090483

SCREW, 3/8-24 x 1-3/4 Hex Head Cap, GR 5
(Superseded to 703866)

$4.49

$

In Stock, only 1 left!

0

35

Snapper 7090143

BOLT, 3/8-16 x 1-1/4" Hex Flange Lock
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

36

Snapper 7091191

RIVET, 3/16 x 1/2" Steel
(Superseded to 7091191YP)

$3.49

$

Usually ships in 2-12 days

0

37

Snapper 7033752

PLATE, Height Adjust
(Superseded to 7033752YP)

$23.99

$

Usually ships in 2-12 days

0

38

Snapper 7091238

BOLT, 5/16-18 x 1" Square Neck Carriage, GR 5
(Superseded to 703483)

$3.99

$

In Stock, only 1 left!

0

39

Snapper 7091892

PUSHNUT, 1/4" Black
(Superseded to 7091892YP)

$3.99

$

Usually ships in 2-12 days

0

40

Snapper 7028454

DECAL, Height Control Instr. (Euro)

$

$

Currently unavailable

41

Snapper 7072143

GUIDE, Belt
(Superseded to 7072143YP)

$28.99

$

Usually ships in 2-12 days

0

42

Snapper 7016719

SPACER, .390 I.D. x 3/4" O.D. x 1/2" Long
(Superseded to 7016719YP)

$7.49

$

Usually ships in 2-12 days

0

43

Snapper 7090613

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

--

*ENGINE, 6HP B&S Quantum XTL (ELP21602)

Note: Model 12H802, Type 2612, Trim B1

$

$

Not available

--

*ENGINE, 6HP B&S Quantum XTL (ELP21602E)

Note: Model 12H807, Type 2610, Trim B1

$

$

Not available

--

*ENGINE, 5HP Kawasaki (ELP21502KWV)

Note: Model FC150V, Type GS13

$

$

Not available

--

*ENGINE, 6.75HP B&S Intek (ELP216752BV)

Note: Model 126602, Type 0114, or Type 0117, Trim E1

$

$

Not available

--

*ENGINE, 7HP B&S Intek - Euro (ELP21702BV)

Note: Model 128602, Type 0112, Trim E1

$

$

Not available
