ELP 21602 (84641) - Snapper 21" Walk-Behind Mower, 6hp HANDLES AND CONTROLS (2002 & Later Model Year) Parts Diagram

21" Walk-Behind Mower, 6hp

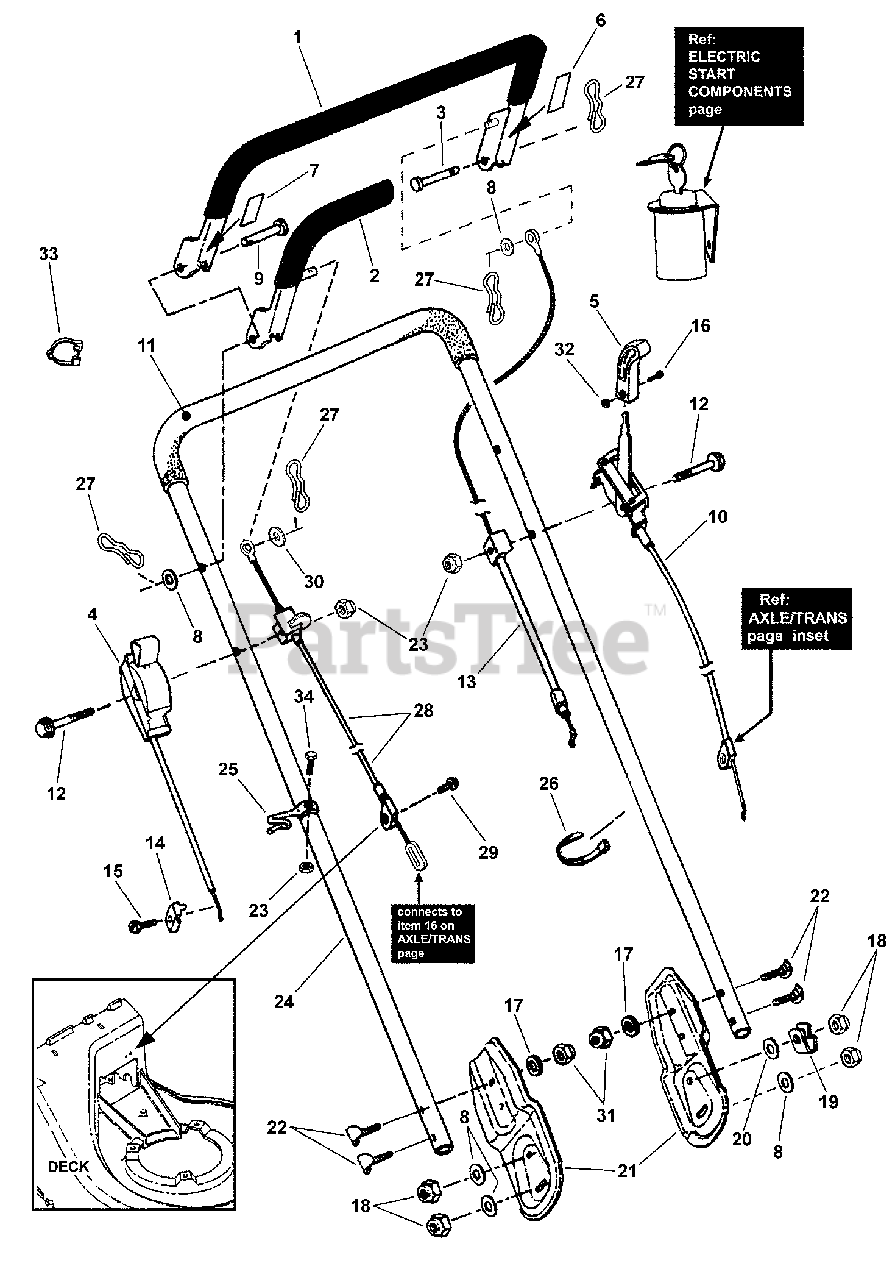

HANDLES AND CONTROLS (2002 & Later Model Year) Parts Diagram

  • Title

1

Snapper 7035954

CONTROL, Blade (ELP21502KWV)

$

$

Not available

1

Snapper 7041734

CONTROL, Blade (ELP21602 & ELP21602E)

$

$

Currently unavailable

2

Snapper 7028815

WELDMENT, Ground Speed Control (Coated)
(Superseded to 7028815YP)

$41.99

$

Usually ships in 2-12 days

0

3

Snapper 7091645

PIN, 5/16 x 1-7/16" Clevis
(Superseded to 7079831YP)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 7029036

CONTROL, Throttle (+49.8/1.41") (ELP216752BV)
(Superseded to 7029036YP)

$22.99

$

In Stock, Qty 8

0

4

Snapper 7075712

CONTROL, Throttle (+49.8/2.62") (ELP21702BV)
(Superseded to 7075712YP)

$28.99

$

In Stock, only 1 left!

0

5

Snapper 7023655

KNOB, Engine Speed & Ground Speed Control
(Superseded to 7023655YP)

$

$

Not available

6

Snapper 7029431

DECAL, (OPC) Operator Presence Control
(Superseded to 7029431YP)

$6.49

$

Usually ships in 2-12 days

0

7

Snapper 7029432

DECAL, Ground Drive, (Cast Al Comm)
(Superseded to 7029432YP)

$11.99

$

Usually ships in 2-12 days

0

8

Snapper 7091076

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 6

0

9

Snapper 7091644

PIN, 5/16 x 1-3/4" Clevis
(Superseded to 704029)

$4.49

$

In Stock, only 3 left!

0

10

Snapper 7028886

CONTROL, Ground Speed (+56/1.85")
(Superseded to 7028886YP)

$42.99

$

Usually ships in 2-12 days

0

11

Snapper 7026216

GRIP, Foam (7/8" I.D. x 21-1/2" long)
(Superseded to 7026216SM)

$26.99

$

Usually ships in 2-12 days

0

12

Snapper 7091732

SCREW, 1/4-20 x 2-3/4" Hex Head Cap, GR 5

$

$

Not available

13

Snapper 7074451

*CABLE ASSEMBLY, Blade Control (49.09" long)
(Superseded to 7074451YP)

Note: used on ELP216752BV (#7084716)

$20.99

$

Usually ships in 2-12 days

0

13

Snapper 7074923

*CABLE ASSEMBLY, Blade Control (51.39" long)
(Superseded to 7074923YP)

Note: used on ELP216752BV (#7084669)

$20.99

$

Usually ships in 2-12 days

0

14

Snapper 7023153

CLAMP, Engine Speed (3-Speed Control)
(Superseded to 7023153YP)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 7023154

SCREW, #10-32 x 5/8" Slotted Hex Head, Self-Tap
(Superseded to 7023154YP)

$

$

Not available

16

Snapper 7091017

SCREW, #8-32 x 3/8" Pan Head Cross Recess
(Superseded to 7091017YP)

$3.99

$

In Stock, only 4 left!

0

17

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

18

Snapper 7091646

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

19

Snapper 7026436

CLAMP, Double Tube
(Superseded to 7026436YP)

$3.49

$

Usually ships in 2-12 days

0

20

Snapper 7011791

RETAINER, 5/16" Bolt (Black)
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

21

Snapper 7034329

BRACKET, Handle (Black)

$

$

Not available

21

Snapper 7034848

BRACKET, Handle (Yellow Zinc Chromate)

$

$

Not available

22

Snapper 7091190

BOLT, 5/16-18 x 1-1/2" Curved Head Carriage, GR 2
(Superseded to 704063)

$5.49

$

In Stock, Qty 5

0

23

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

24

Snapper 7034786

HANDLE, Upper
(Superseded to 7034786YP)

$41.99

$

Usually ships in 2-12 days

0

25

Snapper 7022779

GUIDE, Pull Rope
(Superseded to 7022779YP)

$7.49

$

Usually ships in 2-12 days

0

26

Snapper 7024641

TIE, Wire 1.29" long (Black)
(Superseded to 7024641YP)

$5.99

$

In Stock, only 1 left!

0

27

Snapper 7073821

PIN, Bow-Tie Locking Cotter
(Superseded to 7073821YP)

$3.49

$

In Stock, Qty 17

0

28

Snapper 7046518

CABLE, Traction (Adjustable) (51.20/6.38")
(Superseded to 7046518YP)

$36.99

$

In Stock, only 1 left!

0

29

Snapper 7091075

SCREW, #10-24 x 5/8" Hex Washer Self-Tap
(Superseded to 7091075SM)

$4.49

$

In Stock, Qty 5

0

30

Snapper 7091702

WASHER, 3/16" Flat
(Superseded to 7091702YP)

$3.49

$

Usually ships in 2-12 days

0

31

Snapper 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

32

Snapper 7091018

NUT, #8-32 Hex
(Superseded to 7091018YP)

$3.99

$

In Stock, Qty 9

0

33

Snapper 7026219

CLAMP, 7/8" Double Cable
(Superseded to 7026219YP)

$4.49

$

In Stock, Qty 10

0

34

Snapper 7079577

SCREW, 1/4-20 x 1-1/2" Hex Head Cap, GR 5
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0
