ELP 21602 (84641) - Snapper 21" Walk-Behind Mower, 6hp DECALS Parts Diagram

21" Walk-Behind Mower, 6hp

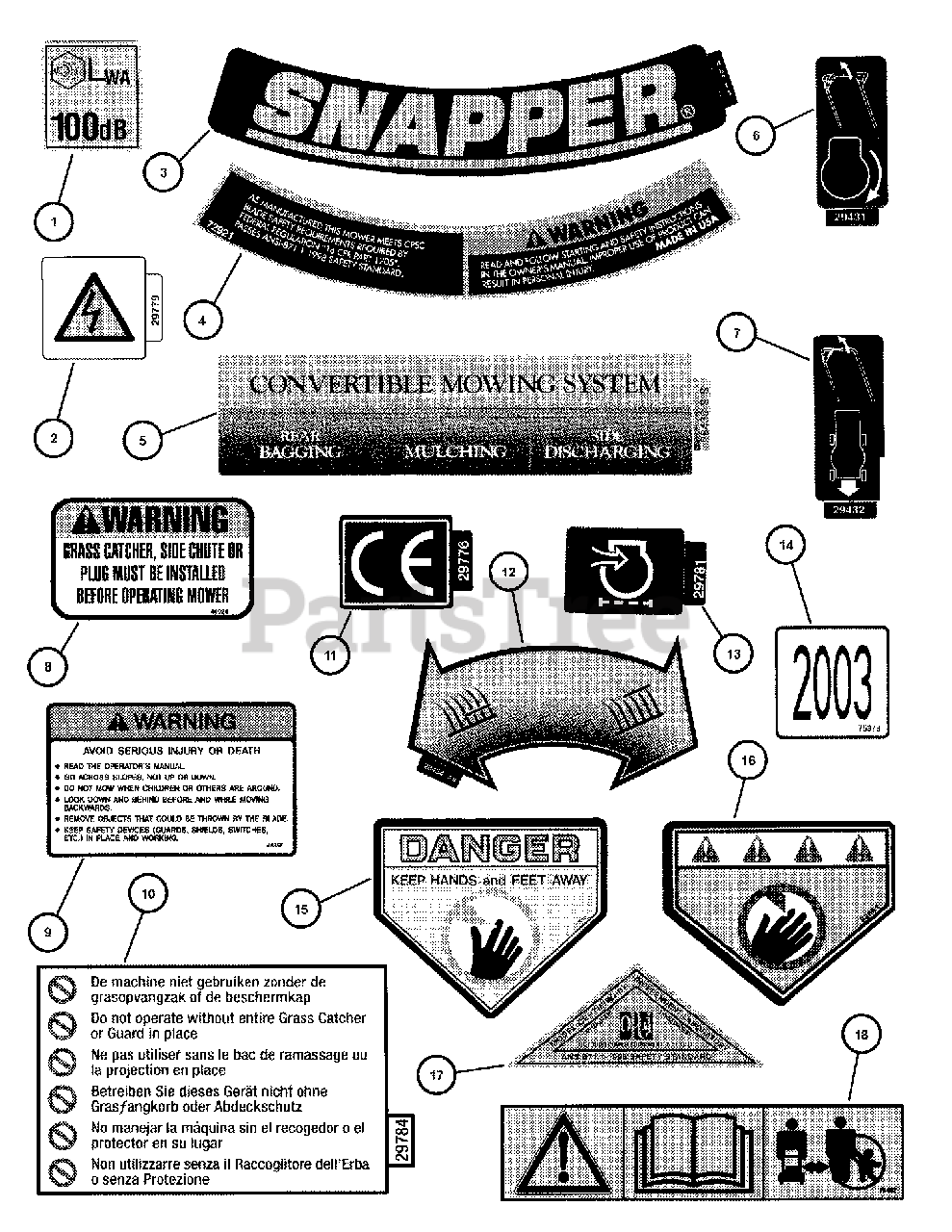

DECALS Parts Diagram

  • Title
1

Snapper 7074135

DECAL, Sound 100 dB (Euro)
(Superseded to 7074135SM)

$4.99

$

Usually ships in 2-12 days

0

2

Snapper 7029779

DECAL, Spark Plug International Symbol
(Superseded to 7029779YP)

$6.49

$

Usually ships in 2-12 days

0

3

Snapper 7046714

DECAL, "SNAPPER" (5HP & 6HP)
(Superseded to 7046714YP)

$10.99

$

In Stock, only 2 left!

0

3

Snapper 7074386

DECAL, "SNAPPER" Black/Gold (6-3/4HP)

$

$

Not available

3

Snapper 7075618

DECAL, "SNAPPER" (ELP21702BV)
(Superseded to 7075618YP)

$23.99

$

Usually ships in 2-12 days

0

4

Snapper 7072921

DECAL, Warning (Deck)
(Superseded to 7072921YP)

$9.49

$

Usually ships in 2-12 days

0

5

Snapper 7028439

DECAL, Convertible Mower

$

$

Not available

6

Snapper 7029431

DECAL, (OPC) Operator Presence Control
(Superseded to 7029431YP)

$6.49

$

Usually ships in 2-12 days

0

7

Snapper 7029432

DECAL, Ground Drive, (Cast Al Comm)
(Superseded to 7029432YP)

$11.99

$

Usually ships in 2-12 days

0

8

Snapper 7046924

DECAL, Chute Deflector Warning
(Superseded to 7046924YP)

$5.99

$

Usually ships in 2-12 days

0

9

Snapper 7046357

DECAL, Warning 1997
(Superseded to 7046357YP)

$14.99

$

Usually ships in 2-12 days

0

10

Snapper 7029784

DECAL,Deck/Chute International Warning
(Superseded to 7029784SM)

$5.99

$

Usually ships in 2-12 days

0

11

Snapper 7029776

DECAL, Euro Community (CE)
(Superseded to 7029776SM)

$7.99

$

Usually ships in 2-12 days

0

12

Snapper 7028454

DECAL, Height Adjustment (Euro)

$

$

Currently unavailable

13

Snapper 7029781

DECAL, Air Filter International Symbol
(Superseded to 7029781YP)

$7.99

$

In Stock, only 1 left!

0

14

Snapper 7072820

DECAL, 2000 Year of Mfg. (not shown)

$

$

Currently unavailable

14

Snapper 7073433

DECAL, 2001 Year of Mfg. (not shown)

$

$

Currently unavailable

14

Snapper 7074548

DECAL, 2002 Year of Mfg. (not shown)

$

$

Currently unavailable

14

Snapper 7075378

DECAL, 2003 Year of Mfg.
(Superseded to 7075378YP)

$5.99

$

Usually ships in 2-12 days

0

15

Snapper 7013010

DECAL, Danger, Cut Finger
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 11

0

16

Snapper 7022841

DECAL, Warning (Deck) (Euro)
(Superseded to 7022841SM)

$72.99

$

In Stock, only 1 left!

0

17

Snapper 7073335

DECAL OPEI Ride-On
(Superseded to 7073335YP)

$6.49

$

Usually ships in 2-12 days

0

18

Snapper 7073462

DECAL, Caution Symbols
(Superseded to 7073462YP)

$6.49

$

Usually ships in 2-12 days

0
