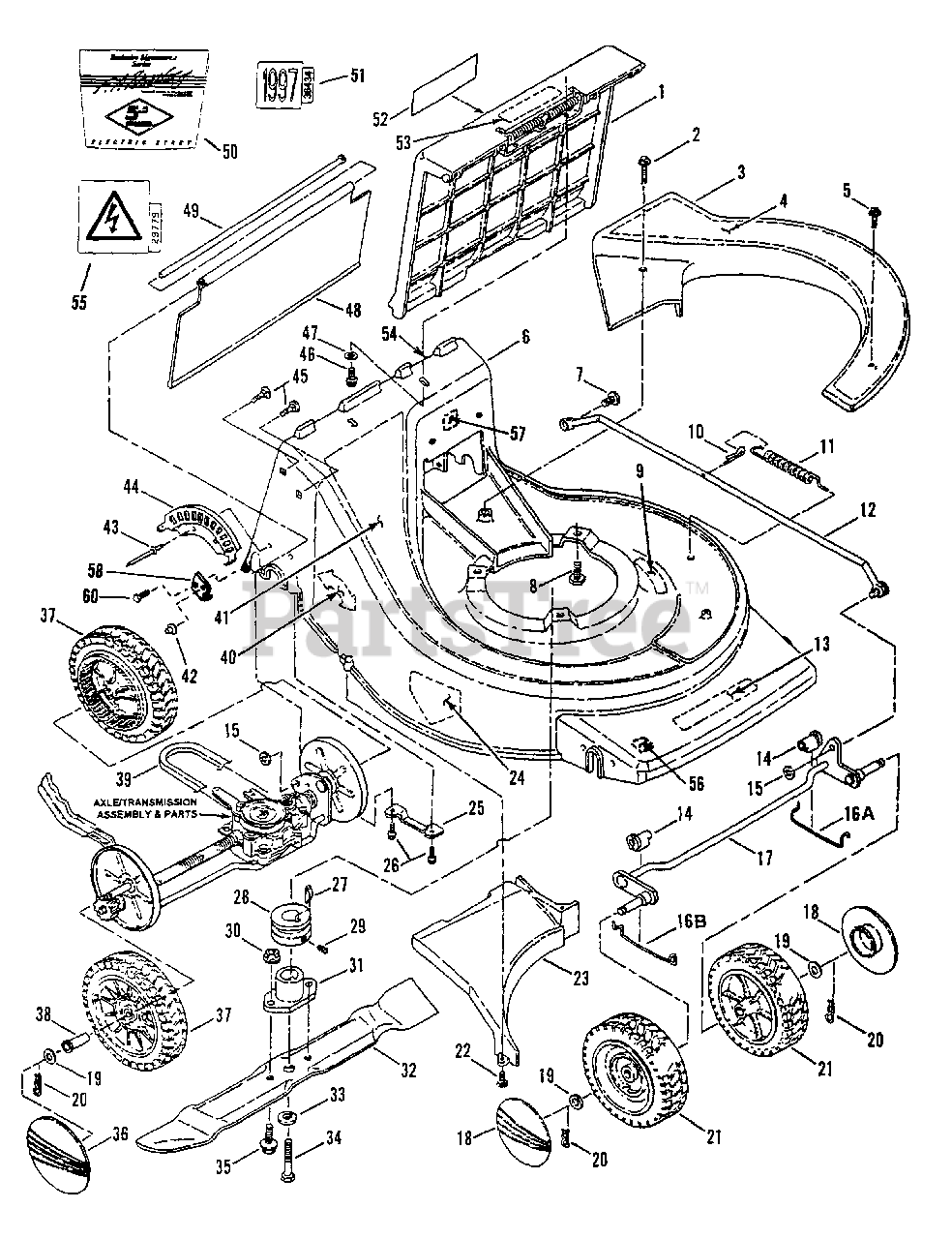

ELP 21500VE - Snapper 21" Walk-Behind Mower, 5hp Wheels, Deck & Components Parts Diagram

21" Walk-Behind Mower, 5hp

Wheels, Deck & Components Parts Diagram

  • Title

1

Snapper 7052881

ASSEMBLY, Discharge Door
(Superseded to 7052881YP)

$75.99

$

In Stock, only 1 left!

0

2

Snapper 7091201

SCREW, #10-24 x 1 1/2 Slotted, Hex Washer Head, Self-Tapping
(Superseded to 7091201YP)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper 7024752

COVER, Belt/Tie Bar
(Superseded to 7024752YP)

$35.99

$

Usually ships in 2-12 days

0

4

Snapper 7028443

DECAL, Cover

$

$

Not available

5

Snapper 7091213

SCREW, #10-24 x 1 Slotted, Hex Washer Head, Self-Tapping
(Superseded to 7091213YP)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 7063167

DECK, 21" Cast Aluminum
(Superseded to 7061962YP)

Note: Was 61961

$1025.99

$

Usually ships in 2-12 days

0

7

Snapper 7091232

PIN, Tie Bar, 3/8 x 5/8
(Superseded to 7091232YP)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper 7090324

SCREW, 3/8-18 x 1" Hex Head, Self-Tapping
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

9

Snapper 7022841

DECAL - WARNING (Deck)
(Superseded to 7022841SM)

Note: (ELP21600E)

$72.99

$

In Stock, only 1 left!

0

Snapper 7028440

DECAL - WARNING (Deck)
(Superseded to 7028440YP)

Note: (ELP21500VE)

$8.49

$

In Stock, only 1 left!

0

10

Snapper 7091598

COTTER-PIN, 1/8 x 3/4
(Superseded to 703958)

Note: Was 90365

$4.49

$

In Stock, only 4 left!

0

11

Snapper 7024751

SPRING, Tie Bar
(Superseded to 7024751YP)

$12.99

$

Usually ships in 2-12 days

0

12

Snapper 7041364

ASSEMBLY, Tie Bar
(Superseded to 7041364AYP)

$119.99

$

Usually ships in 2-12 days

0

13

Snapper 7028444

LOGO, SNAPPER Platinum Series
(Superseded to 7028444YP)

$7.99

$

Usually ships in 2-12 days

0

14

Snapper 7024558

BUSHING, Front Axle
(Superseded to 7024558YP)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 7013946

RETAINER, Wheel
(Superseded to 7013946YP)

$3.99

$

Usually ships in 2-12 days

0

16A

Snapper 7034340

SPRING, Axle Retaining (Left Side)
(Superseded to 7034340YP)

$7.49

$

Usually ships in 2-12 days

0

16B

Snapper 7034341

SPRING, Axle Retaining (Right Side)
(Superseded to 7034341YP)

$8.99

$

Usually ships in 2-12 days

0

17

Snapper 7041344

ASSEMBLY, Front Axle
(Superseded to 7041344YP)

$115.99

$

Usually ships in 2-12 days

0

18

Snapper 7016152

HUB-CAP, Front Wheels

$

$

Not available

19

Snapper 7091192

WASHER, 1/2 Flat
(Superseded to 7091192SM)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper 7091193

HAIRPIN, .062 x .900
(Superseded to 7091193YP)

$5.99

$

Usually ships in 2-12 days

0

21

Snapper 7028456

ASSEMBLY, Wheels (Front)
(Superseded to 7500540YP)

$40.99

$

In Stock, only 2 left!

0

22

Snapper 7091075

SCREW, #10-24 x 5/8" Slotted, Hex Washer Head, Self-Tapping
(Superseded to 7091075SM)

$4.49

$

In Stock, Qty 5

0

23

Snapper 7024595

BAFFLE, Discharge
(Superseded to 7024595YP)

$26.99

$

Usually ships in 2-12 days

0

24

Snapper 7029784

DECAL - DANGER
(Superseded to 7029784SM)

Note: (ELP21600E)

$5.99

$

Usually ships in 2-12 days

0

Snapper 7013010

DECAL - DANGER
(Superseded to 7013010SM)

Note: (ELP21500VE)

$9.49

$

In Stock, Qty 11

0

25

Snapper 7033732

SUPPORT, Rear Axle
(Superseded to 7033732YP)

$9.99

$

Usually ships in 2-12 days

0

26

Snapper 7091819

SCREW, 1/4-20 x 5/8 Hex Washer Head, Self-Tapping
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, Qty 5

0

27

Snapper 7091214

KEY, HP-506 Hi-Pro
(Superseded to 7091214YP)

$4.99

$

In Stock, only 1 left!

0

28

Snapper 7015780

PULLEY, Traction Drive
(Superseded to 7015780YP)

Note: (Briggs Engine)

$30.99

$

Usually ships in 2-12 days

0

29

Snapper 7090201

SCREW, 5/16-18 x 5/16" Hex. Socket Set
(Superseded to 7090201SM)

$

$

Not available

30

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

31

Snapper 7026631

HUB, 25 mm Blade Drive

$

$

Not available

32

Snapper 7026428

BLADE, 21" Mulching/Bagging
(Superseded to 7026428BZYP)

$29.99

$

In Stock, only 1 left!

0

33

Snapper 7079268

WASHER, 3/8 Split Lock (Heavy)
(Superseded to 7079268YP)

$3.49

$

In Stock, Qty 7

0

34

Snapper 7090463

SCREW, 3/8-24 x 1 3/4" Hex Head Cap, Grade 5

$

$

Not available

35

Snapper 7091328

BOLT, 3/8-16 x 1 1/4" Hex Flange Lock
(Superseded to 703871)

Note: Was 90143

$4.99

$

Usually ships in 2-12 days

0

36

Snapper 7024540

HUB-CAP, Rear Wheels
(Superseded to 7024540YP)

$5.49

$

Usually ships in 2-12 days

0

37

Snapper 7074629

ASSEMBLY, Rear Drive Wheels
(Superseded to 7104781YP)

Note: Was 53508 (Includes item)

$40.99

$

In Stock, only 1 left!

0

38

Snapper 7073618

BUSHING, Rear Wheel
(Superseded to 7073618YP)

Note: Was 24541

$7.99

$

In Stock, only 1 left!

0

39

Snapper 7024750

BELT, Traction Drive
(Superseded to 7024750YP)

$23.99

$

Usually ships in 2-12 days

0

40

Snapper 7028454

DECAL, Height Adjustment

Note: (ELP21600E)

$

$

Currently unavailable

Snapper 7028438

DECAL, Height Adjustment

Note: (ELP21500VE)

$

$

Not available

41

Snapper 7028442

DECAL, Deck

Note: (Right Side)

$

$

Currently unavailable

42

Snapper 7091892

PUSH-NUT, 1/4
(Superseded to 7091892YP)

Note: (ELP21600E)

$3.99

$

Usually ships in 2-12 days

0

Snapper 7091020

PUSH-NUT, 1/4
(Superseded to 7091020YP)

Note: (ELP21500VE)

$4.49

$

In Stock, Qty 20+

0

43

Snapper 7091191

RIVET, 3/16 x 1/2" Steel
(Superseded to 7091191YP)

$3.49

$

Usually ships in 2-12 days

0

44

Snapper 7033752

PLATE, Height Adjustment
(Superseded to 7033752YP)

$23.99

$

Usually ships in 2-12 days

0

45

Snapper 7091714

BOLT, 5/16-18 x 1" Carriage, Gr. 5
(Superseded to 703483)

Note: Was 91238

$3.99

$

In Stock, only 1 left!

0

46

Snapper 7029470

DECAL, Patent Numbers
(Superseded to 7029470YP)

$6.99

$

In Stock, only 1 left!

0

47

Snapper 7091294

WASHER, 1/4 Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

48

Snapper 7043870

SHIELD, Trailing
(Superseded to 7043870YP)

Note: Was 24753

$28.99

$

Usually ships in 2-12 days

0

49

Snapper 7043808

ROD, Trailing Shield Pivot
(Superseded to 7043808YP)

$56.99

$

Usually ships in 2-12 days

0

50

Snapper 7027875

DECAL, Signature E.S.
(Superseded to 7027875YP)

$7.99

$

Usually ships in 2-12 days

0

51

Snapper 7036434

DECAL, 1997 Year of Manufacture

$

$

Currently unavailable

52

Snapper 7028439

DECAL, Convertible Mower

$

$

Not available

53

Snapper 7029825

DECAL, WARNING
(Superseded to 7029825YP)

$13.99

$

Usually ships in 2-12 days

0

54

Snapper 7029784

DECAL, Deck/Chute, International Warning
(Superseded to 7029784SM)

$5.99

$

Usually ships in 2-12 days

0

55

Snapper 7029779

DECAL, Spark Plug
(Superseded to 7029779YP)

$6.49

$

Usually ships in 2-12 days

0

56

Snapper 7029776

DECAL, European Community
(Superseded to 7029776SM)

$7.99

$

Usually ships in 2-12 days

0

57

Snapper 7023009

DECAL, Noise Control

$

$

Currently unavailable

58

Snapper 7043835

BRACKET, RH TS Pivot Rod
(Superseded to 7043835YP)

$18.99

$

Usually ships in 2-12 days

0

59

Snapper 7043836

BRACKET, LH TS Pivot Rod
(Superseded to 7043836YP)

Note: (Not Shown)

$20.99

$

Usually ships in 2-12 days

0

60

Snapper 7091819

SCREW, 3/4-20 x 5/8 Hex Washer Head Self-Tapping
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, Qty 5

0

ENGINE, 6 HP Briggs & Stratton I/C Diamond-Plus

Note: Model 12J807 Type 1534, Trim 21

$

$

Not available
