ELP 21500VE - Snapper 21" Walk-Behind Mower, 5hp Electrical Components Parts Diagram

21" Walk-Behind Mower, 5hp

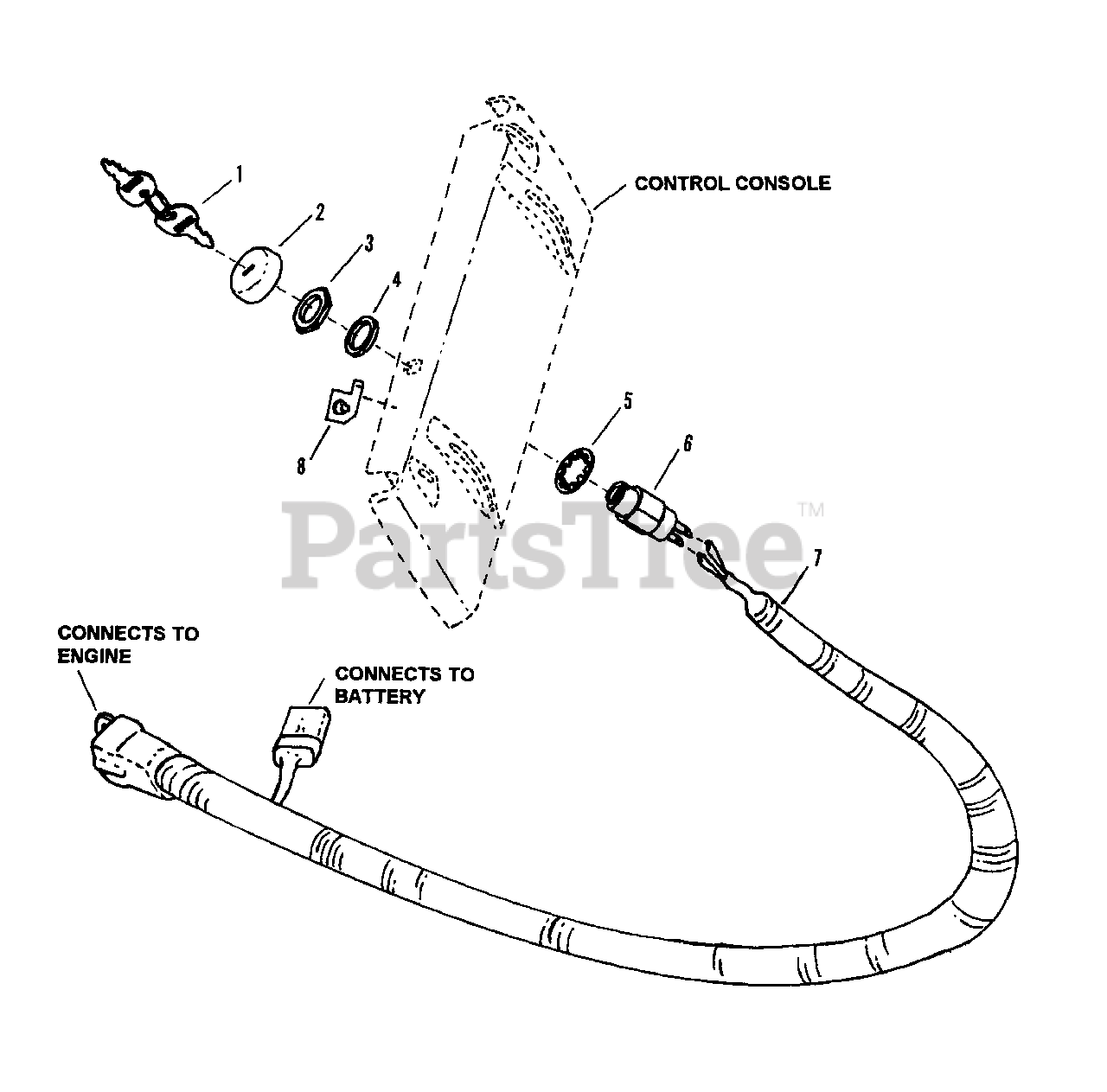

Electrical Components Parts Diagram

  • Title
1

Snapper 7011138

KEY, Ignition
(Superseded to 7011138YP)

$7.49

$

In Stock, Qty 7

0

2

Snapper 7023506

BEZEL
(Superseded to 7023506SM)

$4.49

$

Usually ships in 2-12 days

0

3

Snapper 7012685

NUT, 5/8-32 Hex
(Superseded to 7012685YP)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 7016132

SPACER, 21/32" x 7/8"
(Superseded to 7016132SM)

$3.99

$

Usually ships in 2-12 days

0

5

Snapper 7091546

WASHER, 5/8" Internal Tooth Lock
(Superseded to 1960547SM)

Note: Was 90880

$4.49

$

In Stock, only 3 left!

0

6

Snapper 7028765

SWITCH, Electric Start
(Superseded to 690646)

$34.99

$

In Stock, Qty 5

0

7

Snapper 7028623

HARNESS, Wiring L Series

Note: (ELP21600E)

$

$

Not available

Snapper 7028629

HARNESS, Main Wiring

Note: (ELP21500VE)

$

$

Not available

8

Snapper 7028623

DECAL, Key/Start

$

$

Not available
