ELH775-3012 - Kohler Aegis EFI Engine, Made for OD&G, 30hp, 22.4kW 08 Fuel System Parts Diagram

Aegis EFI Engine, Made for OD&G, 30hp, 22.4kW

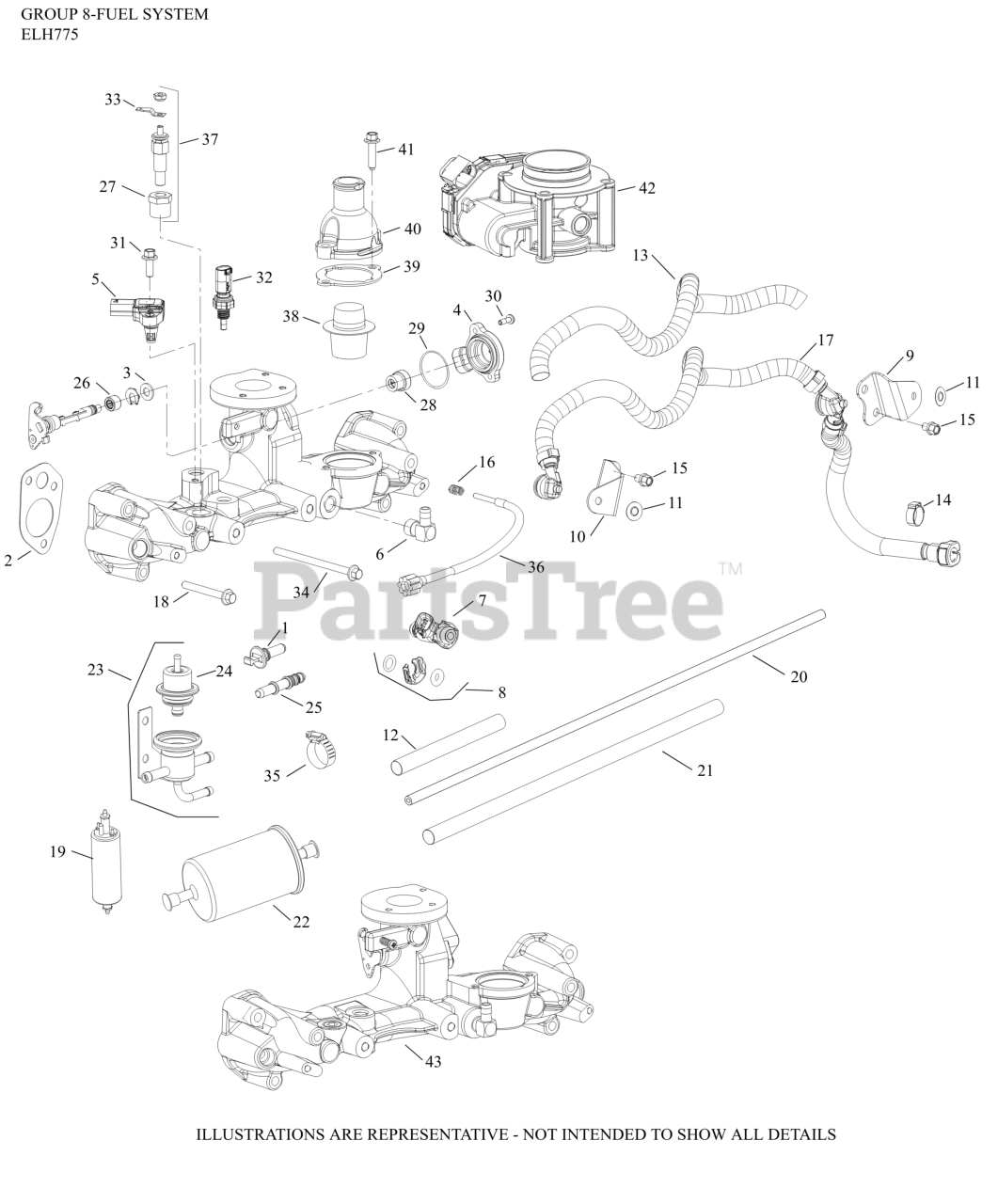

08 Fuel System Parts Diagram

  • Title

1

Kohler 24 139 08-S

PLUG, FITTING FUEL

$10.99

$

Usually ships in 2-5 days

0

2

Kohler 66 041 05-S

GASKET, INTAKE MANIFOLD

$2.49

$

In Stock, only 1 left!

0

3

Kohler 24 032 16-S

SEAL, THROTTLE SHAFT

$2.99

$

Usually ships in 2-5 days

0

4

Kohler 16 418 01-S

SENSOR, THROTTLE POSITION

$39.99

$

Usually ships in 2-5 days

0

5

Kohler 25 418 13-S

SENSOR, T-MAP

$77.99

$

In Stock, only 1 left!

0

6

Kohler 45 155 01-S

CONNECTOR

$10.99

$

Usually ships in 2-5 days

0

6

Kohler 66 155 02-S

CONNECTOR, HOSE

$12.99

$

Usually ships in 2-5 days

0

7

Kohler 25 331 01-S

INJECTOR, FUEL

$80.99

$

Usually ships in 2-5 days

0

8

Kohler 25 755 41-S

KIT, FUEL INJECTOR O-RING

$32.99

$

In Stock, only 2 left!

0

9

Kohler 66 126 81-S

BRACKET, INJECTOR CYLINDER #1

$15.99

$

Usually ships in 2-5 days

0

10

Kohler 66 126 82-S

BRACKET, INJECTOR CYLINDER #2

$15.99

$

Usually ships in 2-5 days

0

11

Kohler 25 154 31-S

CLIP, RETAINER

$2.49

$

Usually ships in 2-5 days

0

12

Kohler 20 431 01-S

SLEEVE, ANTI ABRASION -USE 25 431 12-S
(Superseded to 20 431 02-S)

$10.99

$

In Stock, only 1 left!

0

13

Kohler 25 431 33-S

SLEEVE, ANTI ABRASION

$7.49

$

Usually ships in 2-5 days

0

14

Kohler 24 237 17-S

CLAMP, HOSE

$2.49

$

In Stock, only 1 left!

0

15

Kohler 25 086 648-S

SCREW, M6 X 8 HEX FLANGE HEAD

$2.49

$

In Stock, only 4 left!

0

16

Kohler 25 089 09-S

SPRING, IDLE SET SCREW

$3.99

$

Usually ships in 2-5 days

0

17

Kohler 66 399 05-S

RAIL ASSEMBLY, FUEL

$

$

Not available

18

Kohler M-651050-S

SCREW, FLG M6X1.0X50

$2.99

$

Usually ships in 2-5 days

0

19

Kohler 24 393 52-S

PUMP,FUEL ASSEMBLY(ELECTRIC)

$367.99

$

Usually ships in 2-5 days

0

21

Kohler 24 431 02-S

SLEEVE, INSULATING 14"

$6.49

$

In Stock, only 1 left!

0

22

Kohler 24 050 03-S

FILTER, FUEL

$75.99

$

In Stock, only 2 left!

0

23

Kohler 24 403 16-S

REGULATOR ASSY, FUEL PRESSURE

$215.99

$

Usually ships in 2-5 days

0

24

Kohler 24 403 02-S

REGULATOR, FUEL PRESSURE

$

$

Not available

25

Kohler 25 294 52-S

FITTING, FUEL (STRAIGHT)

$2.49

$

Usually ships in 2-5 days

0

26

Kohler 28 030 05-S

BEARING, NEEDLE

$12.99

$

Usually ships in 2-5 days

0

27

Kohler 25 158 18-S

BUSHING, REDUCING

$6.99

$

Usually ships in 2-5 days

0

28

Kohler 25 152 09-S

MAGNET, TPS SENSOR

$2.99

$

Usually ships in 2-5 days

0

29

Kohler 25 153 17-S

O-RING, TPS SENSOR

$2.49

$

Usually ships in 2-5 days

0

30

Kohler 25 086 600-S

SCREW, M4

$2.49

$

Usually ships in 2-5 days

0

31

Kohler M-651016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, only 3 left!

0

32

Kohler 25 418 02-S

SENSOR, TEMPERATURE

$36.99

$

In Stock, only 1 left!

0

33

Kohler 25 452 22-S

TERMINAL, EYELET/SPADE

$12.99

$

Usually ships in 2-5 days

0

34

Kohler M-651090-S

SCREW, FLG M6X1.0X90

$2.99

$

Usually ships in 2-5 days

0

35

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

36

Kohler 66 159 03-S

CABLE, IDLE ADJUSTMENT

$76.99

$

Usually ships in 2-5 days

0

37

Kohler 66 418 02-S

SENSOR ASSY, TEMPERATURE

$61.99

$

Usually ships in 2-5 days

0

38

Kohler 66 453 02-S

KIT, THERMOSTAT (190 F degree)

$54.99

$

Usually ships in 2-5 days

0

39

Kohler 66 041 01-S

GASKET, THERMOSTAT

$2.49

$

In Stock, only 1 left!

0

40

Kohler 66 081 14-S

HOUSING, THERMOSTAT

$

$

Not available
