ELH775-3011 - Kohler Aegis EFI Engine, Made for OD&G, 30hp, 22.4kW 02 CrankCase Parts Diagram

Aegis EFI Engine, Made for OD&G, 30hp, 22.4kW

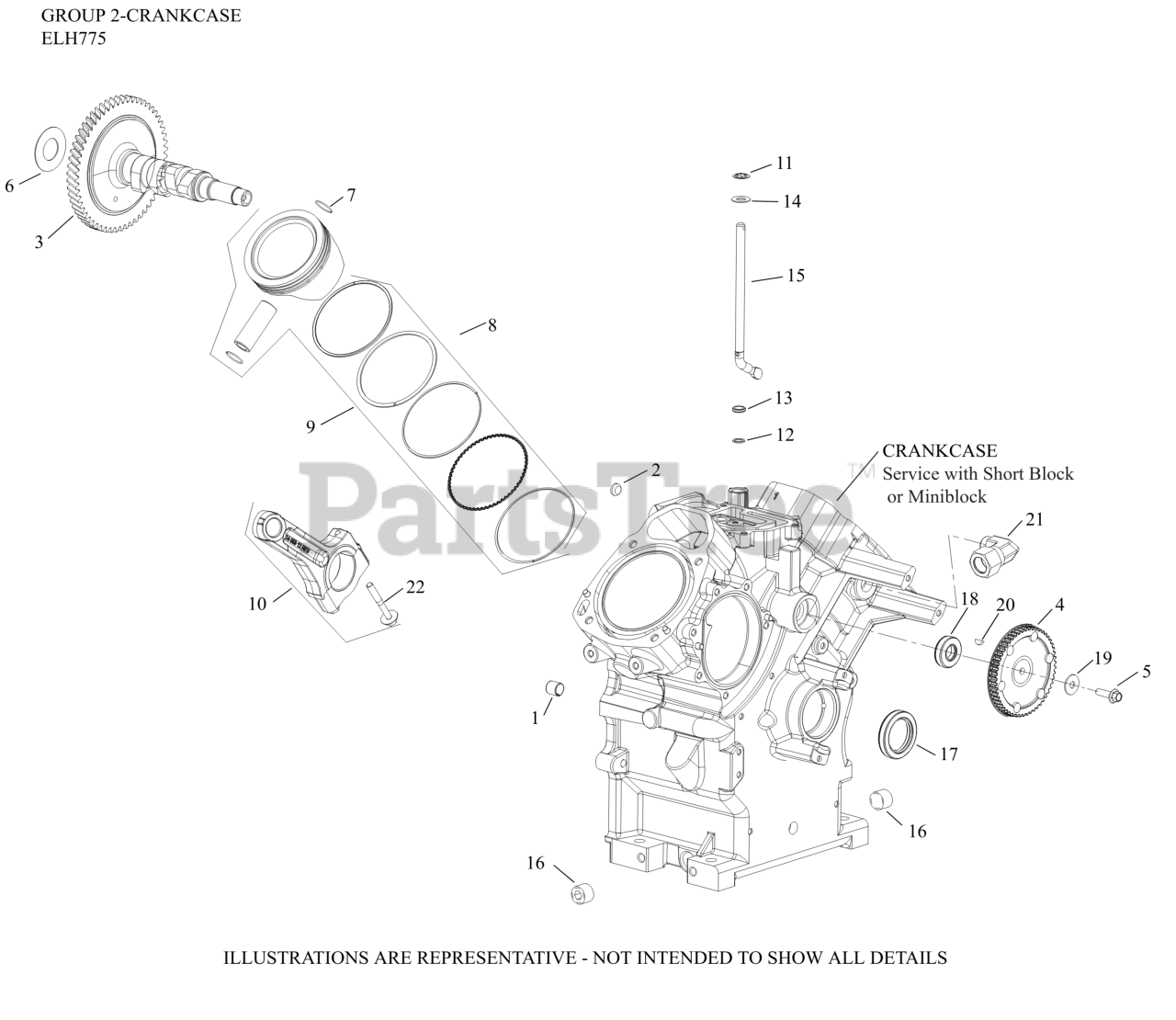

02 CrankCase Parts Diagram

  • Title

1

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, only 3 left!

0

2

Kohler 52 139 09-S

PLUG, CUP

$4.99

$

In Stock, only 2 left!

0

3

Kohler 66 012 06-S

KIT, CAMSHAFT-EFI

$220.99

$

Usually ships in 2-5 days

0

4

Kohler 66 093 01-S

SPROCKET, CAMSHAFT

$34.99

$

In Stock, only 1 left!

0

5

Kohler M-651020-S

SCREW, FLG M6x1.0x20

$2.49

$

In Stock, Qty 6

0

6

Kohler 12 422 07-S

SHIM, CAMSHAFT (WHITE .028")

$4.49

$

Usually ships in 2-5 days

0

6

Kohler 12 422 08-S

SHIM, CAMSHAFT (BLUE .03")

$2.49

$

In Stock, only 2 left!

0

6

Kohler 12 422 09-S

SHIM, CAMSHAFT (RED .032")

$2.49

$

In Stock, only 1 left!

0

6

Kohler 12 422 10-S

SHIM, CAMSHAFT (YELLOW .034")

$2.49

$

In Stock, only 1 left!

0

6

Kohler 12 422 11-S

SHIM, CAMSHAFT (GREEN .036")

$2.49

$

Usually ships in 2-5 days

0

6

Kohler 12 422 12-S

SHIM, CAMSHAFT (GRAY .038")

$2.99

$

Usually ships in 2-5 days

0

6

Kohler 12 422 13-S

SHIM, CAMSHAFT (BLACK .04")

$2.99

$

Usually ships in 2-5 days

0

7

Kohler 24 018 01-S

RETAINER, PISTON PIN

$2.99

$

In Stock, Qty 7

0

8

Kohler 25 108 01-S

RING SET(STD)STYLE B-1.2mm Tp RING THICK

$63.99

$

Usually ships in 2-5 days

0

8

Kohler 25 108 02-S

RING SET(.08)STYLE B-1.2mm RING THICK

$26.99

$

In Stock, only 1 left!

0

8

Kohler 25 108 03-S

RING SET(.25)STYLE B-1.2mm Tp RING THICK

$26.99

$

Usually ships in 2-5 days

0

8

Kohler 25 108 04-S

RING SET(.50)STYLE B-1.2mm Tp RING THICK

$103.99

$

Usually ships in 2-5 days

0

9

Kohler 25 874 14-S

KIT,PSTN/RNG STYLE B(STD)

$174.99

$

In Stock, Qty 6

0

9

Kohler 25 874 18-S

KIT,PSTN/RNG STYLE B(.08)

$206.99

$

Usually ships in 2-5 days

0

9

Kohler 25 874 19-S

KIT,PSTN/RNG STYLE B(.25)

$253.99

$

Usually ships in 2-5 days

0

9

Kohler 25 874 20-S

KIT,PSTN/RNG STYLE B(.50)

$250.99

$

Usually ships in 2-5 days

0

10

Kohler 25 067 04-S

ROD, ASSEMBLY CONNECTING

$59.99

$

In Stock, only 4 left!

0

11

Kohler 24 018 09-S

RETAINER, RING

$2.49

$

Usually ships in 2-5 days

0

12

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, Qty 5

0

13

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$3.49

$

In Stock, Qty 6

0

14

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, only 2 left!

0

15

Kohler 24 144 38-S

SHAFT, GOVERNOR CROSS
(Superseded to 24 144 39-S)

$41.99

$

Usually ships in 2-5 days

0

16

Kohler 25 139 62-S

PLUG, PIPE CTSK 3/8"

$3.49

$

In Stock, only 2 left!

0

17

Kohler 24 032 19-S

SEAL, OIL (HELIX LIP)

$7.49

$

In Stock, Qty 20+

0

18

Kohler 66 032 07-S

SEAL, CAMSHAFT

$

$

Not available

19

Kohler X-25-52-S

WASHER, FLAT 1/4"

$3.99

$

In Stock, only 1 left!

0

20

Kohler X-42-2-S

KEY, 3/32" X 3/8"

$3.99

$

In Stock, only 1 left!

0

22

Kohler 25 086 452-S

KIT, ROD BOLTS-(#25086677S)
(Superseded to 25 086 677-S)

$2.49

$

In Stock, only 3 left!

0
