ELH775-3000 - Kohler Aegis EFI Engine, Basic Version, 30hp, 22.4kW 10 Air Intake Parts Diagram

Aegis EFI Engine, Basic Version, 30hp, 22.4kW

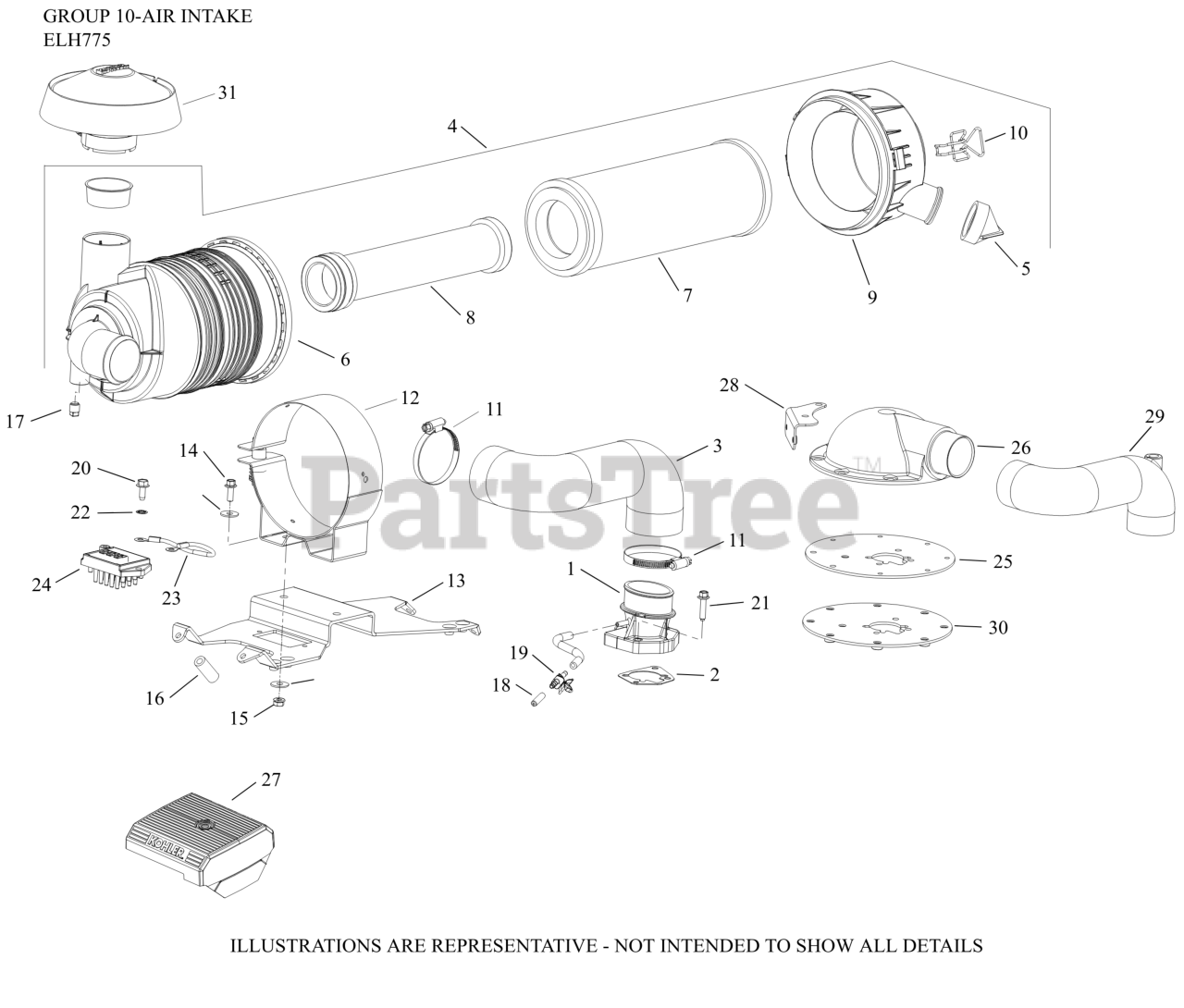

10 Air Intake Parts Diagram

  • Title

1

Kohler 24 029 82-S

KIT, REMOTE AIR CLEANER ADAPTER

$18.99

$

In Stock, only 2 left!

0

2

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 19

0

3

Kohler 24 326 71-S

HOSE, AIR CLEANER

$22.99

$

Usually ships in 2-5 days

0

4

Kohler 25 048 11-S

AIR CLEANER ASSY-USE 25 048 17-S
(Superseded to 25 048 17-S)

$143.99

$

Usually ships in 2-5 days

0

5

Kohler 24 462 07-S

VALVE, DUST EJECTOR

$21.99

$

In Stock, only 3 left!

0

6

Kohler 25 081 01-S

HOUSING, HD AIR CLEANER

$140.99

$

In Stock, only 1 left!

0

7

Kohler 25 083 01-S

ELEMENT, AIR FILTER - PRIMARY

$32.99

$

In Stock, Qty 20+

0

8

Kohler 25 083 04-S

ELEMENT, AIR FILTER - SAFETY

$32.99

$

In Stock, Qty 20+

0

9

Kohler 25 096 06-S

COVER ASSEMBLY, AIR CLEANER

$87.99

$

In Stock, only 1 left!

0

10

Kohler 25 154 05-S

CLIP - USE 62 154 07-S
(Superseded to 62 154 07-S)

$13.99

$

In Stock, Qty 12

0

11

Kohler 25 237 21-S

CLAMP, HOSE

$7.99

$

In Stock, only 1 left!

0

12

Kohler 66 126 51-S

AIR CLEANER BRACKET

$74.99

$

Usually ships in 2-5 days

0

13

Kohler 66 126 74-S

AIR CLEANER BRACKET

$107.99

$

Usually ships in 2-5 days

0

14

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, Qty 6

0

15

Kohler M-647060-S

NUT, LOCK M6X1.0

$2.49

$

In Stock, only 2 left!

0

16

Kohler 66 112 04-S

SPACER

$23.99

$

Usually ships in 2-5 days

0

17

Kohler 25 139 20-S

PLUG, PIPE

$8.99

$

Usually ships in 2-5 days

0

18

Kohler 25 173 33-S

CAP, MASKING

$2.49

$

Usually ships in 2-5 days

0

19

Kohler 25 155 51-S

CONNECTOR, EVAPORATIVE

$13.99

$

In Stock, only 3 left!

0

20

Kohler 25 086 397-S

SCREW, THREAD FORMING

$3.99

$

In Stock, Qty 13

0

21

Kohler 25 086 124-S

SCREW, FLG M6X1.0X25

$2.49

$

In Stock, only 3 left!

0

22

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, only 3 left!

0

23

Kohler 24 518 12-S

KIT, GROUND, LEAD

$4.99

$

Usually ships in 2-5 days

0

24

Kohler 25 403 32-S

REGULATOR, RECTIFIER
(Superseded to 25 403 48-S)

$68.99

$

In Stock, Qty 20+

0

31

Kohler 25 324 04-S

HOOD, INLET

$49.99

$

Usually ships in 2-5 days

0
