ELH775-3000 - Kohler Aegis EFI Engine, Basic Version, 30hp, 22.4kW 04 CylinderHead/Breather Parts Diagram

Aegis EFI Engine, Basic Version, 30hp, 22.4kW

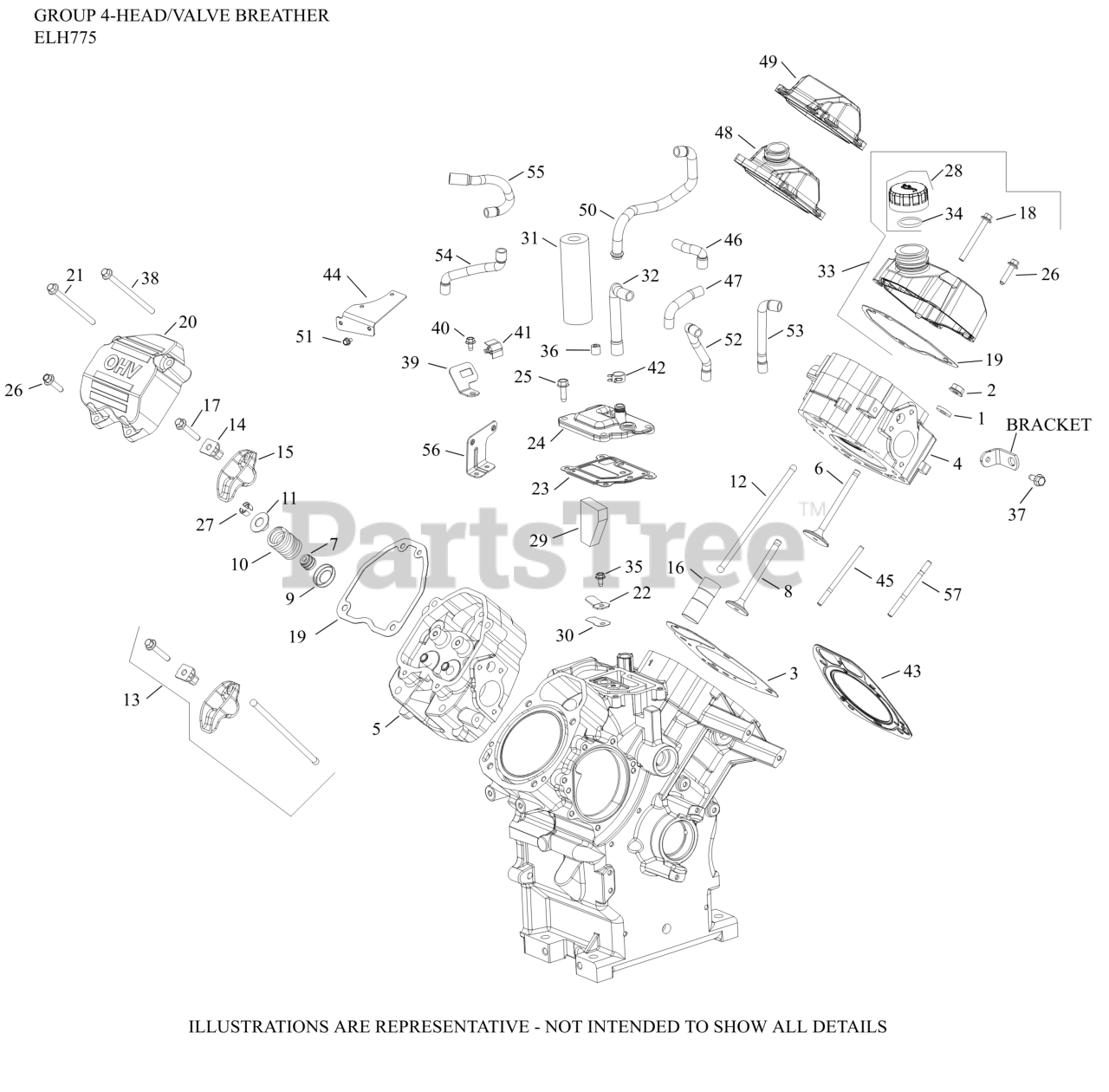

04 CylinderHead/Breather Parts Diagram

  • Title

1

Kohler 220534-S

WASHER, FLAT 5/16"

$5.49

$

In Stock, Qty 5

0

2

Kohler 24 100 10-S

NUT, FLG M8X1.25

$4.49

$

Usually ships in 2-5 days

0

3

Kohler 66 041 20-S

USE 66 841 01-S CYL HEAD GASKET KIT
(Superseded to 66 841 01-S)

$71.99

$

In Stock, only 1 left!

0

3

Kohler 66 041 21-S

KIT,CYL HD GASKET #2SIDE-USE 66 841 04-S
(Superseded to 66 841 04-S)

$71.99

$

In Stock, only 2 left!

0

4

Kohler 66 318 27-S

KIT, CYLINDER HEAD (#1 SIDE)

$

$

Not available

5

Kohler 66 318 30-S

KIT, CYLINDER HEAD (#2 SIDE)

$361.99

$

Usually ships in 2-5 days

0

6

Kohler 24 017 01-S

VALVE, INTAKE (STD)

$30.99

$

In Stock, Qty 15

0

6

Kohler 24 017 02-S

VALVE, INTAKE (.25)

$

$

Not available

7

Kohler 25 032 14-S

SEAL, VALVE BAND

$11.99

$

In Stock, Qty 20+

0

8

Kohler 32 016 01-S

VALVE, EXHAUST

$15.99

$

In Stock, Qty 14

0

8

Kohler 32 016 02-S

VALVE, EXHAUST (.25)

$15.99

$

In Stock, only 3 left!

0

9

Kohler 235011-S

RETAINER, SPRING

$6.49

$

In Stock, only 1 left!

0

10

Kohler 24 089 02-S

SPRING, VALVE

$7.99

$

In Stock, only 4 left!

0

11

Kohler 25 173 28-S

CAP, VALVE SPRING

$8.49

$

In Stock, only 3 left!

0

12

Kohler 24 411 05-S

ROD, PUSH

$5.49

$

In Stock, Qty 5

0

13

Kohler 24 755 66-S

KIT, VALVE TRAIN

$45.99

$

In Stock, Qty 5

0

14

Kohler 24 599 02-S

PIVOT, ROCKER ARM

$2.49

$

In Stock, Qty 8

0

15

Kohler 25 186 01-S

ARM, ROCKER

$12.99

$

In Stock, only 2 left!

0

16

Kohler 25 351 10-S

LIFTER, VALVE HYDRAULIC-USE 25 351 11-S
(Superseded to 25 351 11-S)

$23.99

$

In Stock, Qty 9

0

17

Kohler M-640034-S

SCREW, FLG (BLACK) M6X1.0X34

$2.49

$

In Stock, Qty 18

0

18

Kohler 25 086 84-S

SCREW, FLG M6X1.0X55
(Superseded to 25 086 766-S)

$2.49

$

In Stock, Qty 20+

0

19

Kohler 66 041 09-S

GASKET, VALVE COVER

$6.49

$

In Stock, Qty 7

0

20

Kohler 66 096 11-S

KIT, ROCKER COVER

$36.99

$

In Stock, only 1 left!

0

21

Kohler M-651080-S

SCREW, FLG M6X1.0X80

$2.99

$

Usually ships in 2-5 days

0

22

Kohler 66 018 04-S

RETAINER, REED

$4.99

$

In Stock, only 4 left!

0

23

Kohler 24 041 67-S

GASKET, BREATHER

$13.99

$

In Stock, Qty 20+

0

24

Kohler 24 096 163-S

COVER, BREATHER

$35.99

$

Usually ships in 2-5 days

0

25

Kohler 25 086 758-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 3 left!

0

26

Kohler 25 086 124-S

SCREW, FLG M6X1.0X25

$2.49

$

In Stock, only 3 left!

0

27

Kohler 12 755 03-S

KIT, RETAINER

$5.99

$

In Stock, Qty 8

0

28

Kohler 24 755 46-S

KIT, OIL FILL CAP (YELLOW)

$11.99

$

In Stock, only 1 left!

0

29

Kohler 24 050 11-S

FILTER, BREATHER

$2.49

$

Usually ships in 2-5 days

0

30

Kohler 24 402 03-S

REED, BREATHER-(#2440206S)
(Superseded to 24 402 06-S)

Note: Before S/N 4923100011

$3.49

$

In Stock, only 1 left!

0

30

Kohler 24 402 06-S

REED, BREATHER

Note: After S/N 4923100001

$3.49

$

In Stock, only 1 left!

0

32

Kohler 24 326 96-S

HOSE, BREATHER

$7.99

$

In Stock, only 1 left!

0

33

Kohler 66 755 10-S

KIT, LH OIL FILL VALVE COVER

$34.99

$

In Stock, only 1 left!

0

34

Kohler 25 153 02-S

O-RING, DIPSTICK

$2.49

$

In Stock, only 1 left!

0

35

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 3 left!

0

37

Kohler 25 086 397-S

SCREW, THREAD FORMING

$3.99

$

In Stock, Qty 13

0

39

Kohler 24 126 194-S

BRACKET, OXYGEN SENSOR

$1.49

$

In Stock, only 1 left!

0

40

Kohler 25 086 400-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

41

Kohler 25 154 22-S

CLIP, O2 SENSOR

$2.99

$

Usually ships in 2-5 days

0

42

Kohler 25 237 37-S

SPRING CLAMP, HOSE

$2.49

$

In Stock, Qty 11

0

57

Kohler 66 072 03-S

STUD

$9.49

$

Usually ships in 2-5 days

0
