ELBX 10152BV (7085927) - Snapper 15" Extreme Walk-Behind Leaf Blower, 10hp BLOWER ASSEMBLY (Series 2) Parts Diagram

15" Extreme Walk-Behind Leaf Blower, 10hp

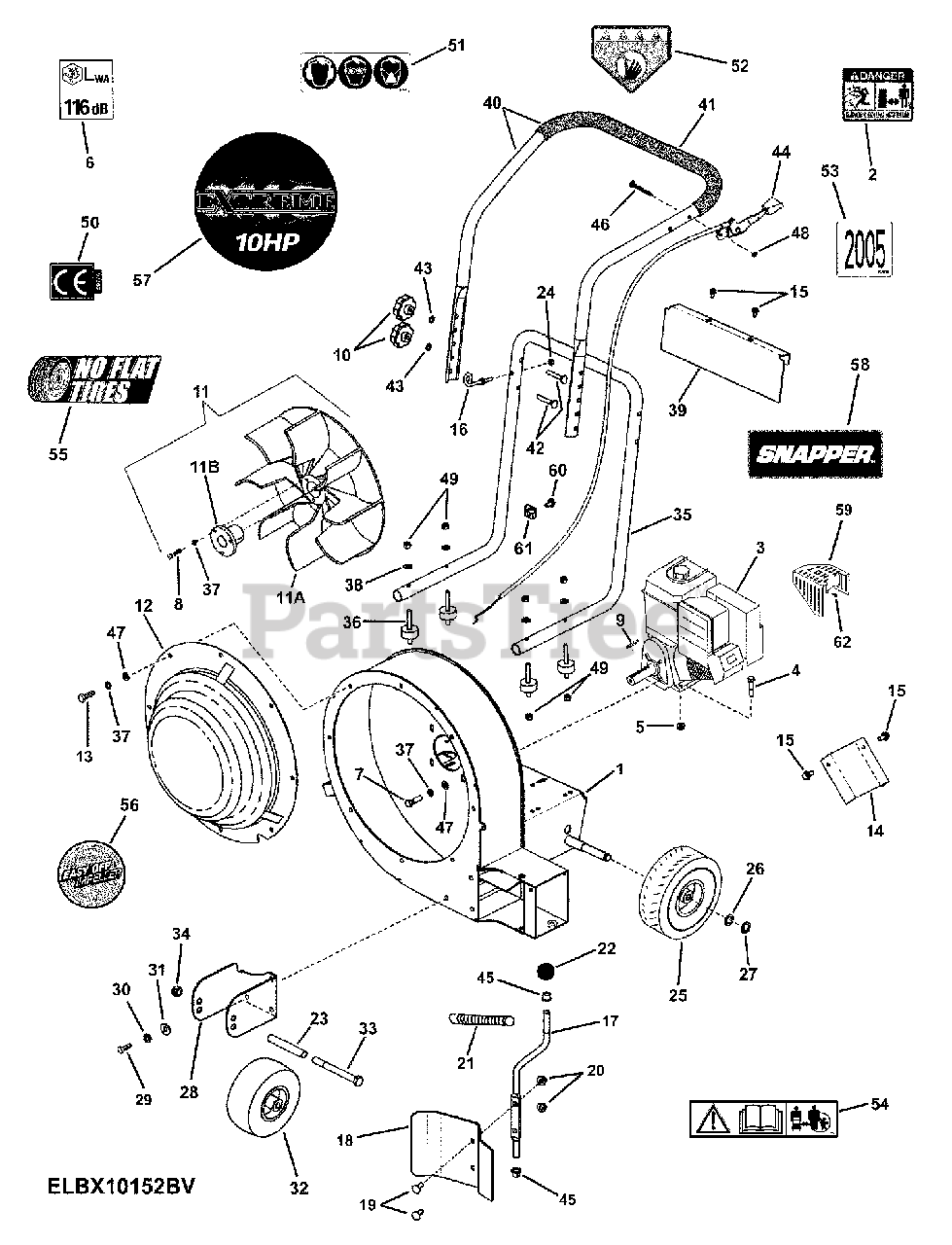

BLOWER ASSEMBLY (Series 2) Parts Diagram

  • Title

1

Snapper 7043267

WELDMENT, Housing- Extreme Blower
(Superseded to 7043267YP)

$997.99

$

Usually ships in 2-12 days

0

2

Snapper 7075892

DECAL, Danger, Thrown Objects
(Superseded to 7075892YP)

$7.99

$

Usually ships in 2-12 days

0

3

Snapper 3039111

*ENGINE, 10HP B&S Intek OHV

Note: Mod. 205412-0121-E1

$

$

Currently unavailable

4

Snapper 7091540

SCREW, 5/16-18 x 1-1/2" Hex Head Cap, GR 5
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

5

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

6

Snapper 7078069

DECAL, Sound 116 dB

$

$

Currently unavailable

7

Snapper 7090238

SCREW, 5/16-24 x 1" Hex Head Cap, GR 5
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

8

Snapper 7091527

SCREW, 5/16-18 x 1-1/4" Hex Head Cap, GR 5
(Superseded to 7091527YP)

$4.49

$

In Stock, only 4 left!

0

9

Snapper 7012315

KEY, 1/4" Square x 1-7/16"
(Superseded to 7012315YP)

$2.99

$

Usually ships in 2-12 days

0

10

Snapper 3071776

KNOB, 5/16-18 Fluted
(Superseded to 3071776SM)

$

$

Not available

11

Snapper 3021599

ASSY, 15" 9 Blade Impeller

Note: Incl. items 11A, 11B, & 3 ea. Items 8 & 37

$

$

Currently unavailable

11A

Snapper 3021595

IMPELLER, 15" O.D. Cast

$

$

Currently unavailable

11B

Snapper 3021597

HUB, Taper-Lok, Type 1 - P1 x 1.125 (1.938 OAL)

$

$

Not available

12

Snapper 3020233

WELDMENT, Intake Baffle- Extreme
(Superseded to 3020233YP)

$230.99

$

Usually ships in 2-12 days

0

13

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR 5
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

14

Snapper 7078106

DEFLECTOR, Side Air

$

$

Currently unavailable

15

Snapper 7091523

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

16

Snapper 7046465

ROPE GUIDE (1/4-20 thread)
(Superseded to 7046465SM)

$3.49

$

Usually ships in 2-12 days

0

17

Snapper 7078149

ROD, Door Front/Side Discharge
(Superseded to 7078149YP)

$18.99

$

In Stock, only 1 left!

0

18

Snapper 7078150

DOOR, Forward Air Control
(Superseded to 7078150YP)

$21.99

$

Usually ships in 2-12 days

0

19

Snapper 7091530

SCREW, 1/4-20 x 3/4" Short Square Neck Carriage, GR 5
(Superseded to 7091530SM)

$3.99

$

In Stock, only 1 left!

0

20

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock, GR 5
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

21

Snapper 3071782

SPRING, Extension
(Superseded to 3071782SM)

$

$

Not available

22

Snapper 3031103

KNOB, #230 Dimco (3/8-16 thread)
(Superseded to 3031103SM)

Note: or 7012659

$

$

Not available

23

Snapper 7022151

SLEEVE, Axle
(Superseded to 7022151YP)

$43.99

$

In Stock, only 1 left!

0

24

Snapper 7090372

NUT, 1/4-20 Hex Center Lock, GR 5 or B
(Superseded to 703954)

$

$

Not available

25

Snapper 3033001

ASSY., Wheel & Tire 410/350-4 "Sawtooth"
(Superseded to 3033001SM)

$

$

Not available

Snapper 3033107

BALL BEARING, 5/8 x 1-3/8"
(Superseded to 3033151SM)

Note: 2 included w/wheel assy, item 25

$4.49

$

Usually ships in 2-12 days

0

26

Snapper 7091628

WASHER, .64 x .99 x .05 Flat
(Superseded to 7091628SM)

$4.49

$

In Stock, only 3 left!

0

27

Snapper 7012763

RING, External Retaining
(Superseded to 7012763SM)

Note: Truarc 1500-62

$4.49

$

In Stock, Qty 6

0

28

Snapper 7078139

BRACKET, Front Wheel Mounting

$

$

Not available

29

Snapper 7091304

SCREW, 3/8-16 x 1" Hex Head Cap, GR 5
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

30

Snapper 7091320

WASHER, 3/8" Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

31

Snapper 7090517

WASHER, 3/8" Flat
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

32

Snapper 7058167

ASSY., Tire & Wheel 9 x 350-4 Smooth
(Superseded to 7058167YP)

Note: Wheel Assembly Includes the 6 items below.

$120.99

$

Usually ships in 2-12 days

0

32A

Snapper 7075553

**RIM, One-Piece Steel, Gray

$

$

Currently unavailable

32B

Snapper 7029870

**TIRE, 9 x 3.50-4, 4 Ply, Smooth
(Superseded to 7029870YP)

$57.99

$

In Stock, only 2 left!

0

32C

Snapper 7022395

**BEARING, Roller
(Superseded to 7022395YP)

$18.99

$

Usually ships in 2-12 days

0

32D

Snapper 7022394

**BALL BEARING, Flanged
(Superseded to 7022394YP)

Note: per tire assembly

$8.99

$

In Stock, Qty 11

0

32E

Snapper 7012234

**VALVE, Air
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

32F

Snapper 7046430

**GREASE FITTING, 45-Degree
(Superseded to 7046430YP)

$9.99

$

Usually ships in 2-12 days

0

33

Snapper 7091822

BOLT, 1/2-13 x 5" Hex Head Cap
(Superseded to 703886)

$6.49

$

In Stock, Qty 12

0

34

Snapper 7091894

NUT, 1/2-13 Hex Center Lock, GR 5
(Superseded to 703894)

$3.49

$

In Stock, Qty 9

0

35

Snapper 7033753

HANDLE, Lower Folding- Wide- Blower
(Superseded to 7033753YP)

$231.99

$

Usually ships in 2-12 days

0

36

Snapper 3032160

MOUNT, Vibration (5/16-18 threads, both ends)
(Superseded to 3032160YP)

$

$

Not available

37

Snapper 7091315

WASHER, 5/16" Split
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

38

Snapper 1717312

WASHER, 5/16" Curved
(Superseded to 1717312SM)

$

$

Not available

39

Snapper 7033866

DASH PANEL, Blower- Wide
(Superseded to 7033866YP)

$28.99

$

Usually ships in 2-12 days

0

40

Snapper 3023276

ASSY., Upper Handle & Grip
(Superseded to 3023276YP)

Note: (p/n 7033696 + grip)

$188.99

$

Usually ships in 2-12 days

0

41

Snapper 7074422

GRIP, 1.0 x 21-1/2" Foam
(Superseded to 7074422SM)

$

$

Not available

42

Snapper 7091189

BOLT, 5/16-18 x 2" Curved Head Square Neck, GR 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 12

0

43

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

44

Snapper 3071800

THROTTLE CONTROL, B&S, 35.00/1.62
(Superseded to 3071800SM)

Note: part # is stamped on part

$52.99

$

Usually ships in 2-12 days

0

45

Snapper 7078169

BEARING, 3/8" Clip
(Superseded to 7078169YP)

$4.49

$

Usually ships in 2-12 days

0

46

Snapper 7090505

SCREW, 1/4-20 x 2" Hex Head Cap, GR 5
(Superseded to 703163)

$3.49

$

Usually ships in 2-12 days

0

47

Snapper 7090188

WASHER, .34 x .69 x .08 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

48

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

49

Snapper 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

50

Snapper 7029776

DECAL, Euro Community (CE)
(Superseded to 7029776SM)

$7.99

$

Usually ships in 2-12 days

0

51

Snapper 7075893

DECAL, Personal Protection
(Superseded to 7075893SM)

$

$

Not available

52

Snapper 7022841

DECAL, Danger, Cut Finger (Euro)
(Superseded to 7022841SM)

$72.99

$

In Stock, only 1 left!

0

53

Snapper 7011279

DECAL, 2005 Year of Manufacture
(Superseded to 7011279YP)

$5.99

$

Usually ships in 2-12 days

0

54

Snapper 7073462

DECAL, Caution, Symbols
(Superseded to 7073462YP)

$6.49

$

Usually ships in 2-12 days

0

55

Snapper 3079268

DECAL, "No Flat Tires"

$

$

Currently unavailable

56

Snapper 3079269

DECAL, Easy Off Impeller

$

$

Currently unavailable

57

Snapper 7078087

DECAL, 10HP Extreme- Euro- Generic

$

$

Currently unavailable

58

Snapper 7027255

DECAL, SNAPPER (Panel)
(Superseded to 7027255YP)

$9.99

$

Usually ships in 2-12 days

0

59

Snapper 3071833

HEAT SHIELD, B&S 9 & 10 HP Intek

$

$

Currently unavailable

60

Snapper 3071815

SCREW, Casing Clamp

Note: Briggs # 95144

$

$

Currently unavailable

61

Snapper 3071814

CLAMP, Casing- Briggs Intek

Note: Briggs # 221535

$

$

Currently unavailable

62

Snapper 7091581

SCREW, #8-18 Self-Tap
(Superseded to 7091581YP)

$3.49

$

Usually ships in 2-12 days

0

63

Snapper 7078095

MUFFLER GUARD, Wire- B&S 10HP Intek

Note: Briggs # 693994; not shown

$

$

Currently unavailable

64

Snapper 7078096

SCREW, Muffler Guard

Note: Briggs # 94887; not shown

$

$

Currently unavailable
