ELBC 6152BV (7085926) - Snapper 15" Classic Walk-Behind Leaf Blower, 6hp BLOWER ASSEMBLY (Series 2) Parts Diagram

15" Classic Walk-Behind Leaf Blower, 6hp

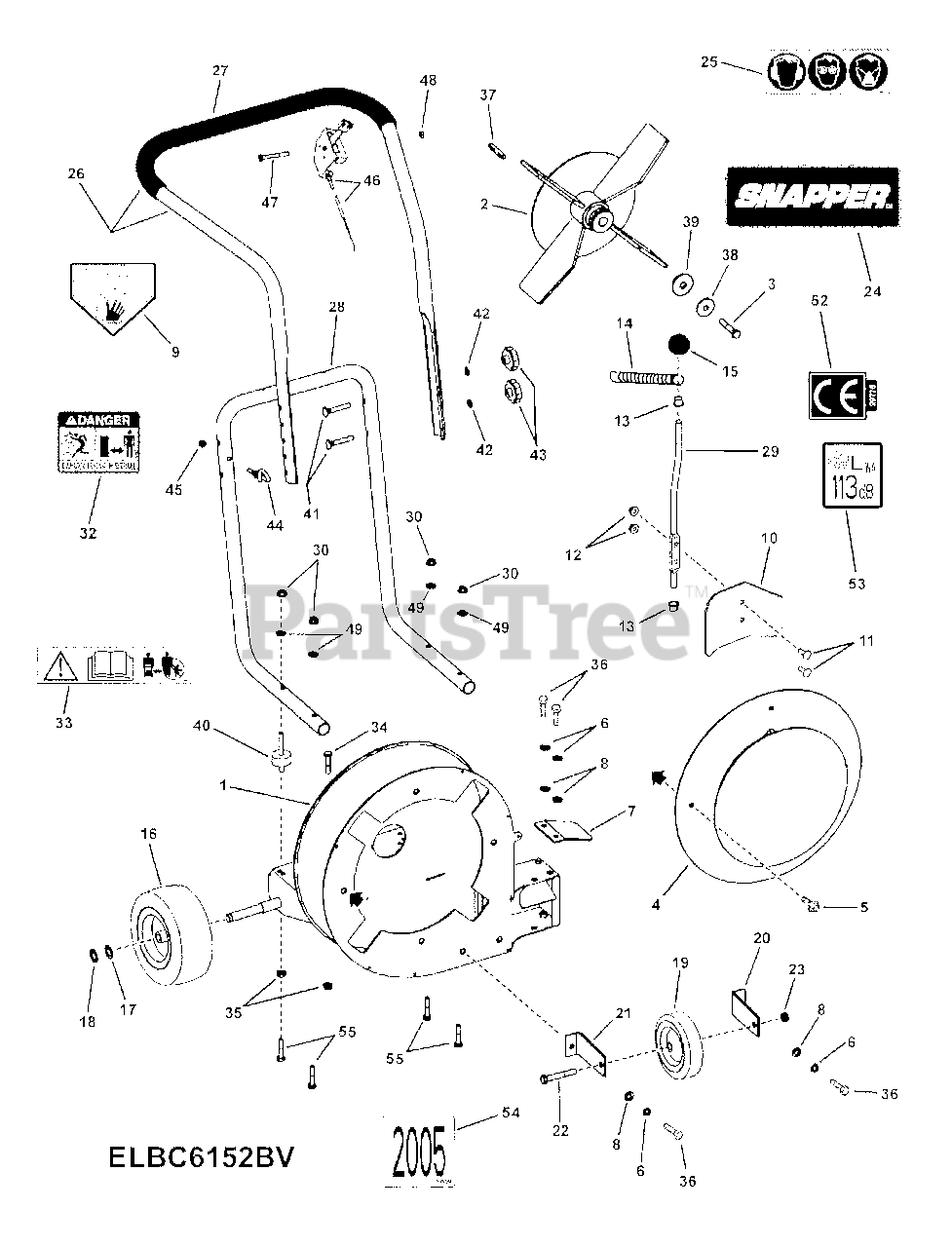

BLOWER ASSEMBLY (Series 2) Parts Diagram

  • Title

1

Snapper 7043239

WELDMENT, Base & Housing, 52 Classic

$

$

Currently unavailable

2

Snapper 7043287

WELDMENT, Steel Impeller, 4 Blade, 15.00 O.D.
(Superseded to 7043287YP)

$445.99

$

Usually ships in 2-12 days

0

3

Snapper 7090167

SCREW, 3/8-24 x 2" Hex Head Cap, GR 5
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 3020234

WELDMENT, Intake Baffle
(Superseded to 3020234SM)

$

$

Not available

5

Snapper 7091525

BOLT, 5/16-18 x 1/2" Hex Flange Lock
(Superseded to 7091525YP)

$3.49

$

In Stock, only 1 left!

0

6

Snapper 7091315

WASHER, 5/16" Split
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

7

Snapper 3024507

DEFLECTOR, Side Air
(Superseded to 3024507SM)

$

$

Not available

8

Snapper 7090188

WASHER, .34 x .69 x .08 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

9

Snapper 7022841

DECAL, Danger, Cut Finger (Euro)
(Superseded to 7022841SM)

$72.99

$

In Stock, only 1 left!

0

10

Snapper 7078161

DOOR, Forward Air Control

$

$

Currently unavailable

11

Snapper 7091530

BOLT, 1/4-20 x 3/4" Short Square Neck, GR 5
(Superseded to 7091530SM)

$3.99

$

In Stock, only 1 left!

0

12

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock, GR 5
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

13

Snapper 7078169

BEARING, 3/8 Clip
(Superseded to 7078169YP)

$4.49

$

Usually ships in 2-12 days

0

14

Snapper 3071782

SPRING, Extension
(Superseded to 3071782SM)

$

$

Not available

15

Snapper 3031103

KNOB, #230 Dimco (3/8-16 thread)
(Superseded to 3031103SM)

$

$

Not available

16

Snapper 3033001

*ASSY, Wheel & Tire, Sawtooth 4.10/3.50-4 Kenda
(Superseded to 3033001SM)

$

$

Not available

--

Snapper 3033107

BALL BEARING, 5/8 x 1-3/8"
(Superseded to 3033151SM)

Note: included with item 16

$4.49

$

Usually ships in 2-12 days

0

17

Snapper 7091628

WASHER, .64 x .99 x .05 Flat
(Superseded to 7091628SM)

$4.49

$

In Stock, only 3 left!

0

18

Snapper 7012763

RING, External Retaining
(Superseded to 7012763SM)

Note: Truarc 1500-62

$4.49

$

In Stock, Qty 6

0

19

Snapper 3033017

WHEEL, 6.00 x 1.50 Semi-Pneumatic
(Superseded to 3033017SM)

$

$

Not available

20

Snapper 3033101

BRACKET, Caster- RH
(Superseded to 3033101SM)

$17.99

$

Usually ships in 2-12 days

0

21

Snapper 3033102

BRACKET, Caster- LH
(Superseded to 3033102SM)

$17.99

$

Usually ships in 2-12 days

0

22

Snapper 7091501

SCREW, 3/8-16 x 2-1/2" Hex Head Cap, GR 5
(Superseded to 703873)

$4.49

$

In Stock, only 2 left!

0

23

Snapper 7091585

NUT, 3/8-16 Hex Center Lock, GR 5 or B
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

--

Snapper 3033003

ASSEMBLY, Front Caster (incl. items 19 thru 23)
(Superseded to 3033003SM)

$

$

Not available

24

Snapper 7027255

DECAL, SNAPPER (Panel)
(Superseded to 7027255YP)

$9.99

$

Usually ships in 2-12 days

0

25

Snapper 7075893

DECAL, Personal Protection
(Superseded to 7075893SM)

$

$

Not available

26

Snapper 3023270

ASSEMBLY, Upper Handle & Grip- Narrow
(Superseded to 3023270SM)

Note: (part # 7033876 + grip)

$125.99

$

Usually ships in 2-12 days

0

27

Snapper 7074422

GRIP, 1.0 x 21-1/2" Foam
(Superseded to 7074422SM)

$

$

Not available

28

Snapper 7033877

HANDLE, Lower Folding, Narrow, Blower
(Superseded to 7033877SM)

$101.99

$

Usually ships in 2-12 days

0

29

Snapper 7078163

ROD, Door Front/Side Discharge
(Superseded to 7078163YP)

$17.99

$

In Stock, only 1 left!

0

30

Snapper 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

31

Snapper 3039112

**ENGINE, 6HP B&S Intek, 1" Horozontal Shaft

Note: (not shown) Mod. 121212-0110-E1

$

$

Currently unavailable

32

Snapper 7075892

DECAL, Danger, Thrown Objects
(Superseded to 7075892YP)

$7.99

$

Usually ships in 2-12 days

0

33

Snapper 7073462

DECAL, Caution, Symbols
(Superseded to 7073462YP)

$6.49

$

Usually ships in 2-12 days

0

34

Snapper 7091540

SCREW, 5/16-18 x 1-1/2" Hex Head Cap, GR 5
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

35

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

36

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR 5
(Superseded to 704287)

$3.99

$

In Stock, Qty 8

0

37

Snapper 7010210

KEY, 1/4" Square x 2"
(Superseded to 703890)

$4.99

$

In Stock, Qty 6

0

38

Snapper 7012063

WASHER, .411/.406 I.D. Cone
(Superseded to 703963)

$6.99

$

Usually ships in 2-12 days

0

39

Snapper 7091962

WASHER, .468 x 1.625 x .25 Flat
(Superseded to 7091962SM)

$7.99

$

In Stock, only 1 left!

0

40

Snapper 3032160

MOUNT, Vibration (5/16-18 threads, both ends)
(Superseded to 3032160YP)

$

$

Not available

41

Snapper 7091189

BOLT, 5/16-18 x 2" Curved Head Square Neck, GR 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 11

0

42

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

43

Snapper 3071776

KNOB, Folding Handle
(Superseded to 3071776SM)

$

$

Not available

44

Snapper 7046465

ROPE GUIDE (1/4-20 thread)
(Superseded to 7046465SM)

$3.49

$

Usually ships in 2-12 days

0

45

Snapper 7090372

NUT, 1/4-20 Hex Center Lock, GR 5 or B
(Superseded to 703954)

$

$

Not available

46

Snapper 3071800

THROTTLE CONTROL, B&S, 35.00/1.62
(Superseded to 3071800SM)

Note: part # is stamped on part

$52.99

$

Usually ships in 2-12 days

0

47

Snapper 7090505

SCREW, 1/4-20 x 2" Hex Head Cap, GR 5
(Superseded to 703163)

$3.49

$

Usually ships in 2-12 days

0

48

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

49

Snapper 1717312

WASHER, 5/16" Curved
(Superseded to 1717312SM)

$

$

Not available

50

Snapper 7078090

GUARD, Wire Muffler, 6HP Intek

Note: Briggs # 790188; not shown

$

$

Currently unavailable

51

Snapper 7078096

SCREW, Muffler Guard

Note: Briggs # 94887; not shown

$

$

Currently unavailable

52

Snapper 7029776

DECAL, Euro Community (CE)
(Superseded to 7029776SM)

$7.99

$

Usually ships in 2-12 days

0

53

Snapper 7078068

DECAL, Sound 113 dB

$

$

Currently unavailable

54

Snapper 7011279

DECAL, 2005 Year of Manufacture
(Superseded to 7011279YP)

$5.99

$

Usually ships in 2-12 days

0

55

Snapper 7091908

SCREW, 5/16-18 x 1-3/4" Hex Head Cap, GR 5
(Superseded to 7091908YP)

$4.99

$

Usually ships in 2-12 days

0
