ELB 175460 H (7800498) - Beal 46" Lawn Tractor, Hydro Drive, 17.5hp (2009) Steering Group (7500502_7501199_7501296) Parts Diagram

46" Lawn Tractor, Hydro Drive, 17.5hp

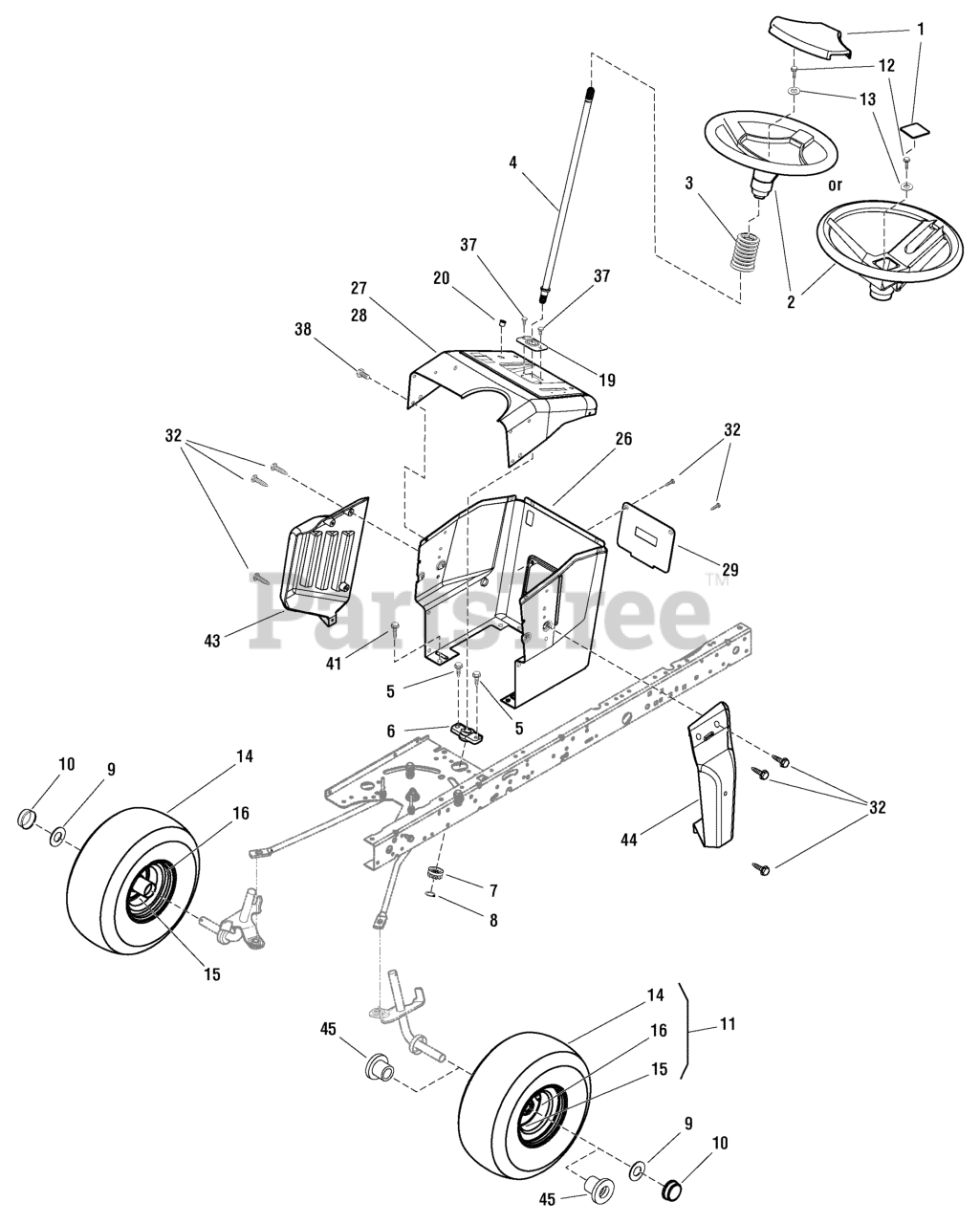

Steering Group (7500502_7501199_7501296) Parts Diagram

  • Title

1

Murray 711326MA

INSERT, Steering Wheel

Note: (Used on 12.5HP & 15.5HP)

$7.49

$

Usually ships in 2-12 days

0

1

Murray 1001982MA

COVER, Integra

Note: (Used on 17.5HP & 22HP)

$24.99

$

In Stock, only 1 left!

0

2

Murray 095185MA

STEERING WHEEL
(Superseded to 1687602YP)

Note: (Used on 12.5HP & 15.5HP)

$110.99

$

In Stock, only 1 left!

0

2

Murray 1001980MA

STEERING WHEEL

Note: (Used on 17.5HP & 22HP)

$87.99

$

Usually ships in 2-12 days

0

3

Murray 092059MA

BELLOWS

$9.49

$

Usually ships in 2-12 days

0

4

Murray 690625MA

SHAFT, Steering

$

$

Not available

5

Murray 26X267MA

SCREW, 5/16-18

$4.99

$

In Stock, Qty 20+

0

6

Murray 094124MA

BEARING, Lower

$14.99

$

In Stock, only 1 left!

0

7

Murray 690183MA

GEAR, Pinion

$

$

Not available

8

Murray 011X25MA

SNAP RING, 1/2

$4.49

$

In Stock, Qty 5

0

9

Murray 17X195MA

WASHER, Flat 1-3/4

$4.99

$

In Stock, only 4 left!

0

10

Murray 094618MA

HUB CAP

$5.99

$

In Stock, only 4 left!

0

11

Murray 7101557YP

WHEEL & TIRE ASSEMBLY, 15X6.0-6

Note: (Includes Ref. Nos. 14, 15, 16 & 45)

$182.99

$

Usually ships in 2-12 days

0

12

Murray 0025X3MA

SCREW, Thread Forming, 1/4-20 x 1

$4.99

$

Usually ships in 2-12 days

0

13

Murray 17X146MA

WASHER, Flat

$5.49

$

Usually ships in 2-12 days

0

14

Murray 7101556YP

TIRE, 15 x 6 2 Ply K358
(Superseded to 1731951SM)

$131.99

$

In Stock, Qty 8

0

15

Murray 7046430YP

FITTING, Grease

$9.99

$

Usually ships in 2-12 days

0

16

Murray 7012234SM

VALVE STEM, TR412

$6.49

$

Usually ships in 2-12 days

0

19

Murray 1001491MA

BEARING, Steering

$5.49

$

Usually ships in 2-12 days

0

20

Murray 1001755MA

GROMMET, Parking Brake

$3.49

$

Usually ships in 2-12 days

0

26

Murray 7300872BMYP

SUPPORT, Dash

Note: (Black)

$148.99

$

Usually ships in 2-12 days

0

26

Murray 7300872TMA

SUPPORT, Dash

Note: (Gray)

$142.99

$

Usually ships in 2-12 days

0

27

Murray 7300774BMYP

DASH, Single

Note: (Black) (Used on 12.5HP & 15.5HP)

$74.99

$

Usually ships in 2-12 days

0

27

Murray 7300774TMA

DASH, Single

Note: (Gray) (Used on 12.5HP & 15.5HP)

$71.99

$

Usually ships in 2-12 days

0

28

Murray 7300678BMYP

DASH, Twin

Note: (Black) (Used on 17.5HP & 22HP)

$95.99

$

Usually ships in 2-12 days

0

28

Murray 7300678TYP

DASH, Twin

Note: (Gray) (Used on 17.5HP & 22HP)

$95.99

$

Usually ships in 2-12 days

0

29

Murray 7300750ZMA

PANEL, Access

Note: (Black)

$17.99

$

Usually ships in 2-12 days

0

29

Murray 7300750TMA

PANEL, Access

Note: (Gray)

$12.99

$

Usually ships in 2-12 days

0

32

Murray 26X270MA

SCREW, Thread Forming

$4.49

$

In Stock, Qty 13

0

37

Murray 26X238MA

SCREW, 1/4" AB x 1/2

$3.99

$

Usually ships in 2-12 days

0

38

Murray 26X201MA

SCREW, Self Tap, #8 x 3/8

$4.49

$

In Stock, only 2 left!

0

41

Murray 26X249MA

CAPSCREW, 5/16-18 x 3/4

$

$

Not available

43

Murray 095217MA

PANEL, Side, Right

$38.99

$

Usually ships in 2-12 days

0

44

Murray 095218MA

PANEL, Side, Left

$38.99

$

Usually ships in 2-12 days

0

45

Murray 1742259YP

BEARING, Wheel
(Superseded to 1752171YP)

$11.99

$

In Stock, Qty 20+

0
