ELB 175460 H (7800498) - Beal 46" Lawn Tractor, Hydro Drive, 17.5hp (2009) Motion Drive Group - Hydro Drive - Hydro Gear 310-0510 (7500499) Parts Diagram

46" Lawn Tractor, Hydro Drive, 17.5hp

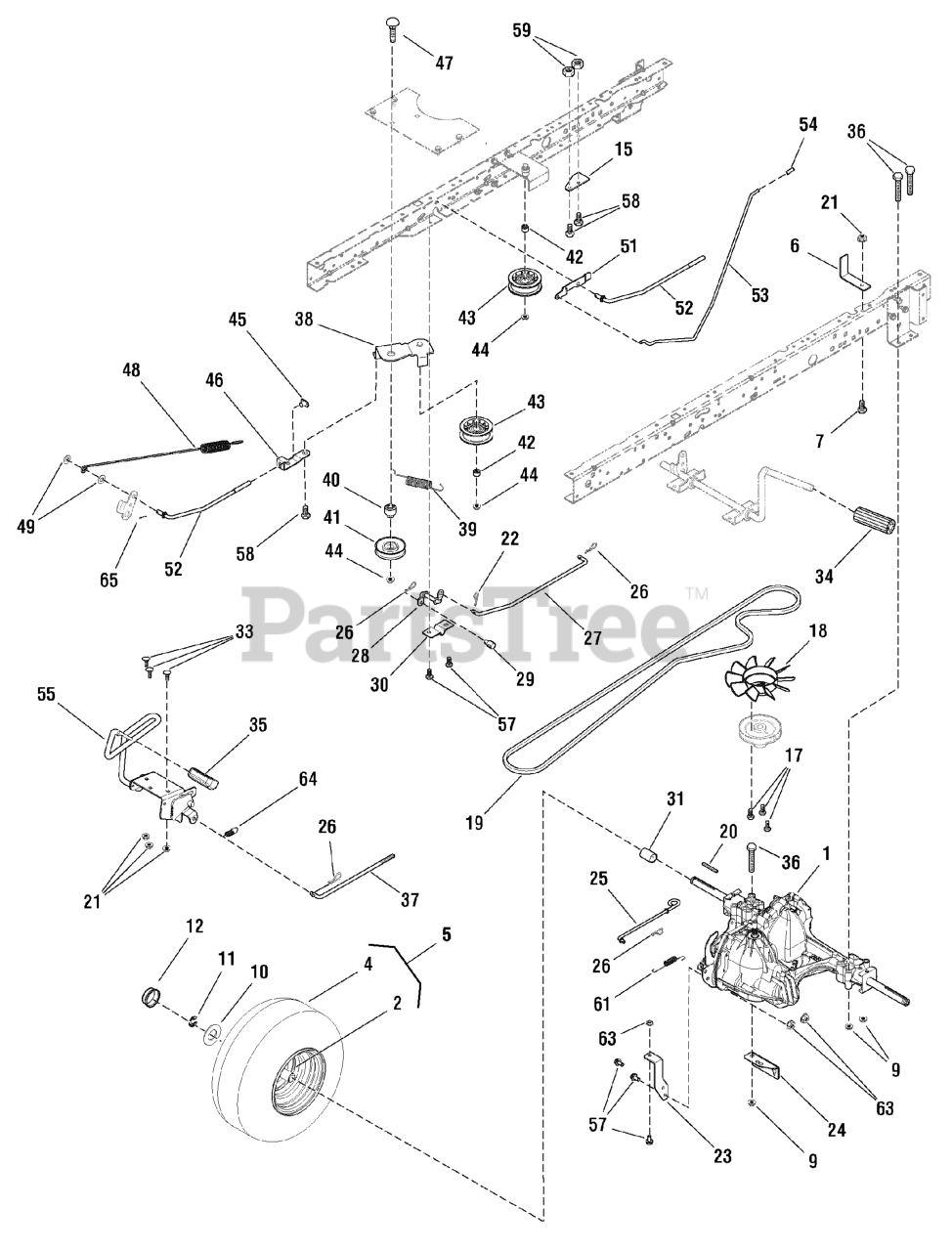

Motion Drive Group - Hydro Drive - Hydro Gear 310-0510 (7500499) Parts Diagram

  • Title

1

Murray 7101332YP

TRANSAXLE, Hydro Gear
(Superseded to 7101669YP)

$866.99

$

Usually ships in 2-12 days

0

2

Murray 7012234SM

VALVE STEM, TR412

$6.49

$

Usually ships in 2-12 days

0

4

Murray 7101562YP

TIRE, 20 x 10-8, 2 Ply K358

$210.99

$

Usually ships in 2-12 days

0

5

Murray 7101563YP

WHEEL & TIRE ASSY, 20 x 10.0-8

Note: (Includes Ref. Nos 2 & 4)

$283.99

$

Usually ships in 2-12 days

0

6

Murray 7300960YP

GUIDE, Hydro Belt

$16.99

$

Usually ships in 2-12 days

0

7

Murray 01X145MA

BOLT, Hex, 5/16-18 x 2-1/2

$4.49

$

Usually ships in 2-12 days

0

9

Murray 015X88MA

NUT, Hex Flange 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

10

Murray 17X195MA

WASHER, Flat 1-3/4

$4.99

$

In Stock, only 4 left!

0

11

Murray 0011X3MA

E-RING, .750D-.050T

$5.49

$

In Stock, Qty 20+

0

12

Murray 094618MA

HUB CAP

$5.99

$

In Stock, only 4 left!

0

15

Murray 7300888BMYP

PLATE, Forward Stop

$11.99

$

Usually ships in 2-12 days

0

17

Murray 7900057YP

SCREW, #12-24 x 1/2

$3.99

$

Usually ships in 2-12 days

0

18

Murray 7101653YP

FAN

$16.99

$

Usually ships in 2-12 days

0

20

Murray 021553MA

KEY, Square, 3/16

$4.99

$

In Stock, only 2 left!

0

19

Murray 7035500YP

BELT, Dual Spindle Brake

$

$

Not available

21

Murray 015X79MA

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

22

Murray 030X20MA

PIN, Cotter, 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

23

Murray 7300684ZYP

BRACKET, Torque, Hydro
(Superseded to 7300684BMYP)

$58.99

$

In Stock, only 1 left!

0

24

Murray 7300701ZYP

BRACKET, Roll Release

$6.99

$

Usually ships in 2-12 days

0

25

Murray 7101542YP

LEVER, Roll Release

$13.99

$

Usually ships in 2-12 days

0

26

Murray 1722460SM

HAIR PIN
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

27

Murray 7101453YP

ROD, Rear Drive

$18.99

$

Usually ships in 2-12 days

0

28

Murray 7102053YP

ROD, Pivot Drive

$14.99

$

Usually ships in 2-12 days

0

29

Murray 7046451YP

SWIVEL, Adjustable

$11.99

$

Usually ships in 2-12 days

0

30

Murray 7300682BMYP

BRACKET, Support

$11.99

$

Usually ships in 2-12 days

0

31

Murray 7200130YP

SPACER, Axle

$16.99

$

Usually ships in 2-12 days

0

33

Murray 002X53MA

BOLT, Carriage, 3/8-16 x 5/8
(Superseded to 703159)

$3.99

$

In Stock, Qty 19

0

34

Murray 021544MA

PEDAL, Clutch and Brake
(Superseded to 1727261SM)

$9.99

$

In Stock, Qty 5

0

35

Murray 1721675SM

PAD, Foot Pedal, Forward

$

$

Not available

36

Murray 01X155MA

BOLT, Hex 5/16-18 x 2 1/2
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0

37

Murray 7101454YP

ROD, Front Drive

$11.99

$

Usually ships in 2-12 days

0

38

Murray 7500602YP

ARM ASSEMBLY, Idler

$49.99

$

Usually ships in 2-12 days

0

39

Murray 165X155MA

SPRING, Extension Control

$6.49

$

In Stock, only 1 left!

0

40

Murray 1001012MA

BUSHING, Pivot

$9.49

$

Usually ships in 2-12 days

0

41

Murray 690410MA

PULLEY, Idler, 3 in

$19.99

$

In Stock, only 1 left!

0

42

Murray 690369MA

SPACER, 1/2 in To 17 mm

$

$

Not available

43

Murray 690409MA

PULLEY, Idler, 2-3/4 in

$19.99

$

In Stock, Qty 13

0

44

Murray 015X98MA

NUT, Flange Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

45

Murray 1001014MA

NUT, Tee

$4.99

$

Usually ships in 2-12 days

0

46

Murray 7300934YP

LINK, Clutch, Yellow

$6.99

$

Usually ships in 2-12 days

0

47

Murray 002X92MA

BOLT, Carriage, 3/8-16 x 2

$4.99

$

In Stock, only 4 left!

0

48

Murray 7101801YP

SPRING, Hydro Brake

$14.99

$

Usually ships in 2-12 days

0

49

Murray 017X48MA

WASHER, Flat 1

$8.49

$

Usually ships in 2-12 days

0

51

Murray 7300940YP

LATCH, Parking Brake

$7.99

$

Usually ships in 2-12 days

0

52

Murray 7101489YP

ROD, Clutch Drive

$16.99

$

Usually ships in 2-12 days

0

53

Murray 1001245ZMA

ROD, Parking Brake

$33.99

$

Usually ships in 2-12 days

0

54

Murray 091079MA

GRIP

$3.49

$

Usually ships in 2-12 days

0

55

Murray 7400248BMYP

FOOT CONTROL

Note: (Used before Serial Number 2013869397)

$136.99

$

Usually ships in 2-12 days

0

55

Murray 7400289BMYP

FOOT CONTROL

Note: (Used after Serial Number 2013869397)

$71.99

$

Usually ships in 2-12 days

0

57

Murray 7091811SM

BOLT, Hex Flange, 5/16-16 x 5/8
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

58

Murray 7091579SM

SCREW, Hex 1/4-20 x 5/8

$3.99

$

In Stock, only 3 left!

0

59

Murray 015X82MA

NUT, Nylock 1/4-20

$3.49

$

Usually ships in 2-12 days

0

61

Murray 165X92MA

SPRING, Extension

$5.49

$

In Stock, only 2 left!

0

63

Murray 7091601SM

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

64

Murray 165X168MA

SPRING, Extension

$5.99

$

Usually ships in 2-12 days

0

65

Murray 030X20MA

PIN, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0
