ELB 125380 (2690992) - Beal 38" Lawn Tractor, 12.5hp (2011) Wheels & Tires Group Parts Diagram

38" Lawn Tractor, 12.5hp

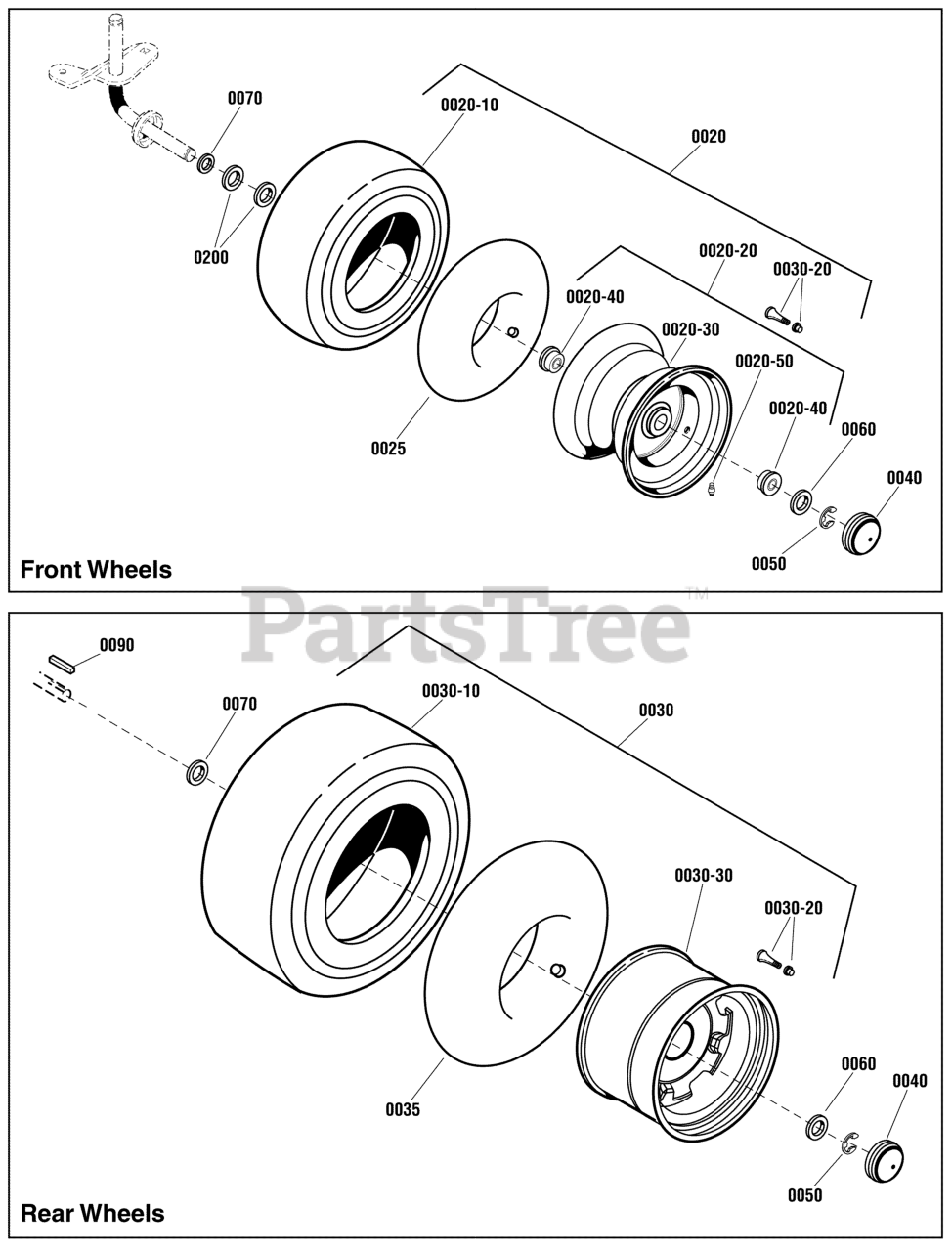

Wheels & Tires Group Parts Diagram

  • Title

0020

Murray 1729708

WHEEL & TIRE ASSEMBLY, Front
(Superseded to 1729708SM)

Note: (Includes Ref. Nos. 0020-10, 0020-20, 0020-30, 0020-40 & 0020-50)

$168.99

$

Usually ships in 2-12 days

0

0020-10

Murray 1731951

TIRE, 15 x 6-6, Front
(Superseded to 1731951SM)

$131.99

$

In Stock, Qty 8

0

0020-20

Murray 1751688

WHEEL & BUSHING ASSEMBLY

$

$

Currently unavailable

0020-30

WHEEL, Rim

Note: (Not a serviceable part, order Ref. 0020-20)

$

$

Not available

0020-40

Murray 1713167

BEARING
(Superseded to 1752171YP)

$11.99

$

In Stock, Qty 20+

0

0020-50

Murray 2812808

FITTING, Grease
(Superseded to 2812808SM)

$4.49

$

In Stock, Qty 20+

0

0025

Murray 1664090

TUBE, Tire, Front
(Superseded to 1664090SM)

$26.99

$

In Stock, only 3 left!

0

0030

Murray 7102668

WHEEL & TIRE ASSEMBLY, Rear, 18 x 8.5-8
(Superseded to 7102668YP)

Note: (Includes Ref. Nos. 0020-20, 0030-10, 0030-20 & 0030-30)

$205.99

$

Usually ships in 2-12 days

0

0030-10

Murray 7102670

TIRE, K358, 2 Ply, 18 x 8.5-8
(Superseded to 7102670YP)

$125.99

$

Usually ships in 2-12 days

0

0030-20

Murray 2172353

VALVE STEM & CAP
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

0030-30

WHEEL, Rim

Note: (Not a serviceable part, order Ref. 0030)

$

$

Not available

0035

Murray 2164247

TUBE, Tire, Rear
(Superseded to 2164247SM)

$40.99

$

Usually ships in 2-12 days

0

0040

Murray 721318

HUB CAP
(Superseded to 094618MA)

$5.99

$

In Stock, only 4 left!

0

0050

Murray 720010

E-RING
(Superseded to 0011X3MA)

$5.49

$

In Stock, Qty 20+

0

0060

Murray 722620

WASHER, Flat
(Superseded to 17X195MA)

$4.99

$

In Stock, only 4 left!

0

0070

Murray 722598

WASHER, Flat, 3/4 x 1-1/4 x 16GA
(Superseded to 17X160MA)

$4.99

$

In Stock, Qty 20+

0

0090

Murray 720258

KEY, Square, 3/16
(Superseded to 021553MA)

$4.99

$

In Stock, only 2 left!

0

0200

Murray 1911386

WASHER, 3/4
(Superseded to 703992)

$4.49

$

Usually ships in 2-12 days

0
