ELB 125380 (2690992) - Beal 38" Lawn Tractor, 12.5hp (2011) 38" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

38" Lawn Tractor, 12.5hp

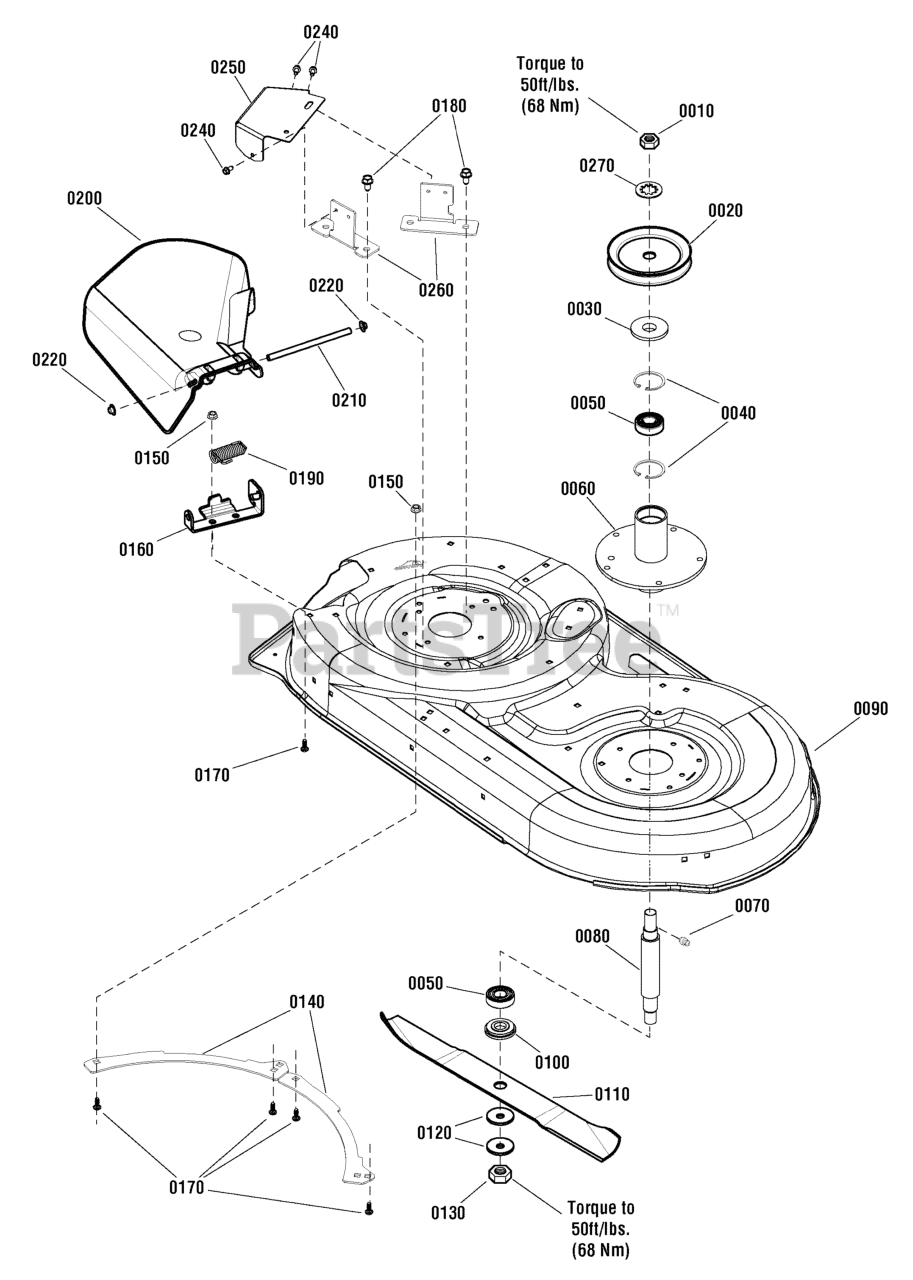

38" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

  • Title
0010

Murray 1922014SM

NUT, Hex Jam, 5/8-18
(Superseded to 703904)

$4.99

$

In Stock, Qty 19

0

0020

Murray 1751088YP

PULLEY, Spindle, 5-1/4 OD

$35.99

$

Usually ships in 2-12 days

0

0030

Murray 7072440SM

SPACER, Pulley

$9.49

$

In Stock, Qty 19

0

0040

Murray 7012491SM

RING, Retaining, 1-3/4

$4.49

$

In Stock, Qty 20+

0

0050

Murray 2108202SM

BEARING, Ball, 3/4 ID x 1-3/4 OD x 5/8"

$11.99

$

In Stock, Qty 20+

0

0060

Murray 1731372BMYP

SPINDLE HOUSING

$98.99

$

In Stock, Qty 11

0

0070

Murray 1704314SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0080

Murray 7072537SM

SHAFT, Spindle

$43.99

$

In Stock, Qty 20+

0

0090

Murray 1731204BIYP

HOUSING, 38"

$398.99

$

Usually ships in 2-12 days

0

0100

Murray 1731917SM

WASHER, Spindle Blade

$9.49

$

In Stock, Qty 20+

0

0110

Murray 1737534AYP

BLADE, Mower, 38"

$27.99

$

Usually ships in 2-12 days

0

0120

Murray 7024467SM

WASHER, Belleville, 1-3/4 Dia.

$4.49

$

In Stock, Qty 20+

0

0130

Murray 7091633SM

NUT, Hex, 9/16F

$4.99

$

In Stock, Qty 20+

0

0140

Murray 7300834BMYP

PLATE, Rear

$16.99

$

Usually ships in 2-12 days

0

0150

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0160

Murray 094956E701MA

BRACKET, Hinge

$22.99

$

Usually ships in 2-12 days

0

0170

Murray 1931333SM

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0180

Murray 1923683SM

CAPSCREW, Hex Washer Head, Taptite, 3/8-16 x 3/4
(Superseded to 703950)

$5.49

$

In Stock, only 1 left!

0

0190

Murray 0166X4MA

SPRING, Torsion

$6.49

$

In Stock, Qty 9

0

0200

Murray 094707MA

DEFLECTOR & SUPPORT ASMY, Chute

$108.99

$

In Stock, only 3 left!

0

0210

Murray 094957ZMA

ROD, Deflector

$10.99

$

In Stock, only 1 left!

0

0220

Murray 1960093SM

NUT, Push Pal, 3/8
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

0240

Murray 26X263MA

SCREW, Hex 1/4 x 1/2

$4.99

$

In Stock, only 1 left!

0

0250

Murray 1752034BMYP

COVER, Mower Spindle

$26.99

$

Usually ships in 2-12 days

0

0260

Murray 1733889ASM

SUPPORT, Spindle Guard

$17.99

$

Usually ships in 2-12 days

0

0270

Murray 7090880YP

WASHER, Internal Tooth, 5/8

$4.49

$

Usually ships in 2-12 days

0
